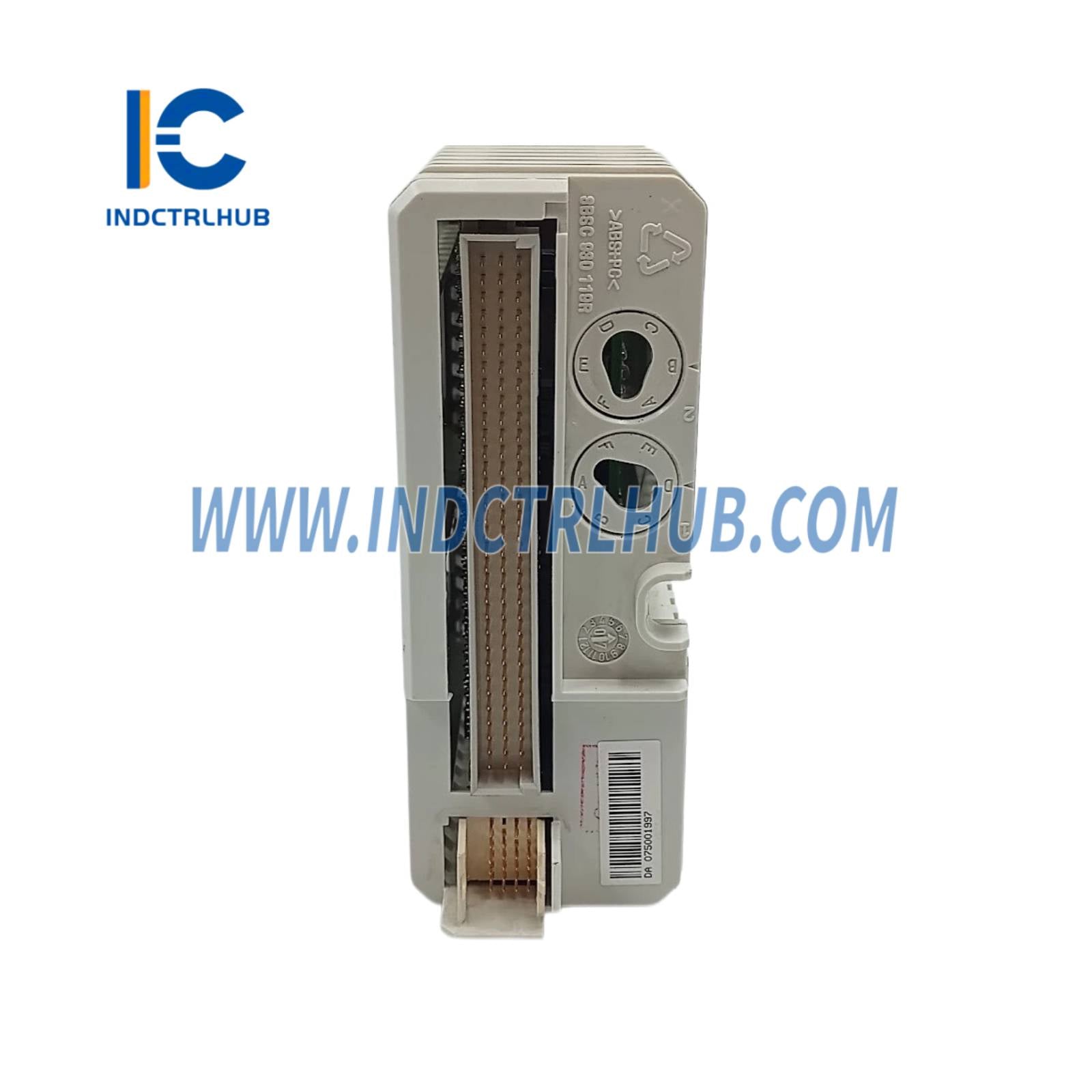

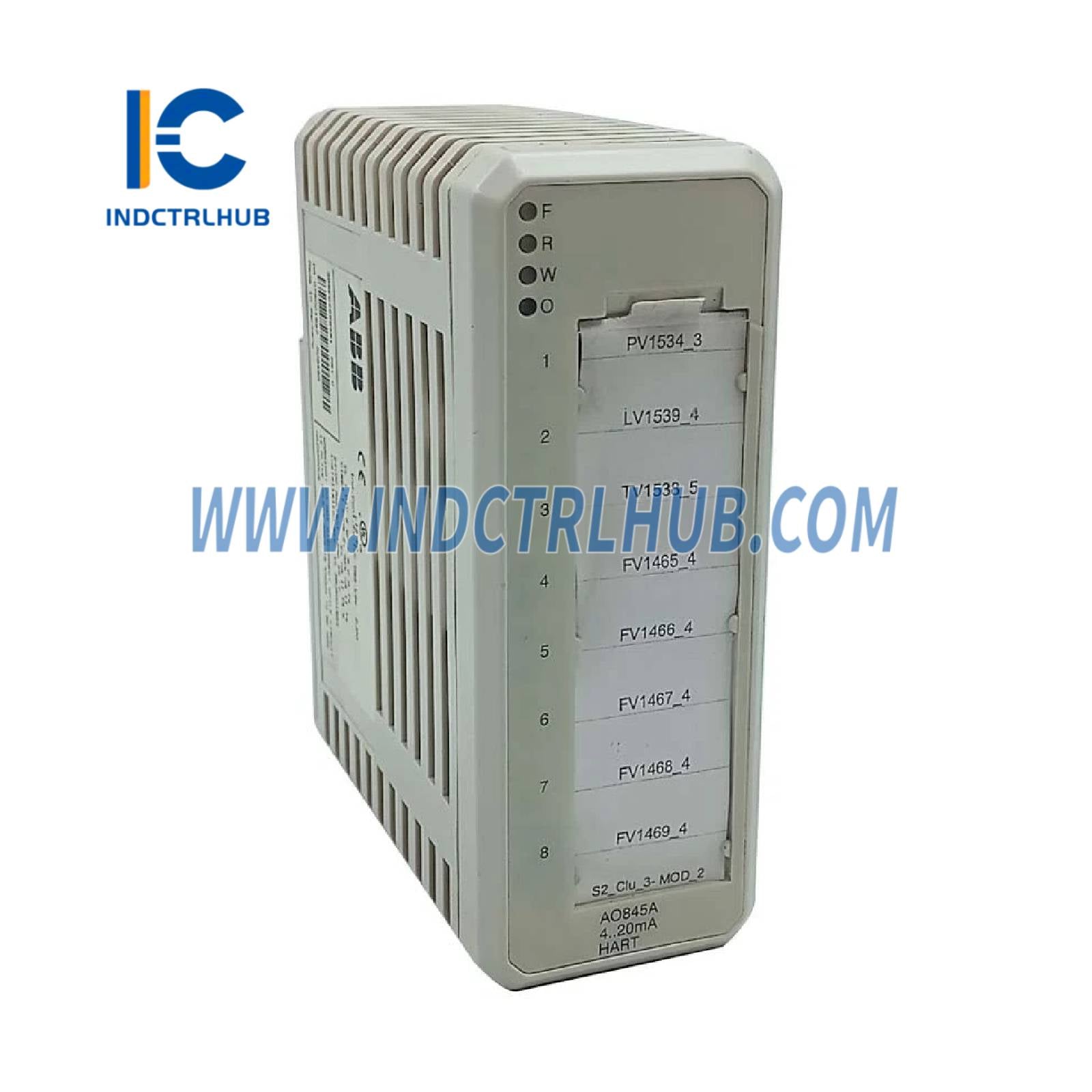

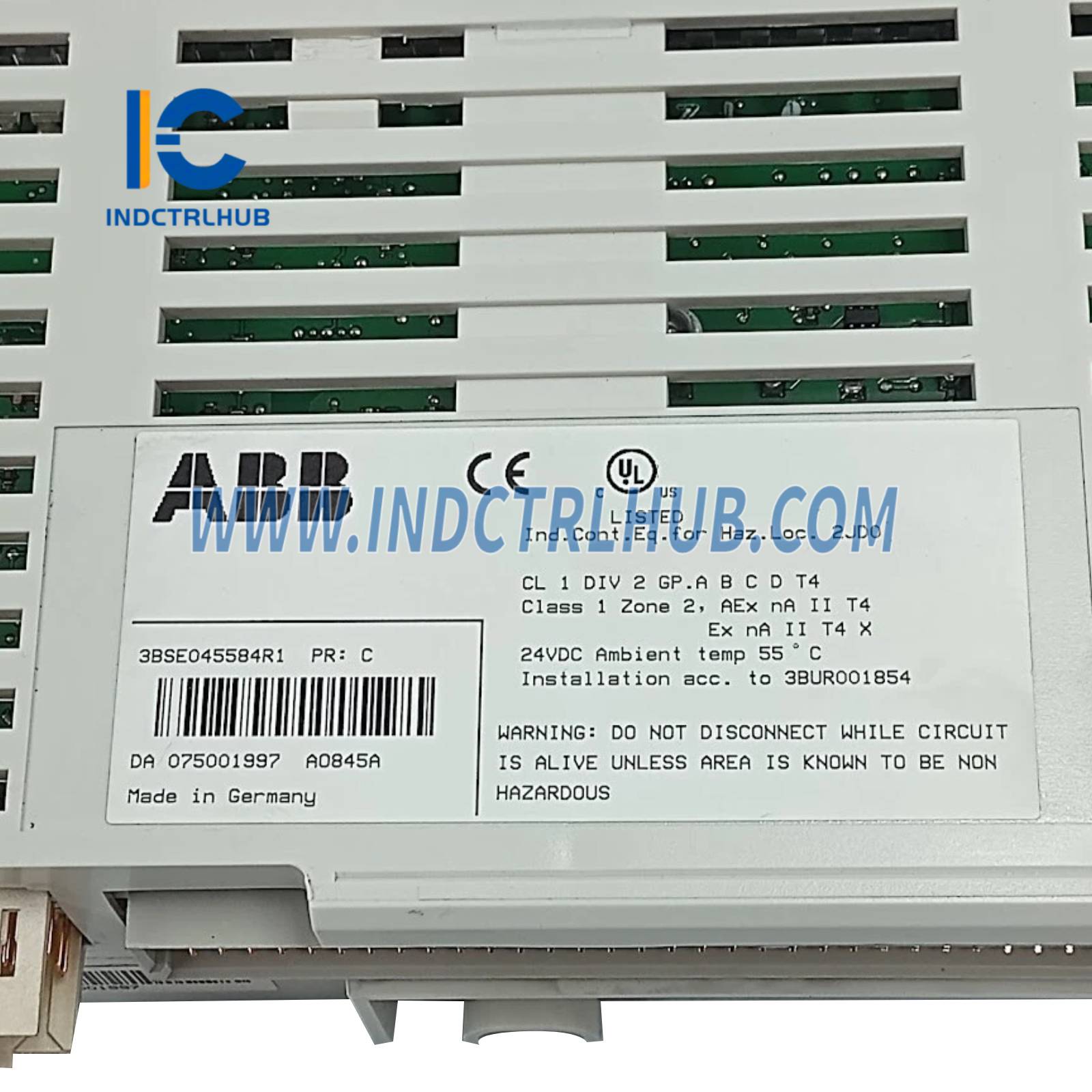

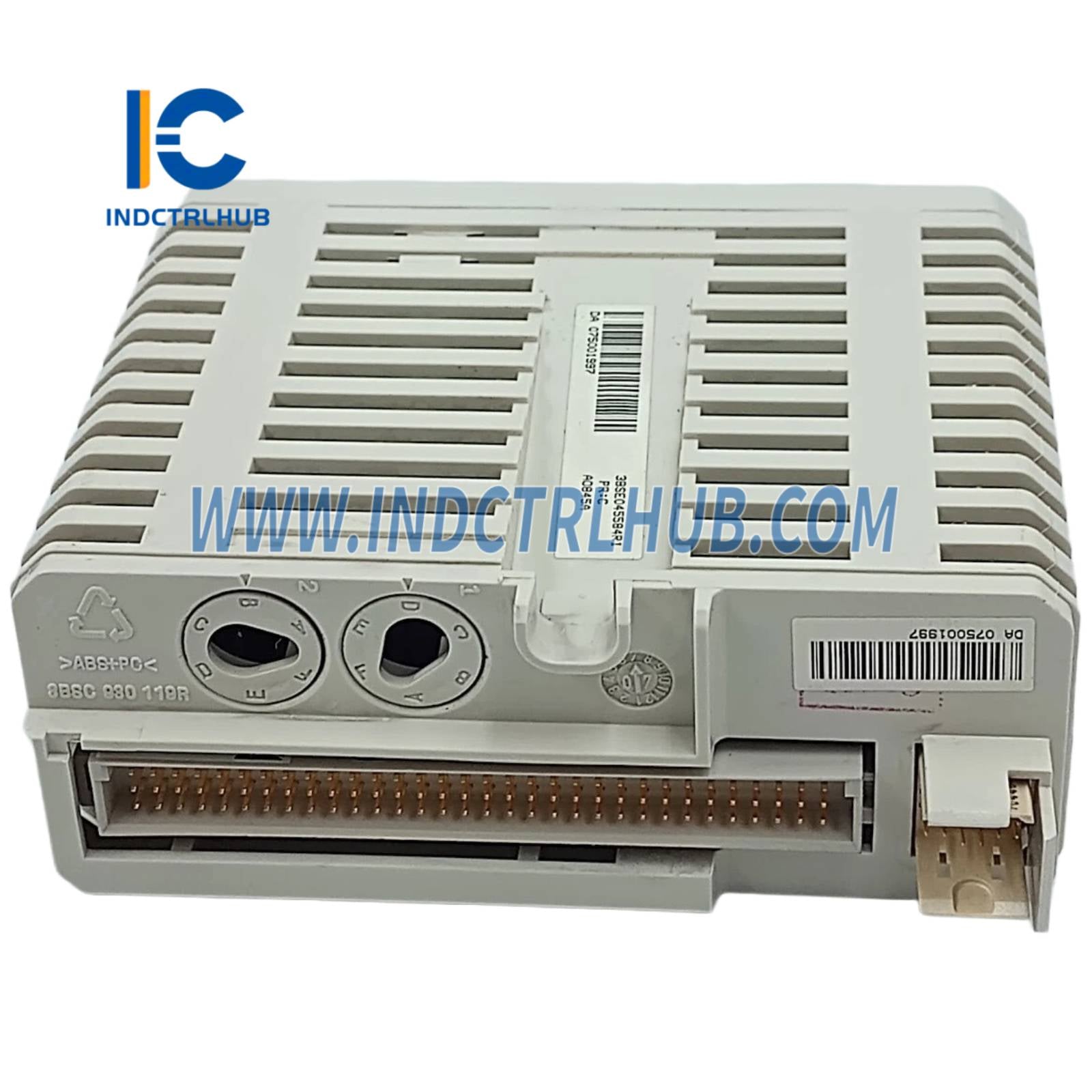

Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BSE045584R1 |
|
ABB Type Designation |
AO845A |
|
Catalog Description |
AO845A Analog Output S/R HART 8 ch |
|
Long Description |
(0) 4–20 mA, 12-bit, RLmax 750 Ω. Single or redundant. Loop supervised DI function. Uses TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852. |
|
Medium Description |
Same as long description |
|
Product Type |
I-O_Module |
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Channel Type |
AO (Analog Output) |
|
Number of Output Channels |
8 |
|
Signal Type |
(0) 4–20 mA current output |
|
Resolution |
12-bit |
|
Load Resistance (RLmax) |
750 ohms |
|
Loop Supervision |
Yes (with DI function) |
|
Redundancy |
Single or Redundant mode supported |
|
HART Support |
Yes |
|
Compatible MTUs |
TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852 |
Ordering & Compliance
|
Field |
Details |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389099 |
|
RoHS Status |
Compliant (EU Directive 2011/65/EU) |
|
WEEE Category |
5. Small Equipment |
|
SCIP Code |
840ccec5-99f6-4d14-a28c-4ab091efac2b |
Environmental Information
|
Parameter |
Value |
|---|---|
|
Batteries |
0 |
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Net Width |
45 mm |
|
Net Height |
119 mm |
|
Net Depth/Length |
102 mm |
|
Net Weight |
0.2 kg |
Product Family Compatibility
|
Compatible With |
|---|
|
800xA System – S800 I/O (v5.0, 5.1, 6.0) |
|
Compact Product Suite – S800 I/O (v4.1, 5.0, 5.1) |
