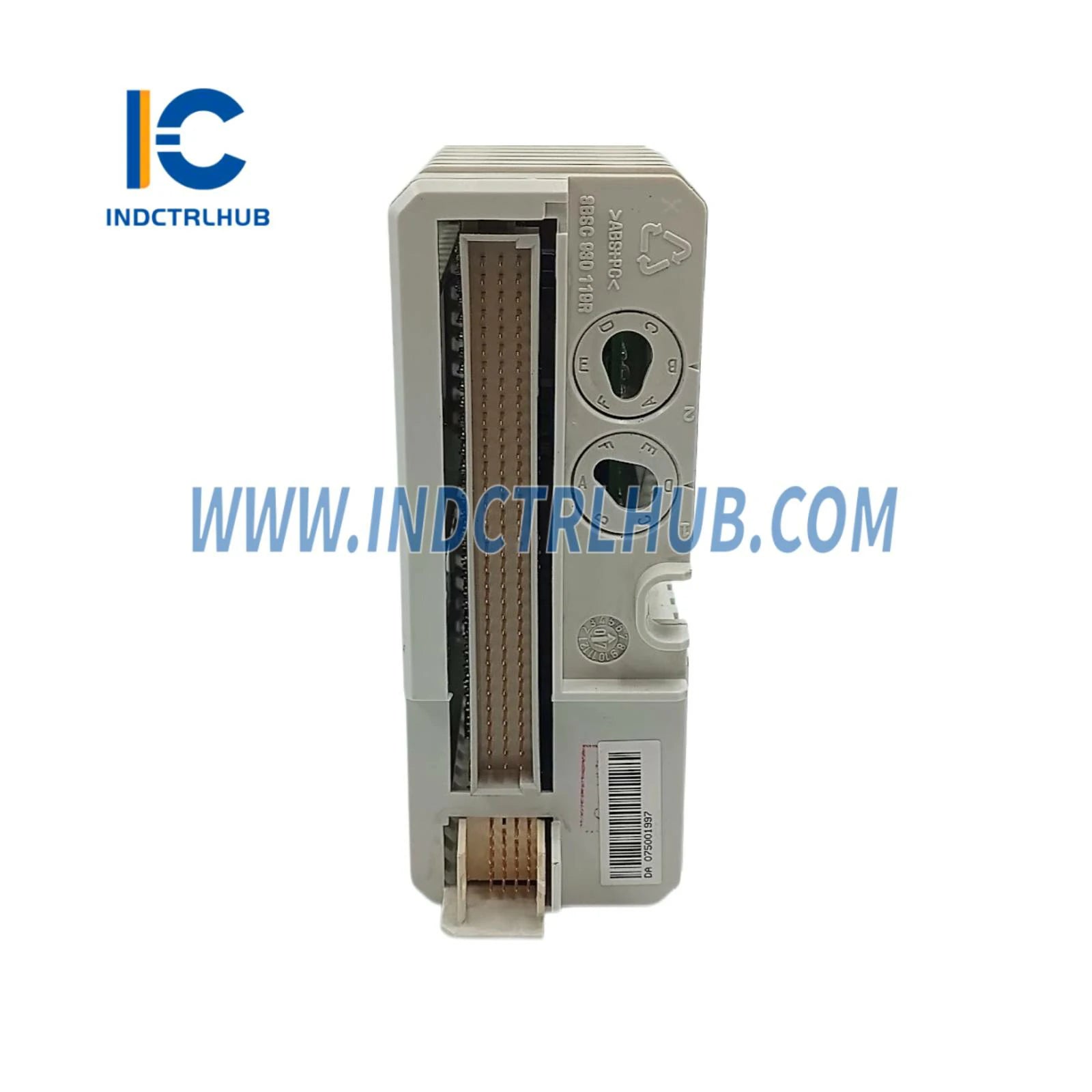

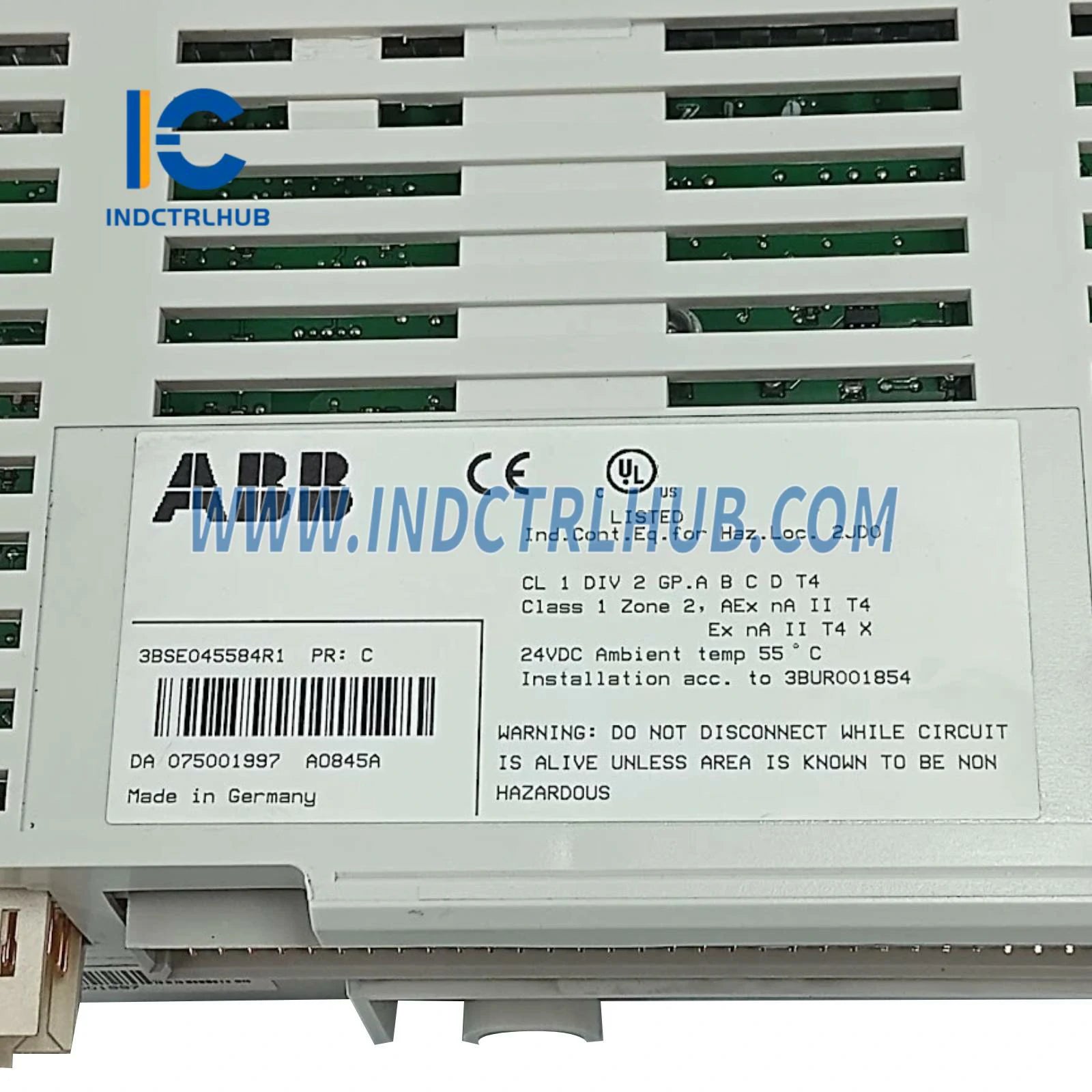

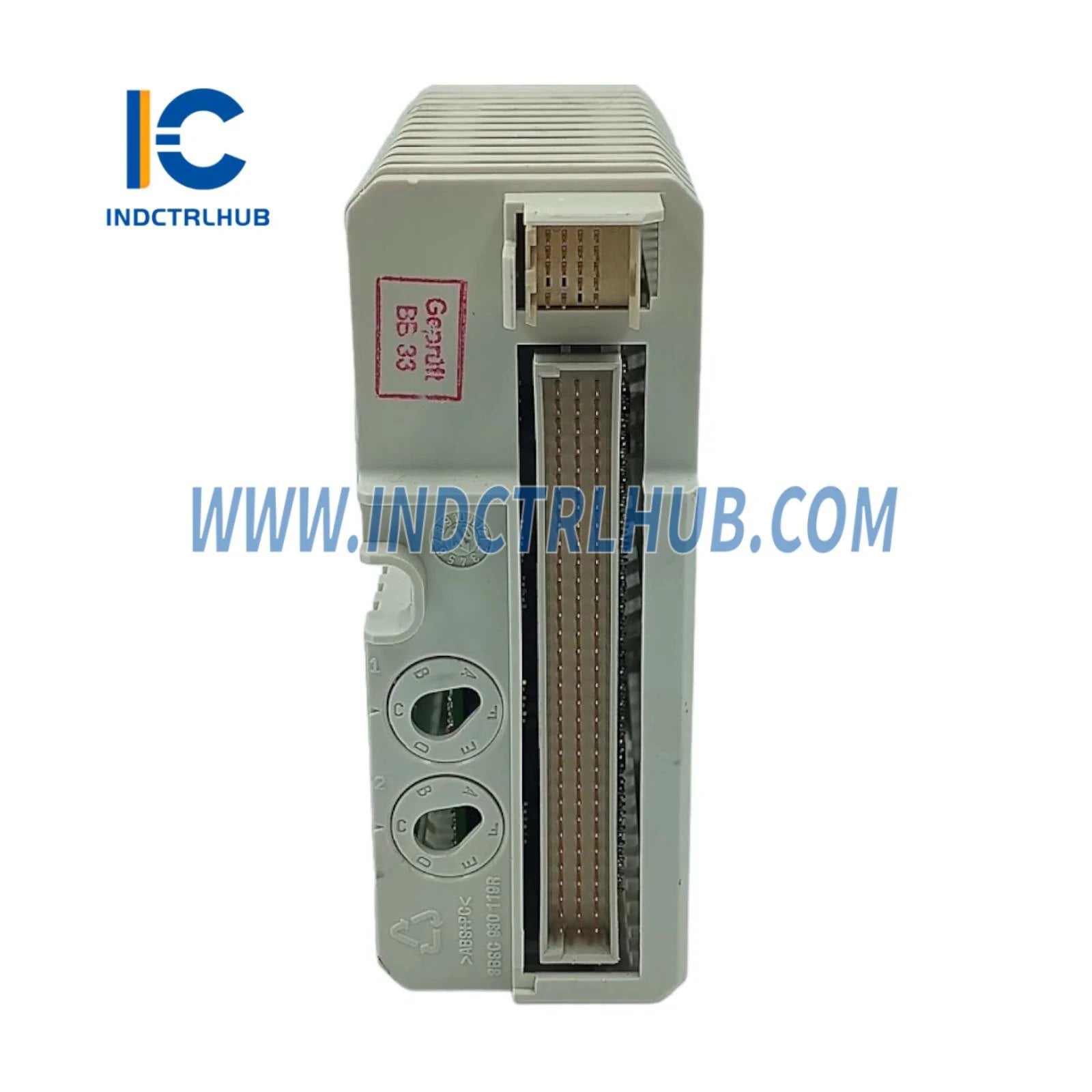

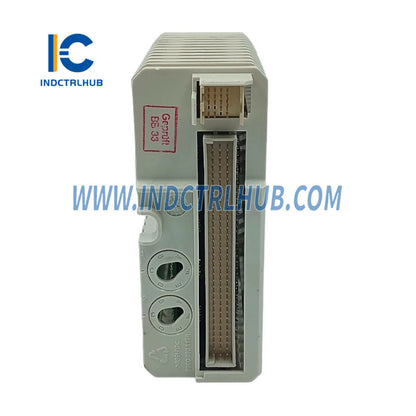

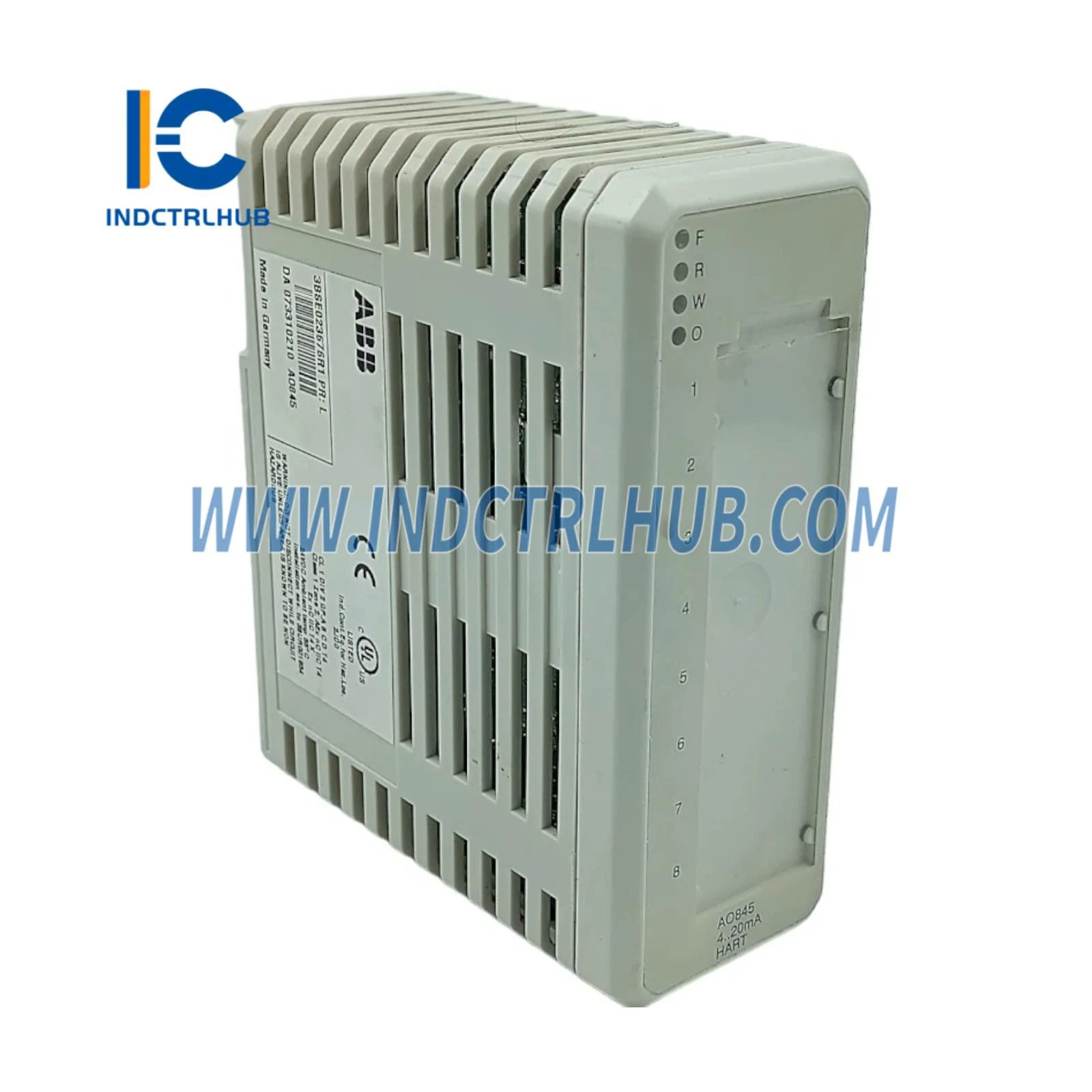

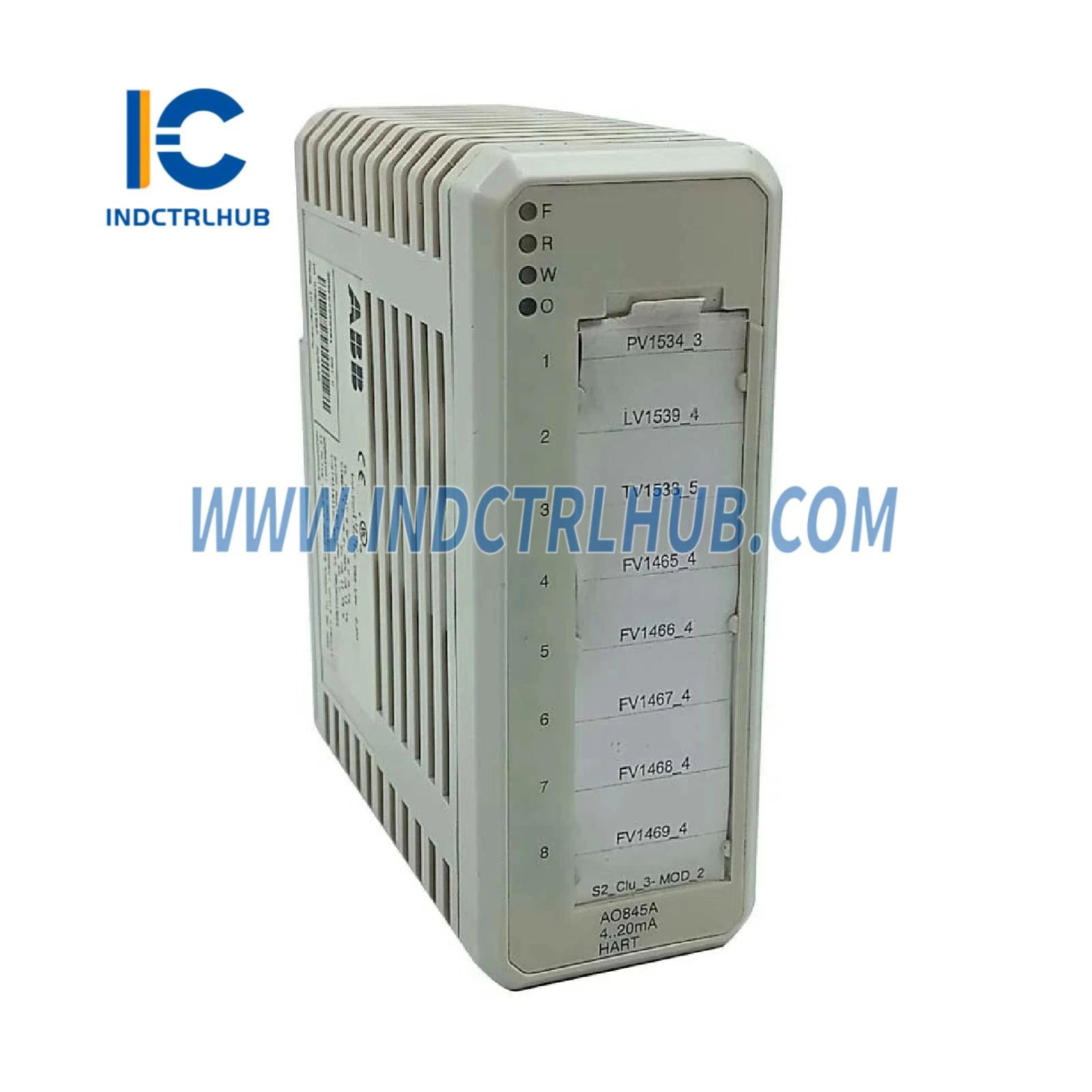

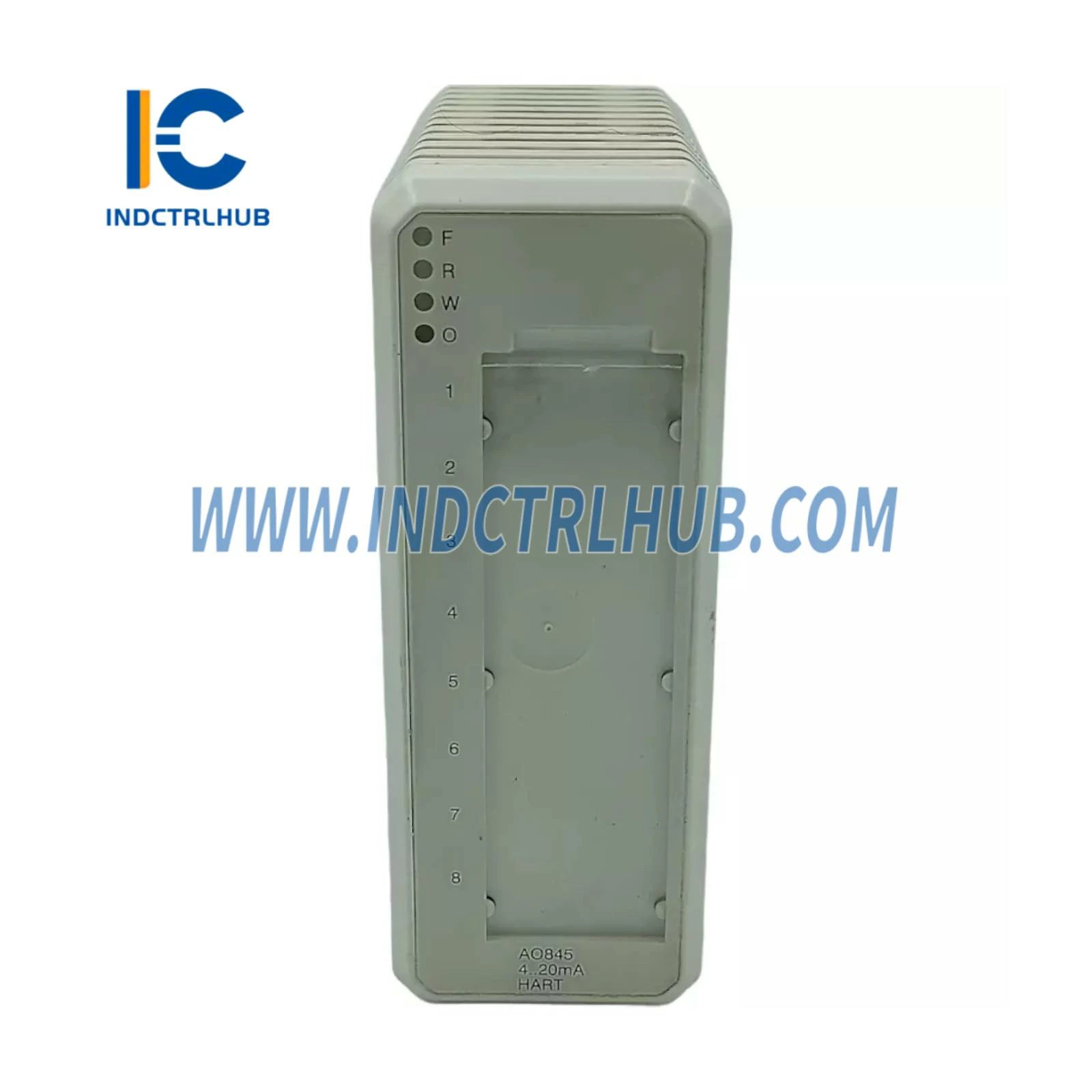

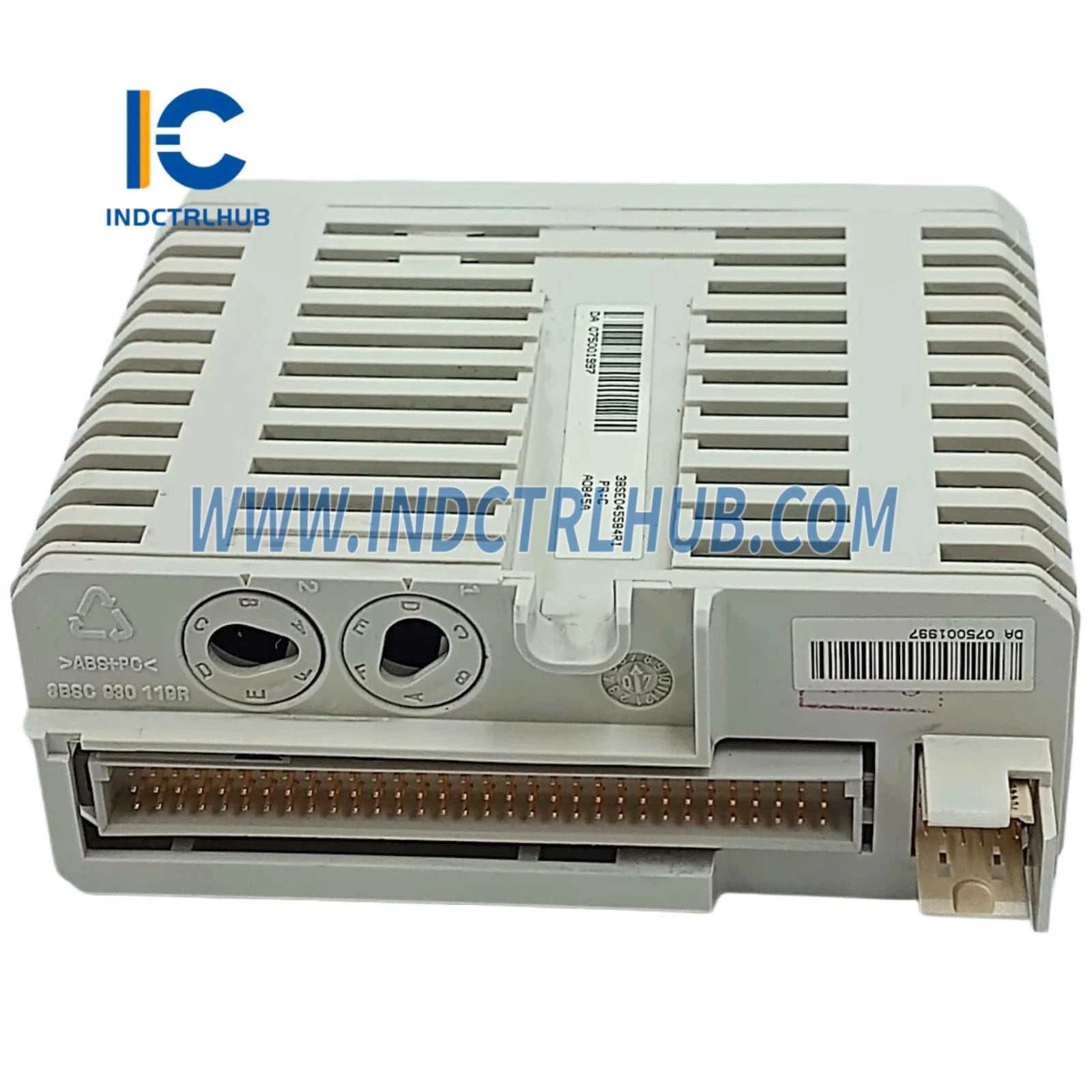

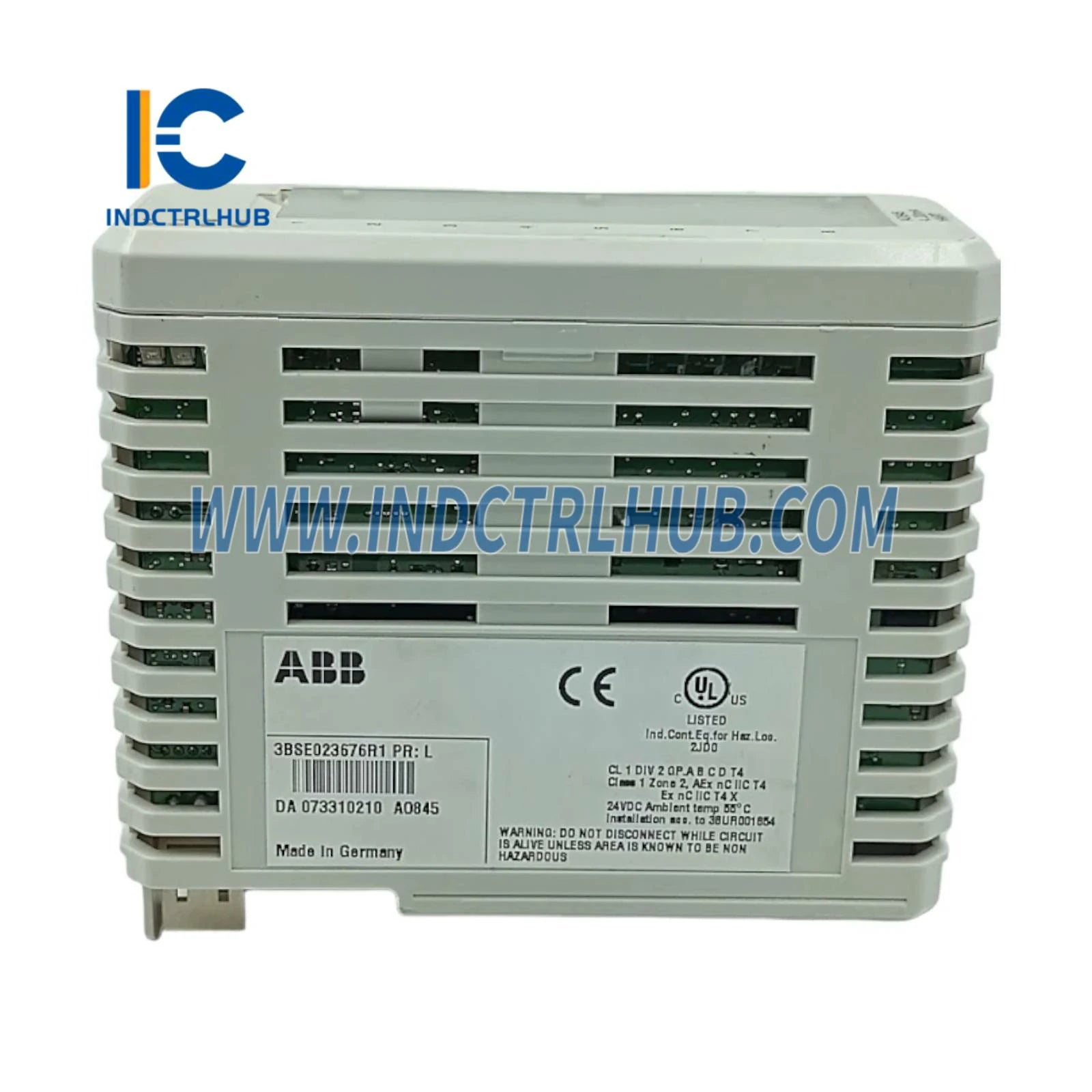

3BSE045584R1 | ABB AO845 Analog Output Module

3BSE045584R1 | ABB AO845 Analog Output Module

  • Manufacturer: ABB

  • Product No.: AO845

  • Condition:1000 in stock

  • Product Type: Analog Output Module

  • Product Origin: Sweden

  • Payment: T/T, Western Union

  • Weight: 210g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

AO845 / AO845A Analog Output Module Overview

The AO845/AO845A Analog Output Module is designed for both single and redundant applications, offering 8 unipolar analog output channels that support 4…20 mA signals. This module is essential for precise output control and integrates diagnostic capabilities to ensure operational reliability.

Key Features and Benefits

  • 8 output channels for 4...20 mA signals
  • Suitable for single or redundant applications
  • Groupwise isolation from ground for improved protection
  • HART pass-through communication for additional control flexibility
  • Diagnostics for internal and external errors, including short-circuit detection
  • Short-circuit proof current-limited output for safe operation
  • Matching MTUs: TU810V1

Diagnostics

  • External Channel Error: Triggered if the process power supply voltage is too low or if the output current is less than the set value (open circuit).
  • Internal Channel Error: Triggered if the output circuit fails to generate the correct current. In redundant systems, this error commands the module into an error state.
  • Module Error: Includes errors like output transistor failure, short circuit, checksum errors, internal power supply issues, and watchdog failures.

Technical Information

Parameter Details
Signal Specification 4..20 mA
Number of Channels 8
Resolution 12-bit
Isolation Groupwise isolated from ground
Output Load Max 750 Ω
Error Max. 0.1%
Temperature Drift Max. 50 ppm/°C
Rise Time Output filter: Disable 23 ms, Enable max 4 mA / 12.5 ms
Update Cycle Time 10 ms
Current Consumption +5V Modulebus: Max. 125 mA
Current Consumption +24V External: 218 mA

Environmental and Certification Information

Category Details
Operating Temperature 0°C to +55°C (32°F to 131°F)
Storage Temperature -40°C to +70°C (-40°F to 158°F)
Relative Humidity 5% to 95%, non-condensing
Protection Class IP20 (IEC 60529)
Electrical Safety EN 61010-1, UL 61010-1, EN 61010-2-201
Marine Certification BV, DNV, LR
EMC Compatibility EN 61000-6-4, EN 61000-6-2
RoHS Compliance DIRECTIVE/2011/65/EU (EN 50581:2012)

Dimensions

  • Width: 45 mm (1.77”)
  • Depth: 102 mm (4.01”), 111 mm (4.37”) including connector
  • Height: 119 mm (4.7”)
  • Weight: 0.21 kg (0.46 lbs.)

Compatibility

  • Use with MTUs: TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852
  • Keying Code: DB

This module is ideal for applications requiring reliable analog output control in critical environments, offering redundancy, diagnostic capabilities, and robust protection against common electrical faults.
