Product Description
Product Overview
The ABB PP865A 3BSE042236R2 Touch Panel is a robust human-machine interface (HMI) unit within ABB’s Panel 800 series, designed for integration into the 800xA and Compact Product Suite control systems (versions 4.1, 5.0, and 5.1). Featuring a 15-inch TFT touchscreen with a 1024 x 768 pixel resolution, this panel supports both graphics and text in color, offering an intuitive interface for monitoring and controlling industrial processes. Weighing 4.64 kg (10.23 lb), it is manufactured in Taiwan and classified under customs tariff number 85371091 as a control apparatus. Requiring Panel Builder 800 version 5 for configuration, it is recommended to use the RX865 Key Cover for front protection, ensuring durability in demanding automation environments.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | ABB |

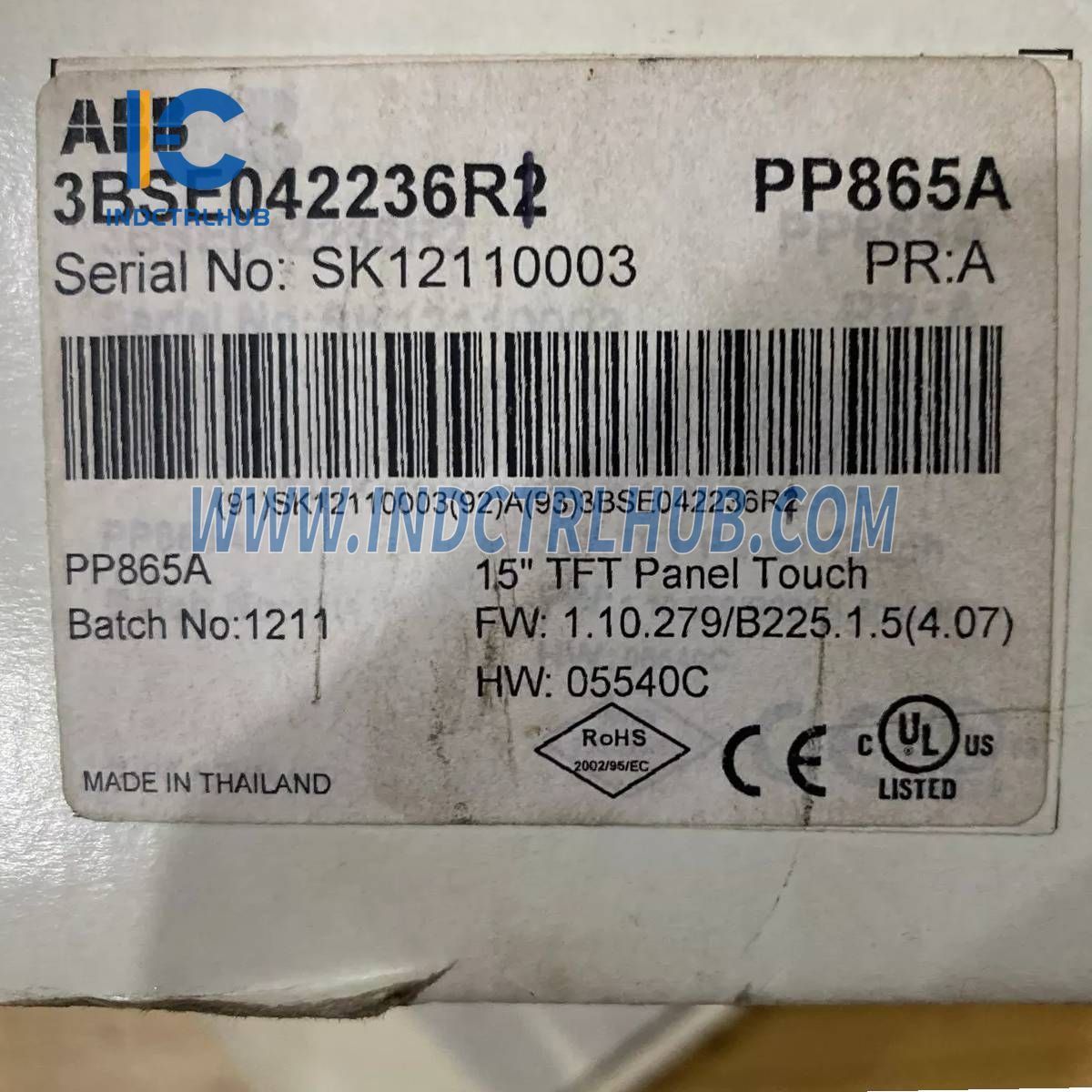

| Model/Part Number | PP865A 3BSE042236R2 |
| Description | Touch Panel |
| Product ID | 3BSE042236R2 |
| ABB Type Designation | PP865A |
| Catalog Description | PP865A |
| Accessory Type | N/A |
| Product Compatibility | N/A |
| Technical Information | 15" TFT touch panel, 1024 x 768 pixels, graphics & text, color; Requires Panel Builder 800 version 5 for configuring; Recommended RX865 Key Cover for front protection |
| Display Size | 15 inches |
| Display Type | TFT, color |
| Resolution | 1024 x 768 pixels |
| Interaction Type | Touchscreen |
| Product Net Weight | 4.64 kg (10.23 lb) |
| Gross Weight | 4.64 kg (10.23 lb) (assumed equal to Net Weight) |
| Country of Origin | Taiwan, Province of China (TW) |
| Customs Tariff Number | 85371091 |
| Product Category | Products > Control Systems > 800xA > Operations > Panel 800 > Panel 800 4.1, 5.0, 5.1 > Control System Accessories Products > Control Systems > Compact Product Suite > Operations > Panel 800 > Panel 800 4.1, 5.0, 5.1 > Control System Accessories Parts & Services > Control Systems > 800xA > Operations > Panel 800 > Panel 800 4.1, 5.0, 5.1 > Control System Accessories Parts & Services > Control Systems > Compact Product Suite > Operations > Panel 800 > Panel 800 4.1, 5.0, 5.1 > Control System Accessories |
