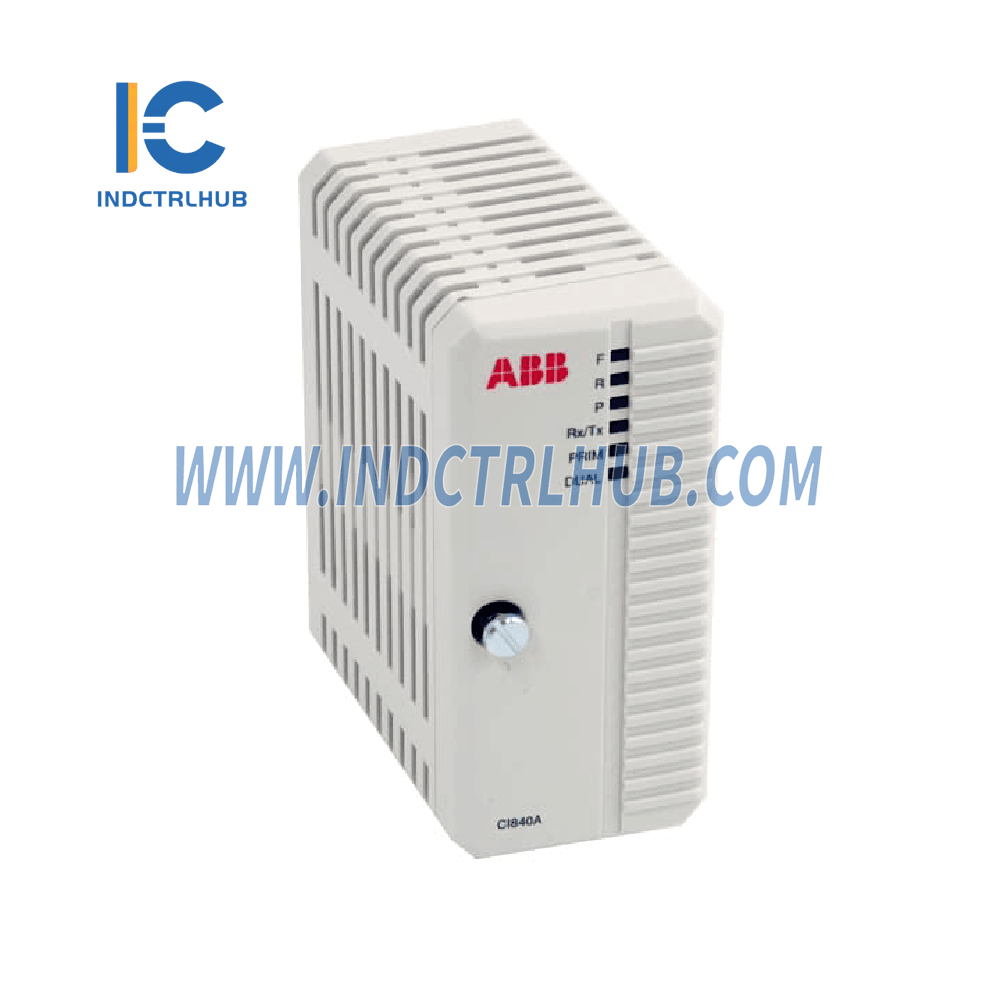

3BSE041882R1 | ABB CI840A Profibus Communication Interface Redundant

Product Details for CI840A Fieldbus Communication Interface (FCI) Module

General Information

• Article Number: 3BSE041882R1
• Communication Protocol: PROFIBUS DP-V1
• Master or Slave: Slave
• Line Redundancy: Yes
• Module Redundancy: Yes
• Hot Swap: Yes
• Used Together with HI Controller: Yes
• Termination Units:
  • TU846: Redundant I/O
  • TU847: Non-redundant I/O

Features and Benefits

• PROFIBUS DP: PROFIBUS-DPV1 fieldbus interface for efficient communication.
• Supervisory Functions: Supervisory functions for I/O ModuleBus.
• Isolated Power Supply: Provides isolated power supply to I/O modules.
• OSP Handling and Configuration: Handling and configuration of Output Set Points (OSP).
• Input Power Fused: Ensures stable power input to the module.
• Hot Configuration In Run: Configuration changes can be made while the system is running.
• HART Pass-Through: Allows HART communication pass-through for field devices.
• Redundancy Options:
  • Redundant I/O with TU846.
  • Non-redundant I/O with TU847.

Detailed Data

• 24 V Consumption: Typ. 190 mA
• Electrical Safety:
  • EN 61010-1, UL 61010-1
  • EN 61010-2-201, UL 61010-2-201
• Hazardous Location Compliance:
  • C1 Div 2 cULus
  • C1 Zone 2 cULus
  • ATEX Zone 2
• Marine Certifications:
  • ABS, BV, DNV-GL, LR

Environmental and Certification

• Operating Temperature: 0 to +55 °C (+32 to +131 °F), approvals issued for +5 to +55 °C
• Storage Temperature: -40 to +70 °C (-40 to +158 °F)
• Pollution Degree: Degree 2 (IEC 60664-1)
• Corrosion Protection: ISA-S71.04: G3
• Relative Humidity: 5 to 95 %, non-condensing
• Max Ambient Temperature:
  • 55 °C (131 °F)
  • For vertical mounting: 40 °C (104 °F)
• Protection Class: IP20 (EN 60529, IEC 529)
• RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
• WEEE Compliance: DIRECTIVE/2012/19/EU

Physical Dimensions

• Width: 54 mm (2.13 in.)
• Height: 119 mm (4.69 in.)
• Depth: 96 mm (3.78 in.)
• Weight: 0.2 kg (0.44 lbs.)
