• 3BSE036456R1| ABB AI825 Analog Input 4 ch - Analog Input 4 ch
1 1

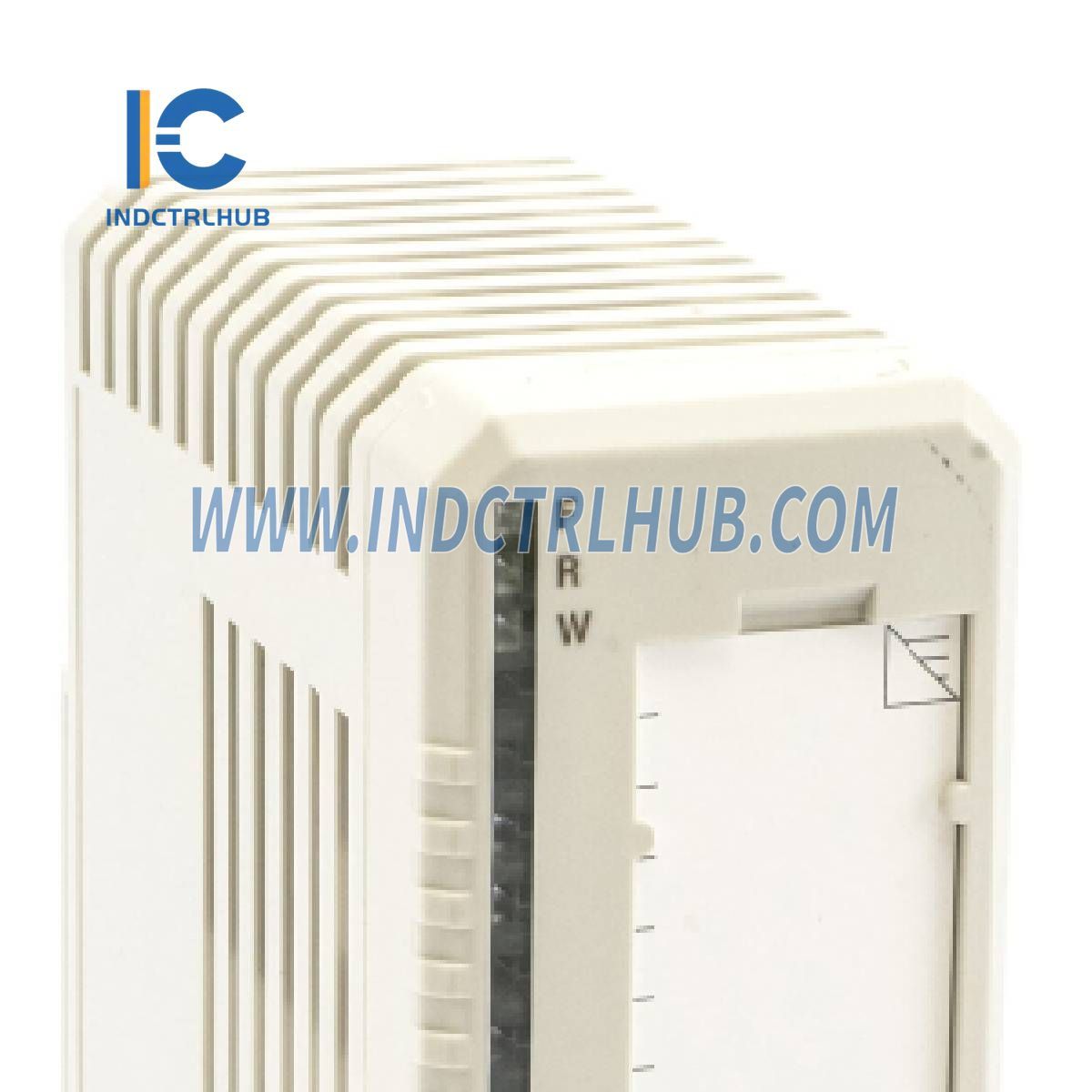

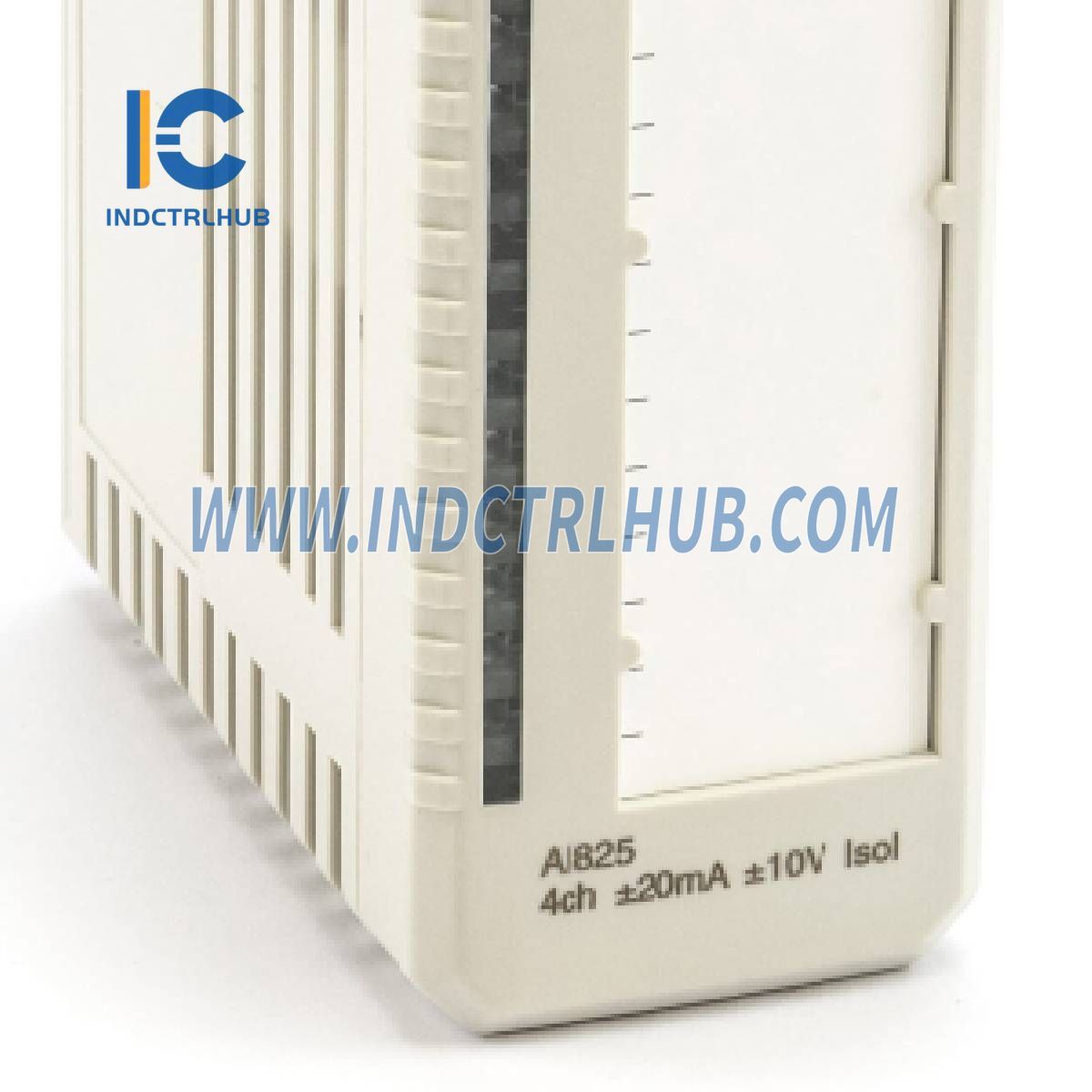

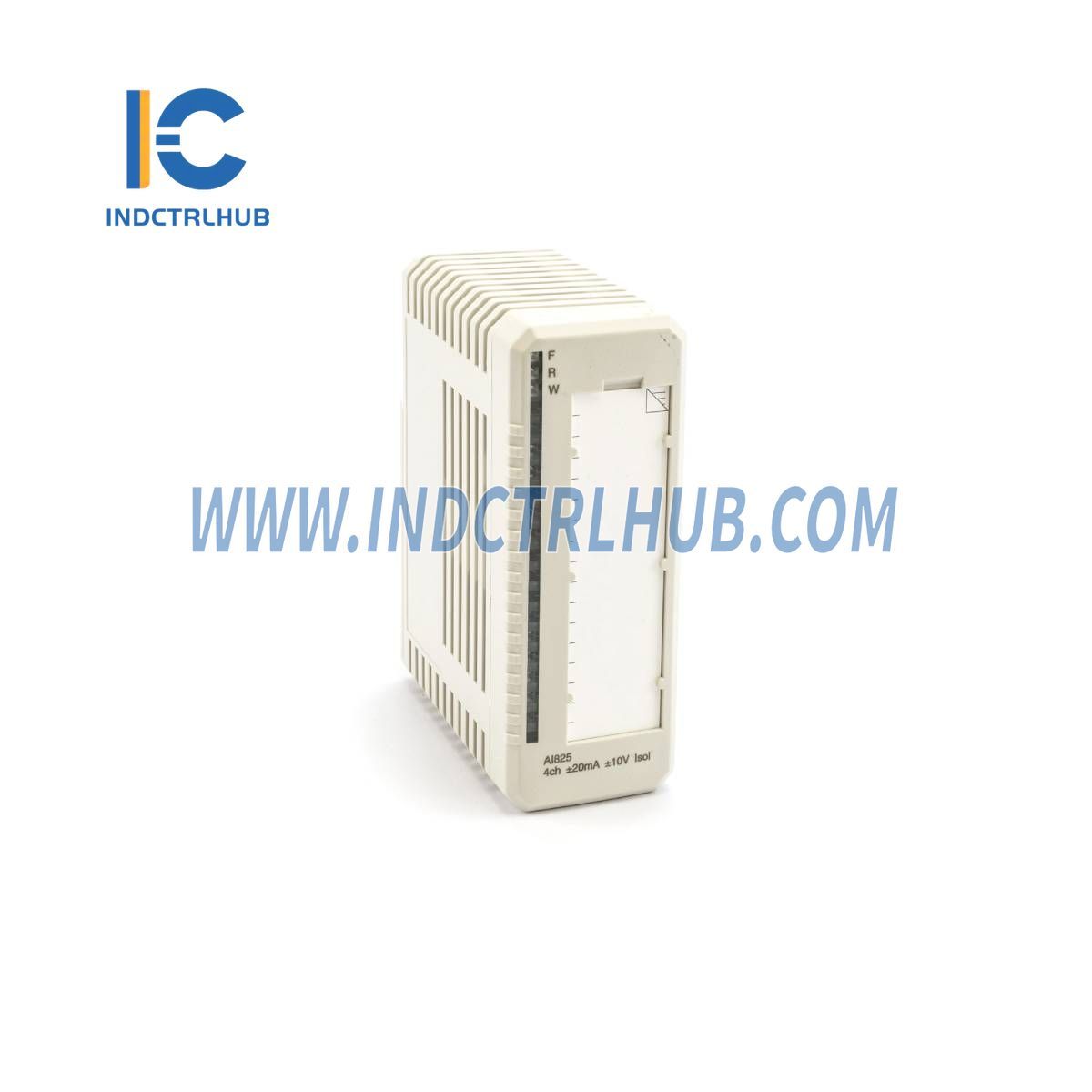

3BSE036456R1| ABB AI825 Analog Input 4 ch

3BSE036456R1| ABB AI825 Analog Input 4 ch

  • Manufacturer: ABB

  • Product No.: AI825

  • Condition:1000 in stock

  • Product Type: Analog Input 4 ch

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Product ID: 3BSE036456R1
  • ABB Type Designation: AI825
  • Catalog Description: AI825 Analog Input 4 ch

Long Description

  • Input Range: -20..20mA, -10..10V
  • Resolution: 14-bit + sign
  • Isolation: Individually galvanic isolated channels
  • Compatibility: Use with Module Termination Units TU811, TU813, TU831

Additional Information

Attribute Value
Medium Description -20..20mA, -10..10V, 14bit + sign. Individually galvanic isolated channels. Use Module Termination Unit TU811, TU813, TU831.
Product Type I-O_Module
Technical Information Same as Medium Description

Ordering

Attribute Value
HS Code 853890 - Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37 - Other
Customs Tariff Number 85389099

Dimensions

Attribute Value
Product Net Depth / Length 102 mm
Product Net Height 119 mm
Product Net Width 45 mm
Product Net Weight 0.3 kg

Technical Specifications

Attribute Value
Channel Type AI
Number of Input Channels 4
Number of Output Channels 0

Environmental Compliance

Attribute Value
RoHS Status Following EU Directive 2011/65/EU
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries 0
SCIP 987e000e-b488-4ae6-8f90-9ff614c0c42b (Estonia, EE)

Product Categories

Products

  • Control System Products _ I/O Products _ S800 I/O _ S800 I/O - Modules _ AI825 Analog Inputs
  • Control Systems _ 800xA _ I/Os _ S800 I/O _ I/O Modules
  • Control Systems _ Compact Product Suite _ I/Os _ S800 I/O _ I/O Modules

Parts & Services

  • Control Systems _ 800xA _ I/Os _ S800 I/O _ I/O Modules
  • Control Systems _ Compact Product Suite _ I/Os _ S800 I/O _ I/O Modules
