Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BSE023675R1 |
|
ABB Type Designation |
AI845 |
|
Catalog Description |

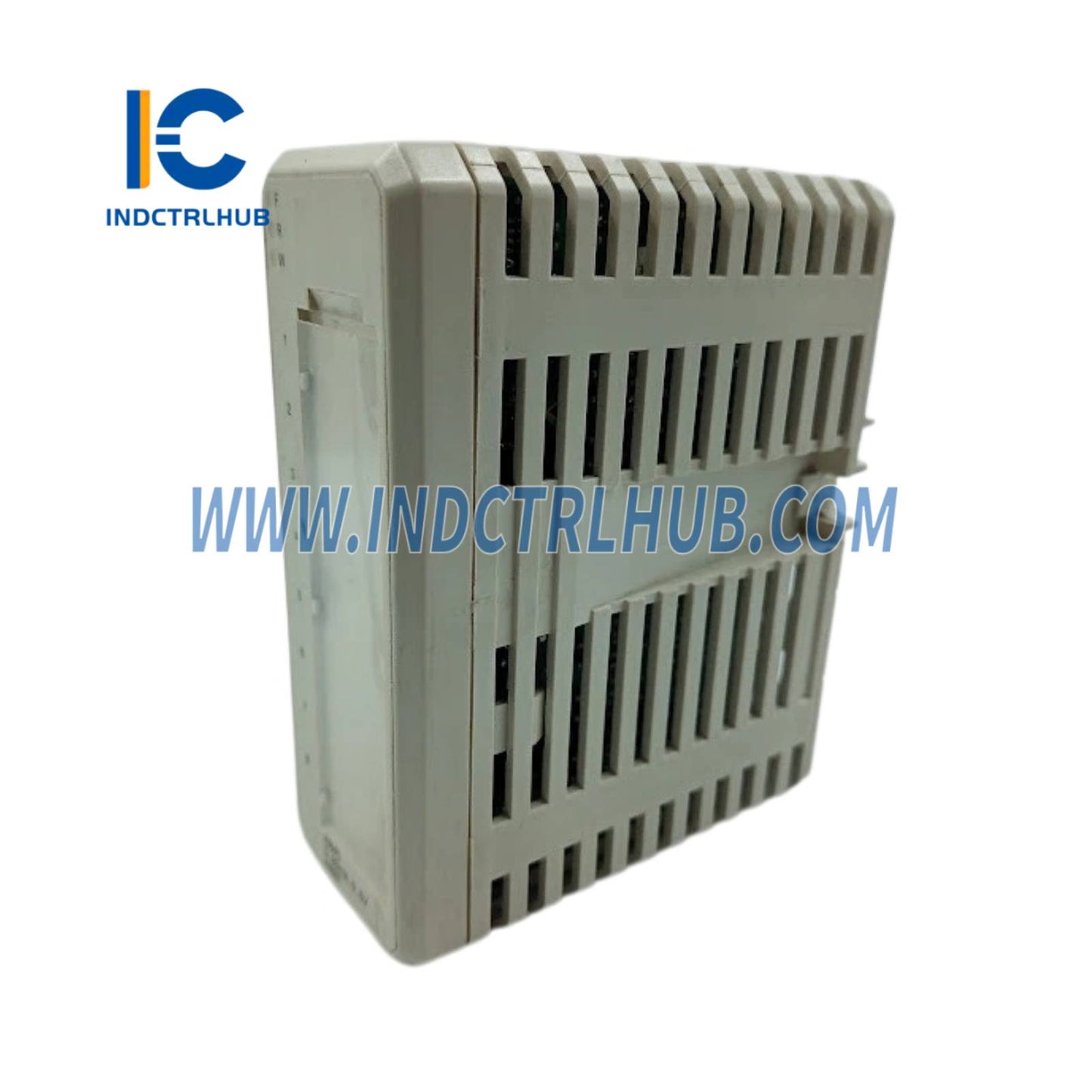

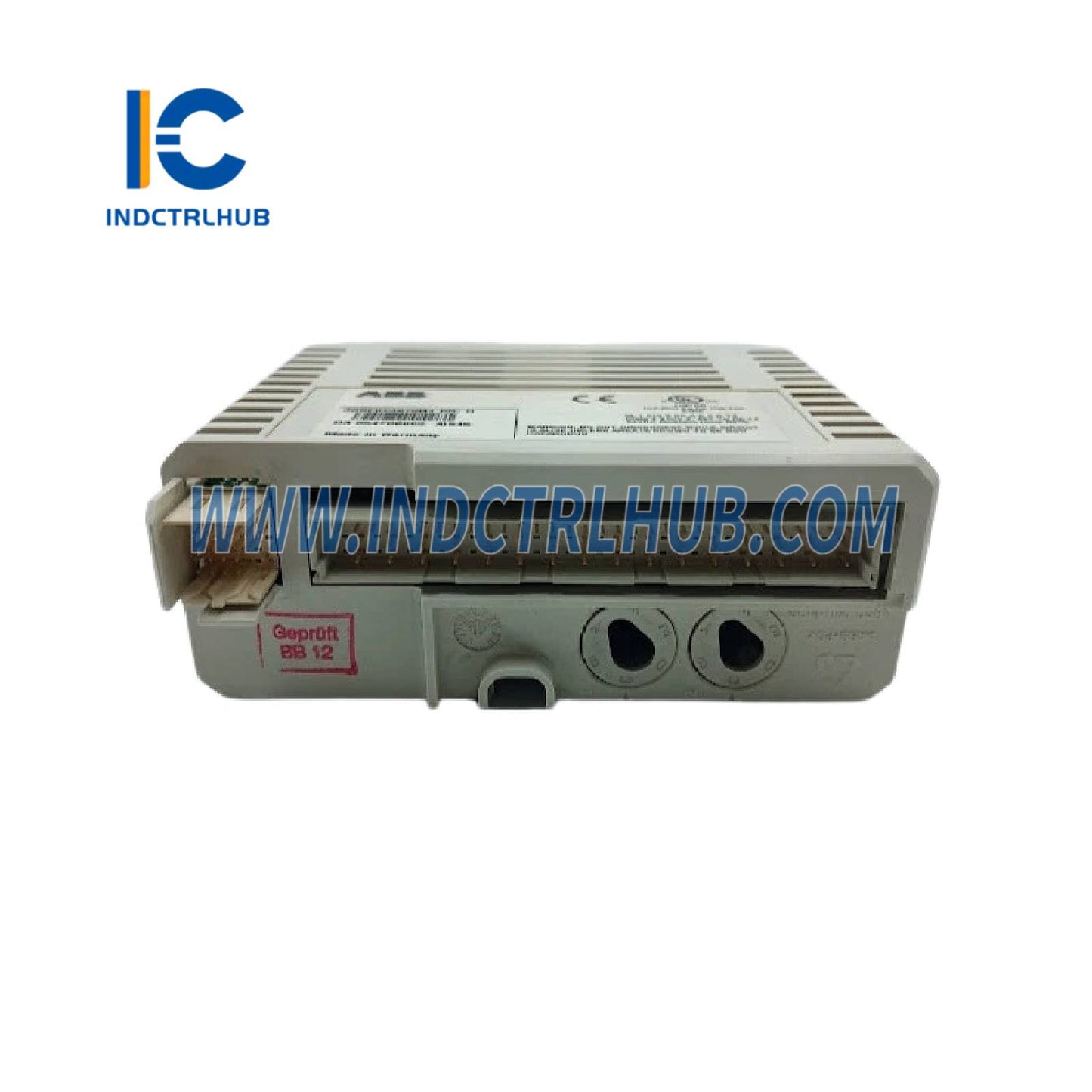

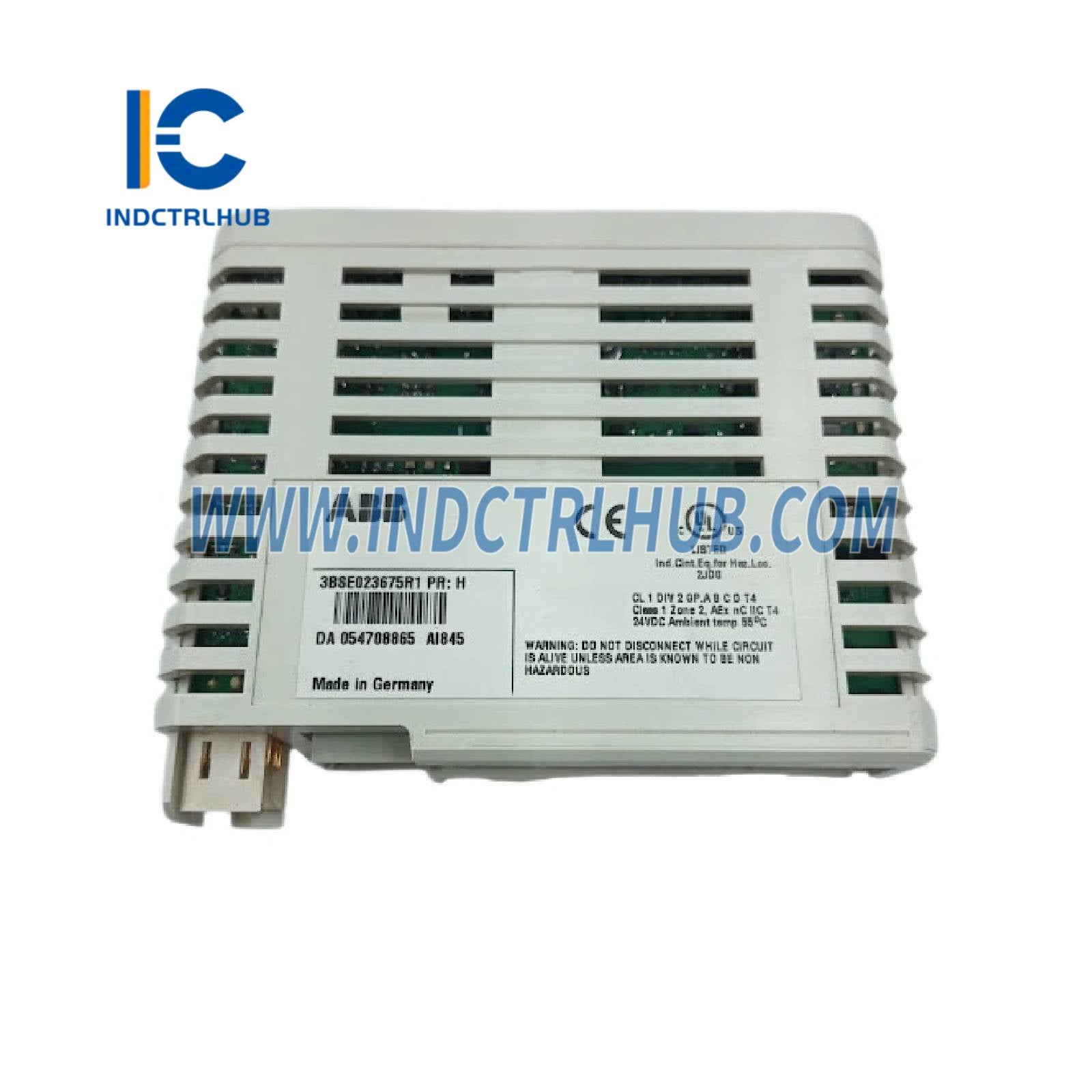

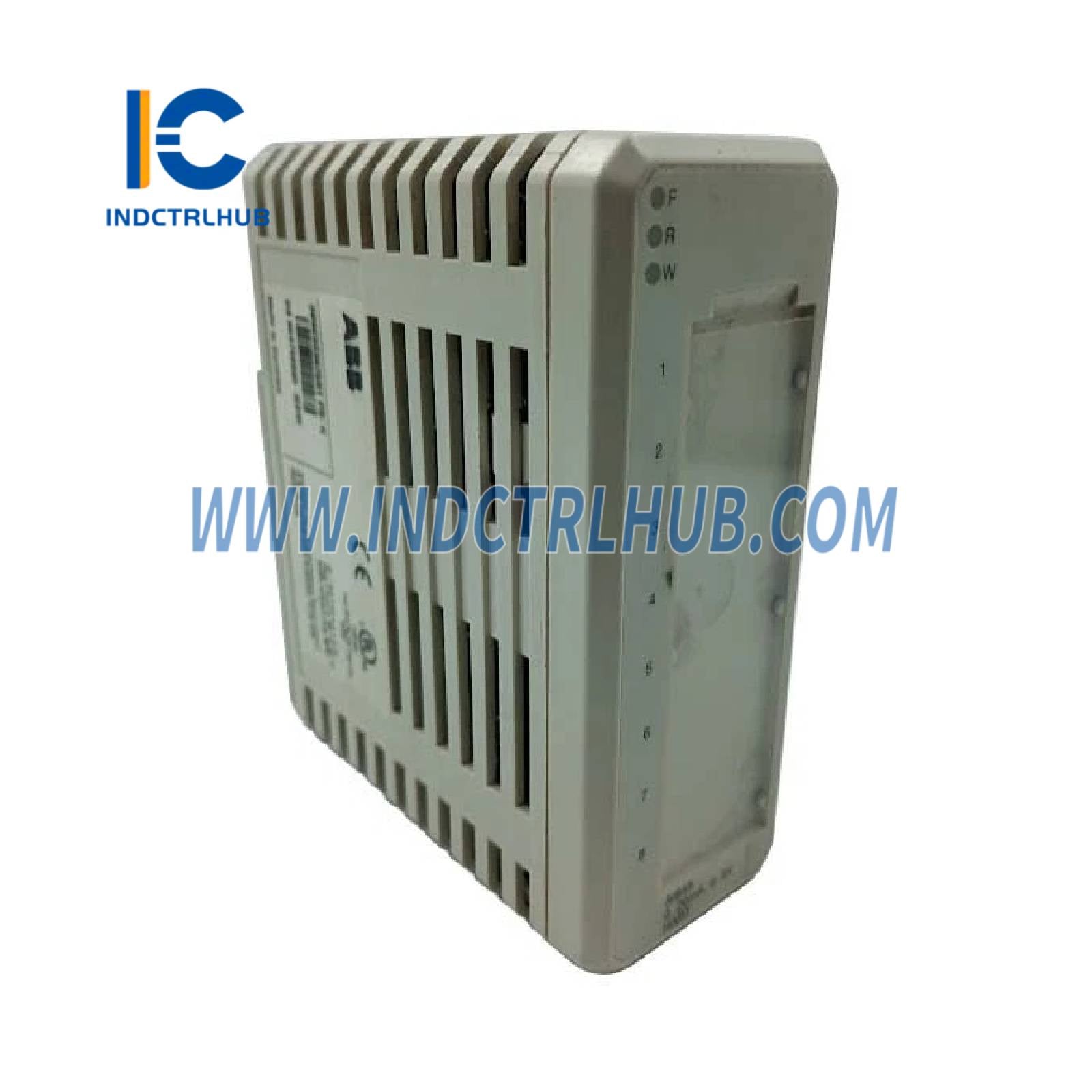

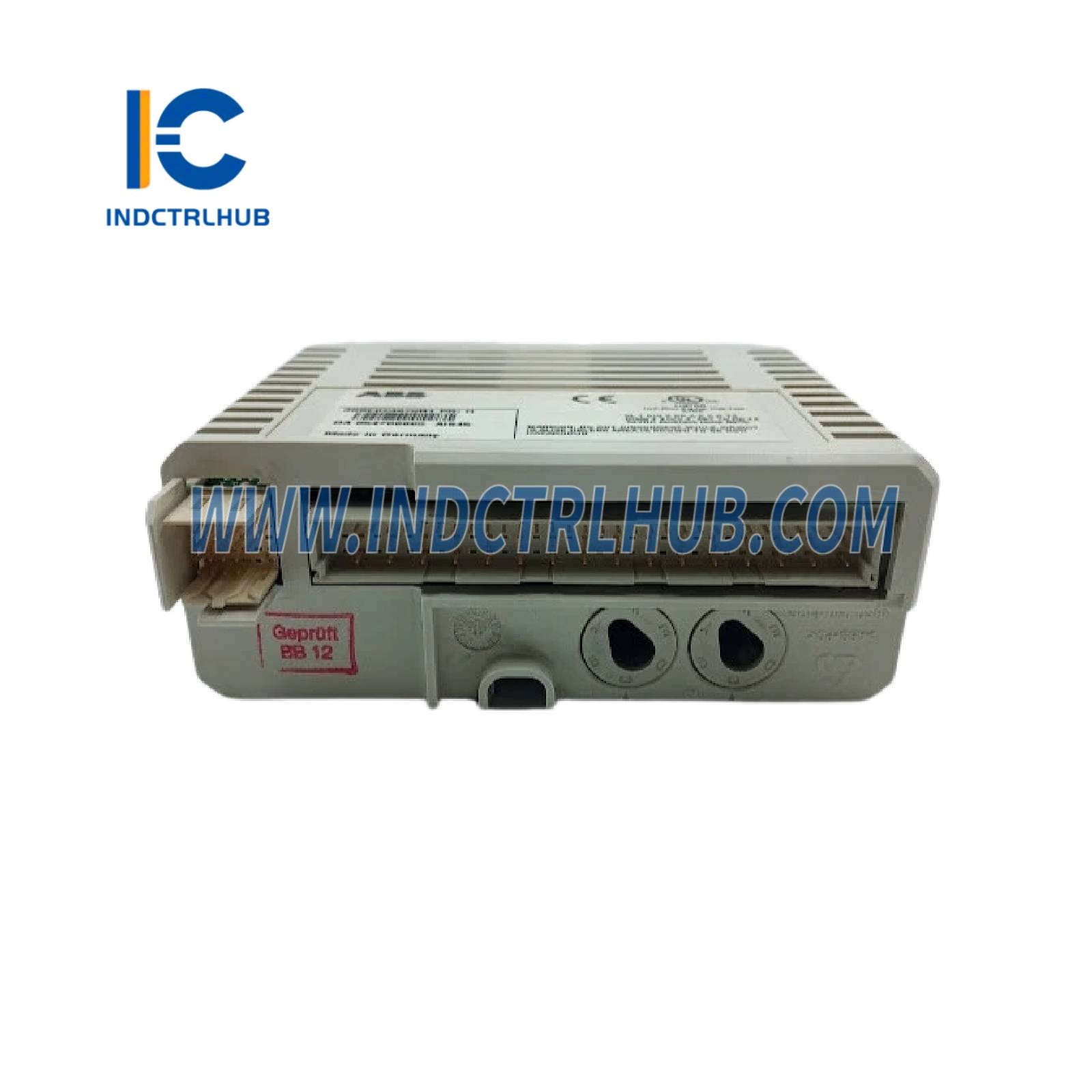

AI845 Analog Input S/R HART 8 ch |
|
Long Description |
0(4)..20mA, 0(1)..5V, 12-bit, single-ended. Current limited transmitter power distribution. Advanced on-board diagnostics. HART support. Use with TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU844, TU845, TU854 |
|
Medium Description |
Same as long description |
|
Product Type |
I-O_Module |
Ordering Information
|
Field |
Details |
|---|---|
|
HS Code |
853890 – Parts for electrical apparatus of heading 8535, 8536, or 8537 |
|
Customs Tariff Number |
85389099 |
Technical Specifications
|
Field |
Details |
|---|---|
|
Channel Type |
Analog Input (AI) |
|
Number of Input Channels |
8 |
|
Number of Output Channels |
0 |
|
Signal Types |
0(4)…20 mA, 0(1)…5 V |
|
Resolution |
12-bit |
|
Diagnostics |
Advanced on-board diagnostics |
|
HART Support |
Yes |
|
Input Mode |
Single-ended |
Environmental Information
|
Field |
Details |
|---|---|
|
RoHS Status |
Compliant with EU 2011/65/EU |
|
WEEE Category |
5. Small Equipment |
|
Number of Batteries |
0 |
|
SCIP Code |
49c33e7f-8ec0-4fab-9c98-a6ceb8f2a02c |
Physical Dimensions
|
Dimension |
Value |
|---|---|
|
Net Depth / Length |
102 mm |
|
Net Height |
119 mm |
|
Net Width |
45 mm |
|
Net Weight |
0.2 kg |
Compatible Module Termination Units (MTUs)
|
Supported MTUs |
|---|
|
TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, TU844, TU845, TU854 |
Applicable Systems / Product Integration
|
ABB Systems & Versions |
|---|
|
800xA System › I/Os › S800 I/O › S800 I/O 4.0/4.1/5.0/5.1/6.0 › I/O Modules |
|
Compact Product Suite › I/Os › S800 I/O › S800 I/O 4.1/5.0/5.1 › I/O Modules |
