Product Description
General Information
|
Field |
Description |
|---|---|
|
Product ID |
3BSE020510R1 |
|
ABB Type Designation |
DO801 |
|
Catalog Description |

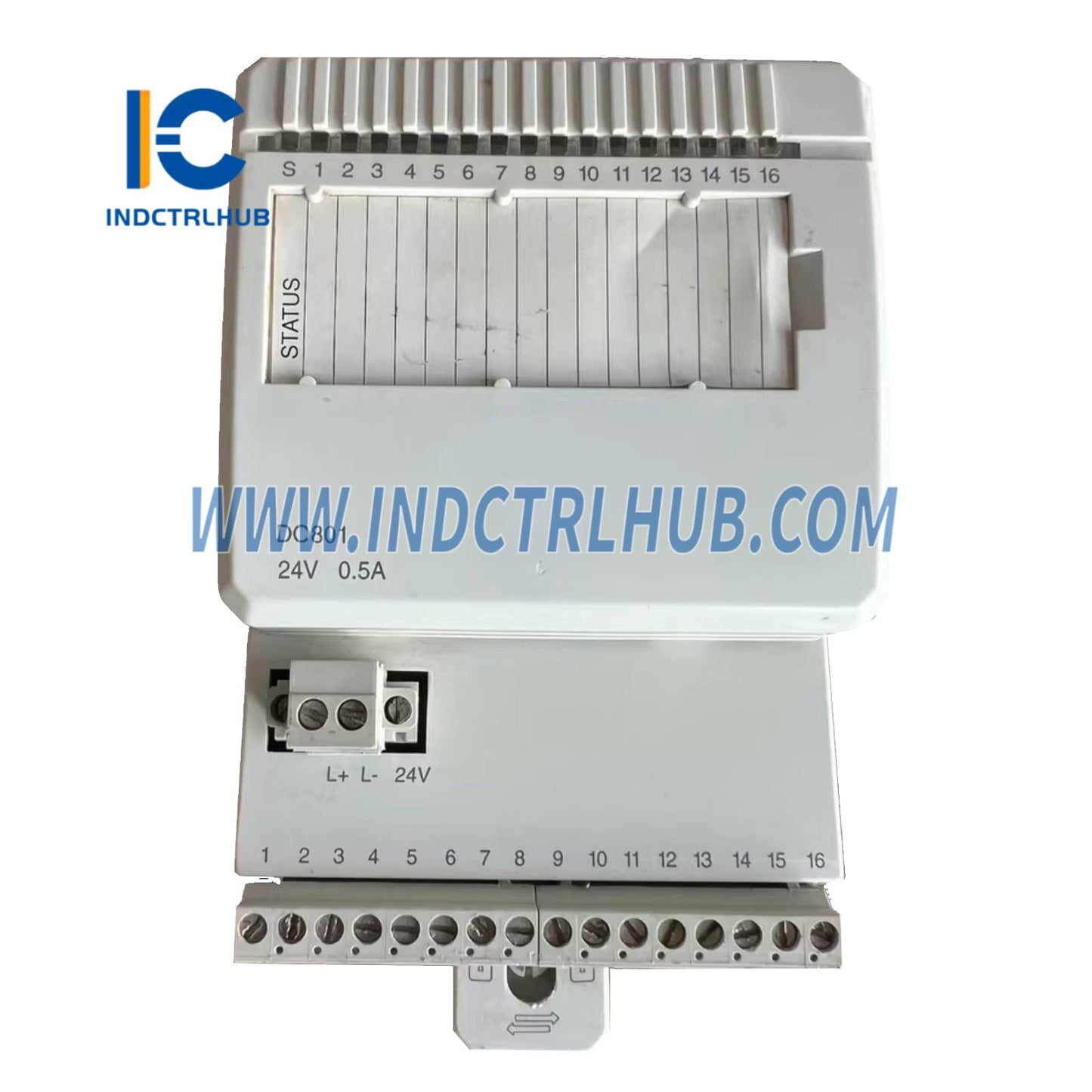

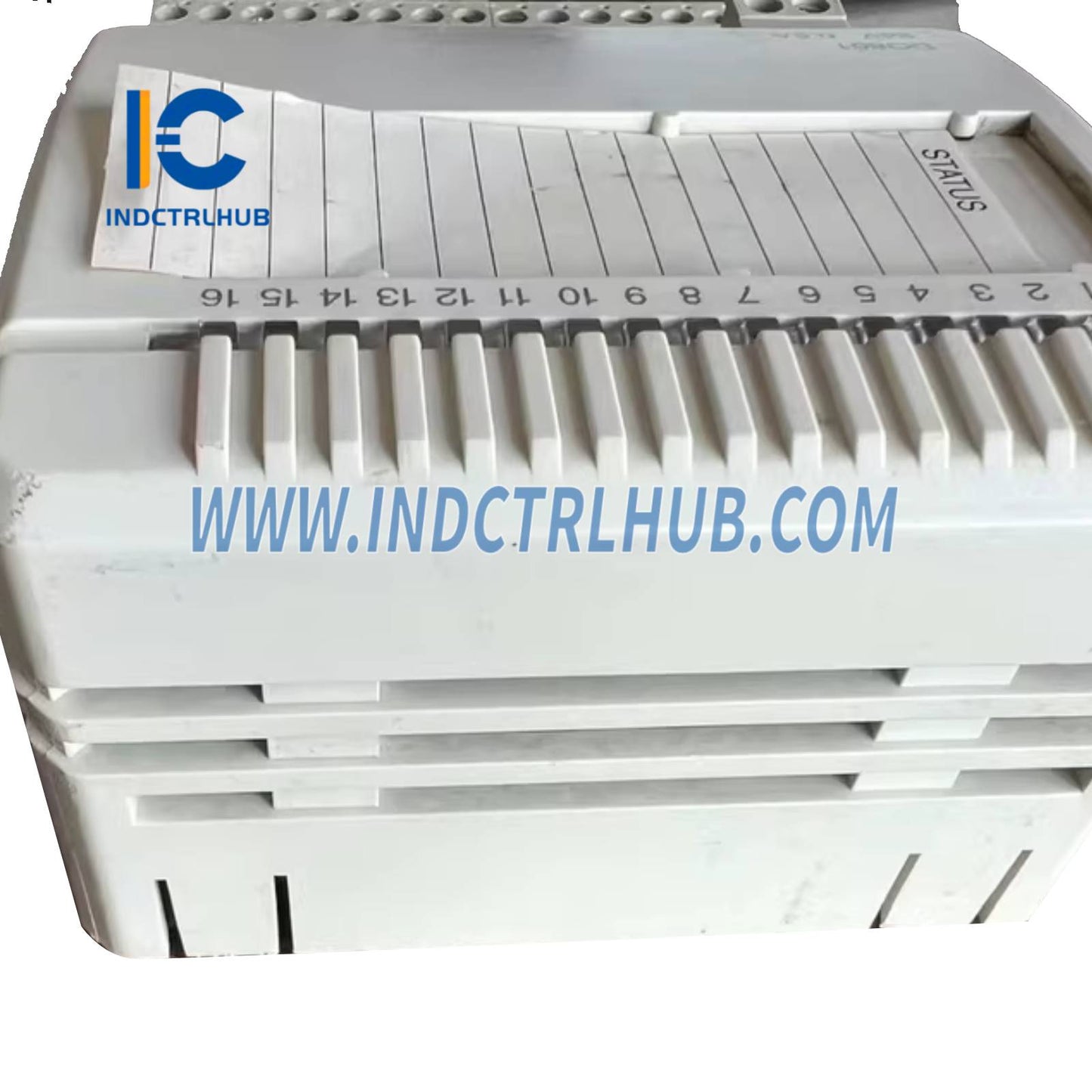

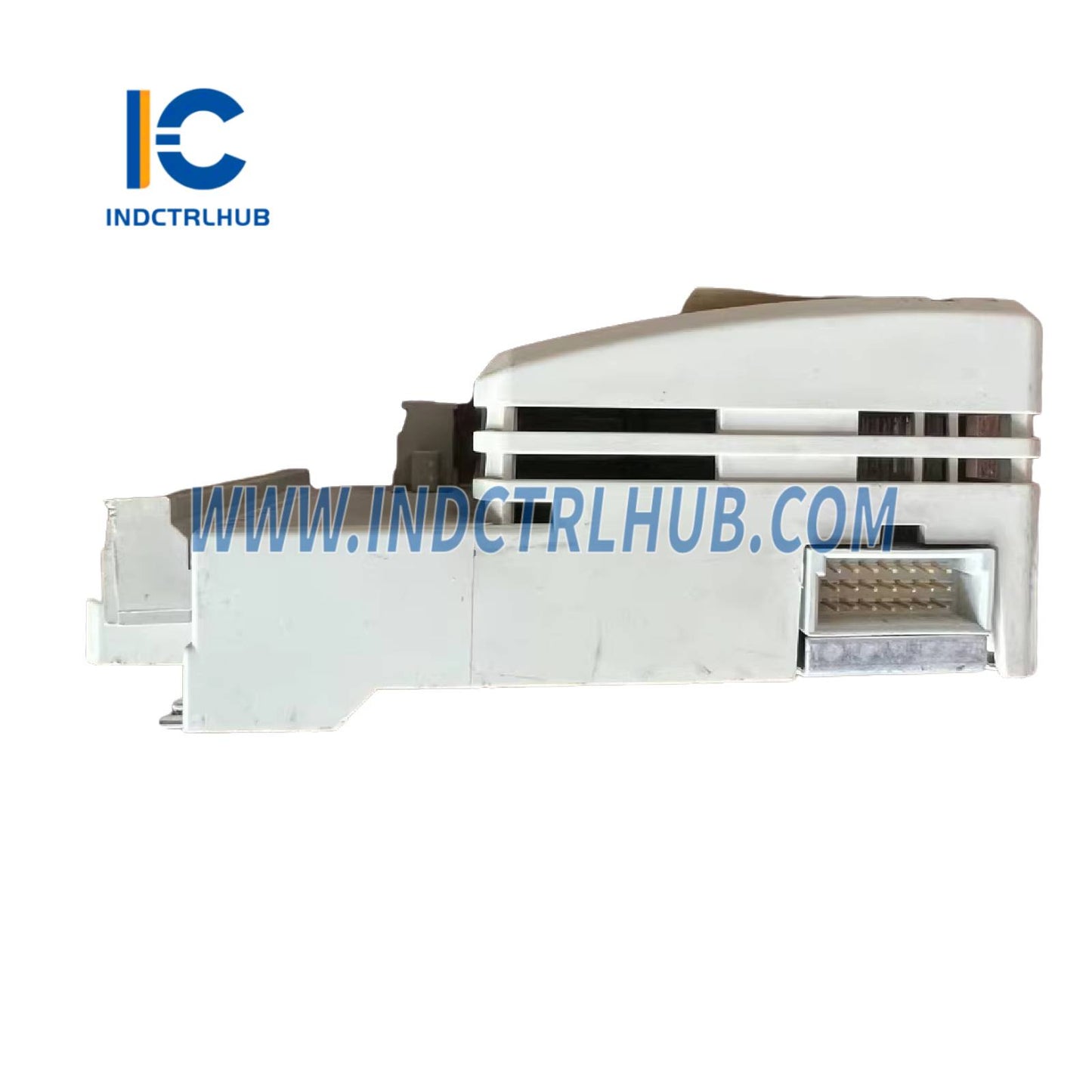

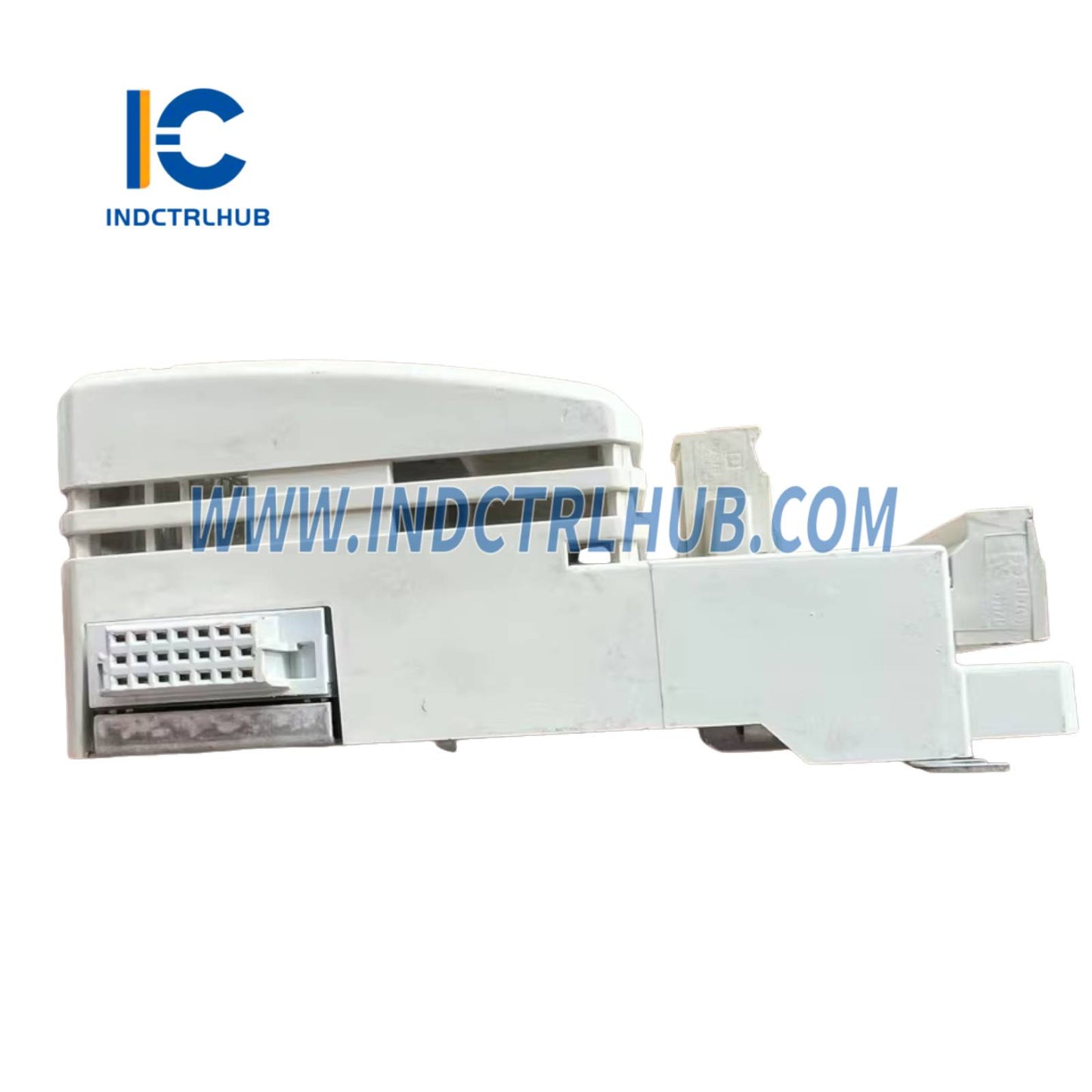

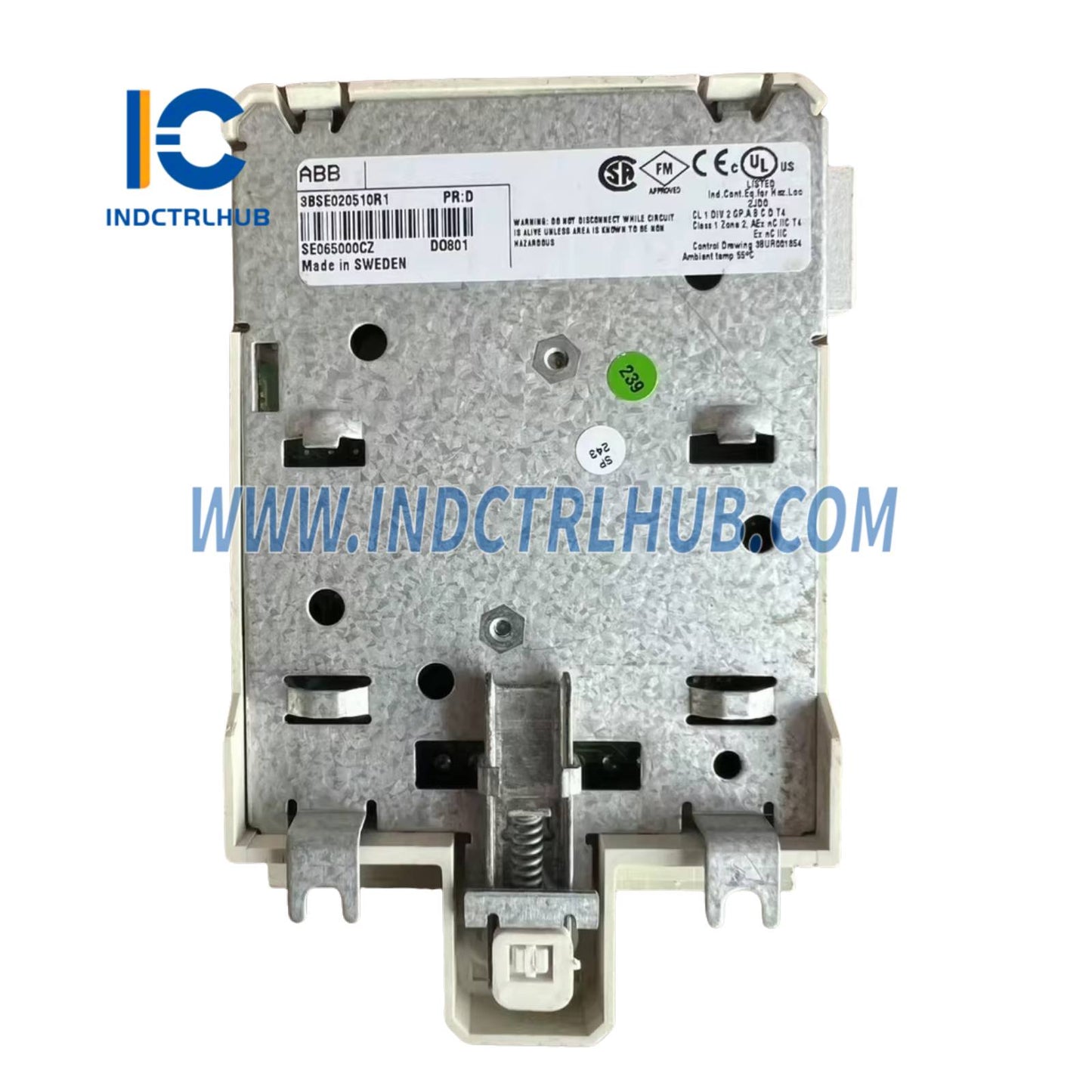

DO801 Digital Output 24V 16 ch |
|
Long Description |
Isolated in one group. 0.5A, Short circuit proof. |
|
Medium Description |
Isolated in one group. 0.5A, Short circuit proof. |
|
Product Type |
I-O_Module |
Ordering Information
|
Field |
Description |
|---|---|
|
HS Code |
853890 – Electrical machinery parts for use with 8535, 8536, or 8537 |
|
Customs Tariff No. |
85389099 |
Dimensions
|
Field |
Value |
|---|---|
|
Net Depth / Length |
58.5 mm |
|
Net Height |
102 mm |
|
Net Width |
86.1 mm |
|
Net Weight |
0.24 kg |
Technical Specifications
|
Field |
Description |
|---|---|
|
Channel Type |
DO (Digital Output) |
|
Number of Output Channels |
16 |
|
Output Voltage |
24 VDC |
|
Group Isolation |
All channels isolated in one group |
|
Max Current per Channel |
0.5 A |
|
Protection |
Short-circuit proof |
Environmental Information
|
Field |
Description |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU |
|
WEEE Category |
Category 5: Small Equipment |
|
Number of Batteries |
0 |
|
SCIP Number |
16f657de-dcdc-4435-8573-6dc8ad98b5b0 (Estonia) |
Compatible Systems / Applications
-
Control System Products:
-
S800 I/O Modules
-
Advant OCS with Master SW
-
800xA System (versions 4.0, 4.1, 5.0, 5.1, 6.0)
-
Compact Product Suite
-
Advant Fieldbus 100
-
MOD 300 SW
