Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |

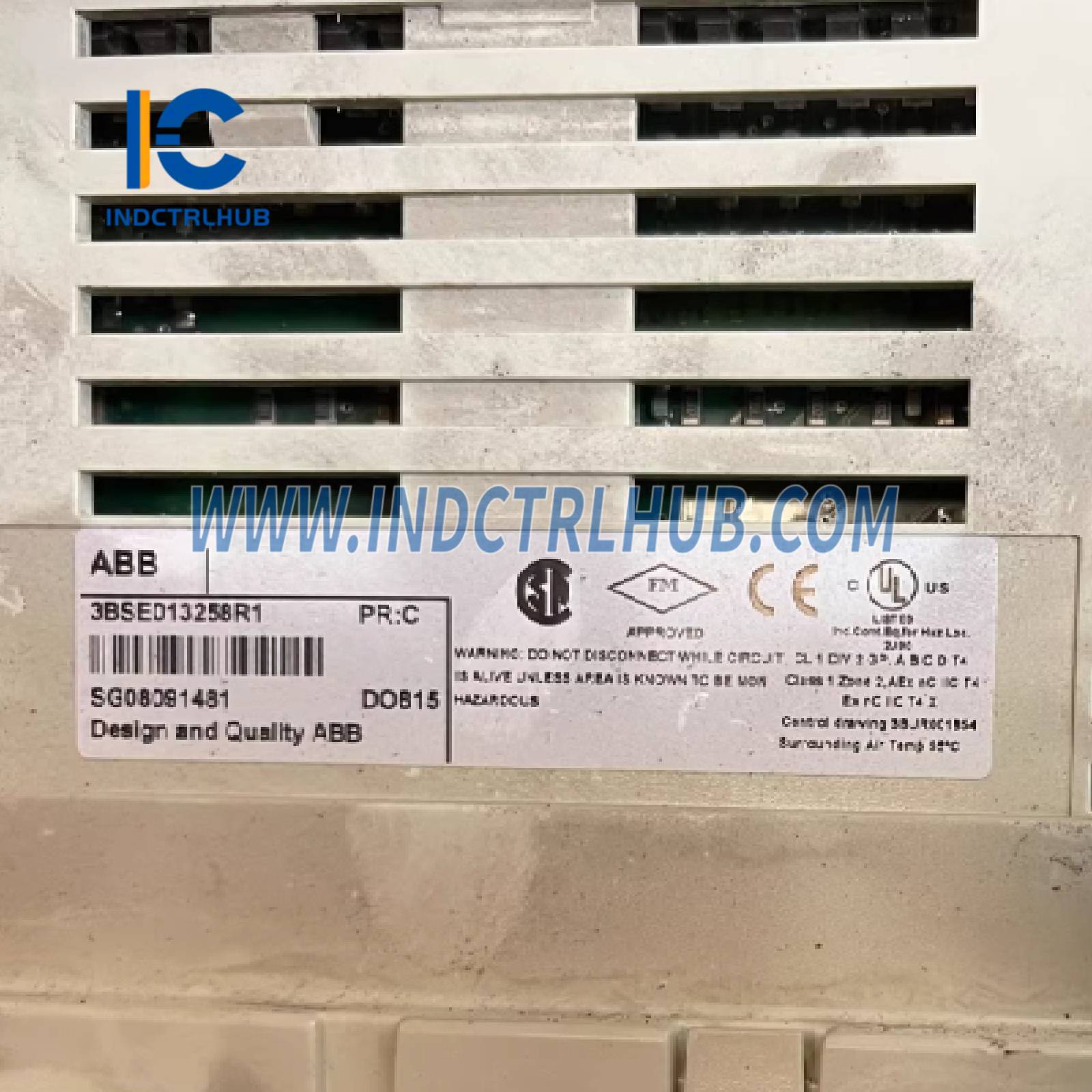

3BSE013258R1 |
|
ABB Type Designation |
DO815 |
|
Catalog Description |

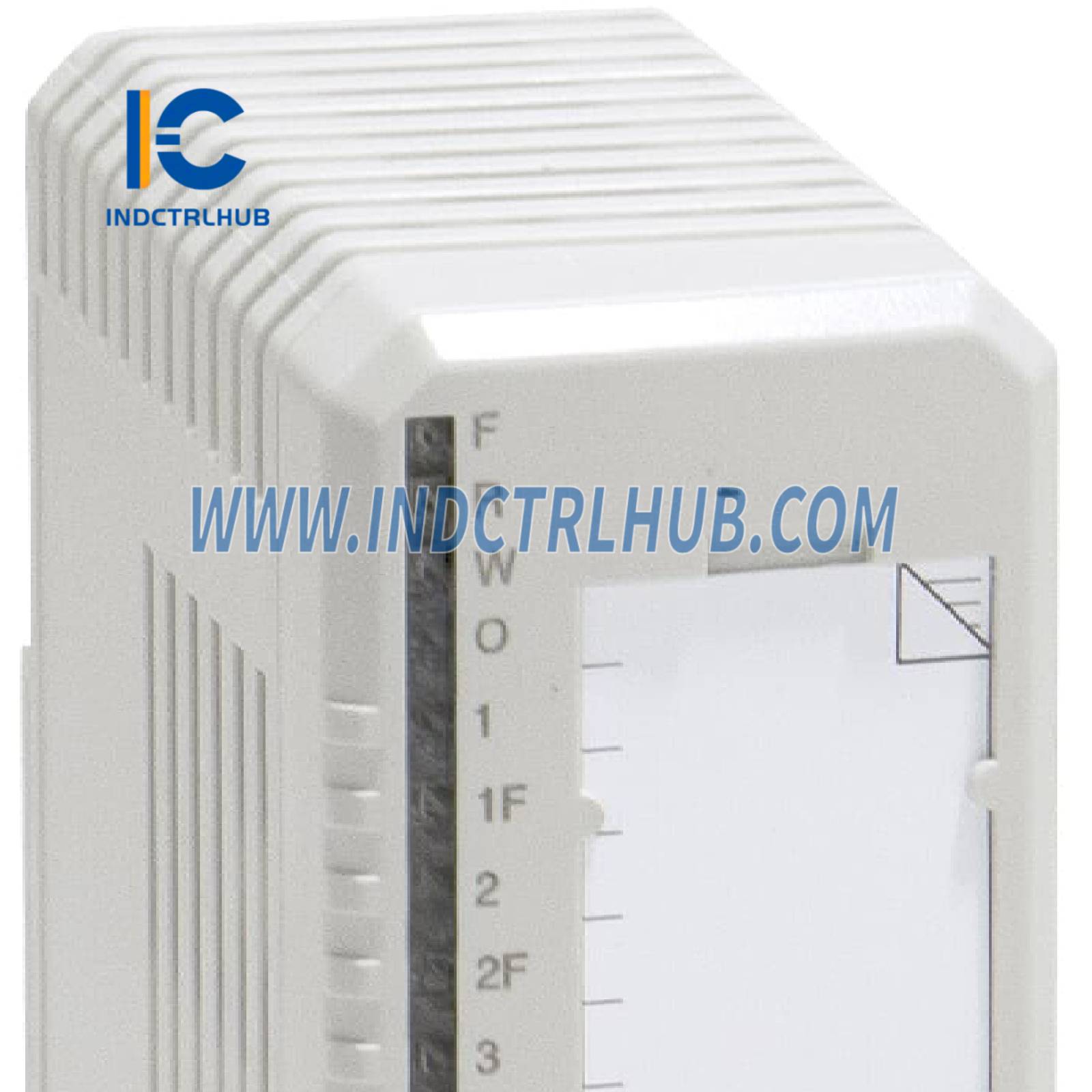

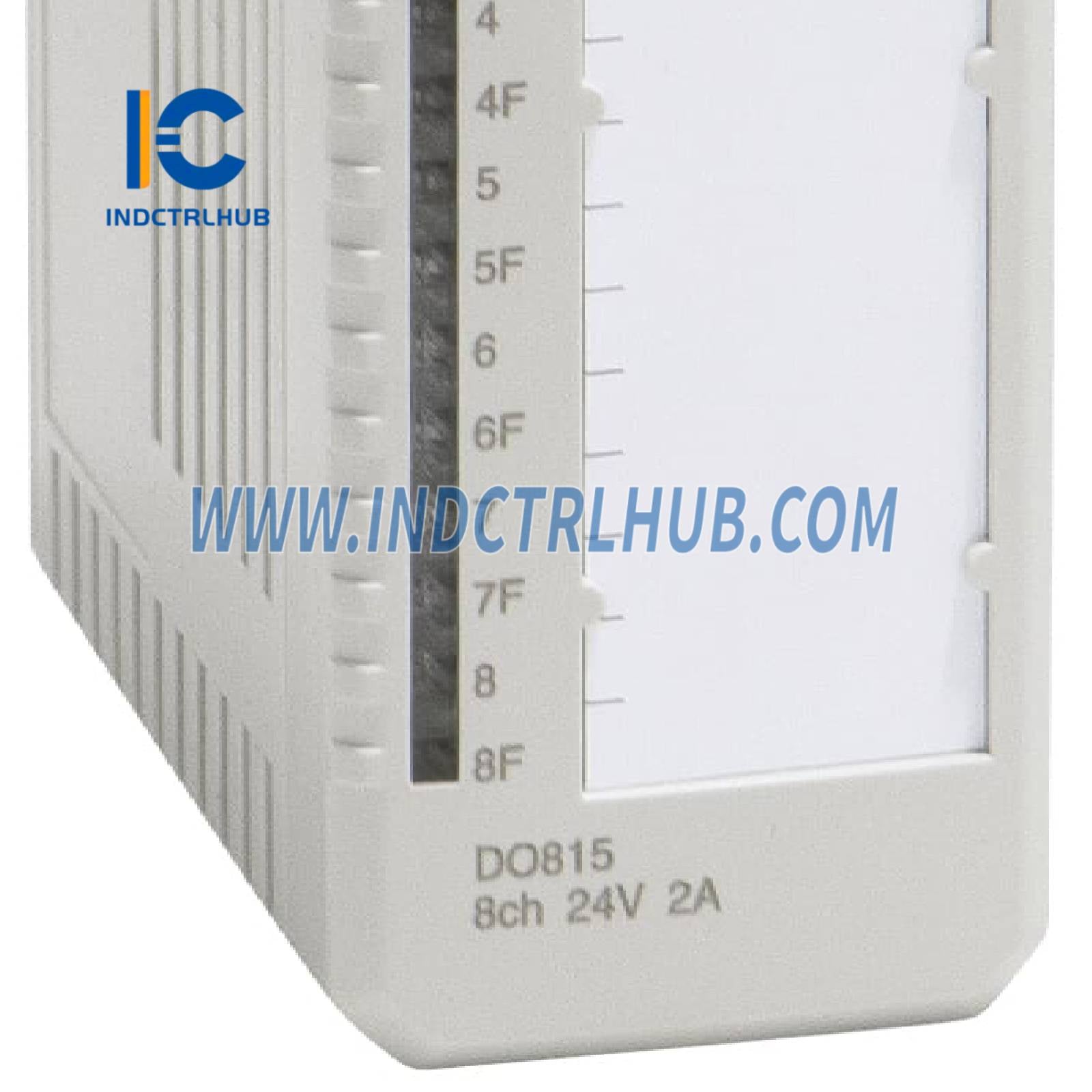

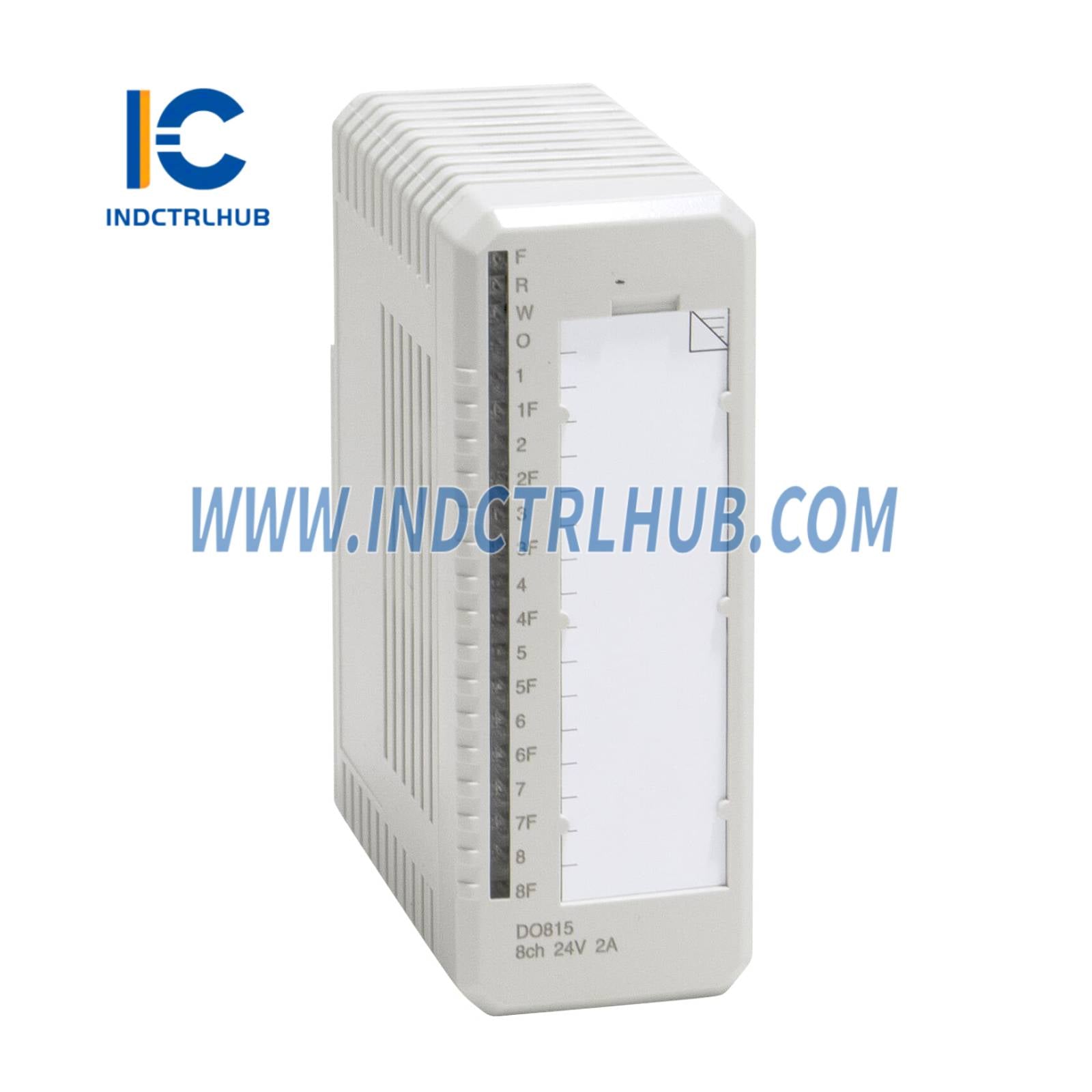

DO815 Digital Output 24V 8 ch |
|
Long Description |

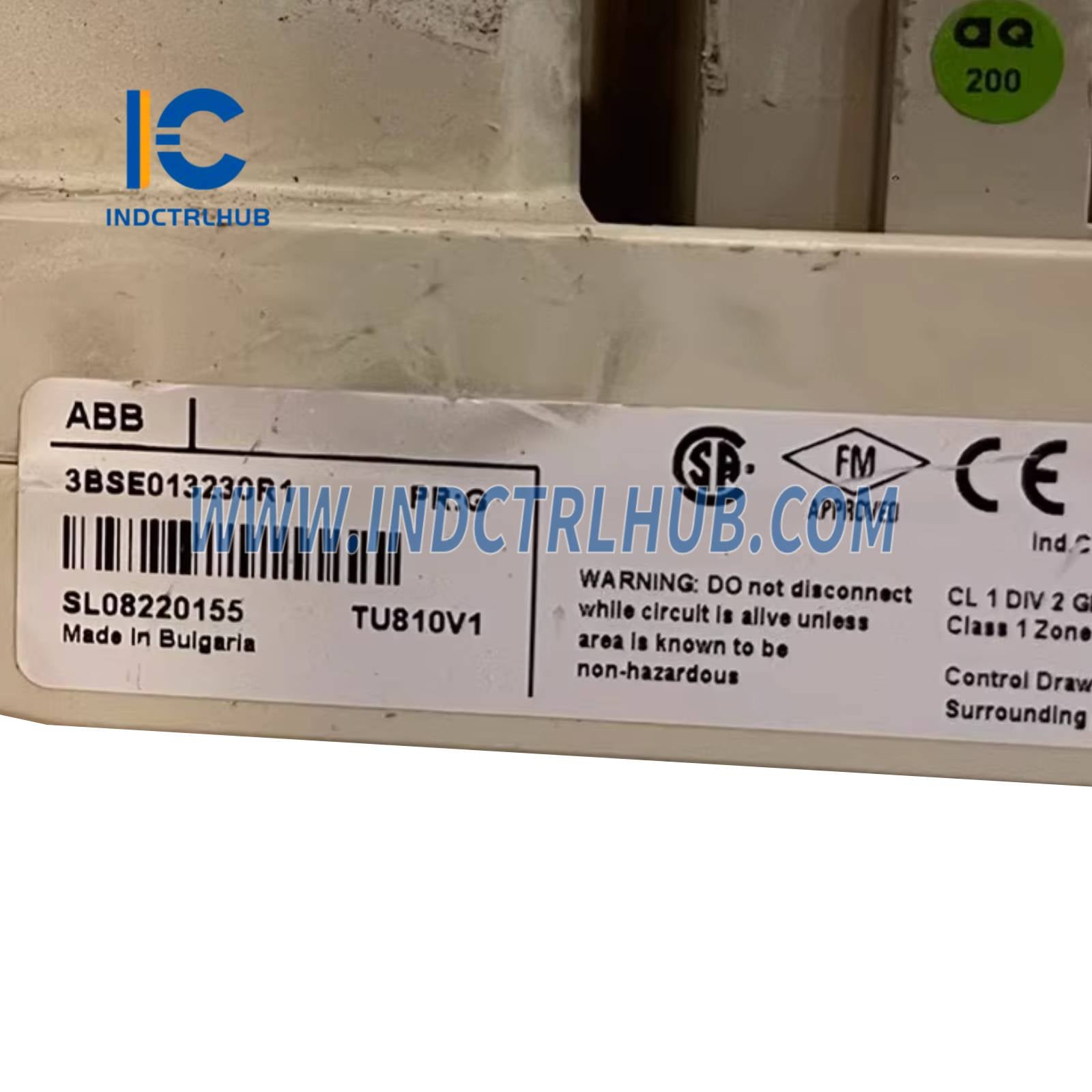

Isolated in two groups of 4 channels. 2.0A short circuit proof. Use Module Termination Unit TU810, TU812, TU814, TU830, TU833. |
|
Medium Description |
Isolated in two groups of 4 channels. 2.0A short circuit proof. Use Module Termination Unit TU810, TU812, TU814, TU830, TU833. |
|
Product Type |
I-O_Module |
Ordering
|
Field |
Details |
|---|---|
|
HS Code |
853890 – Electrical machinery and equipment and parts thereof |
|
Customs Tariff Number |
85389099 |
Dimensions
|
Dimension |
Size |
|---|---|
|
Product Net Depth / Length |
102 mm |
|
Product Net Height |
119 mm |
|
Product Net Width |
45 mm |
|
Product Net Weight |
0.3 kg |
Technical Details
|
Field |
Details |
|---|---|
|
Channel Type |
DO (Digital Output) |
|
Number of Output Channels |
8 |
Environmental
|
Field |
Details |
|---|---|
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP |
2d44a63f-59c6-4a50-adb2-a4f1772120bf (Estonia) |
Product Associations and Applications
|
Category/Module |
Details |
|---|---|
|
Products |
Control System Products > I/O Products > S800 I/O > S800 I/O Modules > DO815 Digital Outputs > DO815 Digital Output |
|
Systems |
Control Systems > 800xA > I/Os > S800 I/O (Versions 4.0, 4.1, 5.0, 5.1) Modules; 800xA System 6.0; Advant OCS; Compact Product Suite |
|
Parts & Services |
Control Systems > 800xA and Compact Product Suite I/O Modules; Measurement and Analytics > Force Measurement > Thickness Gauging |
