Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BSC690087R1 |
|
ABB Type Designation |
AO895 |
|
Catalog Description |

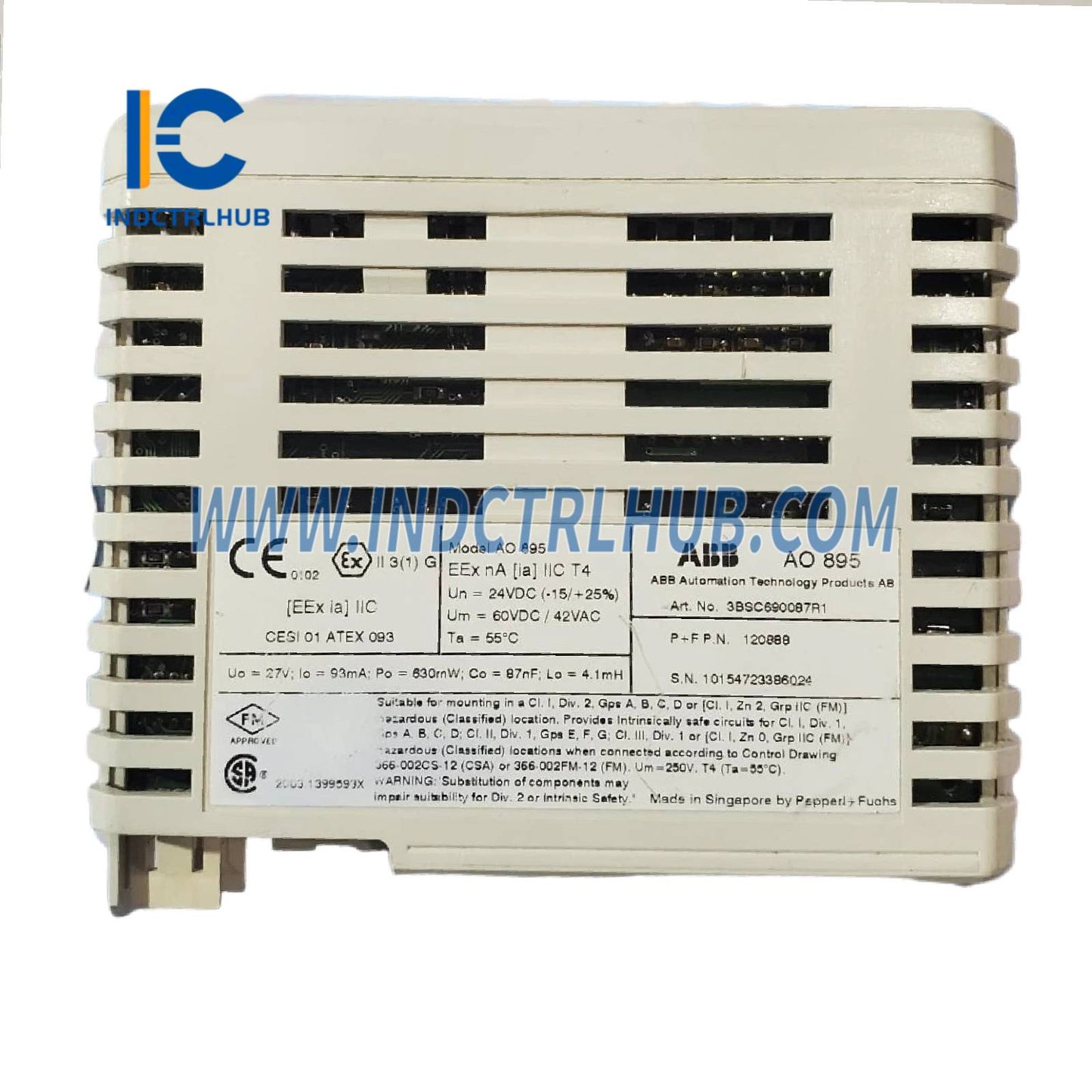

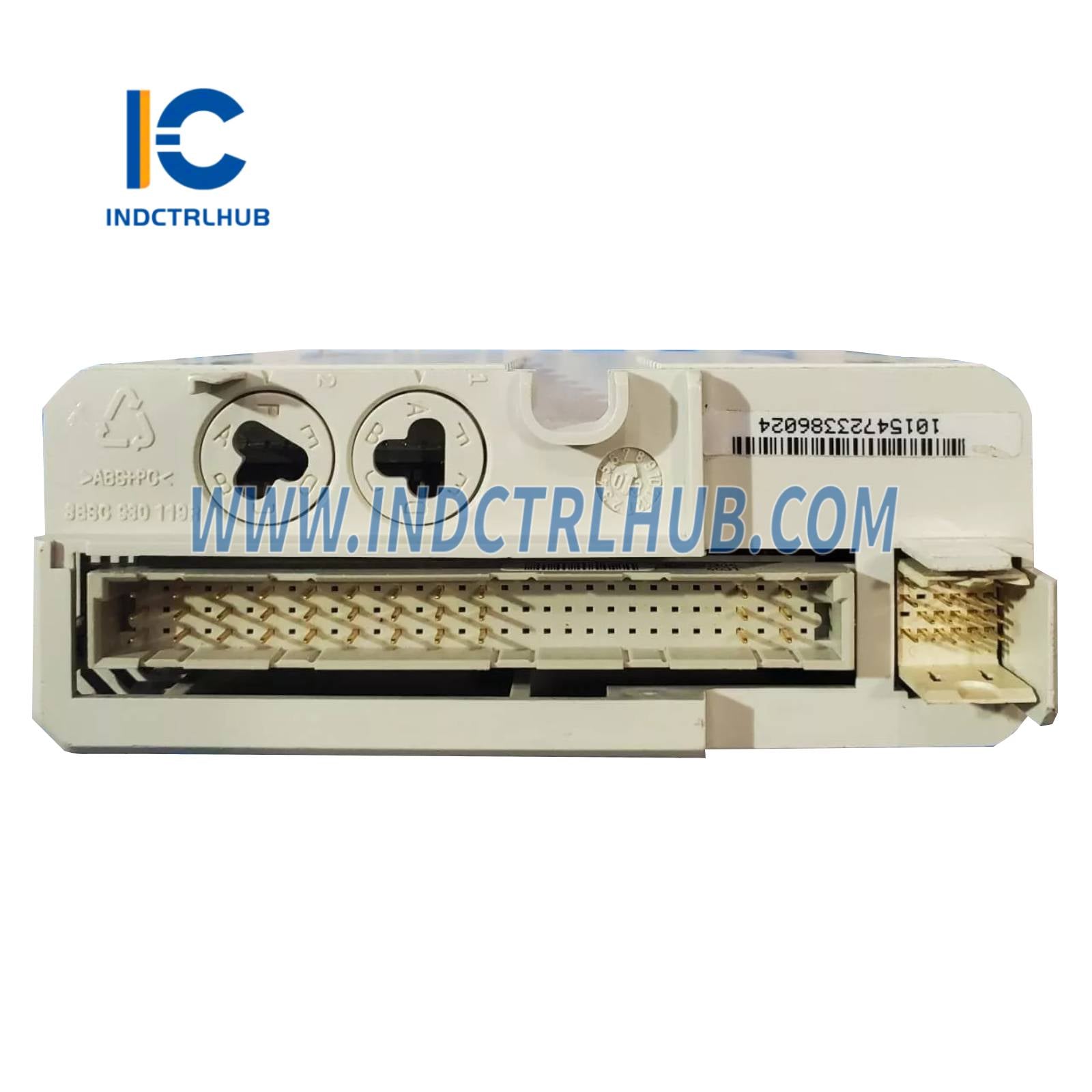

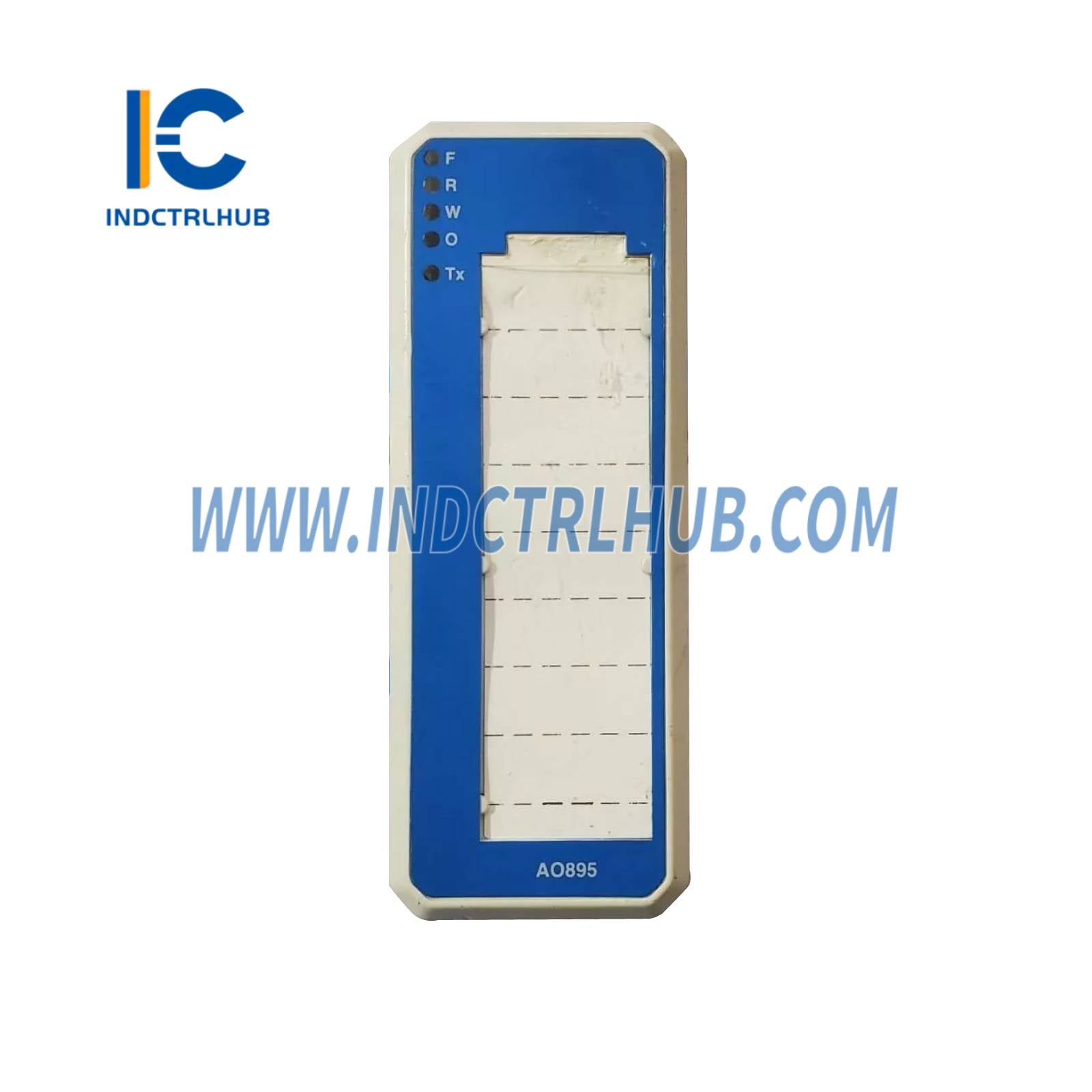

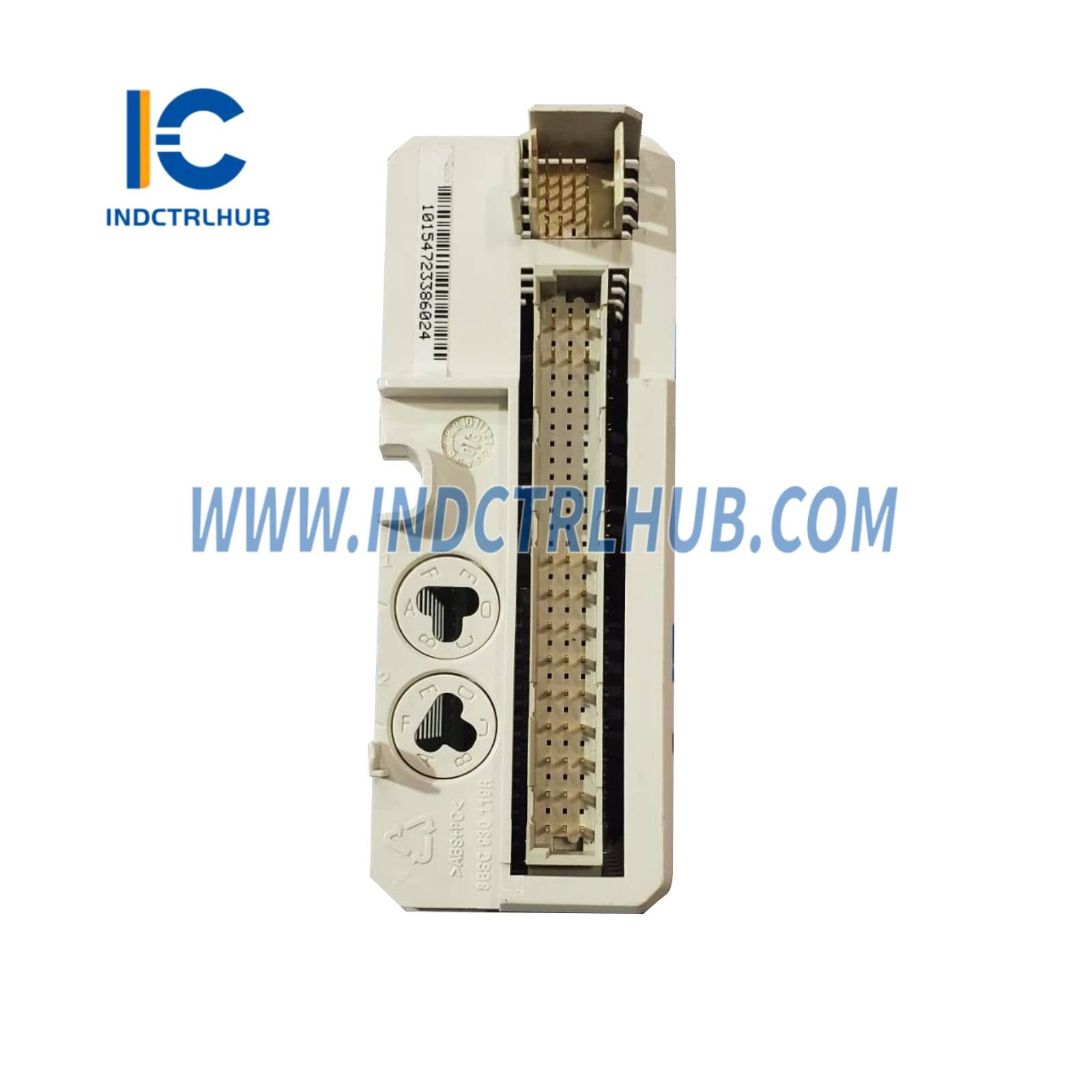

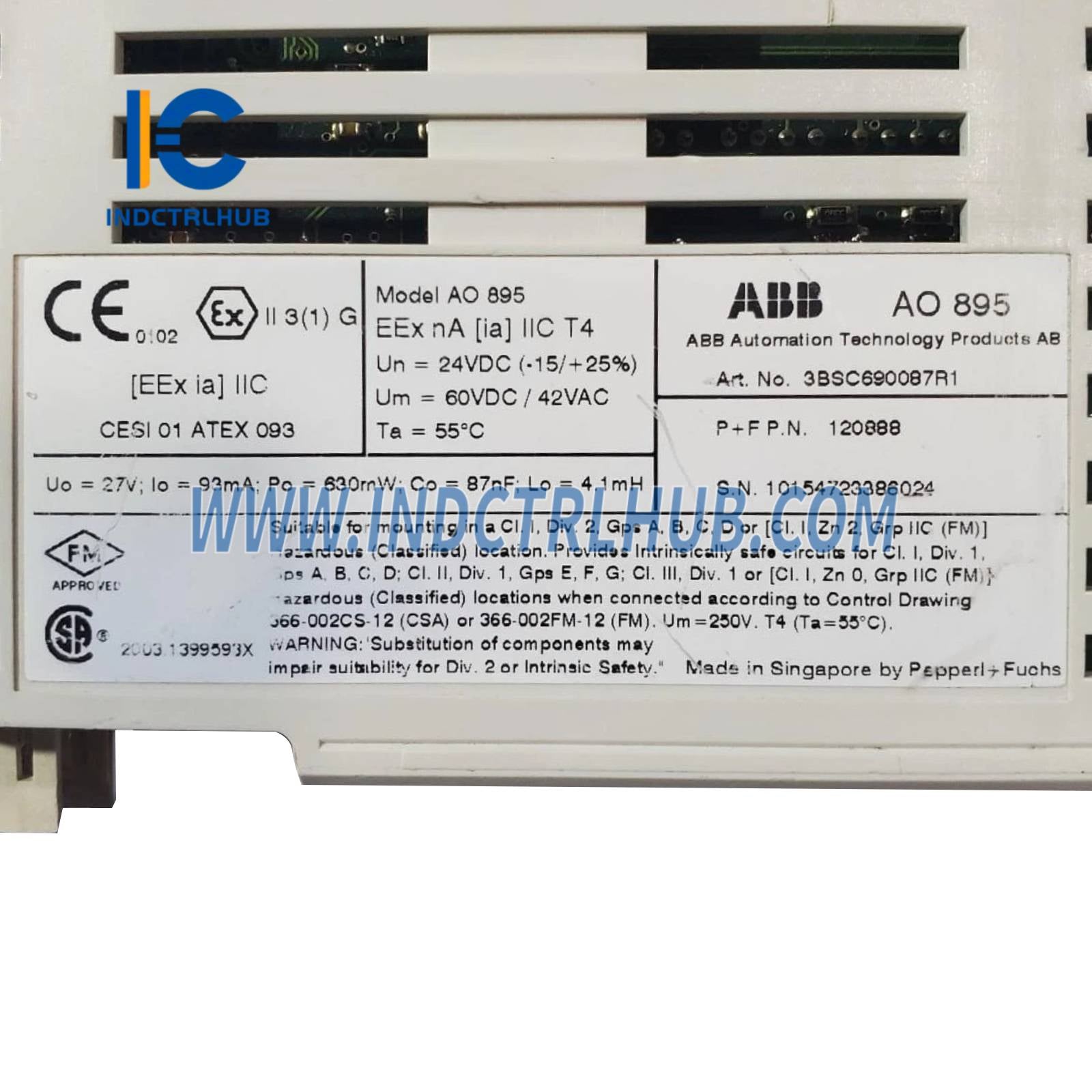

AO895 Analog Output IS HART 8 ch |
|
Long Description |
0(4)…20mA. RL max 750 ohm. Intrinsic Safety Interface and HART. Use Module Termination Unit TU890 or TU891. |
|
Medium Description |
0(4)…20mA, RL max 750 ohm. Intrinsic Safety Interface and HART. Compatible with TU890, TU891 |
|
Product Type |
I-O_Module |
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Channel Type |
AO (Analog Output) |
|
Input Channels |
0 |
|
Output Channels |
8 |
|
Signal Range |
0(4)…20mA |
|
Load Resistance |
Max 750 Ω |
|
Resolution |
12-bit |
|
Functionality |
Intrinsic Safety, HART Communication |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU |
|
WEEE Category |
Category 5: Small Equipment (No External Dimension > 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Reference |
6796cd33-e1d4-45da-bbb9-dffbbddfac7f (Singapore) |
Physical Dimensions
|
Parameter |
Value |
|---|---|
|
Depth / Length |
102 mm |
|
Height |
119 mm |
|
Width |
45 mm |
|
Weight |
0.3 kg |
Ordering & Classification
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389099 |
Compatible Termination Units
-
TU890
-
TU891
