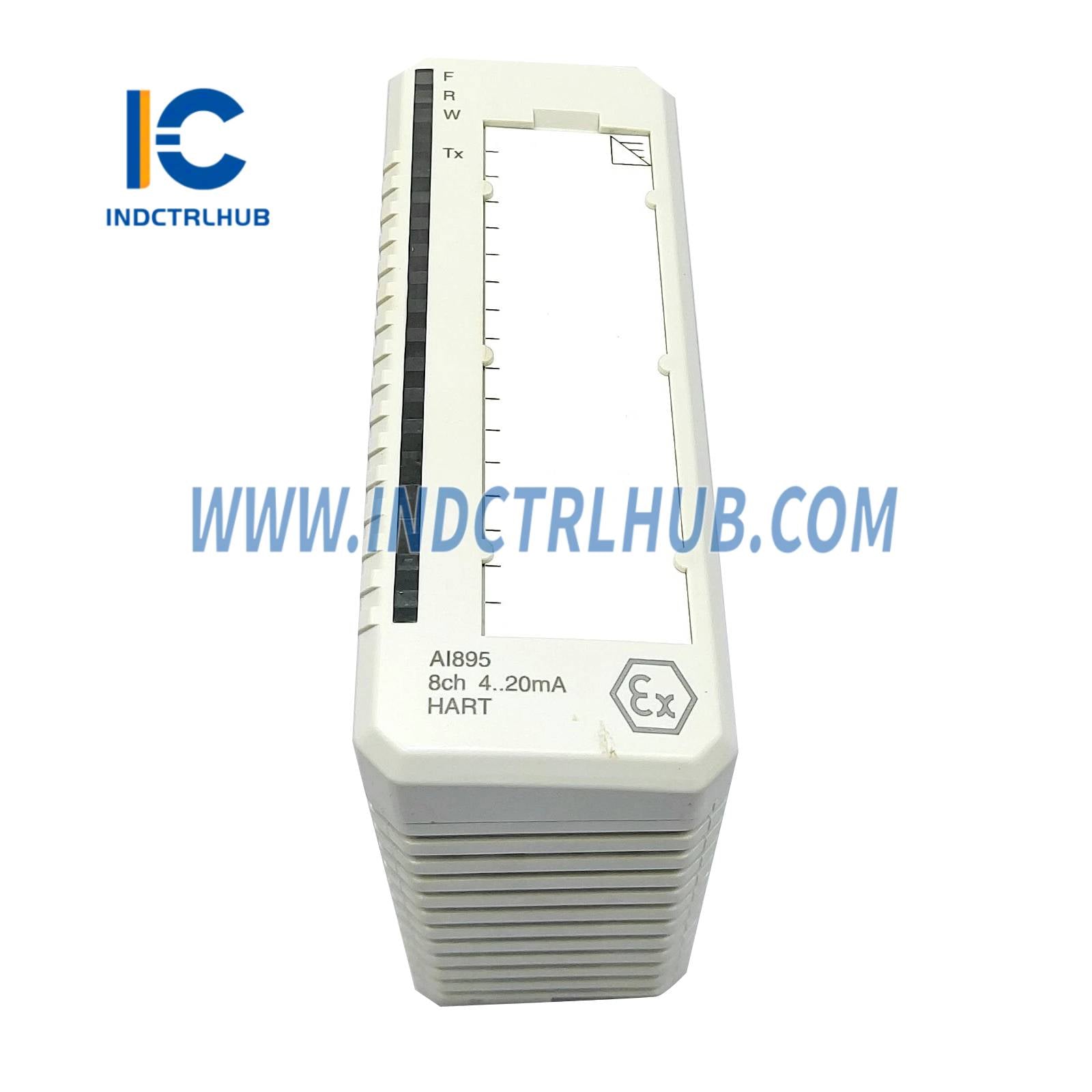

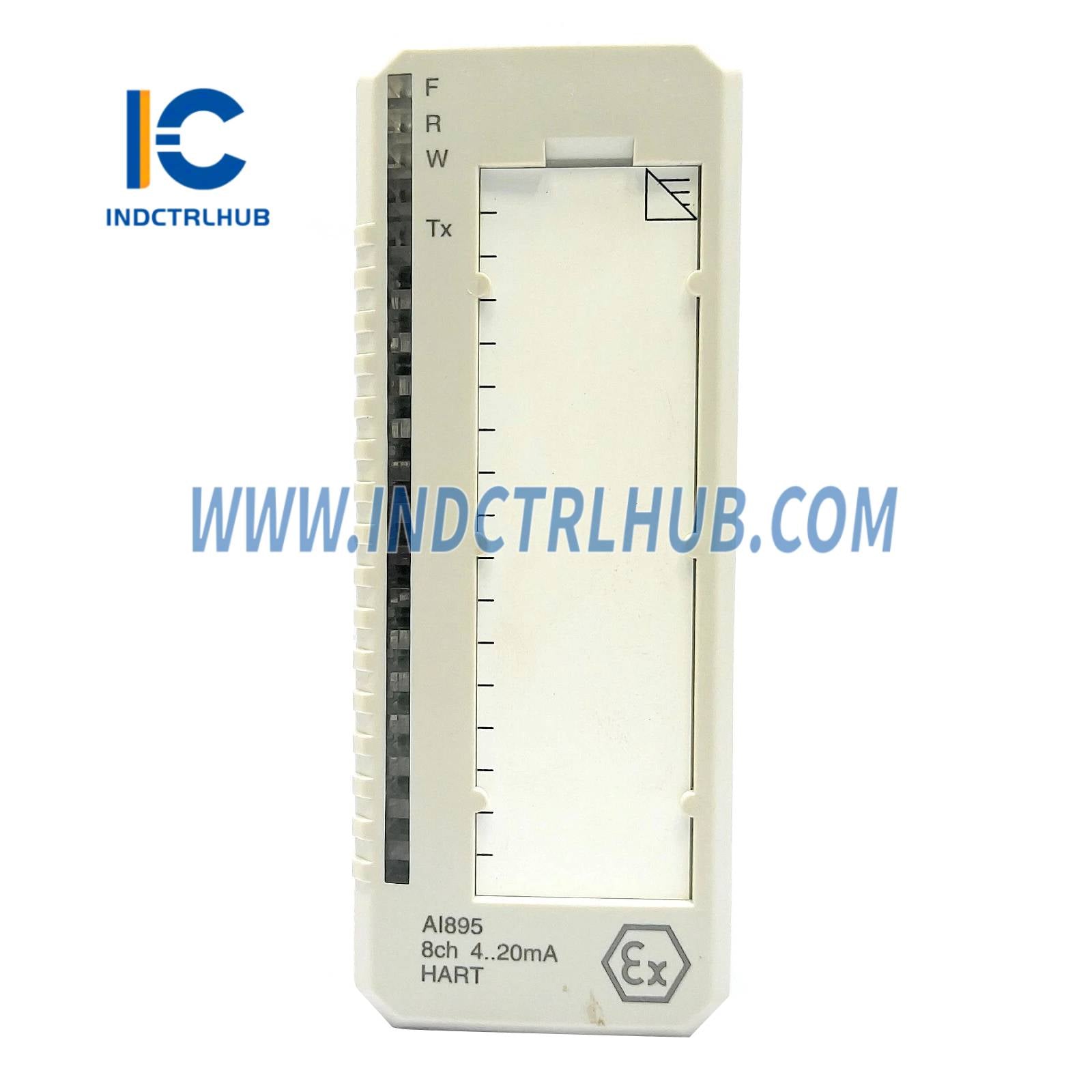

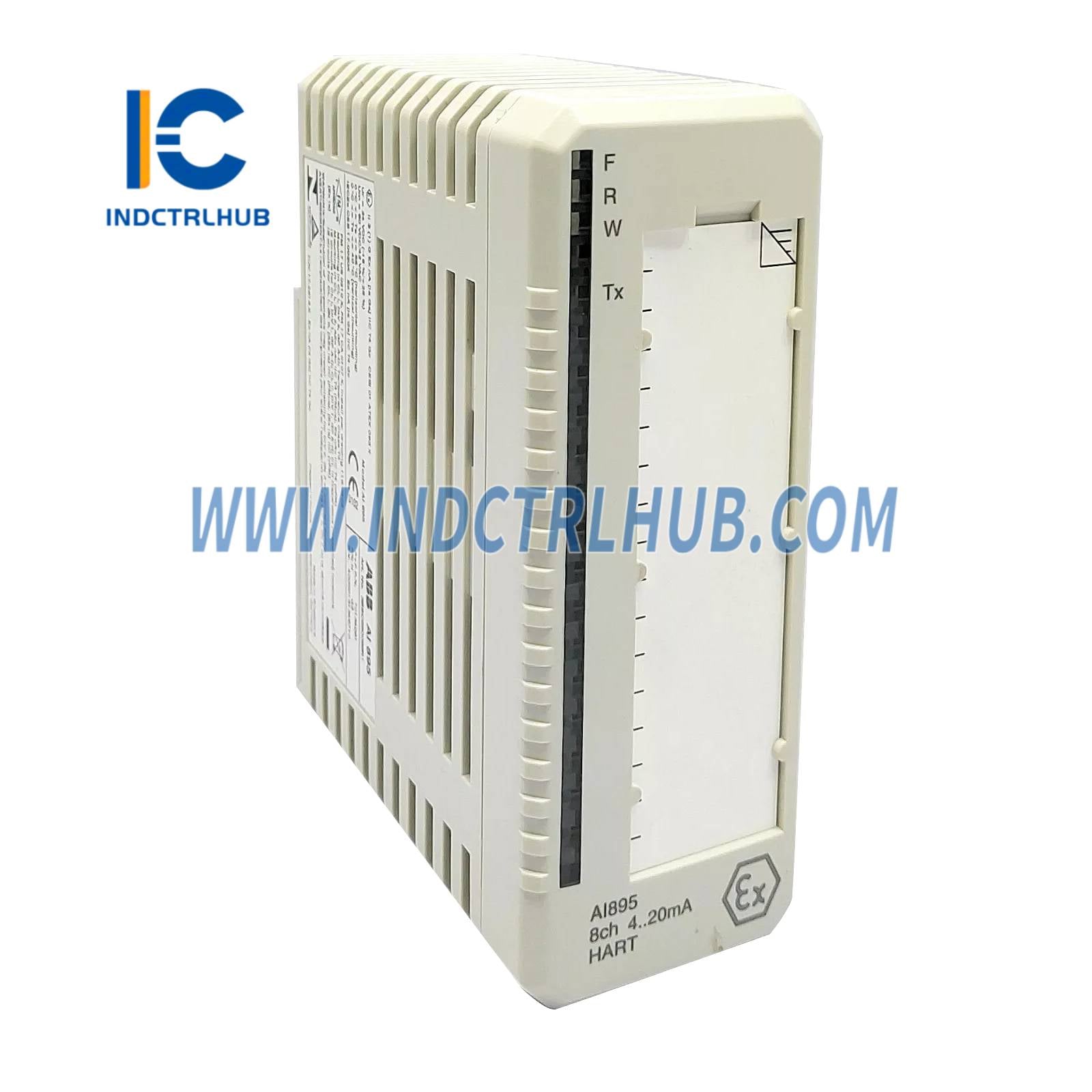

Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BSC690086R1 |
|
ABB Type Designation |
AI895 |
|
Catalog Description |
AI895 Analog Input IS HART 8 ch |
|
Long Description |
4…20mA single-ended. Intrinsic Safety Interface and HART. Use Module Termination Unit TU890 or TU891 |
|
Product Type |
I-O_Module |
|
Medium Description |
4…20mA single-ended. Intrinsic Safety Interface and HART |
|
Associated MTUs |
TU890, TU891 |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Channel Type |
AI (Analog Input) |
|
Number of Input Channels |
8 |
|
Number of Output Channels |
0 |
|
Signal Type |
4–20 mA, single-ended |
|
Intrinsic Safety |
Yes |
|
HART Communication |
Supported |
Dimensions & Weight
|
Dimension |
Value |
|---|---|
|
Net Depth / Length |
102 mm |
|
Net Height |
119 mm |
|
Net Width |
45 mm |
|
Net Weight |
0.3 kg |
Environmental & Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Compliance |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No external dimension > 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Reference |
b6b1e119-fb48-44d3-98cb-bff268b22351 (Singapore) |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389099 |
System Compatibility
The AI895 module is compatible with the following ABB platforms:
-
Control System Products
-
800xA System (versions 4.0, 4.1, 5.0, 5.1, 6.0)
-
Compact Product Suite (S800 I/O)
-
Advant OCS with Master SW (Advant Fieldbus 100)
