Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
ABB |
|
Product ID |
3BSC690071R1 |
|
ABB Type Designation |
AI890 |
|
Catalog Description |

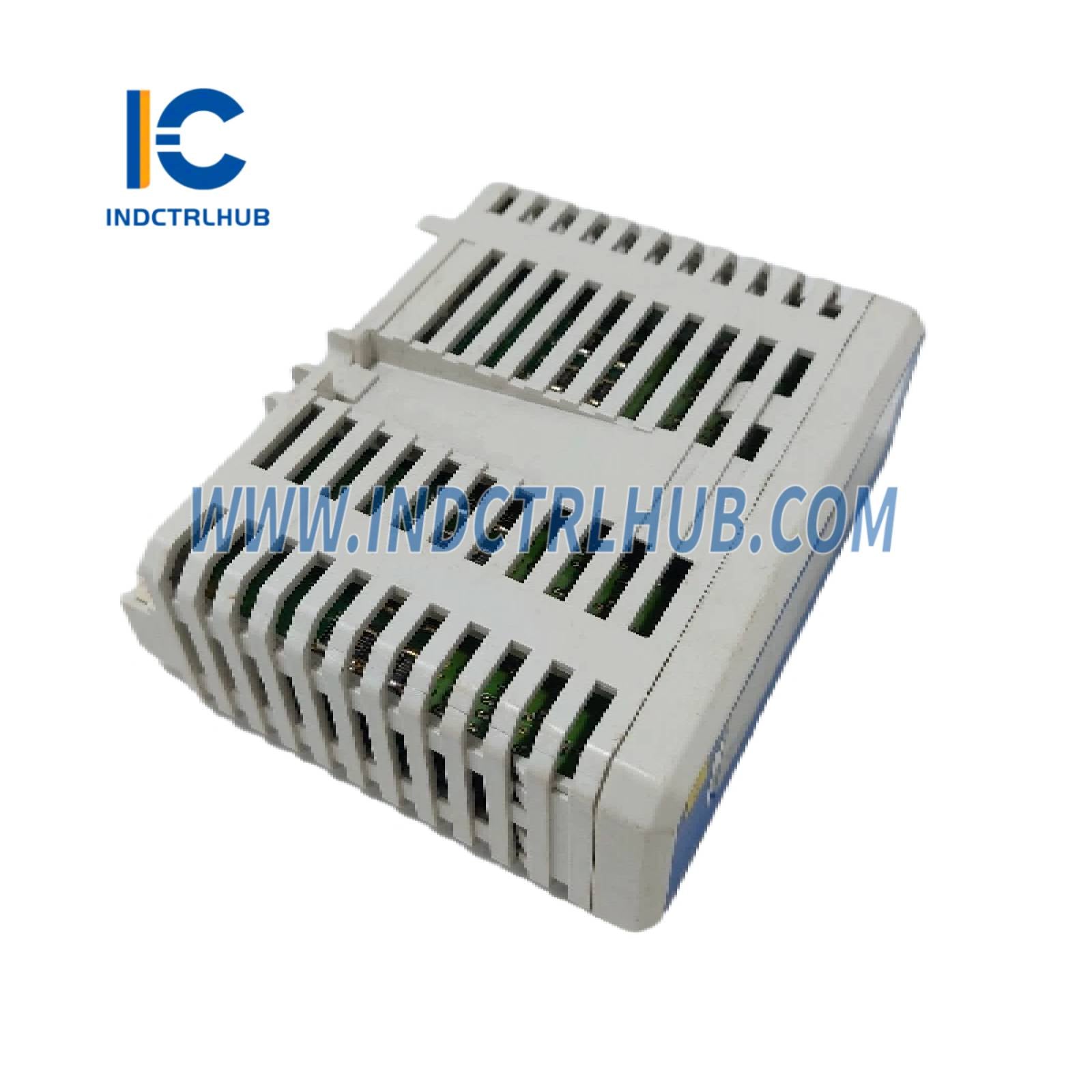

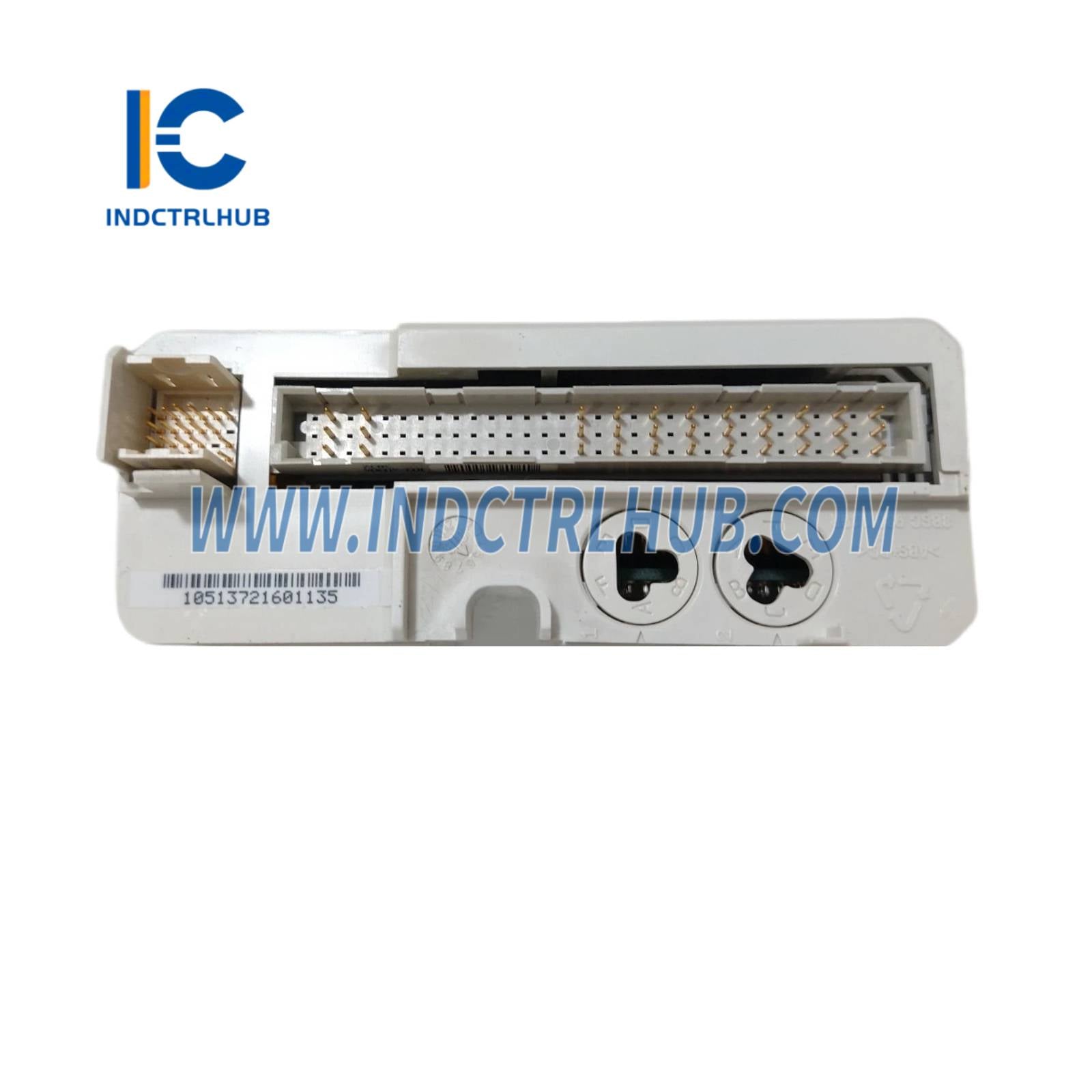

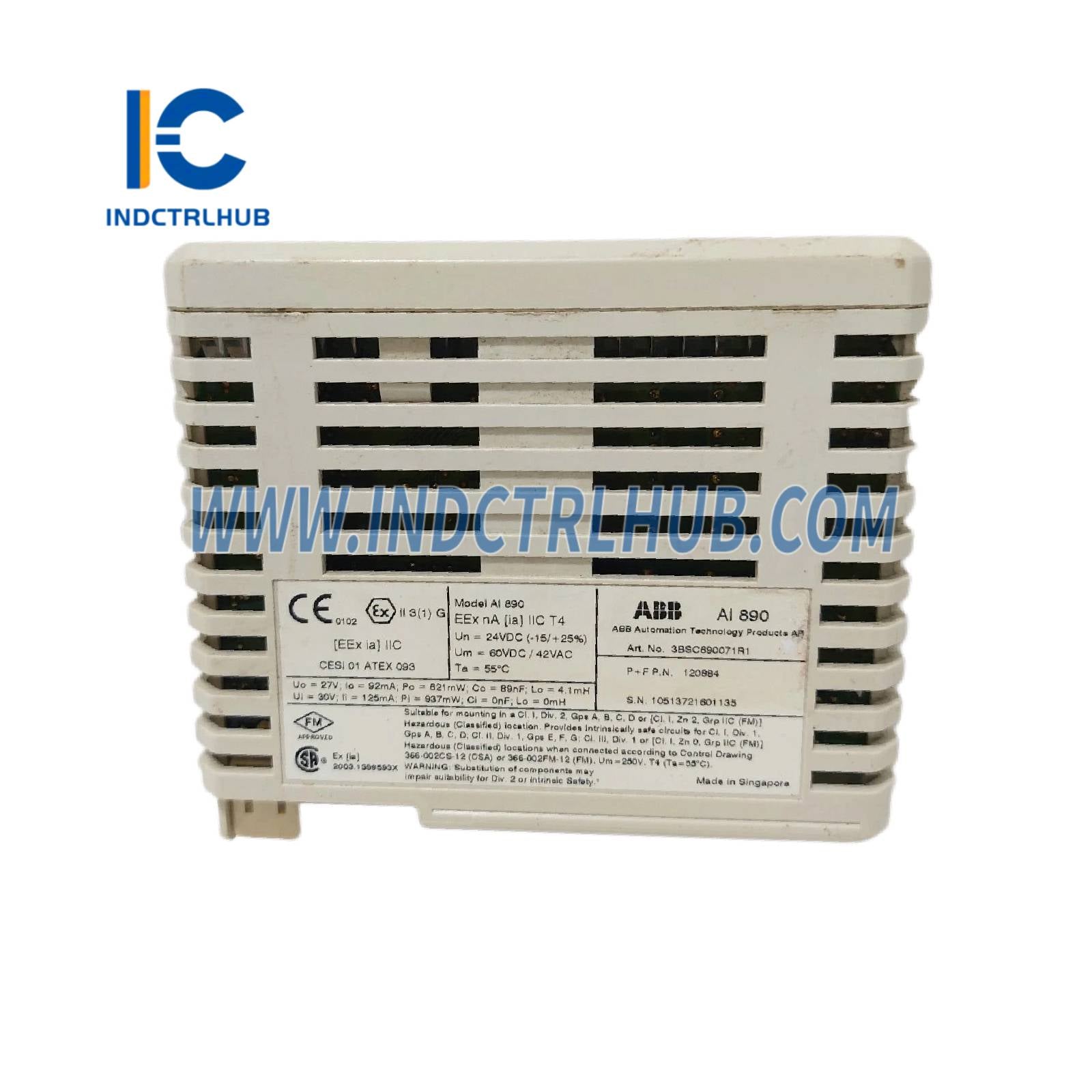

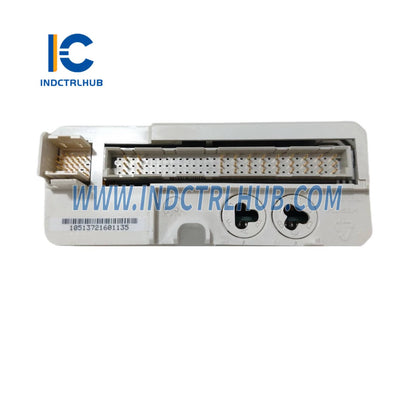

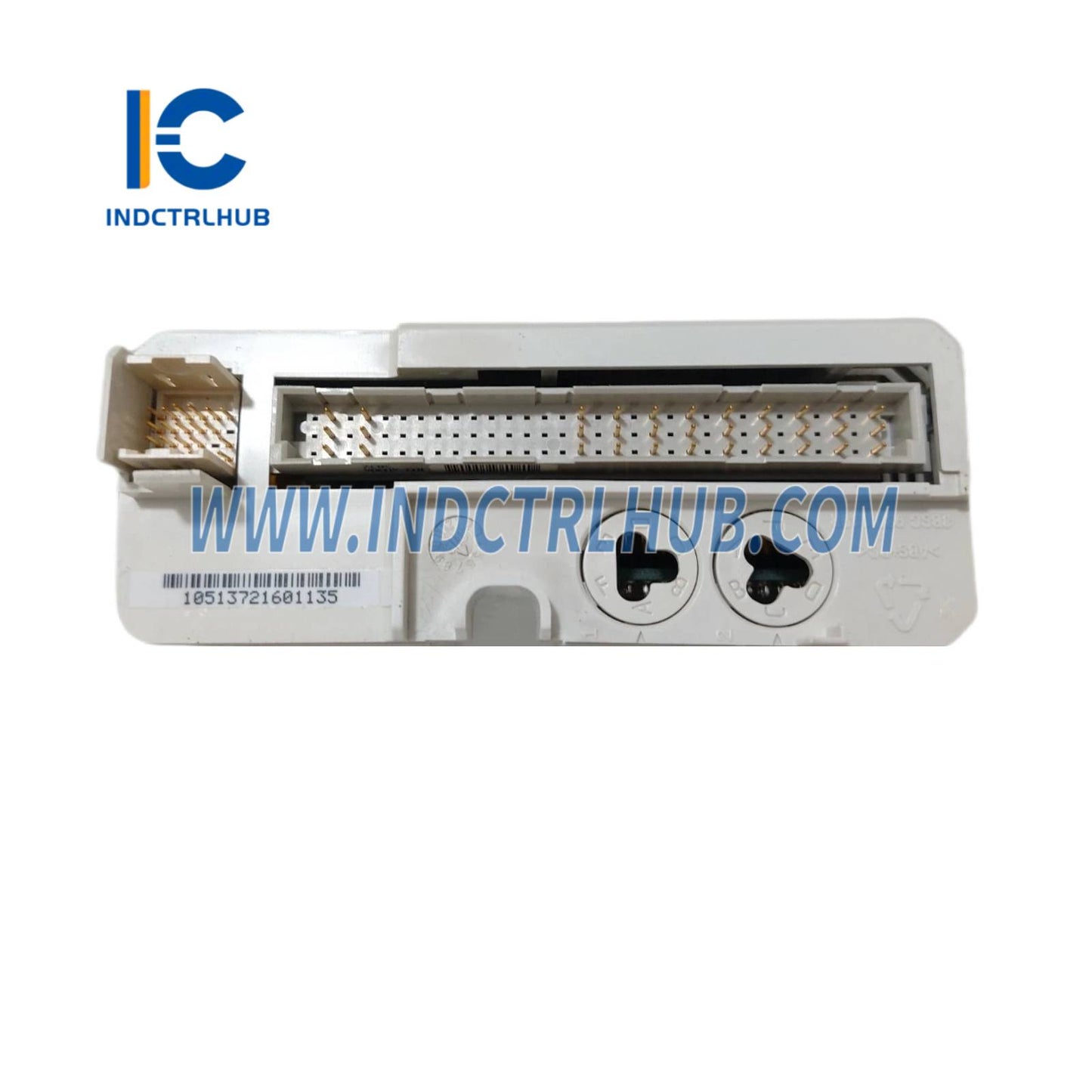

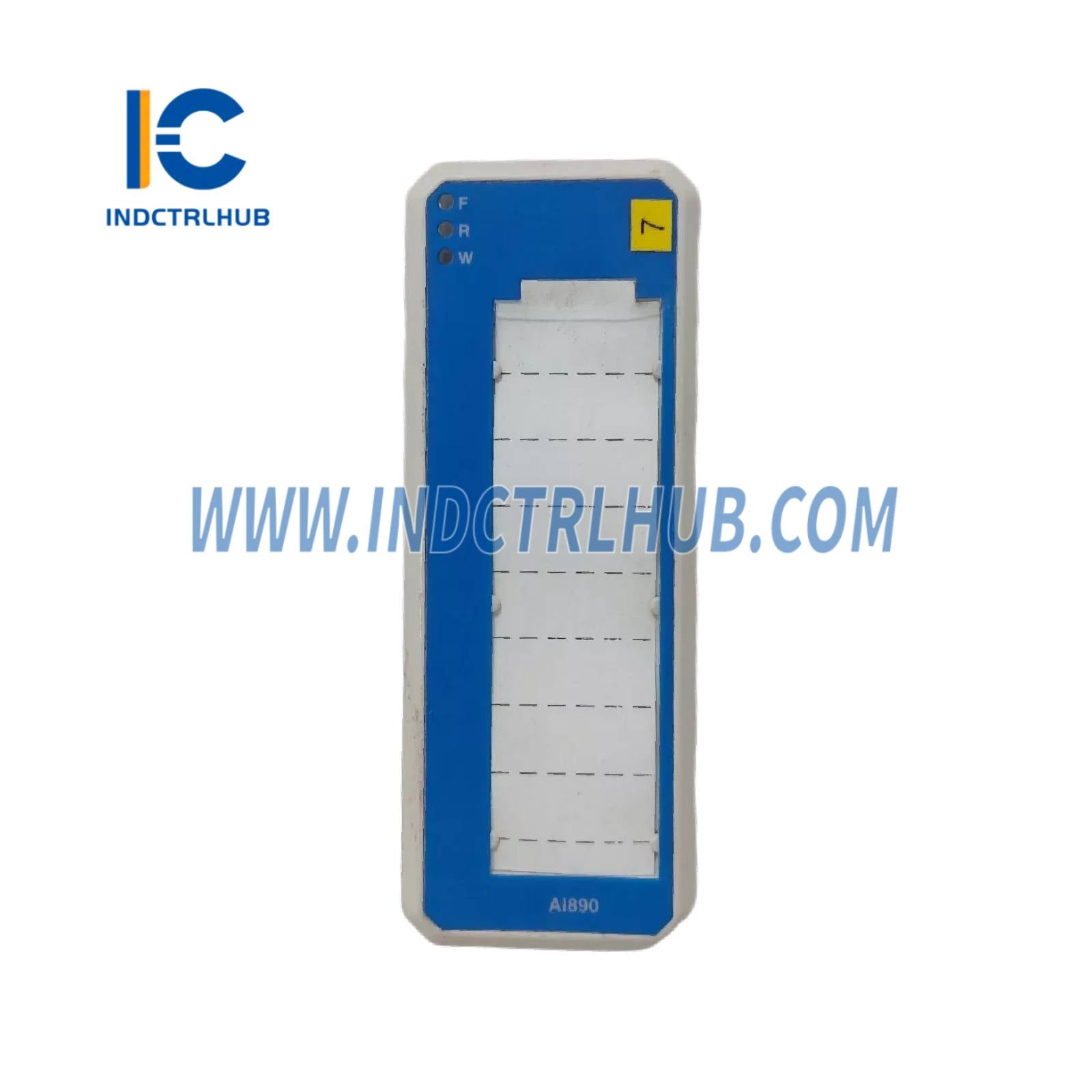

AI890 Analog Input IS 8 ch |
|
Long Description |
0(4)…20 mA single-ended. Intrinsic Safety Interface.Use Module Termination Unit TU890 or TU891. |
|
Medium Description |
0(4)…20 mA single-ended. Intrinsic Safety Interface. |
|
Product Type |
I-O_Module |
Technical Specifications
|
Field |
Details |
|---|---|
|
Channel Type |
Analog Input (AI) |
|
Number of Input Channels |
8 |
|
Number of Output Channels |
0 |
|
Signal Type |
0(4)–20 mA |
|
Input Configuration |
Single-ended |
|
Intrinsic Safety |
Yes, requires TU890 or TU891 for IS interface |
Ordering Information
|
Field |
Details |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389099 |
Physical Dimensions
|
Field |
Details |
|---|---|
|
Product Net Depth / Length |
102 mm |
|
Product Net Height |
119 mm |
|
Product Net Width |
45 mm |
|
Product Net Weight |
0.3 kg |
Environmental Information
|
Field |
Details |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension > 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Reference |
4436c63f-44fc-4045-a062-6c9f25451795 (Singapore) |
System Compatibility
-
Module Termination Units: TU890 or TU891
-
Supported Systems:
-
Control Systems: 800xA, Advant OCS with Master SW, MOD 300 SW, Compact Product Suite
-
I/O Series: S800 I/O (Versions 4.0, 4.1, 5.0, 5.1, 6.0)
