Product Description

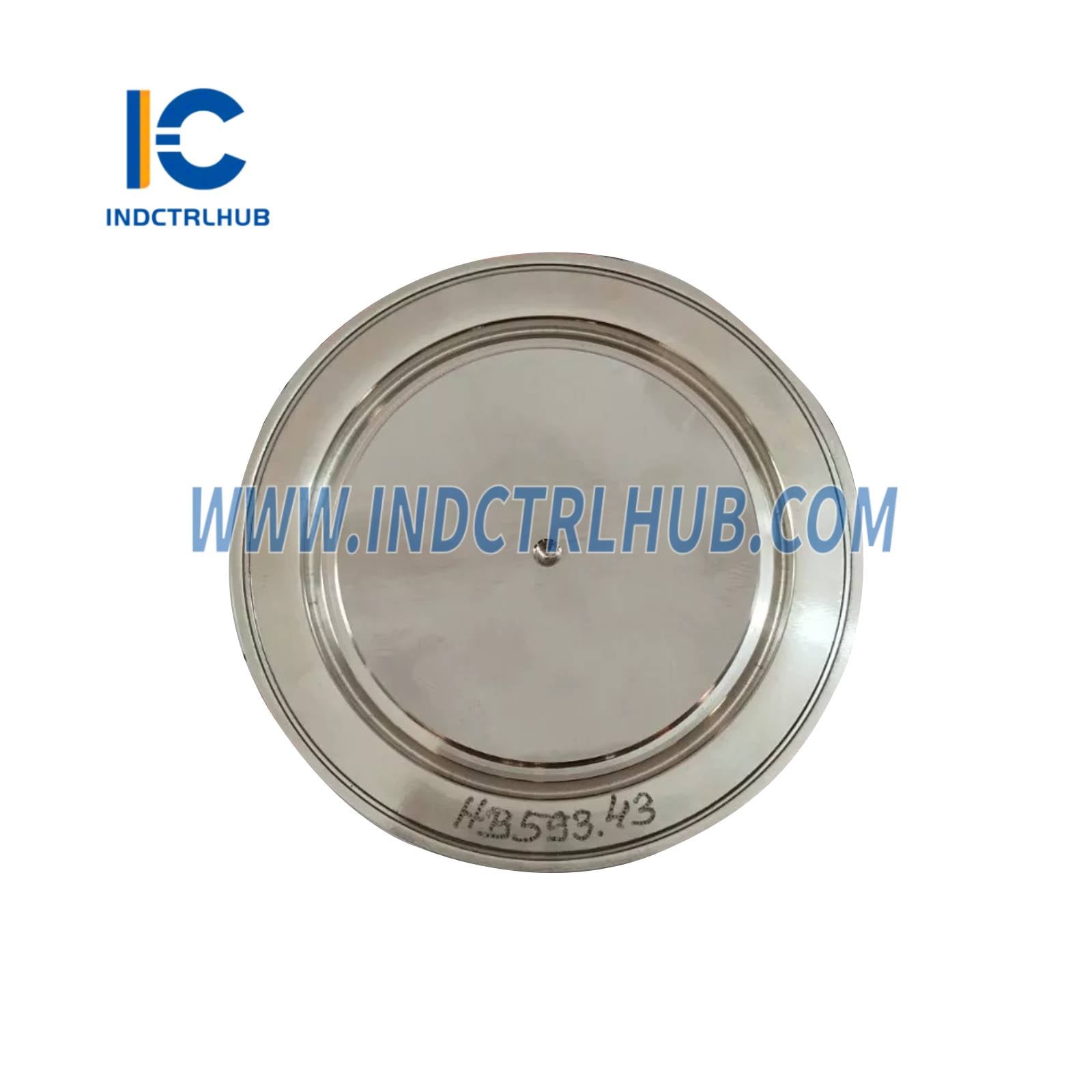

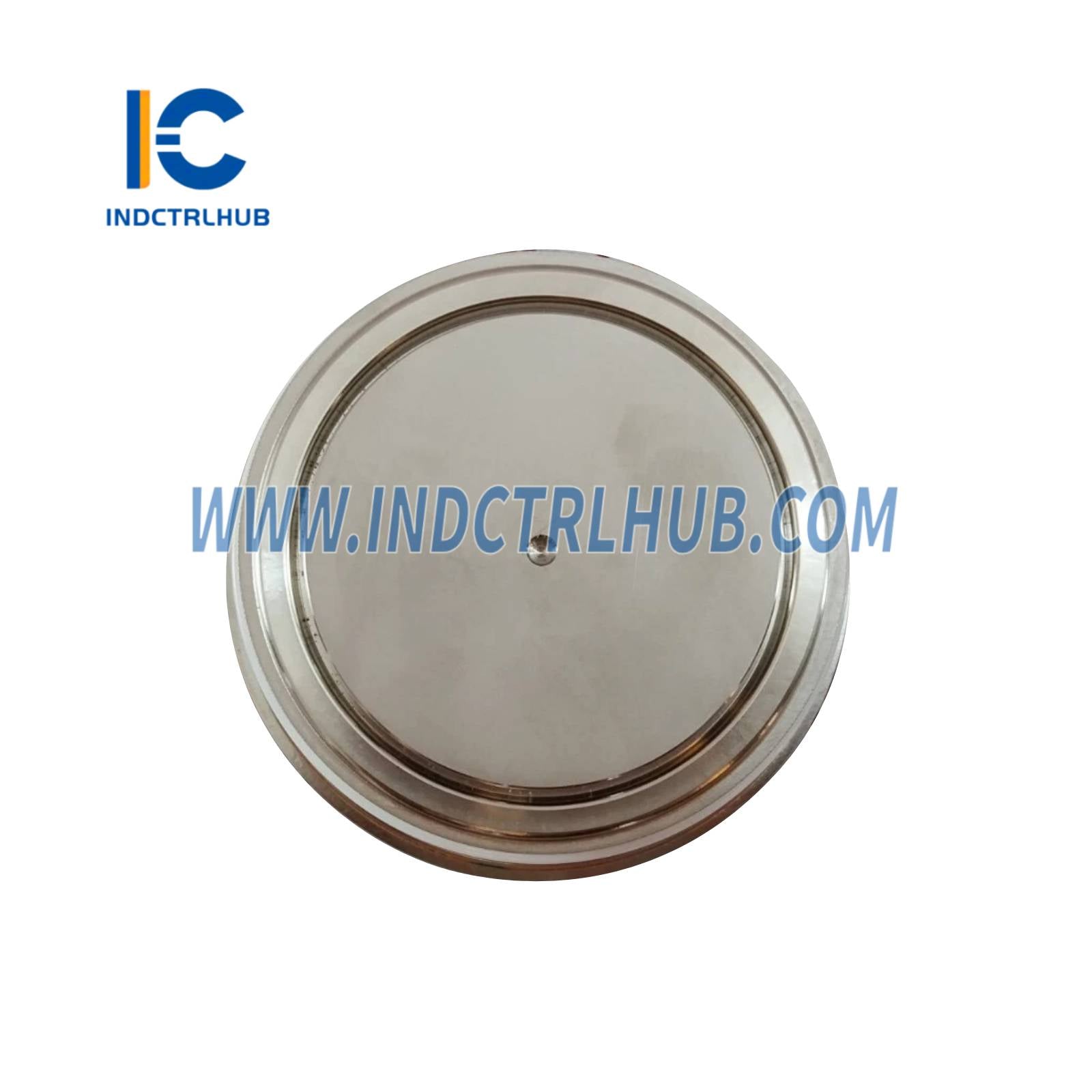

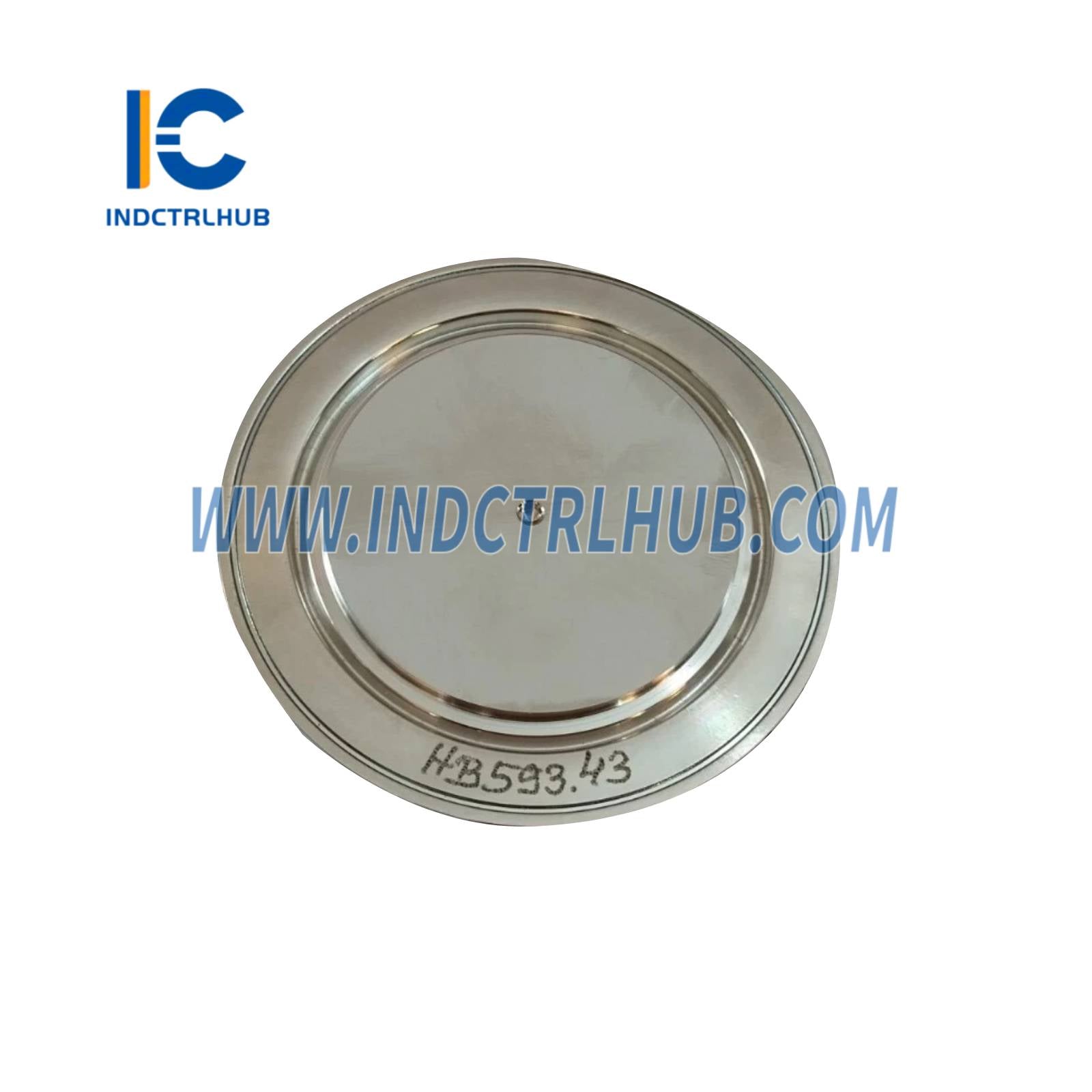

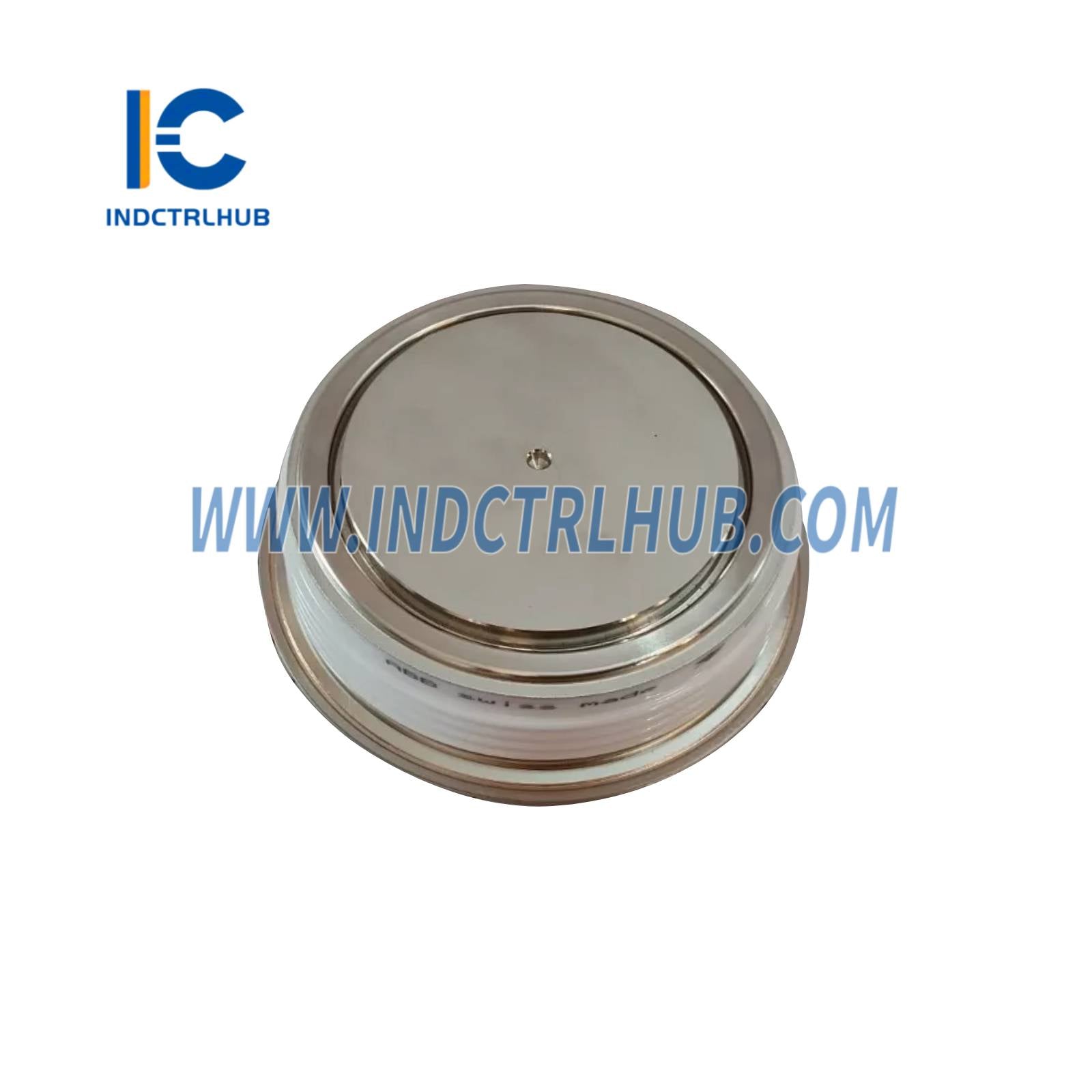

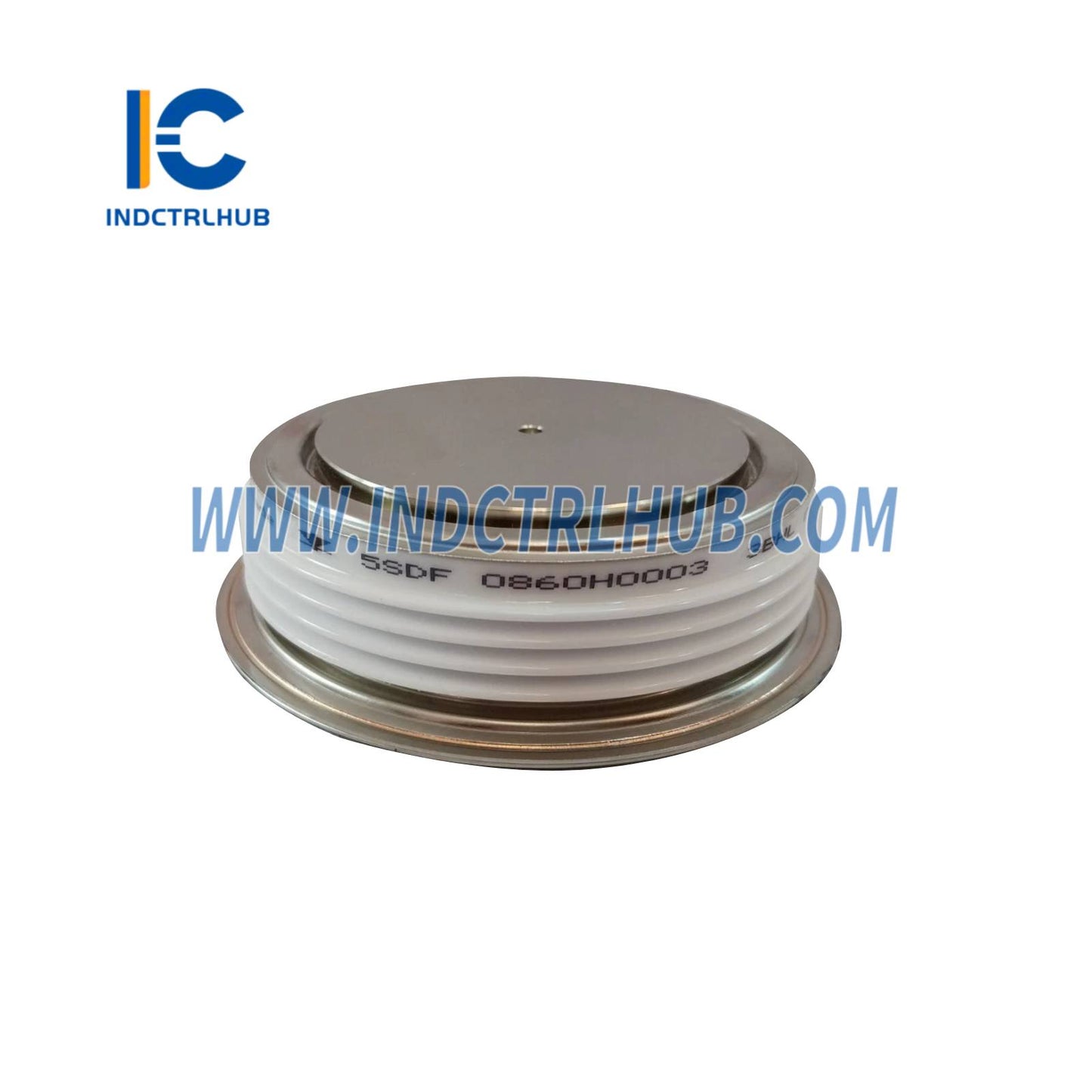

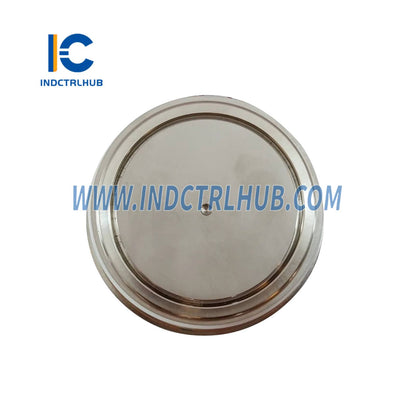

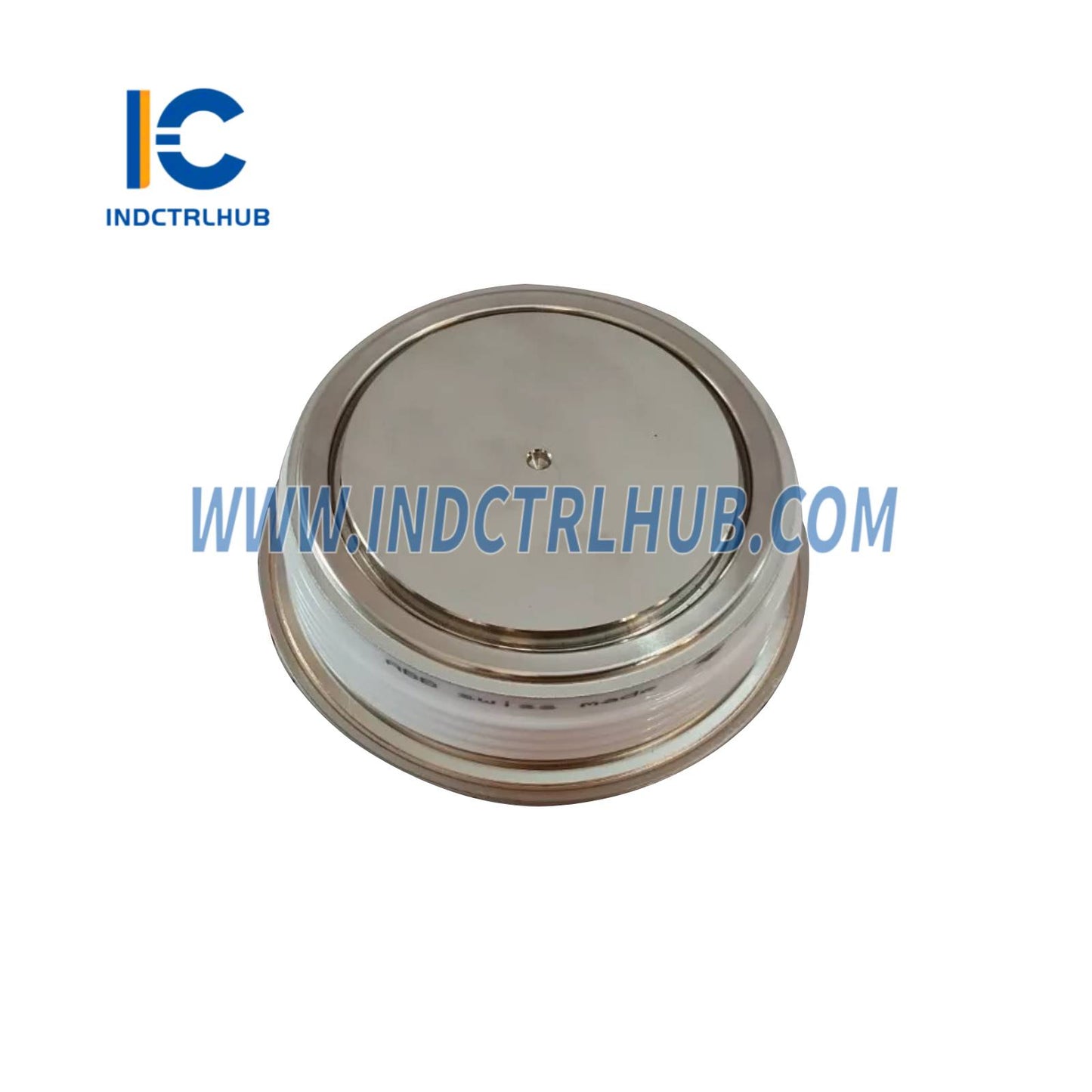

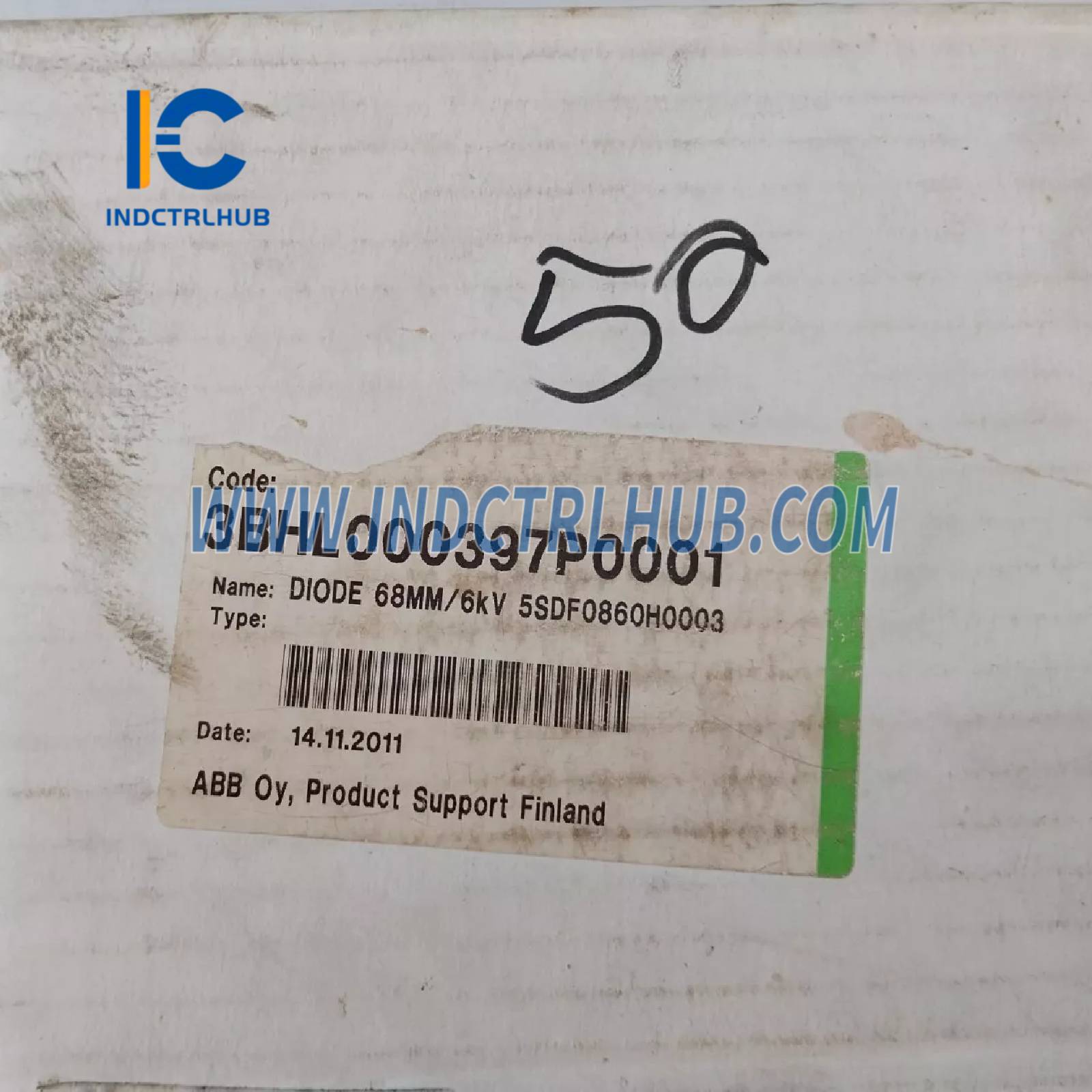

ABB 3BHL000397P0001 5SDF0860H0003 Fast Recovery Diode
Product Overview
- The ABB 3BHL000397P0001, with part number 5SDF0860H0003, is a Fast Recovery Diode module designed for high-power industrial applications. This diode is part of ABB’s power semiconductor portfolio, specifically engineered for use in power electronics systems such as rectifiers, inverters, and converters, often in conjunction with IGBT modules. It is widely used in industries like power generation, renewable energy, traction systems, and heavy manufacturing for efficient power conversion and control. The 5SDF0860H0003 is known for its high current capability, fast recovery time, and robust design, making it suitable for demanding high-voltage applications.
Technical Specifications
- The 3BHL000397P0001 (5SDF0860H0003) has the following specifications based on industry sources and ABB documentation:
| Specification | Details |
|---|---|
| Model/Part Number | 5SDF0860H0003 |
| Order Code | 3BHL000397P0001 |
| Manufacturer | ABB |
| Description | Fast Recovery Diode Module |
| Series | ABB Power Semiconductors |
| Function | High-power rectification and freewheeling in power electronics |
| Configuration | Single fast recovery diode |
| Voltage Rating (V_RRM) | 6000 V (Repetitive Peak Reverse Voltage) |
| Current Rating (I_F(AV)) | 860 A (Average Forward Current at 70°C) |
| Surge Current (I_FSM) | Up to 12 kA (non-repetitive, 10 ms) |
| Reverse Recovery Time (t_rr) | Fast recovery, typically <5 µs (application-dependent) |
| Forward Voltage Drop (V_F) | Approx. 2.5 V at 860 A (typical) |
| Isolation Voltage | 10.2 kV (RMS, 1 minute) |
| Thermal Resistance (R_th(j-c)) | Approx. 0.025 K/W (junction-to-case) |
| Cooling | Forced air or liquid cooling required |
| Operating Junction Temperature | -40°C to +150°C (-40°F to +302°F) |
| Environmental Specifications | Operating Temperature: -40°C to +125°C (-40°F to +257°F) Storage Temperature: -40°C to +150°C (-40°F to +302°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant |

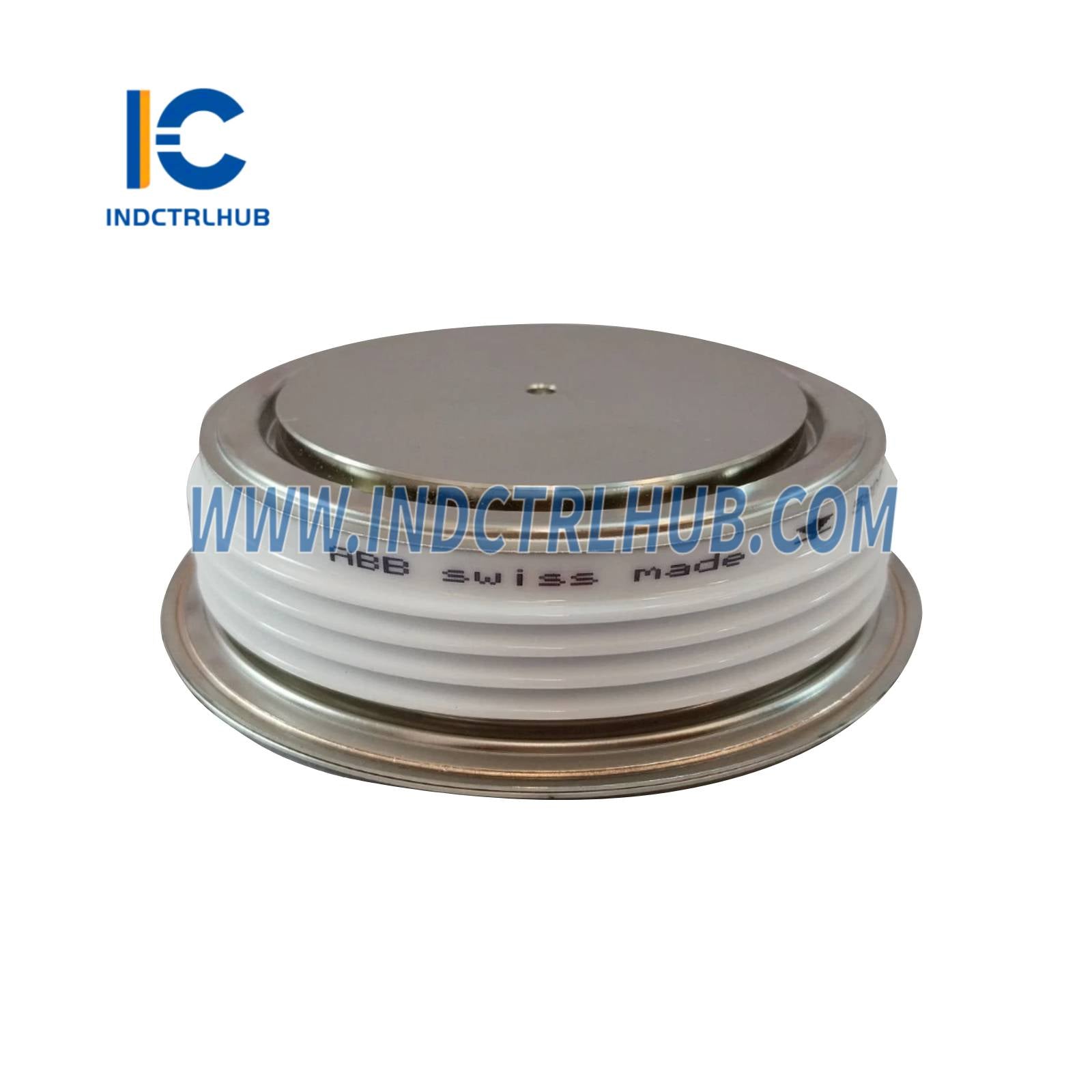

| Package Type | Hockey Puk (press-pack design) |
| Dimensions | Approx. 75 mm (diameter) x 26 mm (H) |
| Weight | Approx. 0.5–1 kg |
| Mounting | Press-pack, clamp-mounted to heatsink |
| Certifications | CE, UL, RoHS compliant, IEC 60747 standards |
