Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | ABB |

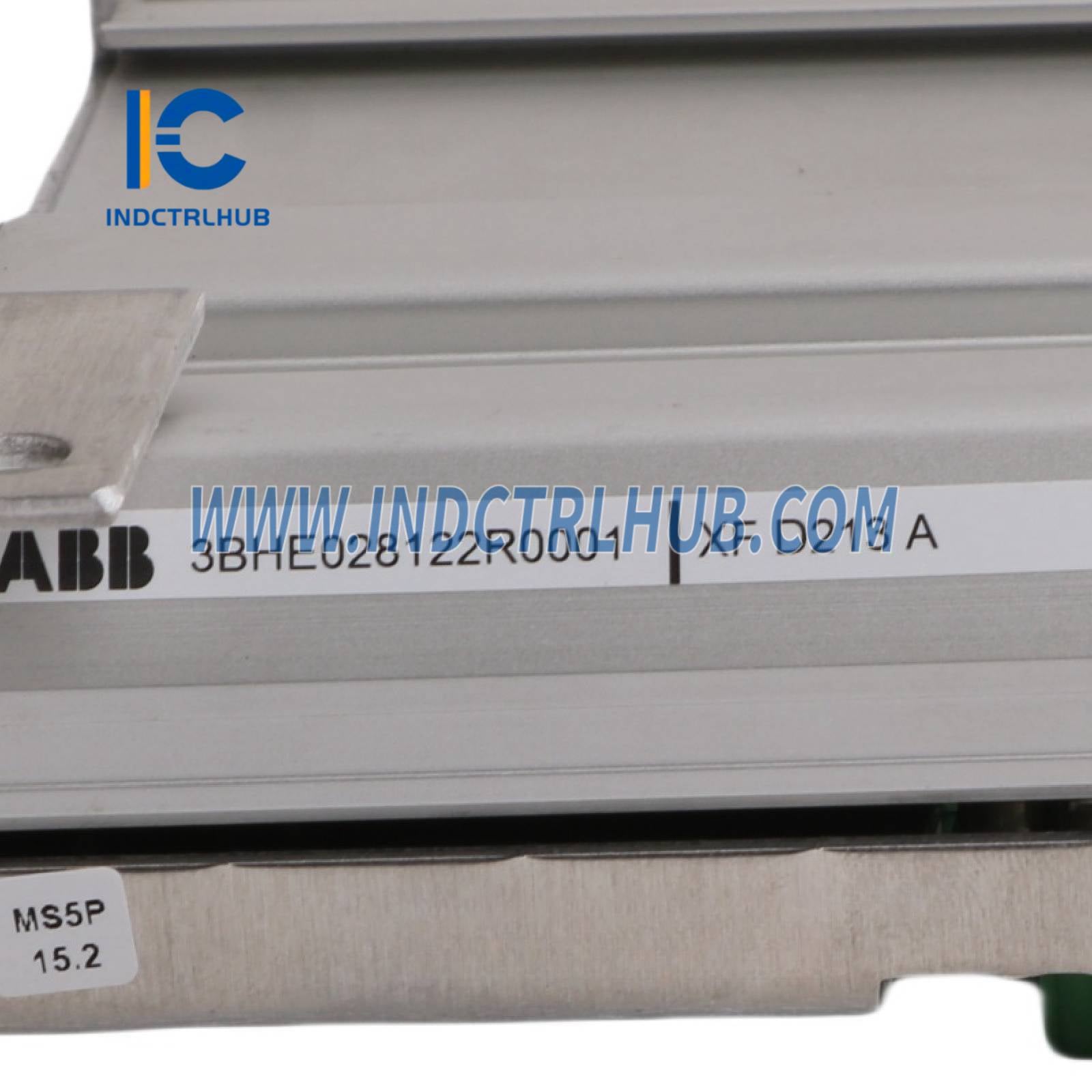

| Model/Part Number | XFD213A 3BHE028122R0001 |
| Description | Power Supply Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | XFD213A 3BHE028122R0001 |
| Product Name | XFD213A Power Supply Unit |
| Application | Provides regulated power for AC 800M controllers and I/O modules in industrial automation systems |
| Compatibility | Designed for ABB System 800xA, integrates with AC 800M series controllers and S800 I/O systems |
| Function | Converts AC input to stable DC output for reliable operation of control modules and field devices |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5 A maximum |
| Power Rating | 120 W |
| Efficiency | >85% at full load |
| Isolation | Input-output isolation 3000 V AC, output-ground isolation 500 V DC |
| Operating Temperature Range | -25°C to +70°C |
| Dimensions | 50 mm x 125 mm x 130 mm (W x H x D) |
| Weight | 0.8 kg |
| Mounting | DIN rail mount (NS 35) |
| Protection Features | Overvoltage, overcurrent, short-circuit, and overtemperature protection |
| Standards Compliance | IEC 61558-1, UL 508, CE marked |
