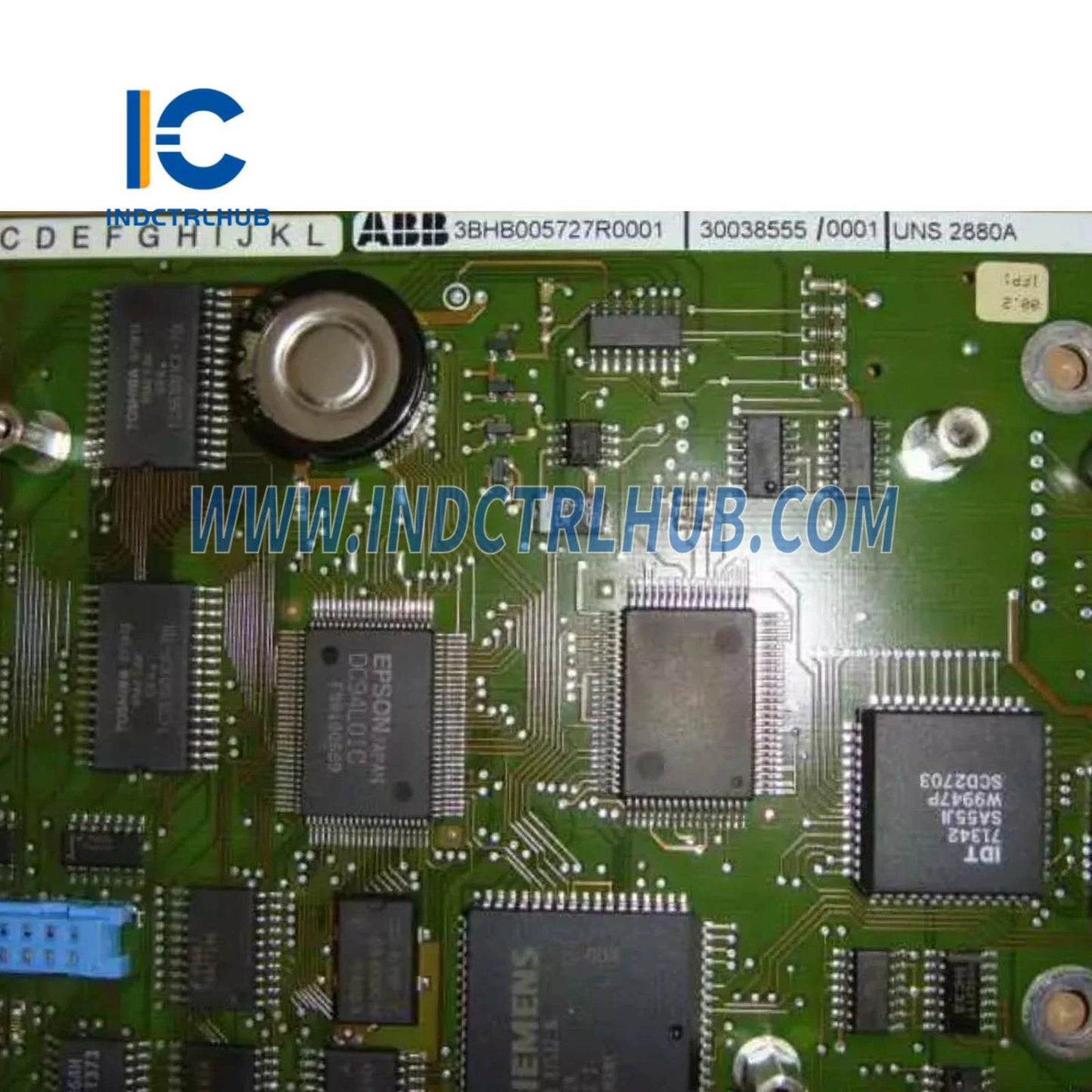

ABB UNS2880A-P PCB Module - Precision Control Electronics
The ABB UNS2880A-P PCB Module (Part Number: 3BHB005727R0001) is a compact, high-reliability printed circuit board designed for ABB's industrial automation and drive control systems. This USA-manufactured module delivers critical signal processing and control functions in a space-efficient 16×12×4.5cm form factor, making it ideal for retrofit installations and OEM equipment upgrades.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BHB005727R0001 |
| Type Designation | UNS2880A-P |
| Product Category | PCB Control Module |
| Dimensions (L×W×H) | 160 mm × 120 mm × 45 mm |
| Weight | 0.68 kg |
| Mounting Type | DIN rail or panel mount (configuration-dependent) |
| Operating Temperature | -10°C to +60°C (typical industrial range) |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5-95% RH, non-condensing |
| Country of Origin | USA |
| HS Code | 85340090 |
Key Features
- Compact Design: Space-efficient footprint fits standard control cabinets and retrofit applications
- Industrial-Grade Components: Rated for continuous operation in harsh manufacturing environments
- Plug-and-Play Compatibility: Direct replacement for original ABB modules with matching part number
- Conformal Coating: PCB protected against moisture, dust, and chemical contamination
- LED Status Indicators: Visual diagnostics for power, communication, and fault conditions
- Wide Voltage Tolerance: Accepts standard industrial power supply variations
Industrial Applications
- Variable Frequency Drives: Control board for ABB ACS series drives in HVAC, pump, and fan applications
- Process Automation: Signal conditioning and I/O expansion in DCS and PLC systems
- Motor Control Centers: Interface module for soft starters and motor protection relays
- Robotics & Motion Control: Servo drive communication and feedback processing
- Power Electronics: Gate driver interface and protection circuits in converter systems
Installation & Replacement
Safety Precautions: Always disconnect power and wait 5 minutes for capacitor discharge before handling PCB modules.
Replacement Procedure:
- Power down system and apply lockout/tagout per site safety procedures
- Remove enclosure cover and locate UNS2880A-P module
- Disconnect ribbon cables and power connectors (photograph connections for reference)
- Remove mounting screws and carefully extract old module
- Inspect connector pins for damage or corrosion; clean if necessary
- Install new module, ensuring proper seating in connector slots
- Reconnect all cables per documentation or reference photos
- Restore power and verify LED indicators show normal operation
Common Issues & Solutions
| Symptom | Possible Cause | Solution |
|---|---|---|
| No power LED | Power supply failure or loose connection | Check input voltage at module terminals, verify connector seating |
| Communication fault | Damaged ribbon cable or incorrect configuration | Inspect cable for breaks, verify DIP switch settings match system |
| Intermittent operation | Thermal stress or poor connector contact | Improve cabinet ventilation, clean and reseat all connectors |
| Fault LED active | Internal component failure or overvoltage event | Replace module; inspect upstream power supply for transients |
System Compatibility
The UNS2880A-P module is designed for integration with ABB automation platforms including:
- ABB ACS series variable frequency drives (ACS550, ACS800, ACS880)
- ABB Advant OCS distributed control systems
- ABB AC800M and AC800PEC programmable controllers
- ABB DCS800 DC drive systems
- Third-party PLCs via standard I/O interfaces (configuration-dependent)
Note: Always verify firmware compatibility with your specific system version before installation. Consult ABB technical documentation or contact support for compatibility confirmation.
Preventive Maintenance
- Quarterly: Visual inspection for component discoloration, capacitor bulging, or connector corrosion
- Annually: Clean PCB with compressed air (power off), verify all LED indicators functional
- Every 3 Years: Consider replacement of electrolytic capacitors in high-temperature environments
- Every 5-7 Years: Proactive module replacement as part of major system overhaul
Expected Service Life: 10-15 years in controlled industrial environments (25°C average ambient). Higher temperatures or frequent thermal cycling may reduce lifespan.
Ordering & Availability
- Condition: New, factory sealed with ABB warranty
- Lead Time: Stock items ship within 3-5 business days
- Packaging: Anti-static bag with desiccant, protective foam insert
- Documentation: Installation guide and technical datasheet included
- Warranty: 12 months from date of purchase, covering defects in materials and workmanship
Quality Assurance
All ABB UNS2880A-P modules undergo rigorous testing:
- 100% functional test of all circuits and interfaces
- Burn-in testing at elevated temperature (48 hours minimum)
- Visual inspection for solder defects and component placement
- Serialization and traceability documentation
- Conformal coating inspection under UV light
