Product Description

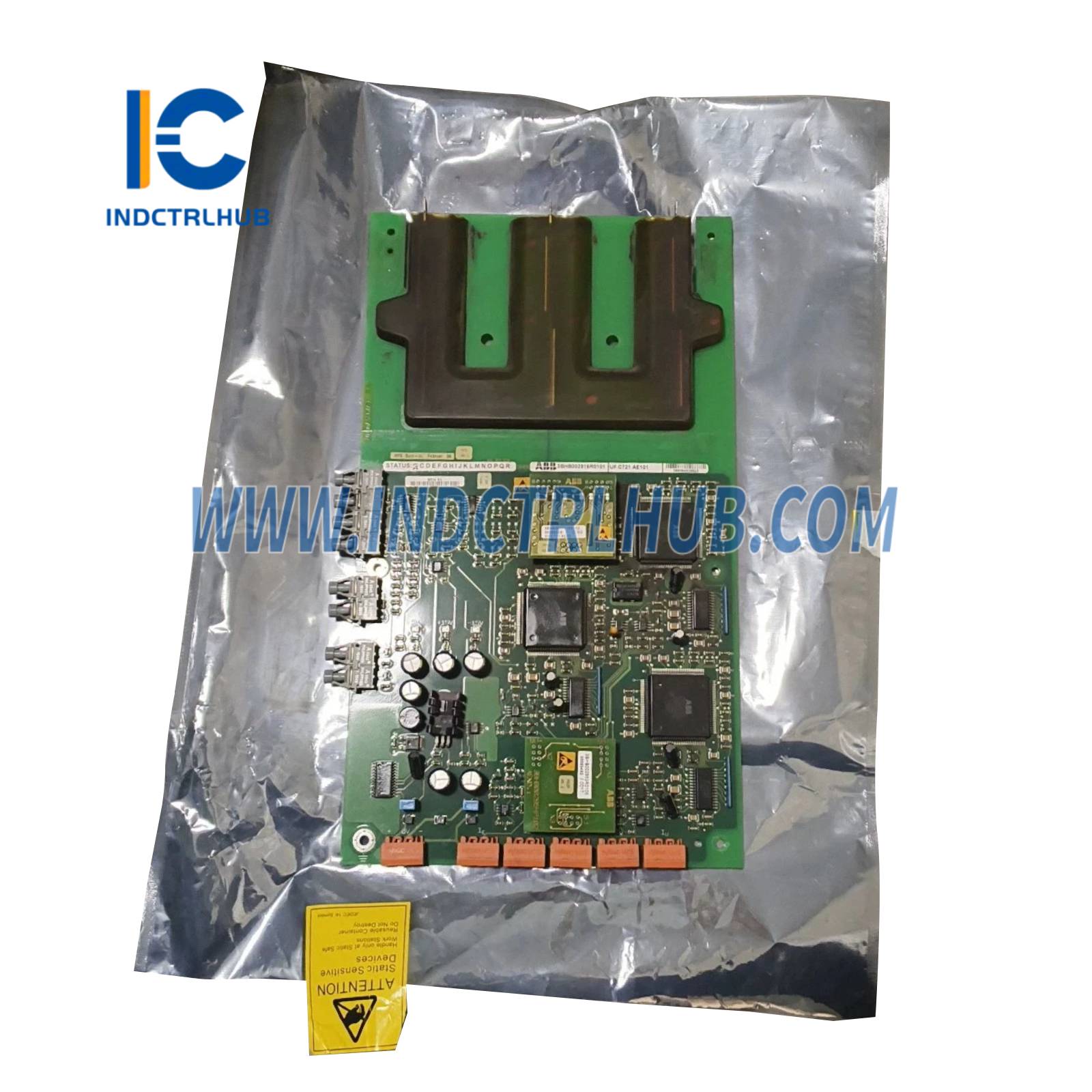

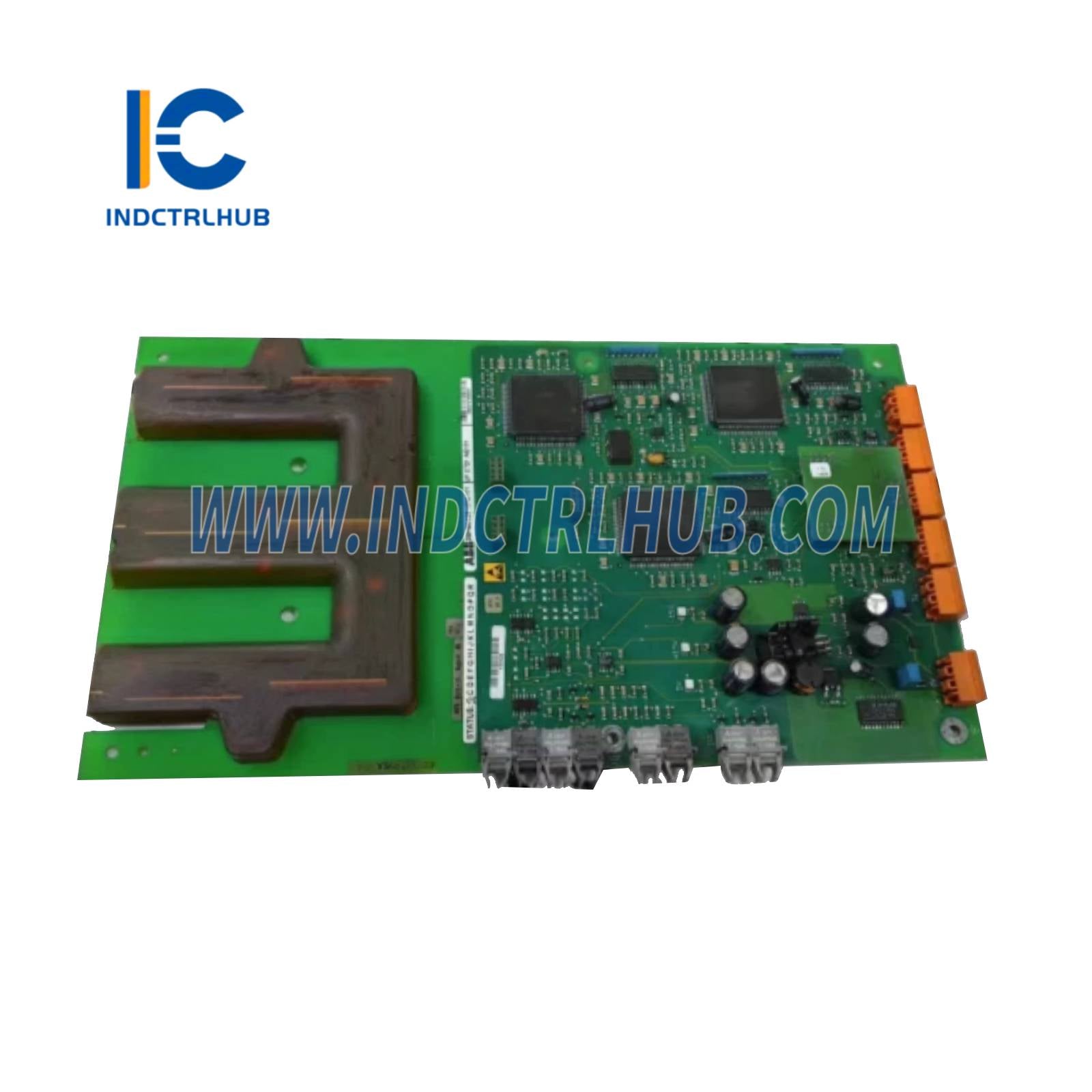

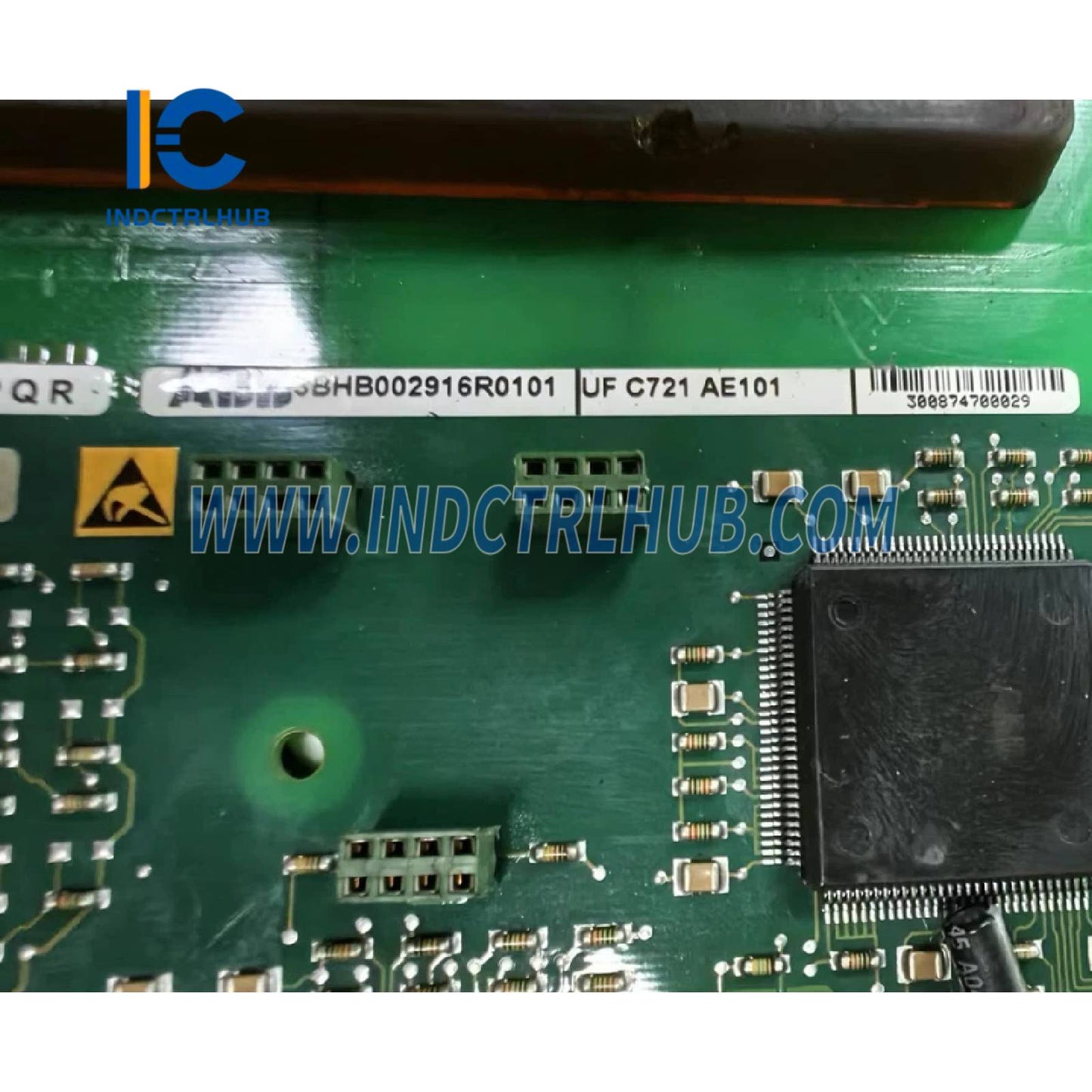

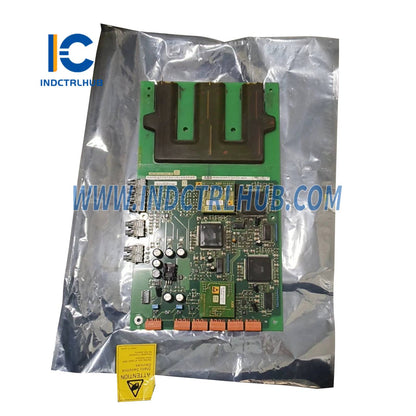

ABB 3BHB002916R0101 UFC721AE Power Supply Module
Product Overview
- The ABB 3BHB002916R0101, designated as UFC721AE, is a Power Supply Module designed for use in ABB’s industrial automation and control systems, particularly within the Advant OCS (Open Control System) or 800xA platforms. This module provides stable DC power to control system components, such as controllers, I/O modules, and communication interfaces, ensuring reliable operation in applications like power generation, oil and gas, chemical processing, and manufacturing. The UFC721AE is known for its compact design, high efficiency, and robust performance in demanding industrial environments.
Technical Specifications
- The 3BHB002916R0101 (UFC721AE) has the following specifications based on industry sources and ABB documentation:
| Specification | Details |
|---|---|
| Model/Part Number | 3BHB002916R0101 |
| Designation | UFC721AE |
| Manufacturer | ABB |
| Description | Power Supply Module for Advant OCS/800xA Systems |
| Series | Advant OCS, System 800xA |
| Function | Provides DC power to control system components |
| Input Voltage | 100–240 VAC (50/60 Hz) or 110–250 VDC |
| Output Voltage | 24 VDC (typical, adjustable) |
| Output Current | Up to 10 A (configuration-dependent) |
| Output Power | Up to 240 W |
| Efficiency | >90% (typical) |
| Protection Features | Overvoltage, overcurrent, short-circuit, overtemperature protection |
| Compatibility | ABB Advant OCS, System 800xA controllers, I/O modules |
| Communication | No direct communication; power supply only |
| Environmental Specifications | Operating Temperature: -25°C to +70°C (-13°F to +158°F) Storage Temperature: -40°C to +85°C (-40°F to +185°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP20 (typical for control cabinet installation) |
| Dimensions | Approx. 125 mm (H) x 50 mm (W) x 135 mm (D) |
| Weight | Approx. 0.8–1.2 kg |
| Mounting | DIN rail or rack-mounted in ABB control systems |
| Certifications | CE, UL, CSA, IEC 61131, optional ATEX for hazardous areas |
