Product Description
Product Details

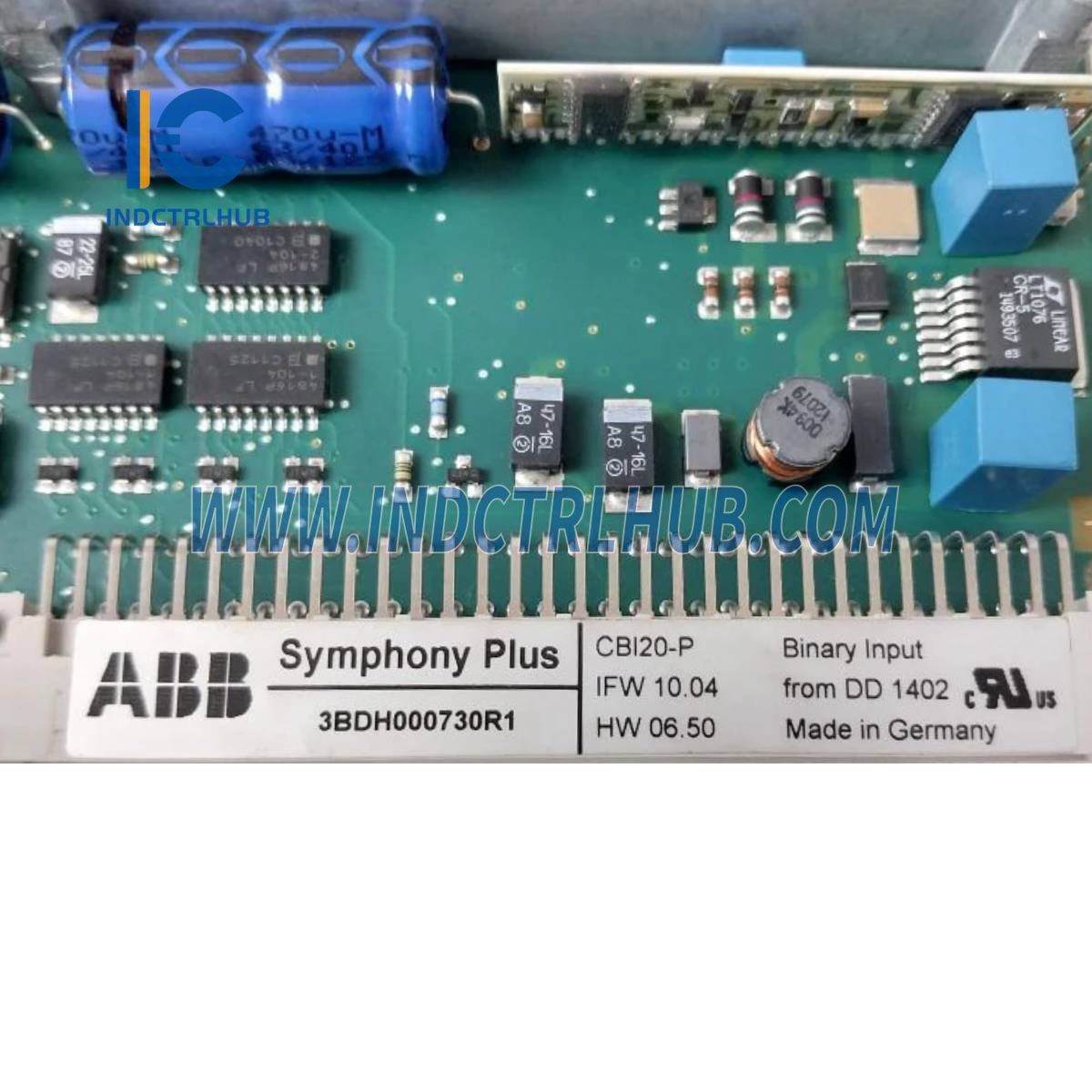

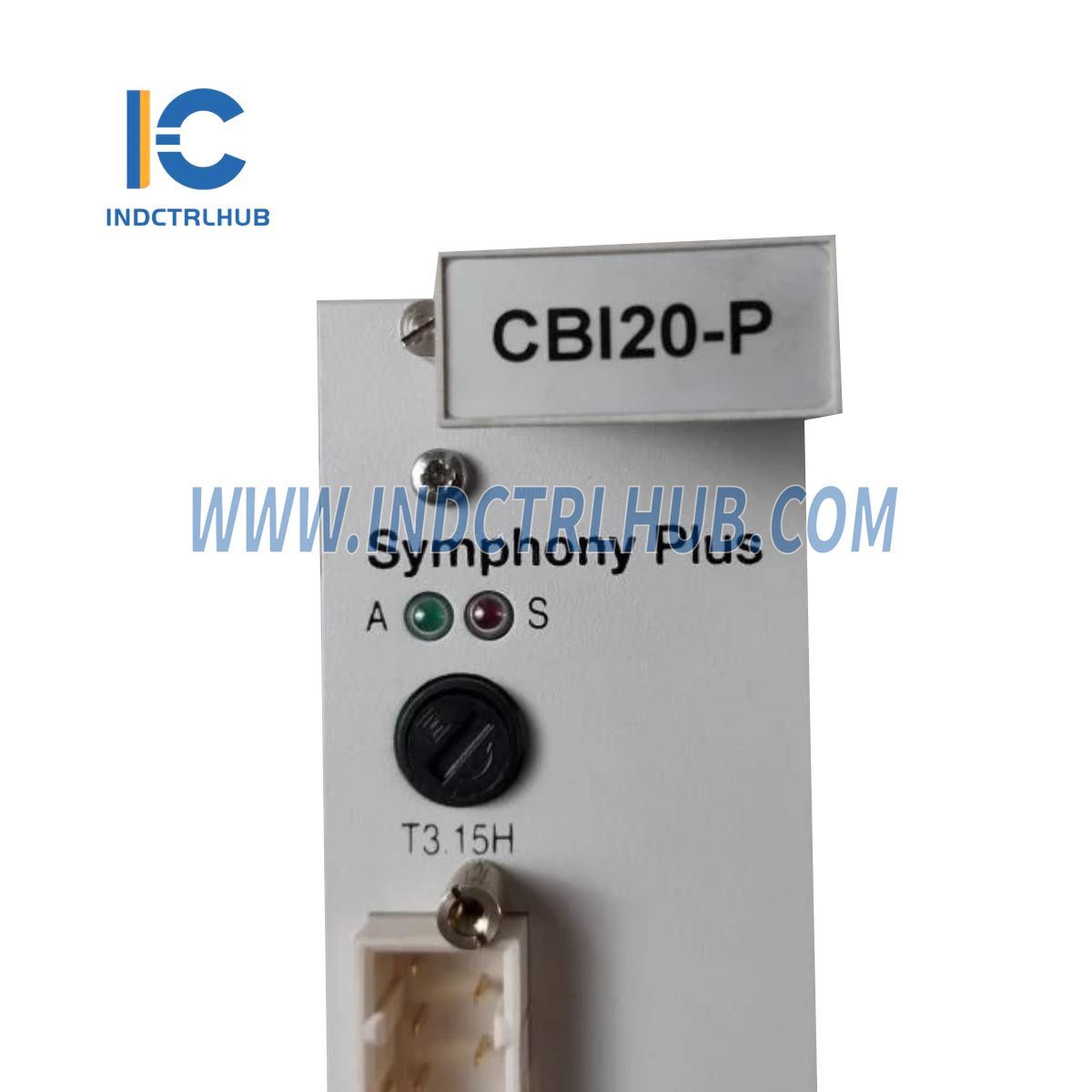

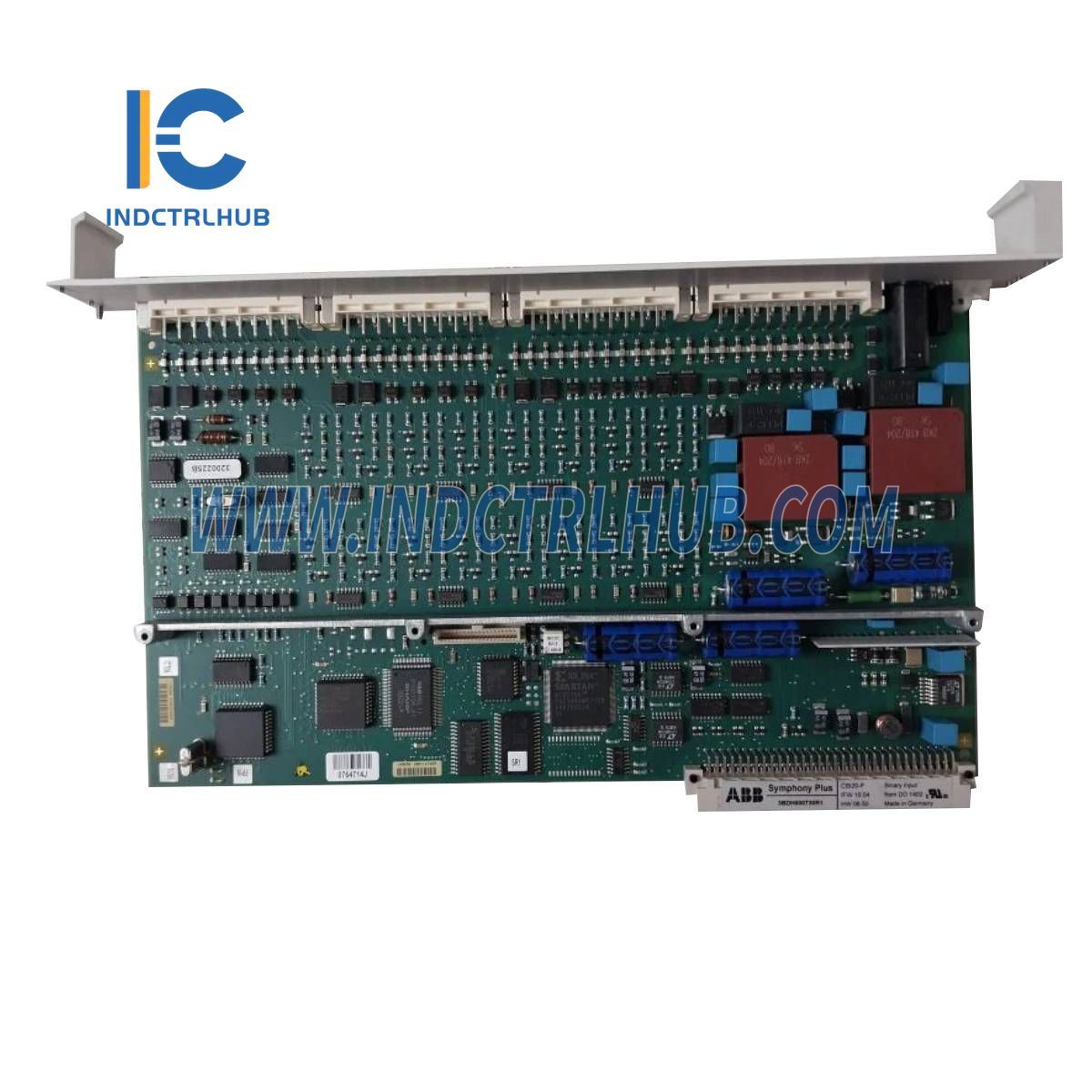

- Manufacturer: ABB
- Model/Part Number: CBI20-P (3BDH000730R1)
- Description: I/O Module – Binary Input
General Information
| Attribute | Details |
|---|---|
| Product ID | 3BDH000730R1 |
| ABB Type Designation | CBI 20-P |
| Catalog Description | CBI 20-P, Binary Input |
| Long Description | CBI 20-P, Binary Input, SW Version 1.31 or later - 32 Inputs (48V / 24V / 8.2V) - Standard-Binary Signals - Contact Scanning (Changer / Opener / Closer) - Supports Initiators (Namur, 3-/4-Wire) - Isolation per Module - Transmitter Power Supply - Necessary Accessories: 4 pcs. CI 100/101, A801/701, Cable Clamp |
| Product Type | I/O Module |
Ordering & Logistics
| Attribute | Details |
|---|---|
| HS Code | 853890 – Parts suitable for use with electrical control or distribution equipment |
| Customs Tariff Number | 85389099 |
| Battery Included | No |
| SCIP Code (EU Compliance) | 00b82641-136f-4afc-b7bd-8961a6045cbe |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Product Net Depth / Length | 204 mm |
| Product Net Height | 340 mm |
| Product Net Width | 45 mm |
| Product Net Weight | 0.69 kg |
Technical & Environmental Information
| Attribute | Details |
|---|---|
| Channel Type | DI (Digital Input) |
| Number of Input Channels | 32 |
| Input Voltage | 48V / 24V / 8.2V |
| Contact Scanning Modes | Changer / Opener / Closer |
| Isolation | Per Module |
| Power Supply | Transmitter Power Supply |
| RoHS Status | Compliant with EU Directive 2011/65/EU |
| WEEE Category | Category 5 - Small Equipment (No External Dimension More Than 50 cm) |
