Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BDH000375R0005 |
|
ABB Type Designation |
DC 732F Rev.B |
|
EAN |
4013614503191 |
|
Catalog Description |

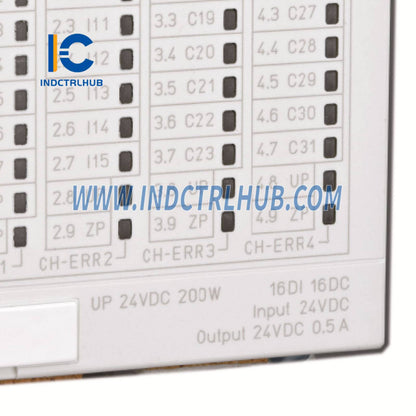

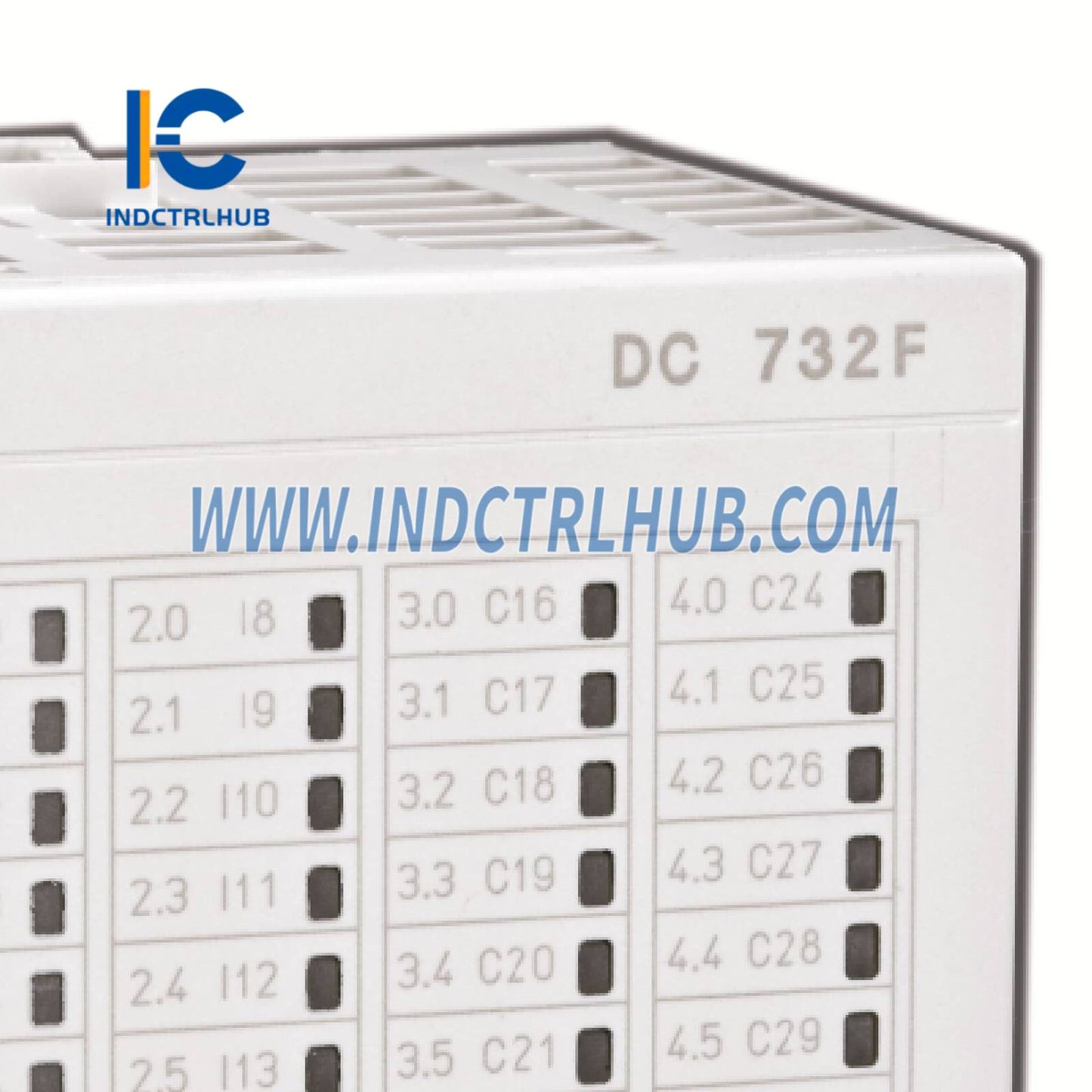

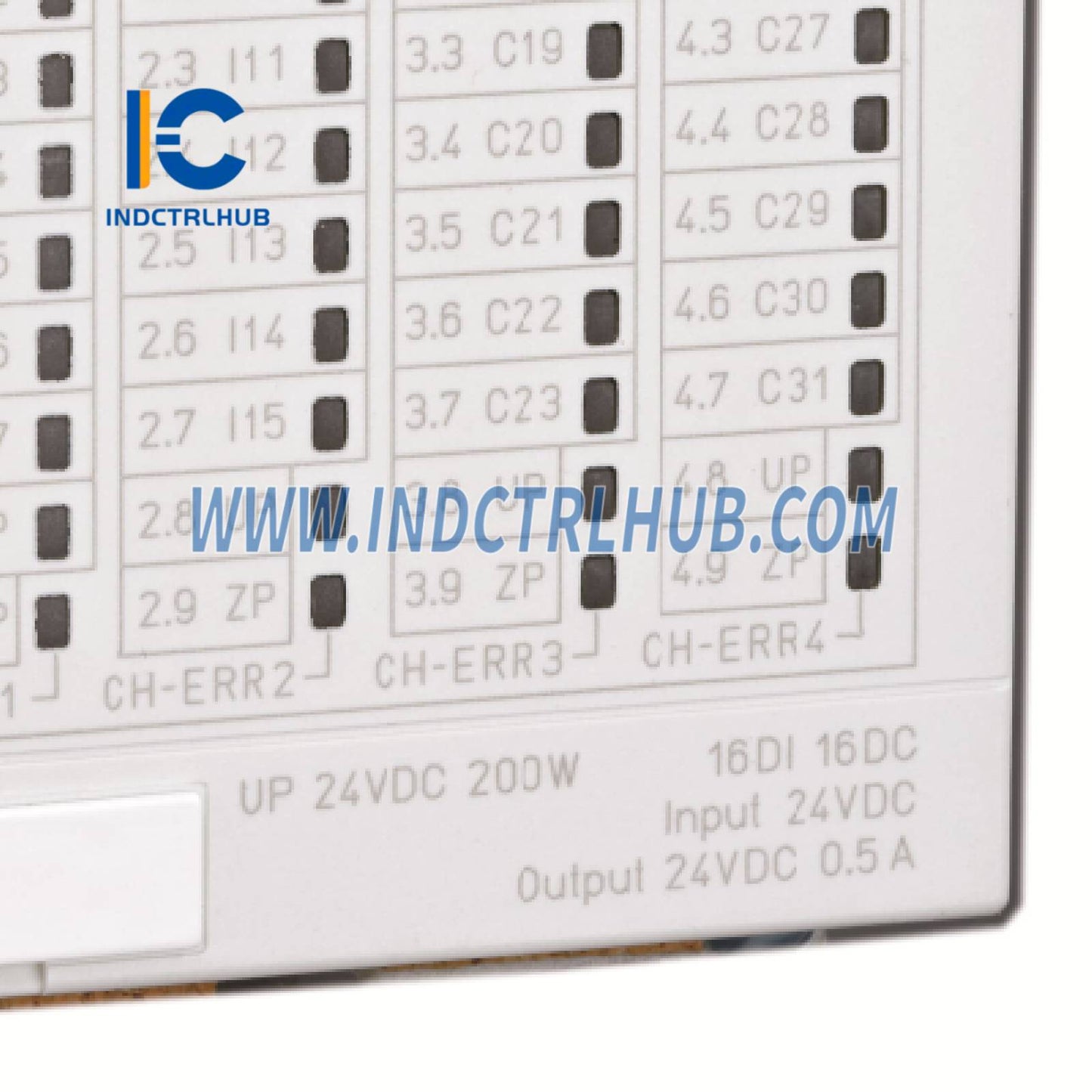

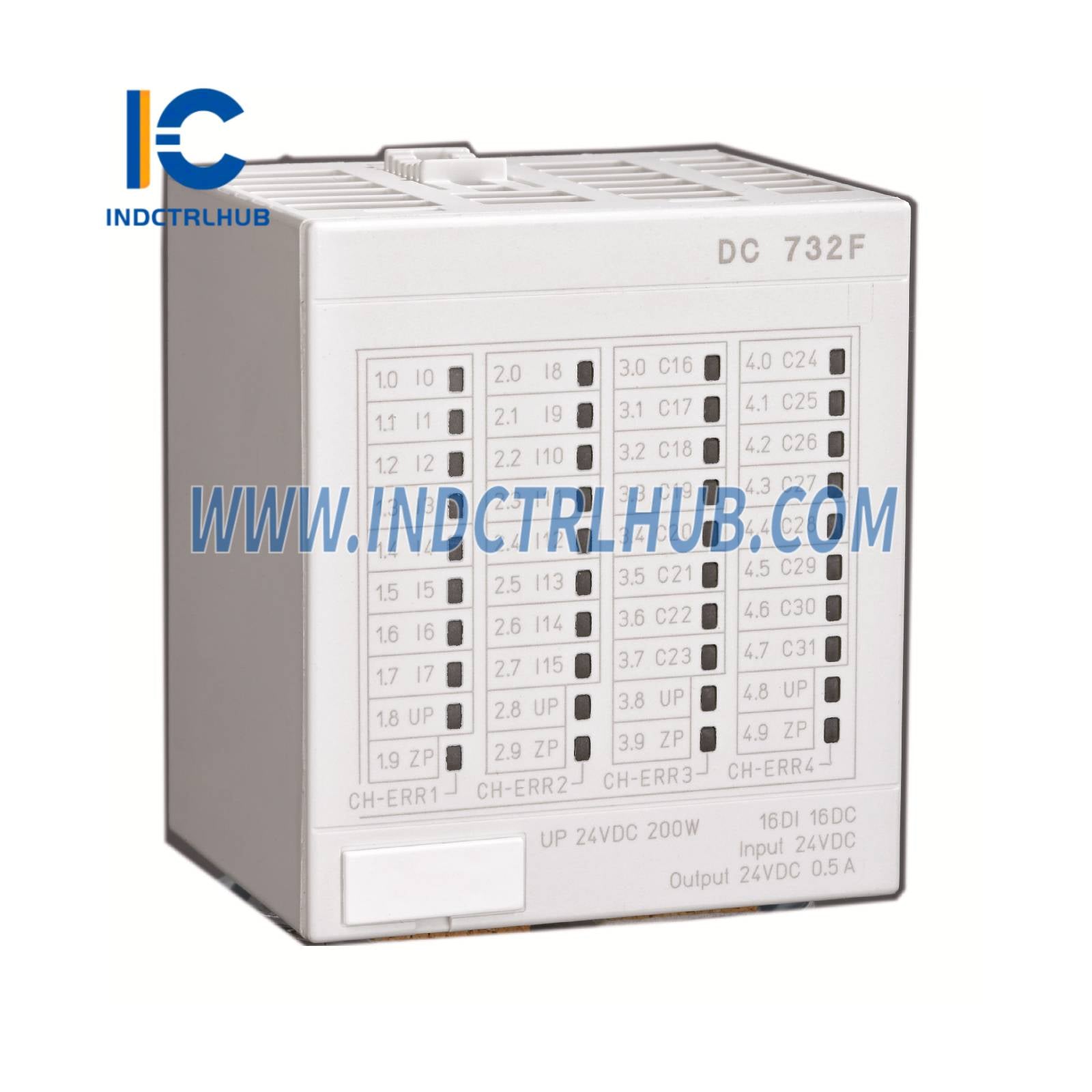

DC 732F Digital Input/Output Module |
|
Long Description |
32-channel DI/DO module: 16 DI + 16 configurable DI/DO (24 VDC/0.5 A). Usable with PROFIBUS remote I/O and AC 700F / AC 900F direct I/O. |
|
Medium Description |
For PROFIBUS slave and direct I/O. Connects up to 32 inputs; 16 can be used as outputs. |
|
Product Type |
I-O_Module |
Ordering Information
|
Field |
Details |
|---|---|
|
HS Code |
853890 – Electrical parts for control systems |
|
Customs Tariff No. |
85389099 |
Dimensions
|
Field |
Details |
|---|---|
|
Product Net Length |
76 mm |
|
Product Net Height |
54 mm |
|
Product Net Width |
68 mm |
|
Product Net Weight |
0.15 kg |
Technical Specifications
|
Field |
Details |
|---|---|
|
Channel Type |
DX |
|
Number of Input Channels |
16 (Digital Inputs) |
|
Number of Output Channels |
16 (Configurable DI/DO) |
|
Input Voltage |
24 VDC |
|
Output Voltage / Current |
24 VDC / 0.5 A |
|
1-wire |
Yes |
|
Terminal Units Compatible |
TU 715F / TU 716F |
Environmental Specifications
|
Field |
Details |
|---|---|
|
RoHS Status |
Compliant with 2011/65/EU & Amendment 2015/863 |
|
WEEE Category |
5. Small Equipment (No external dimension more than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Number |
f7a7b431-5dcf-4f35-8430-3ce5c7b62af9 (Germany) |
