Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | ABB |

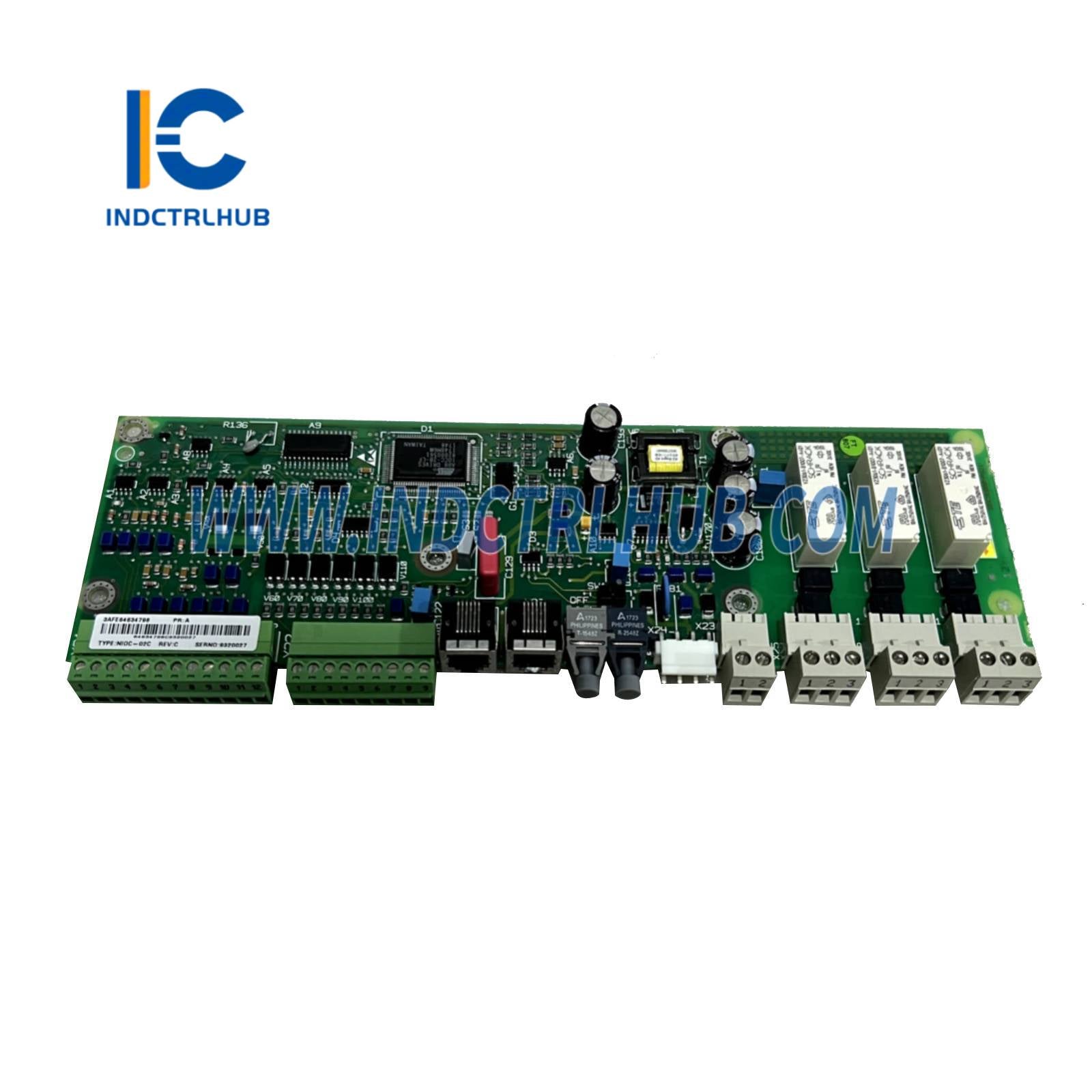

| Model/Part Number | NIOC-02C 3AFE64634798 |
| Description | I/O Communication Interface Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | NIOC-02C 3AFE64634798 |
| Product Name | NIOC-02C I/O Communication Module |
| Application | I/O signal interfacing in industrial drive systems for analog and digital signal processing |
| Compatibility | Designed for ABB ACS600, ACS800 series drives; integrates with NAMC control boards and DDCS communication |
| Function | Provides analog and digital I/O channels for drive control, monitoring, and field device connectivity |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Mixed I/O communication module |
| Input Channels | 4 analog inputs (0-10 V or 4-20 mA), 8 digital inputs (24 V DC) |
| Output Channels | 2 analog outputs (0-10 V or 4-20 mA), 4 digital outputs (24 V DC, 0.5 A max per channel) |
| Isolation | Galvanic isolation (500 V) between channels and system |
| Communication | DDCS fiber optic interface for drive integration |
| Power Supply | 24 V DC (18-30 V DC) from drive system |
| Power Consumption | 5 W maximum |
| Operating Temperature Range | -15°C to +55°C |
| Mounting | Internal slot mounting in drive cabinet |
| Dimensions | 100 mm x 80 mm x 20 mm (L x W x H) approximate |
| Weight | 0.3 kg |
| Standards Compliance | IEC 61800-5-1, CE marked, UL listed |
