Product Description
General Information
|
Field |
Details |
|---|---|
|
Global Commercial Alias |
DO571 |
|
Product ID |
3ABD10094783 |
|
ABB Type Designation |
DO571 |
|
Catalog Description |
DO571 |
|
Long Description |

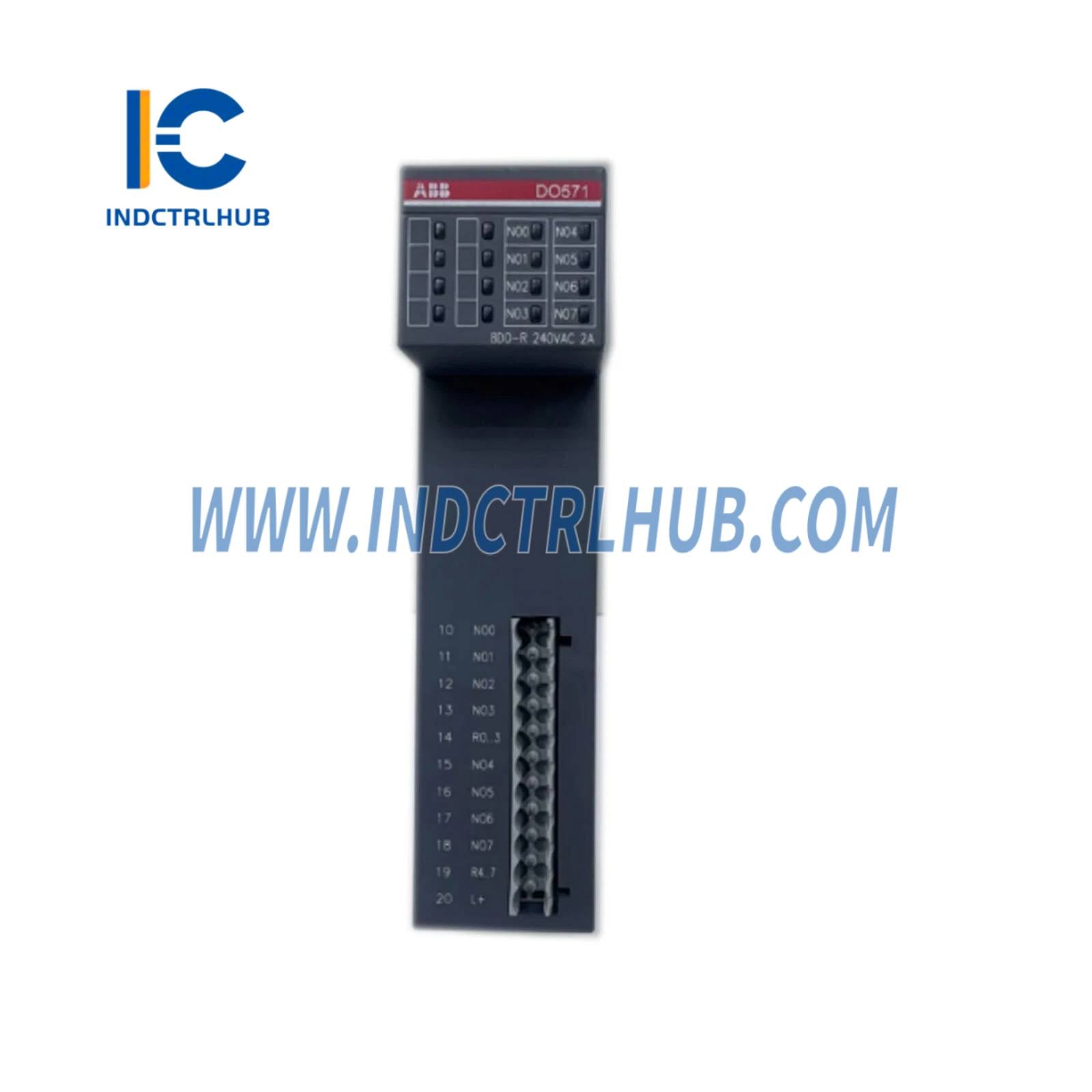

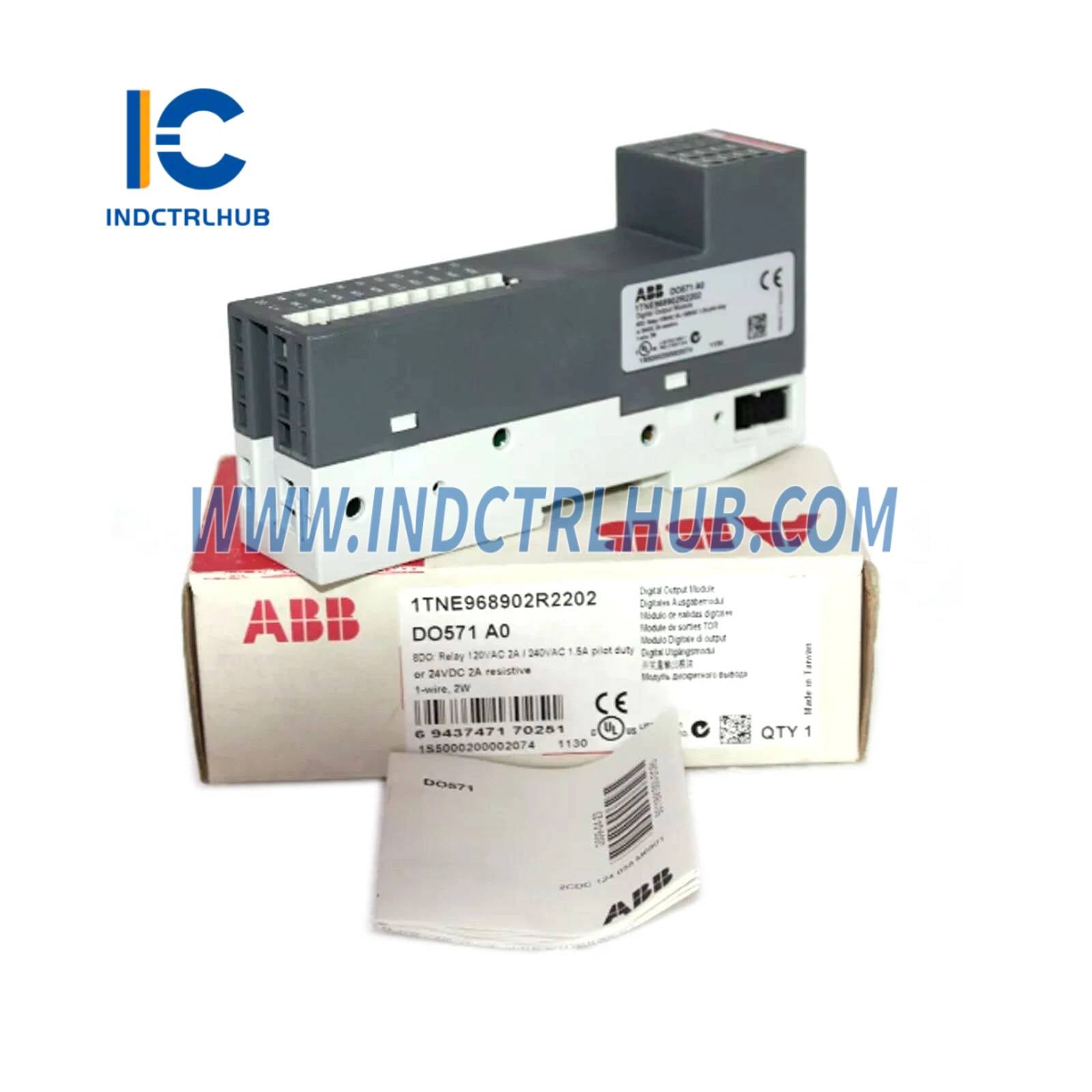

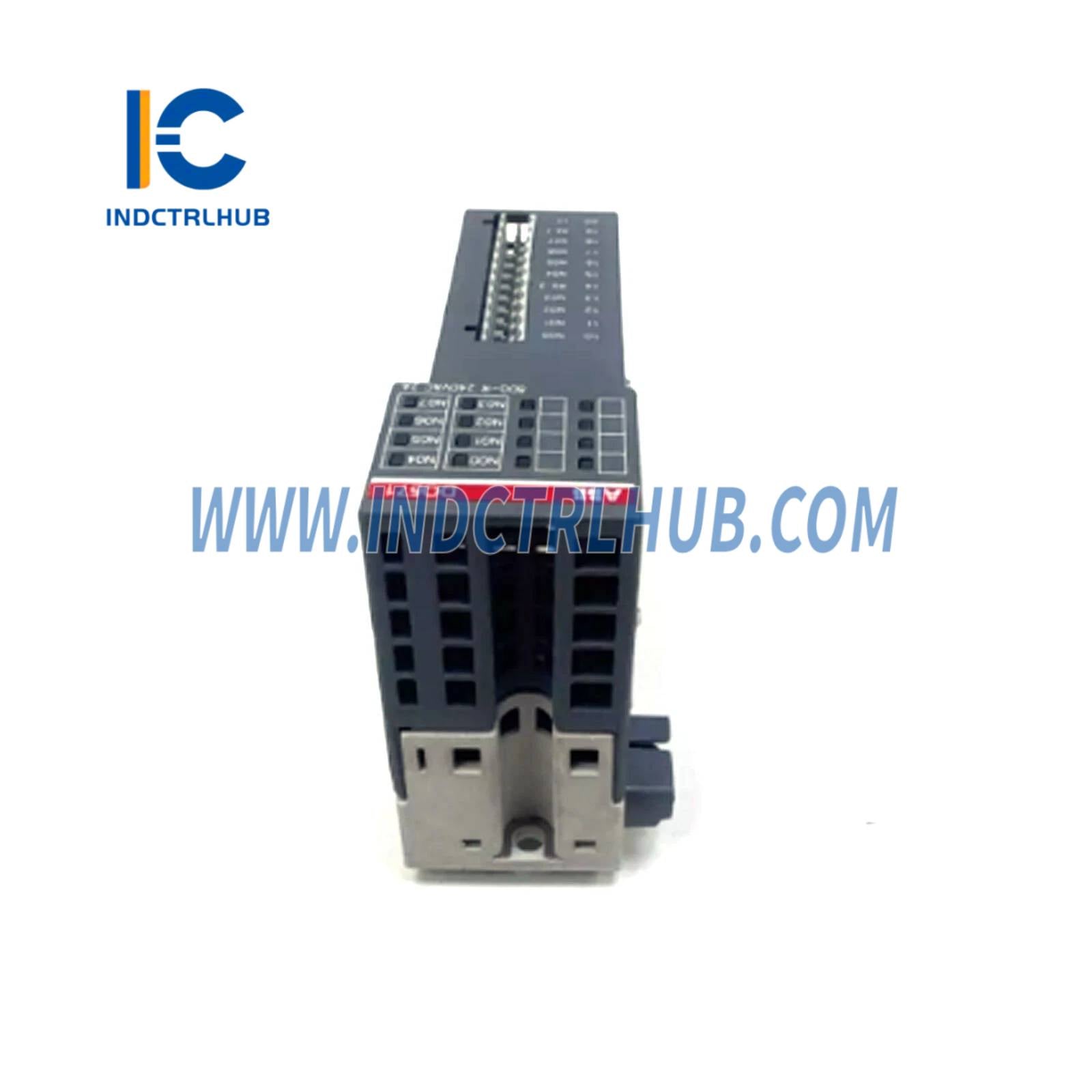

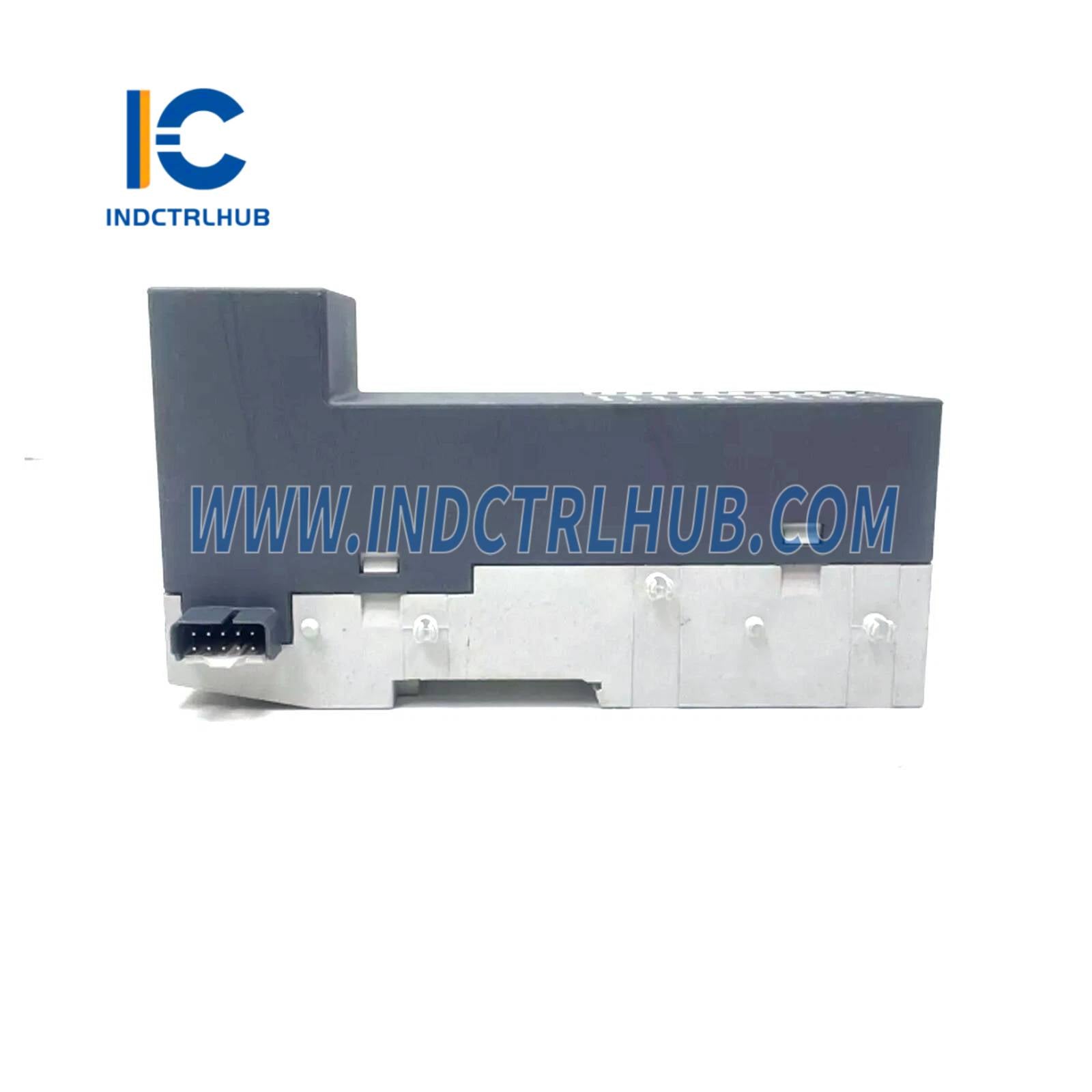

S500-eCo Digital Output Module. 8 DO relay: 24VDC/24VAC or 100–240VAC, 2A. |
|
Product Name |
PLC-AC500-eCo |
Ordering Information
|
Field |
Details |
|---|---|
|
CN8 / HS Code |
85044040 |
|
Invoice Description |
DO571 |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
Piece |
Technical Specifications
|
Field |
Details |
|---|---|
|
Output Type |
Digital Output (Relay) |
|
Number of Outputs |
8 |
|
Output Voltage Range |
24VDC/24VAC or 100–240VAC |
|
Output Current |
2 A |
|
Degree of Protection |
IP20 |
Dimensions & Weight
|
Field |
Value |
|---|---|
|
Product Net Weight |
0.12 kg |
|
Product Net Depth / Length |
75 mm |
|
Product Net Height |
135 mm |
|
Product Net Width |
34 mm |
|
Gross Weight |
0.22 kg |
|
Package Level 1 Dimensions |
93 × 63 × 170 mm (1 carton) |
Environmental
|
Field |
Value |
|---|---|
|
WEEE Category |
Product Not in WEEE Scope |
|
UNSPSC |
32151700 |
