Product Description

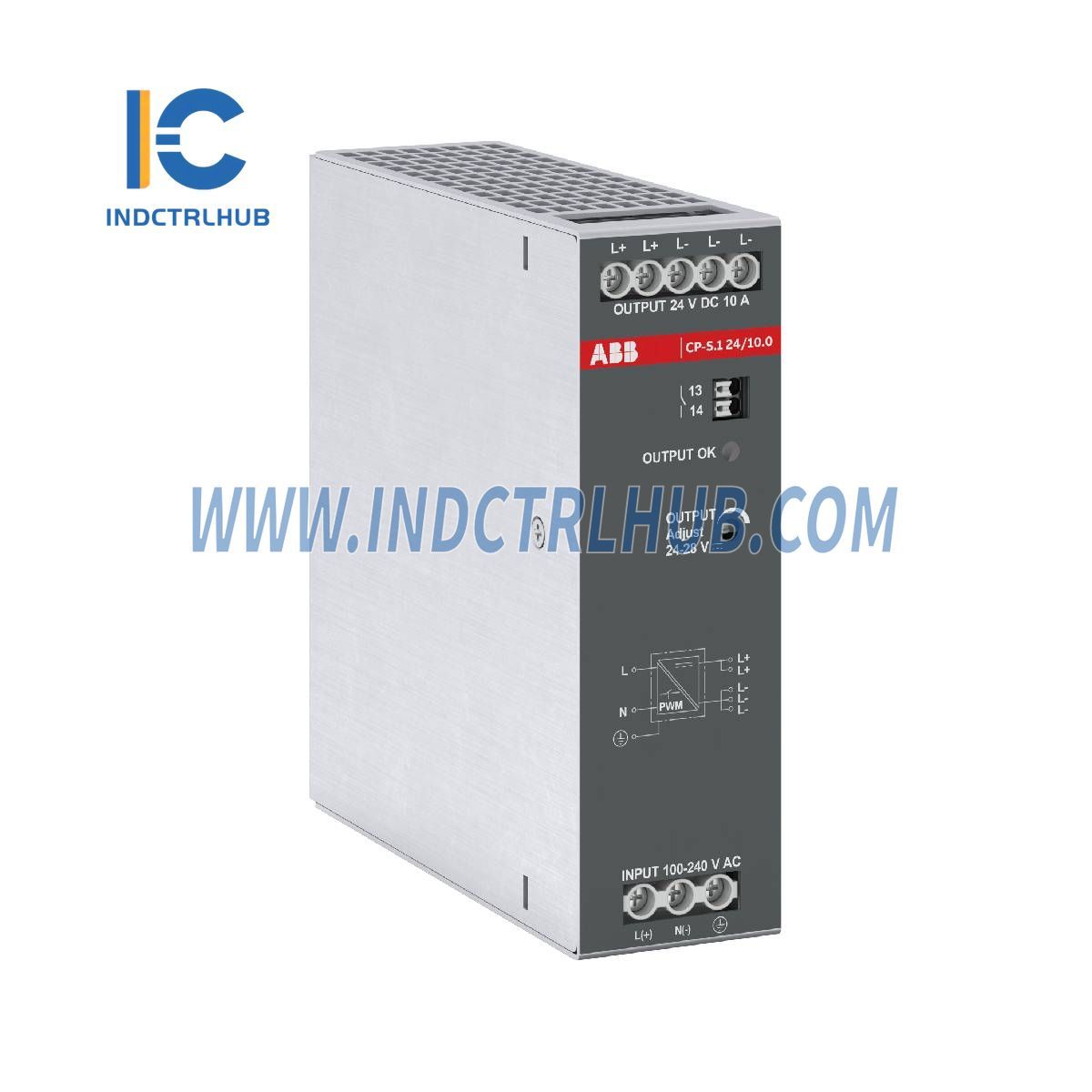

Product Details
- Manufacturer: ABB
- Model/Part Number: CP-S2410.0 (1SVR320661R1000)
- Description: Primary Switch Mode Power Supply
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | CP-S.1 24/10.0 |
| Product ID | 1SVR320661R1000 |
| EAN | 4013614561115 |
| Catalog Description | CP-S.1 24/10.0 Power supply In: 100-240VAC/100-250VDC Out: DC 24V/10A |
| Long Description | Primary switch mode power supply with wide input range (85-264V AC / 90-277V DC). Rated output power of 240W, output voltage of 24V DC (adjustable 24-28V DC), output current of 10A. Features power reserve up to 150% for 5s, parallel operation capability, and power factor correction (EN 61000-3-2). Compatible with redundancy and buffer modules. |
Ordering Information
| Attribute | Details |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | Data Sheet, Installation Instructions, Wiring Diagram |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Product Net Width | 40 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 127 mm |
| Product Net Weight | 0.83 kg |
| Package Level 1 (Box) Dimensions | 72 × 155 × 169 mm |
| Package Level 1 Gross Weight | 0.96 kg |
| Package Level 2 (Carton) Dimensions | 400 × 600 × 190 mm |
| Package Level 2 Gross Weight | 19 kg |
| Package Level 2 Units | 19 pieces |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | Switch Mode Power Supply |
| Number of Phases | 1 |

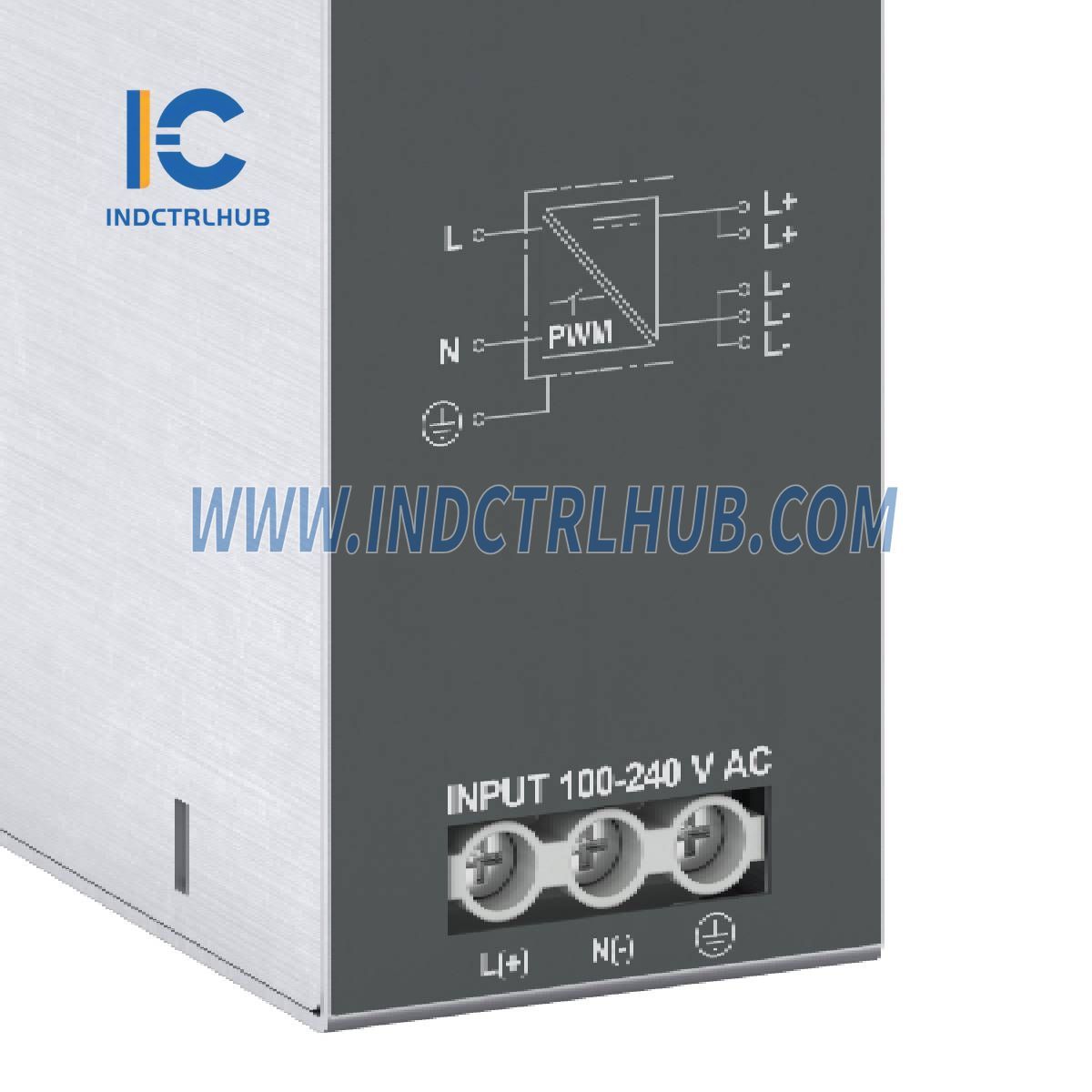

| Rated Input Voltage (UIN) | 100-240V AC / 100-250V DC |
| Input Voltage Range | 85-264V AC / 90-277V DC |
| Typical Input Current | (115V AC) 2.45A, (230V AC) 1.25A |
| Hold-up Time | (230V AC) Min. 20 ms |
| Rated Frequency | 50/60 Hz, DC |
| Rated Frequency Limits | 45-65 Hz |
| Output Characteristic | U/I Curve with Power Reserve |
| Rated Output Power | 240W |

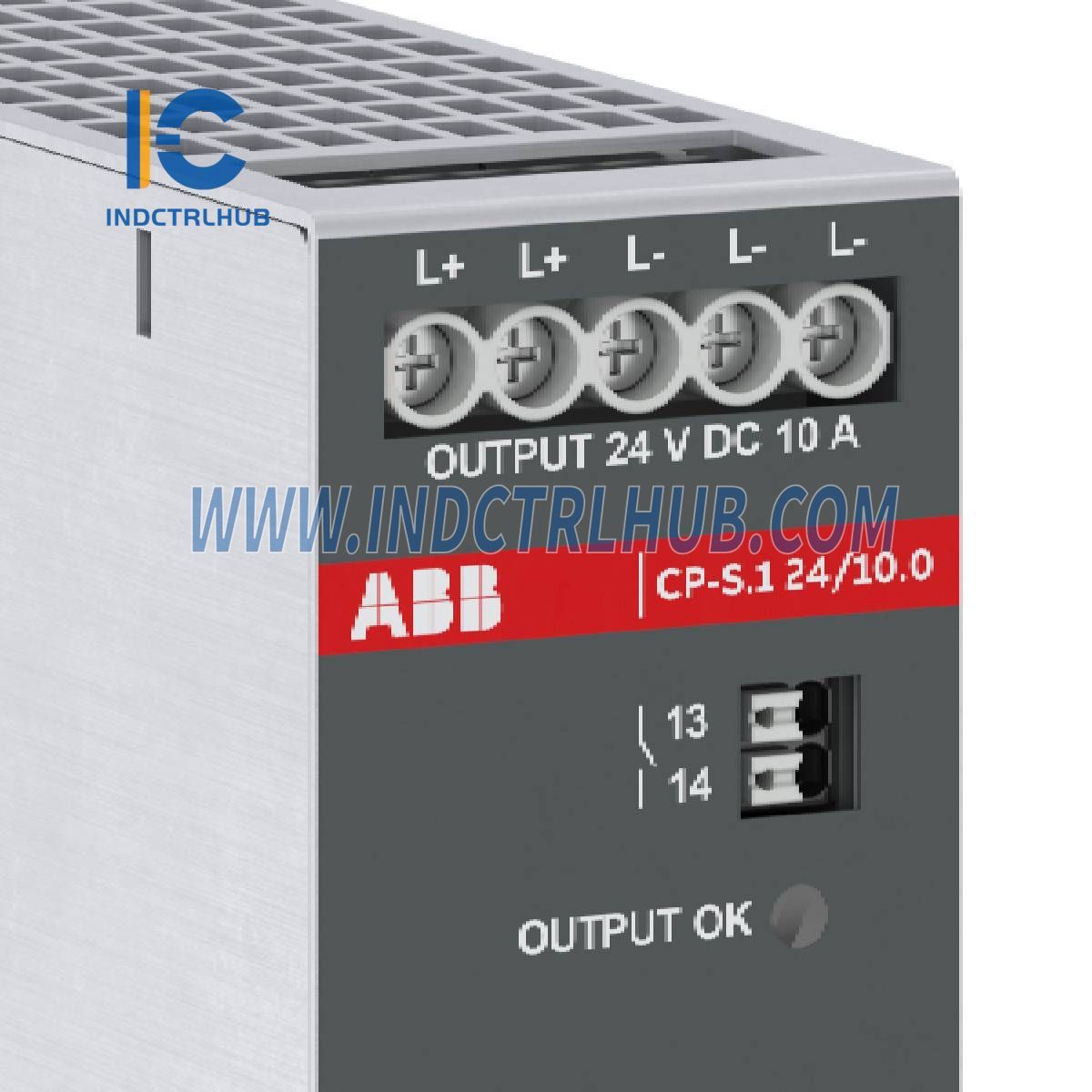

| Rated Output Voltage | 24V DC (Adjustable 24-28V DC) |
| Rated Output Current | 10A |
| Maximum Output Current | 15A |
| Power Reserve | Up to 150% for 5s |
| Redundancy & Parallel Operation | Yes |
Electrical Protection & Safety
| Attribute | Details |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4kV (Input-Output/PE/Relay), 0.8kV (Output-PE) |
| Rated Insulation Voltage (Ui) | 300V (Input-Output/PE/Relay), 50V (Output-PE) |
| Degree of Protection | IP20 (Housing & Terminals) |
| Pollution Degree | 2 |
| Mounting Position | DIN Rail TH35 (IEC 60715) |
| Minimum Mounting Distance | Horizontal 30mm, Vertical 50mm |
Connection & Wiring
| Attribute | Details |
|---|---|
| Input Circuit Wire Size | 0.5-4.0 mm² (Flexible), 20-12 AWG (UL) |
| Output Circuit Wire Size | 0.5-4.0 mm² (Flexible), 20-12 AWG (UL) |
| Tightening Torque | Input: 0.5 N·m (4.4 in·lb), Output: 1.13 N·m (4.4 in·lb) |
