Product Description
General Information

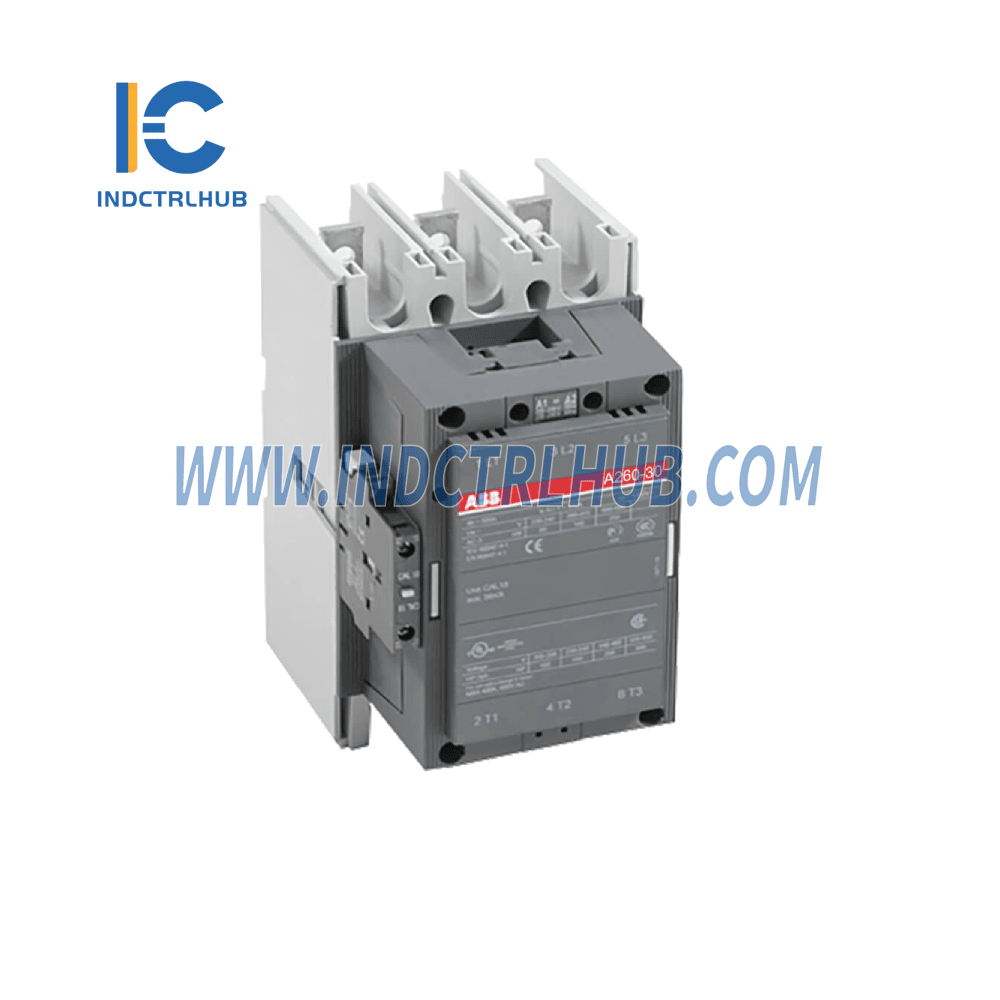

- Product Name: A260-30-11 110-115V 50Hz / 115V 60Hz Contactor
- Product ID: 1SFL531001R8911
- EAN: 7320500217672
- Catalog Description: A 3-phase contactor suitable for various applications such as motor starting, isolation, by-pass, and distribution, up to a maximum of 690V. Operated with control voltage, available in versions from 24V to 690V AC, 50/60Hz.
Ordering Information
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Replacement Product ID (NEW): 1SFL547002R1311
Popular Downloads
- Data Sheet, Technical Information: 1SBC100192C0206
- Instructions and Manuals: Contactors A145, A185, A210, A260, A300
- Dimension Diagram: 53540930-2
Dimensions
- Net Width: 140 mm
- Net Depth/Length: 180.5 mm
- Net Height: 227 mm
- Net Weight: 5.4 kg
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Main Contacts (NO) | 3 |
| Number of Main Contacts (NC) | 0 |
| Number of Auxiliary Contacts (NO) | 1 |
| Number of Auxiliary Contacts (NC) | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit: 690V |
| Rated Frequency (f) | 50/60Hz |
| Conventional Free-air Thermal Current (Ith) | Open Contactors at 40°C: 400A |
| Rated Operational Current AC-1 (Ie) | 690V: 40°C - 400A, 55°C - 350A, 70°C - 290A |
| Rated Operational Current AC-3 (Ie) | 415V: 55°C - 260A, 440V: 55°C - 240A, 690V: 55°C - 220A |
| Rated Operational Power AC-3 (Pe) | 415V: 140kW, 690V: 200kW |
| Short-Circuit Protective Devices | gG Type Fuses 500A |
| Rated Short-time Withstand Current (Icw) | 10s: 2400A, 1min: 1100A, 30s: 1500A |
| Coil Operating Limits | 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70°C) |
| Rated Control Circuit Voltage (Uc) | 50Hz: 110V … 115V, 60Hz: 115V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage (50Hz): 60 V·A |
| Power Loss | 14W per pole |
| Operate Time (NO Contact) | 17 … 35 ms |
| Operate Time (NC Contact) | 7 … 13 ms |
Short-Circuit Protection
- Short-Circuit Protective Devices: gG Type Fuses 500A
-
Rated Short-time Withstand Current Low Voltage (Icw):
- 10s: 2400A
- 1min: 1100A
- 30s: 1500A
Connecting Capacity
| Circuit | Connecting Capacity |
|---|---|
| Main Circuit | Bar: 32 mm², Rigid Al-Cable: 2 x 95 … 120 mm², Rigid Cu-Cable: 16 … 240 mm² |
| Auxiliary Circuit | Flexible with Ferrule: 2x 0.75 … 2.5 mm², Solid: 2 x 1 … 4 mm² |
Environmental Conditions
-
Ambient Air Temperature:
- With Thermal O/L Relay: -25°C to 50°C
- Without Thermal O/L Relay: -40°C to 70°C
- Maximum Operating Altitude: 3000 m
- Resistance to Shock (IEC 60068-2-27): 5 g
Material Compliance
- REACH Declaration: Confirmation for block contactors, contactor relays, mini contactors, and related accessories
- RoHS Information: RoHS II compliance for block contactors
- Toxic Substances Control Act (TSCA): Declaration for contactors
Certifications
- BV Certificate: 09826/C0 BV
- CQC Certificate: Contactor, A210, A260, Made in Sweden
- CE Declaration of Conformity: Contactor A(F)95...A(F)300, and others
Packaging Information
- Package Level 1 Units: 1 piece
-
Package Dimensions:
- Width: 203 mm
- Depth/Length: 245 mm
- Height: 188 mm
- Gross Weight: 6.1 kg
External Classifications and Standards
- ETIM 7/8/9: EC000066 - Power contactor, AC switching
- UNSPSC: 39121529
- eClass: V11.0 : 27371003
