Product Description
General Information

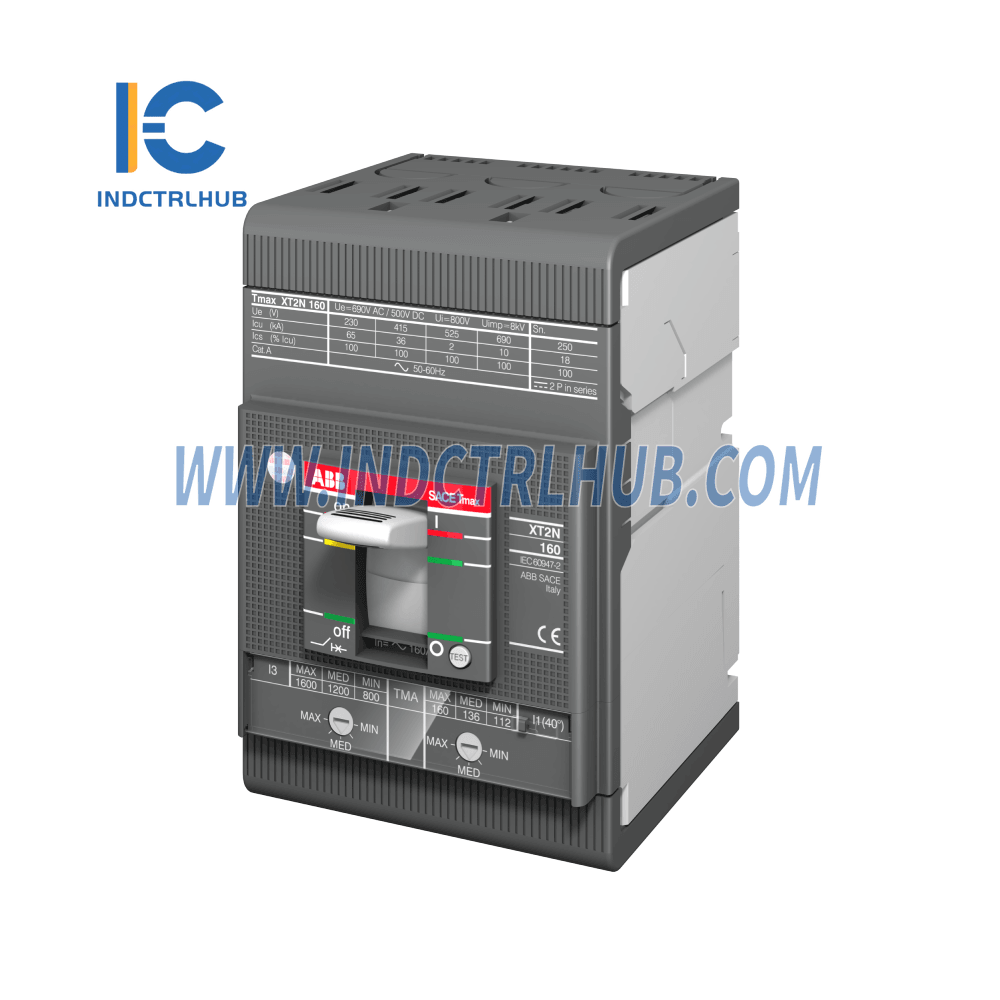

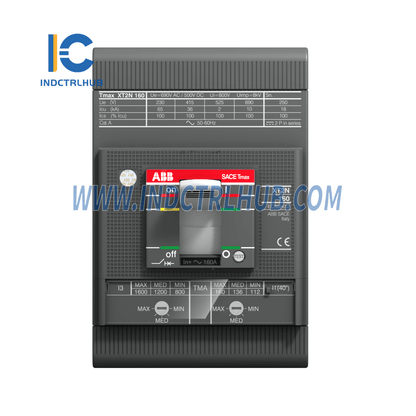

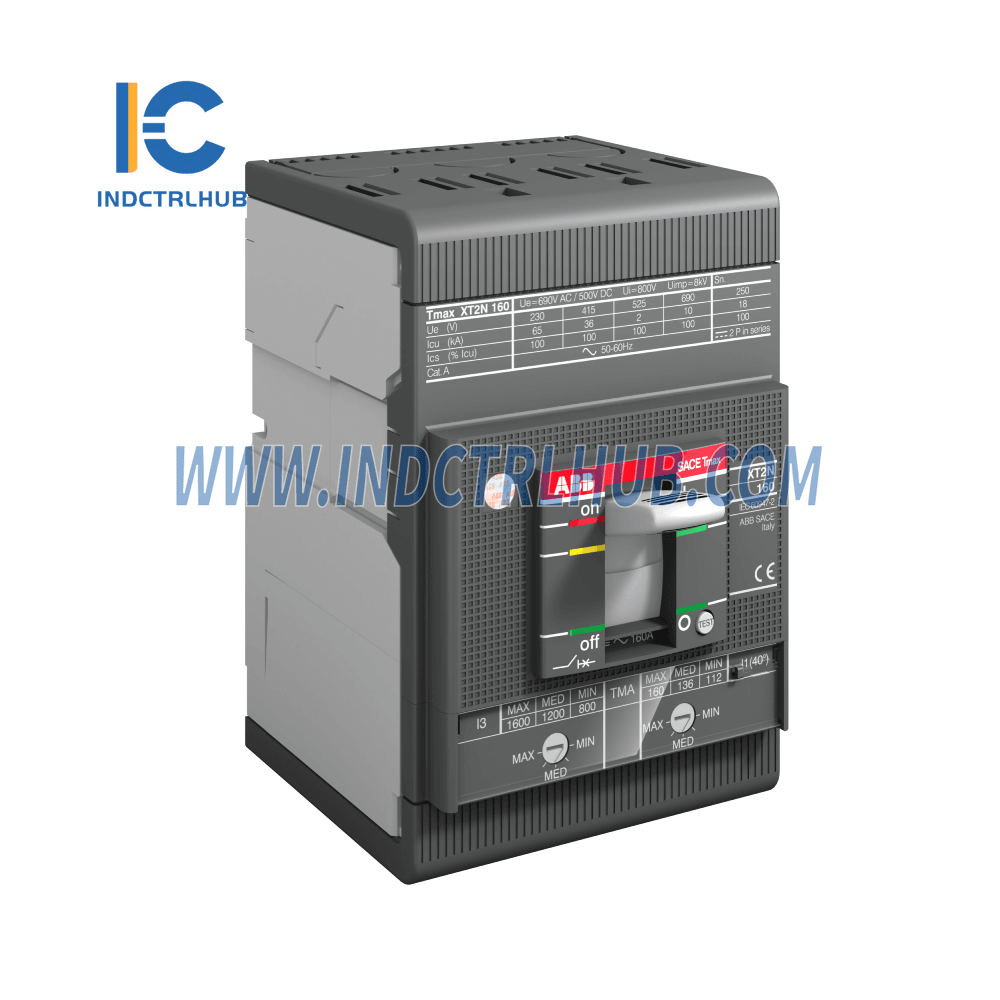

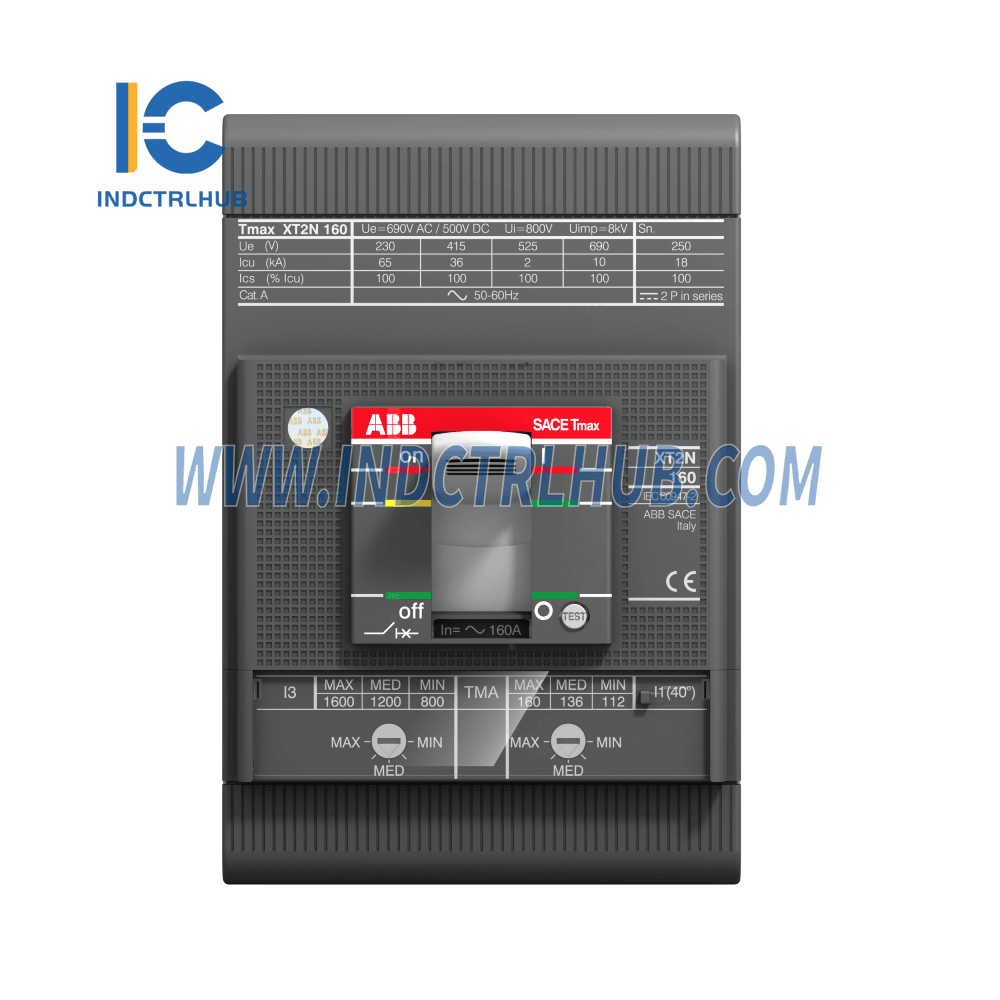

- Extended Product Type: XT2S 160 MA 52 Im=314...728 3p F F
- Product ID: 1SDA067767R1
- EAN: 8015644016630
- Catalog Description: XT2S 160 MA 52 Im=314...728 3p F F
- Long Description: C.BREAKER TMAX XT2S 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 52 A I3=314...728 A
ABB EcoSolutions
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End of Life Disassembling Instructions: Disassembly instructions Tmax XT XT2 TM
-
Environmental Product Declaration (EPD):
- EPD Tmax XT XT2 TM (CN)
- EPD Tmax XT XT2 TM (IT)
- Recyclability Rate: 55.70% (Standard EN45555)
Material Compliance
- REACH Declaration: REACh Declaration ABB Sace circuit breakers
- RoHS Information: RoHS Declaration ABB Sace circuit breakers
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863
- Conflict Minerals Reporting Template (CMRT): Available
- Toxic Substances Control Act (TSCA): Declaration available
Environmental Information
- Packaging Disposal Information: Available
Ordering Information
- Order Code (US and Canada): XT2SE3052MFF000XXX
- EAN: 8015644016630
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
Dimensions
| Specification | Details |
|---|---|
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth/Length | 82.5 mm |
| Product Net Weight | 1.4 kg |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth/Length | 145 mm |
| Package Level 1 Gross Weight | 1.678 kg |
Technical Information
| Specification | Details |
|---|---|
| Current Type | AC/DC |
| Number of Poles | 3P |
| Rated Current (In) | 52 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 314...728 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC, 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 85 kA (220 V AC) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 85 kA (220 V AC) |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Power Loss (at Rated Operating Conditions per Pole) | 4.8 W |
| Opening Time (CB with SOR) | 15 ms |
| Mechanical Durability | 25000 cycles |
| Electrical Durability | 8000 cycles |
Certifications and Declarations
- ATEX Certificate: No certification needed
- Declaration of Conformity - CE: EC Declaration of Conformity Tmax XT2
- GL Certificate: 1SDL000163R0093
- LR Certificate: LRs certificate Tmax XT
- UL Certificate: No certification needed
- VDE Certificate: No certification needed
Standards
- Standards: IEC60947-2
- Product Main Type: SACE Tmax XT
- Sub-type: XT2
Packaging Information
- Terminal Connection Type: Front
- Terminal Type: Bolt
- Tightening Torque: 6 N·m
Classifications
- ETIM 8: EC000228 - Power circuit-breaker for transformer/generator/installation protection
- UNSPSC: 39120000
- eClass: V11.1 : 27370409
Product Type
- Product Type: Automatic Circuit Breaker
- Product Name: Moulded Case Circuit Breaker
