Product Description
Technical Specifications of CA5-31E Auxiliary Contact Block
Product ID: 1SBN010040R1031

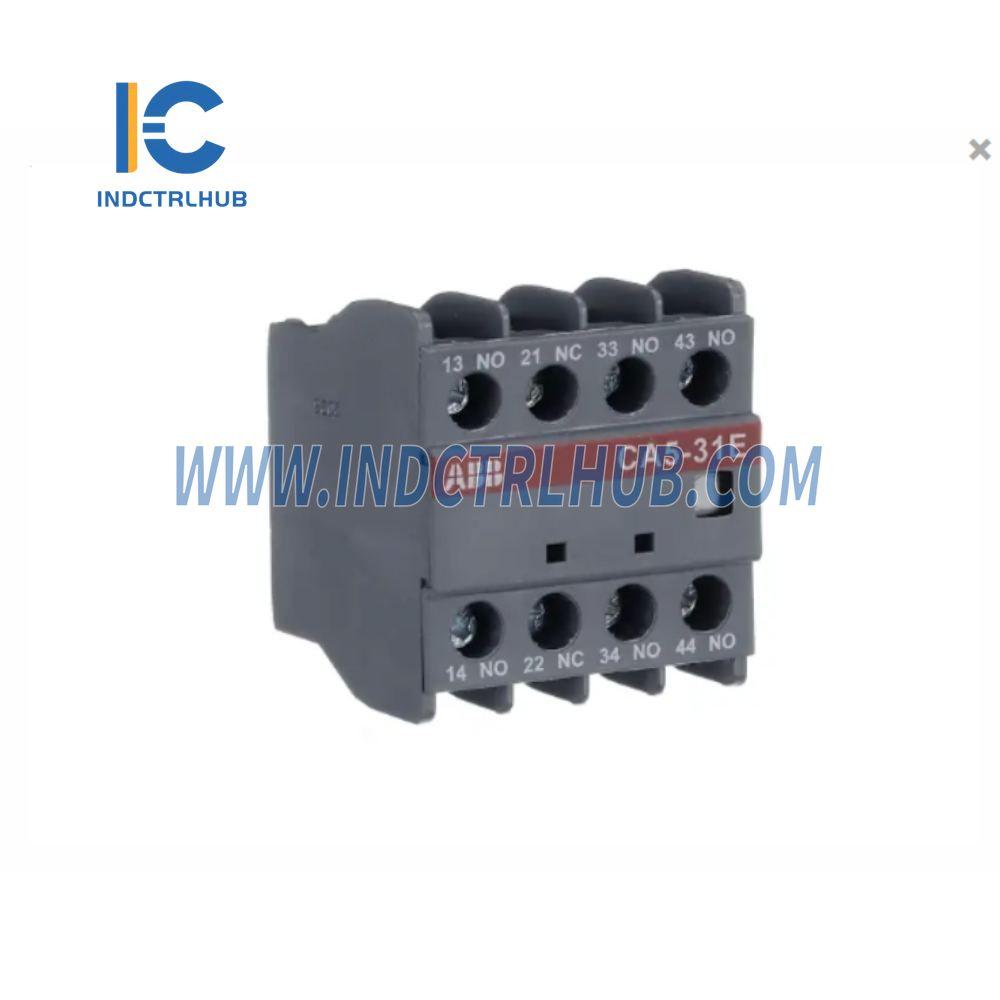

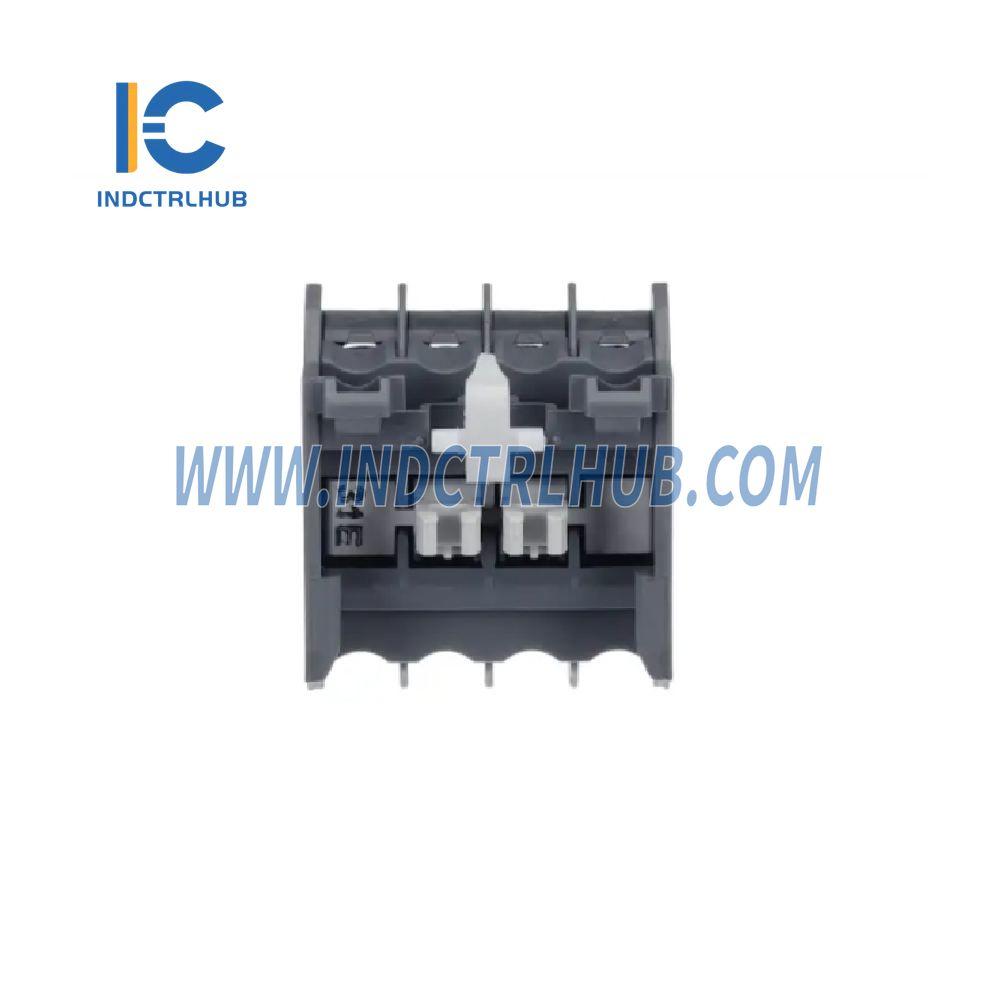

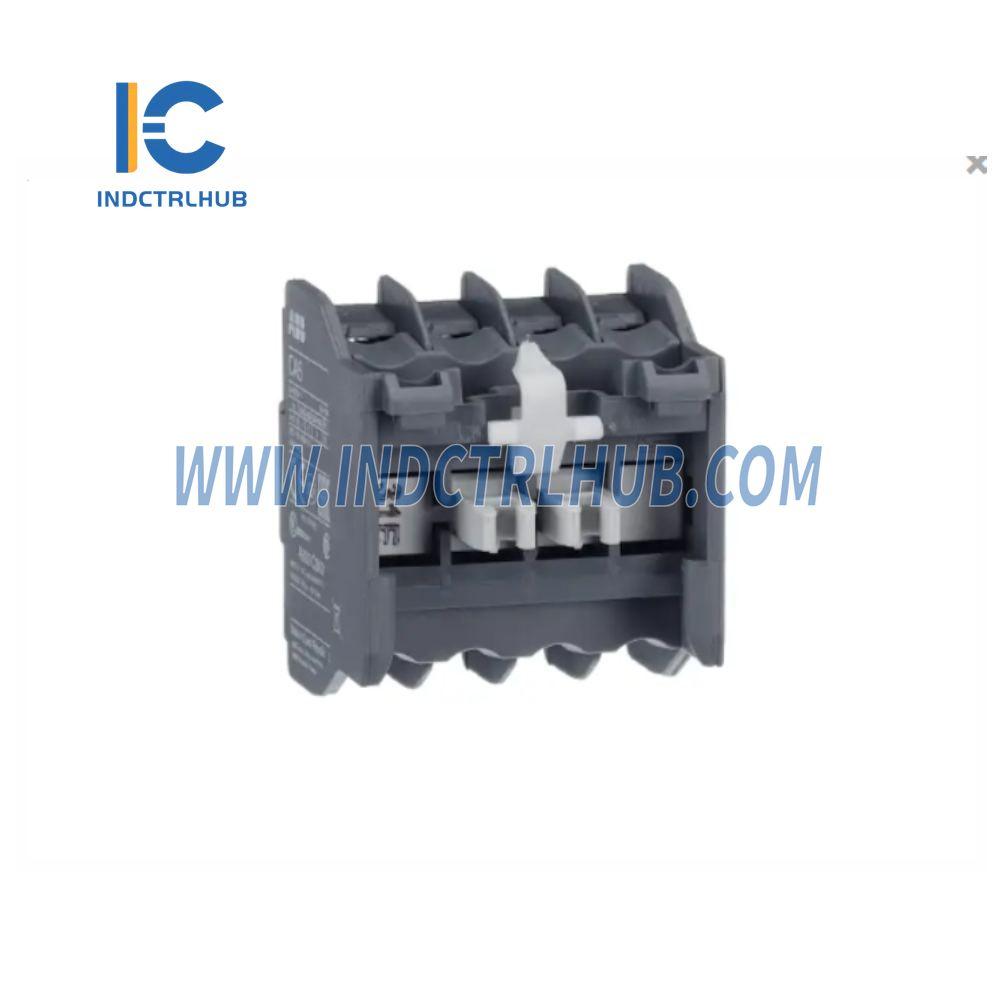

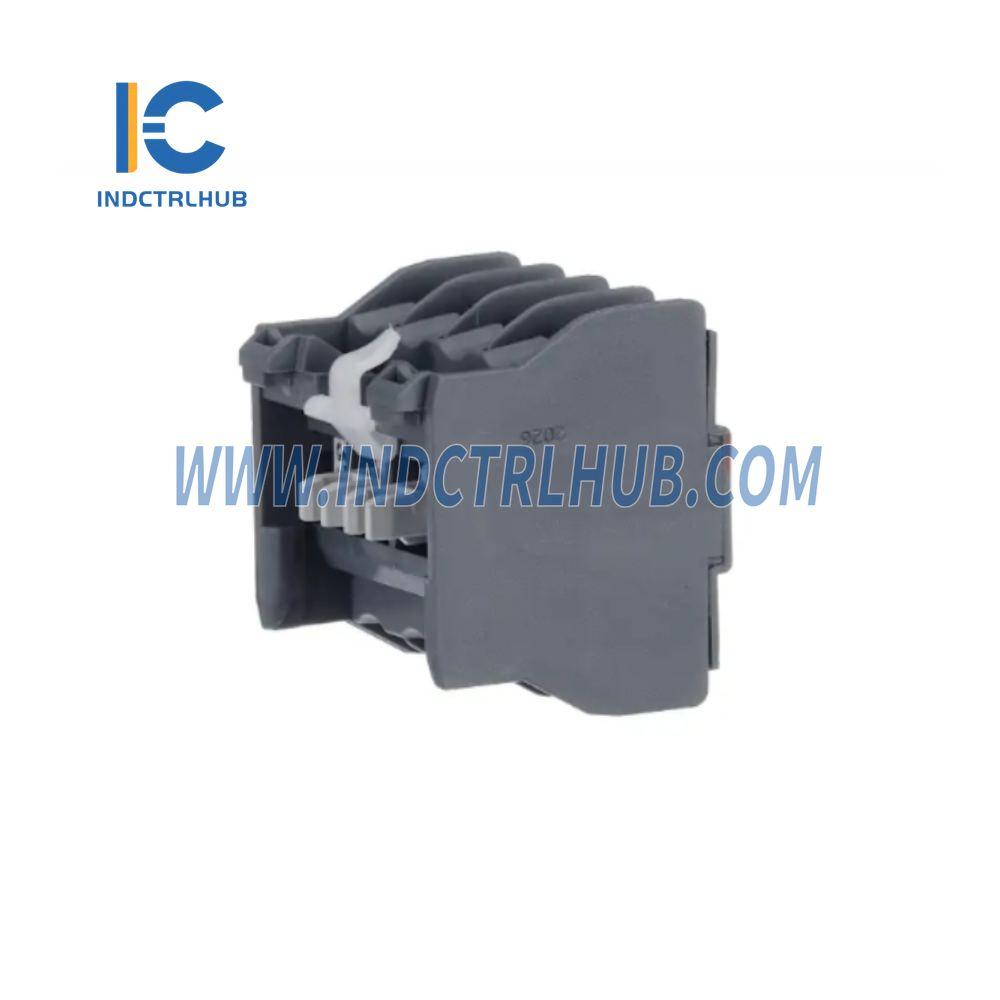

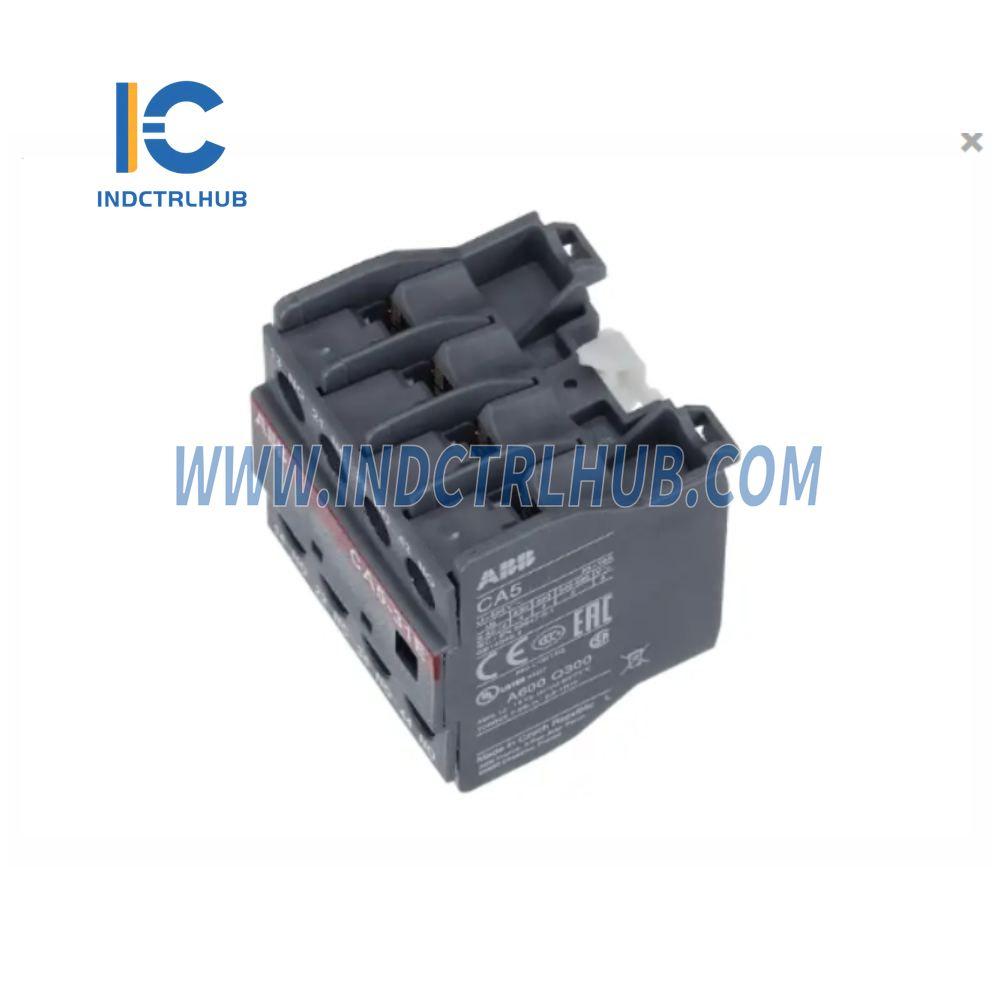

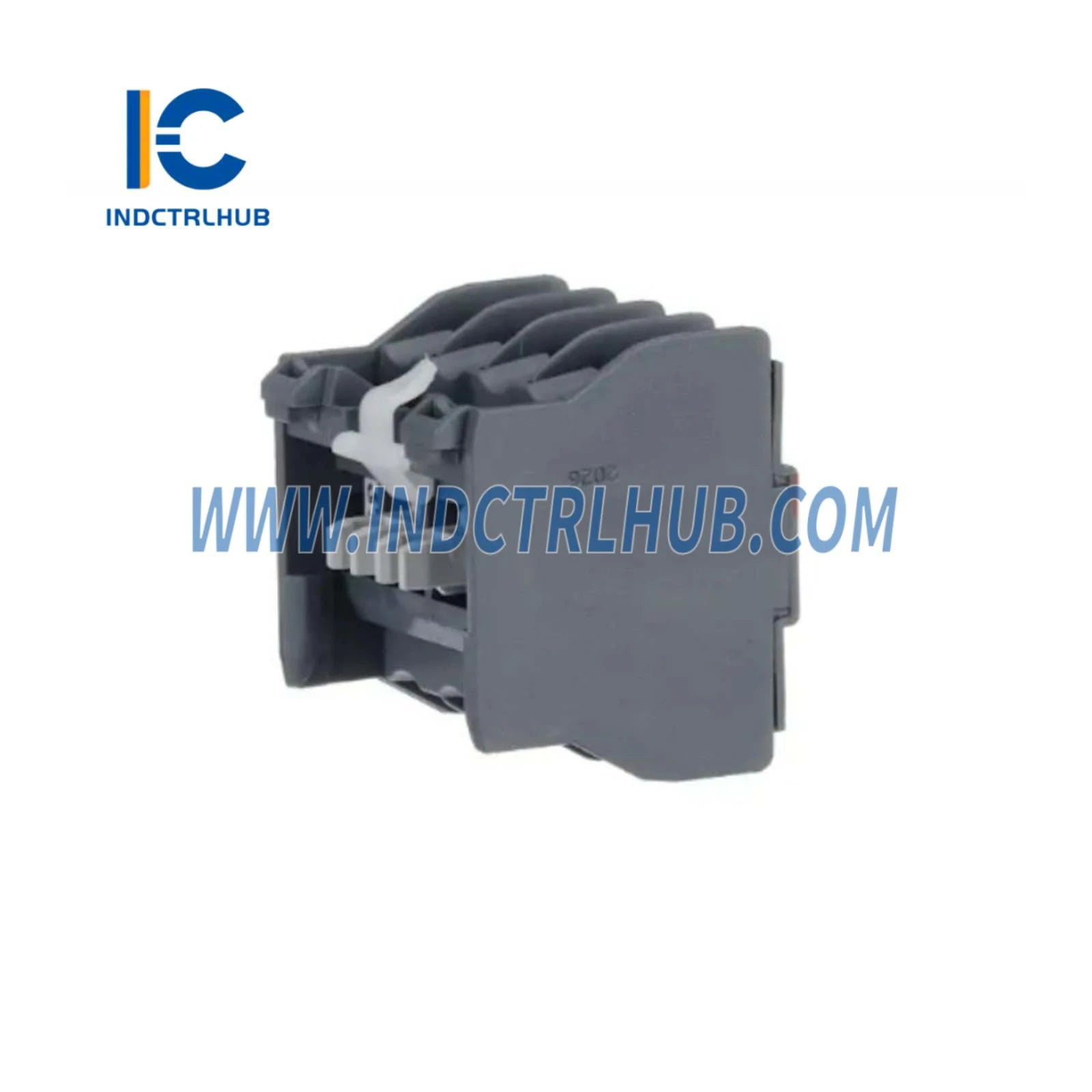

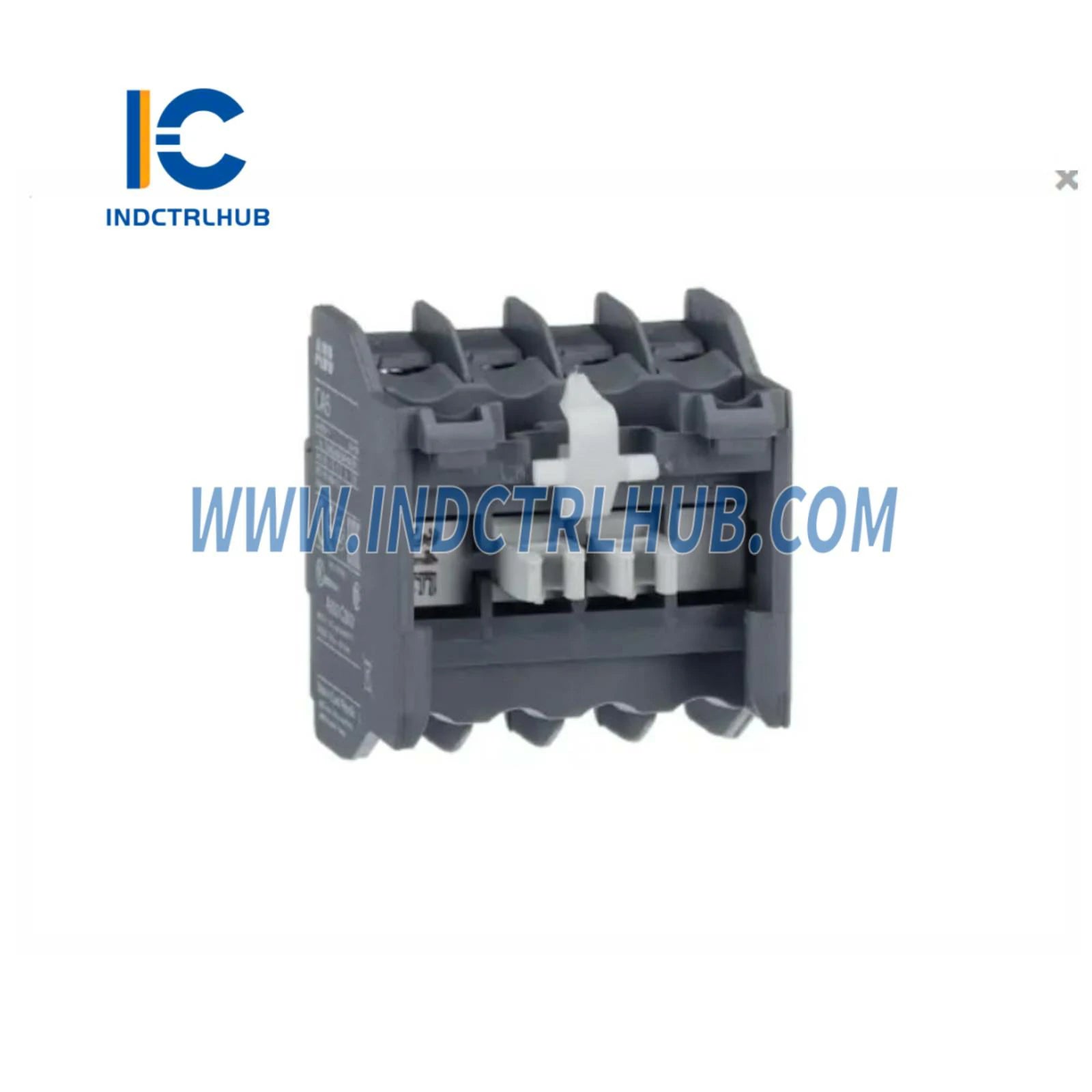

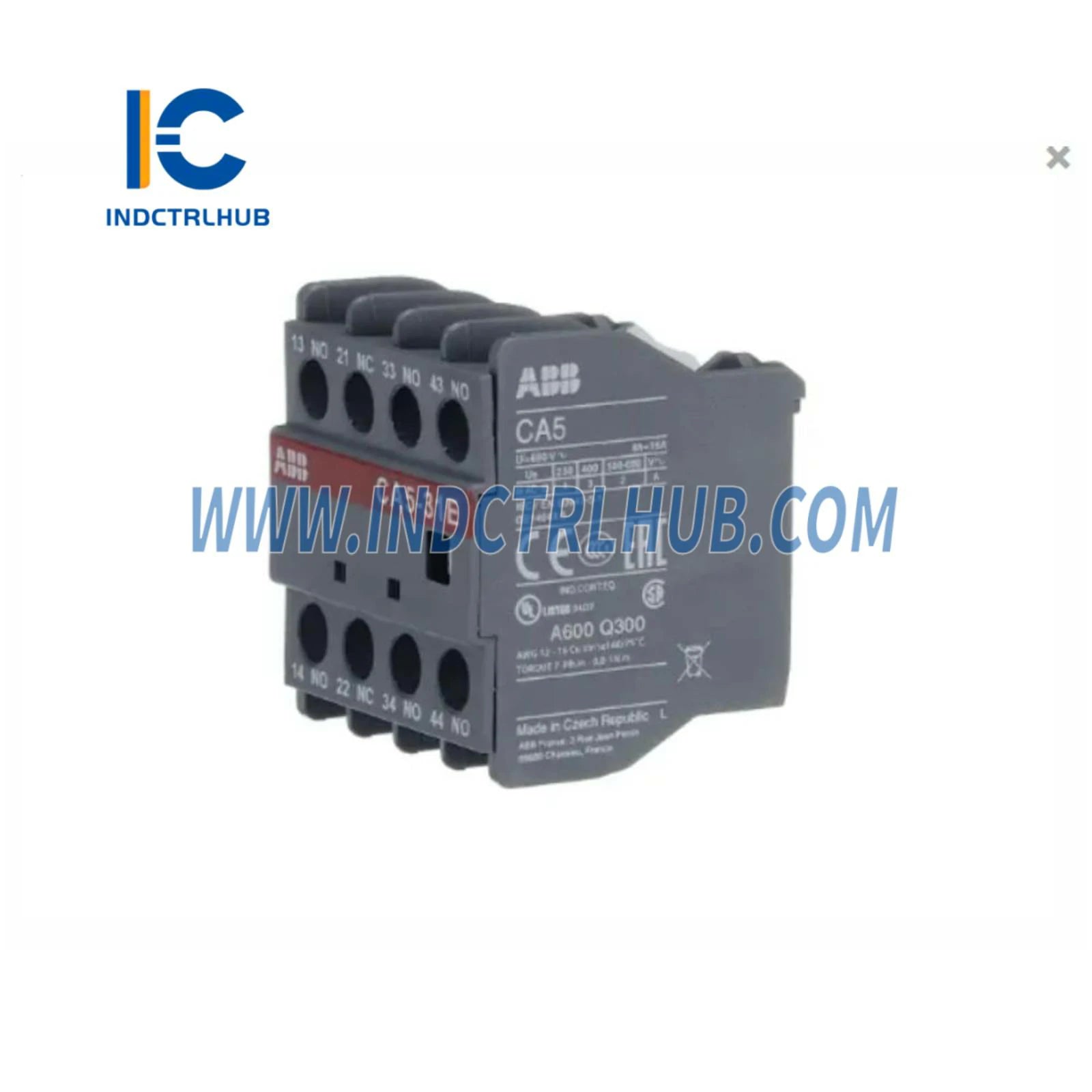

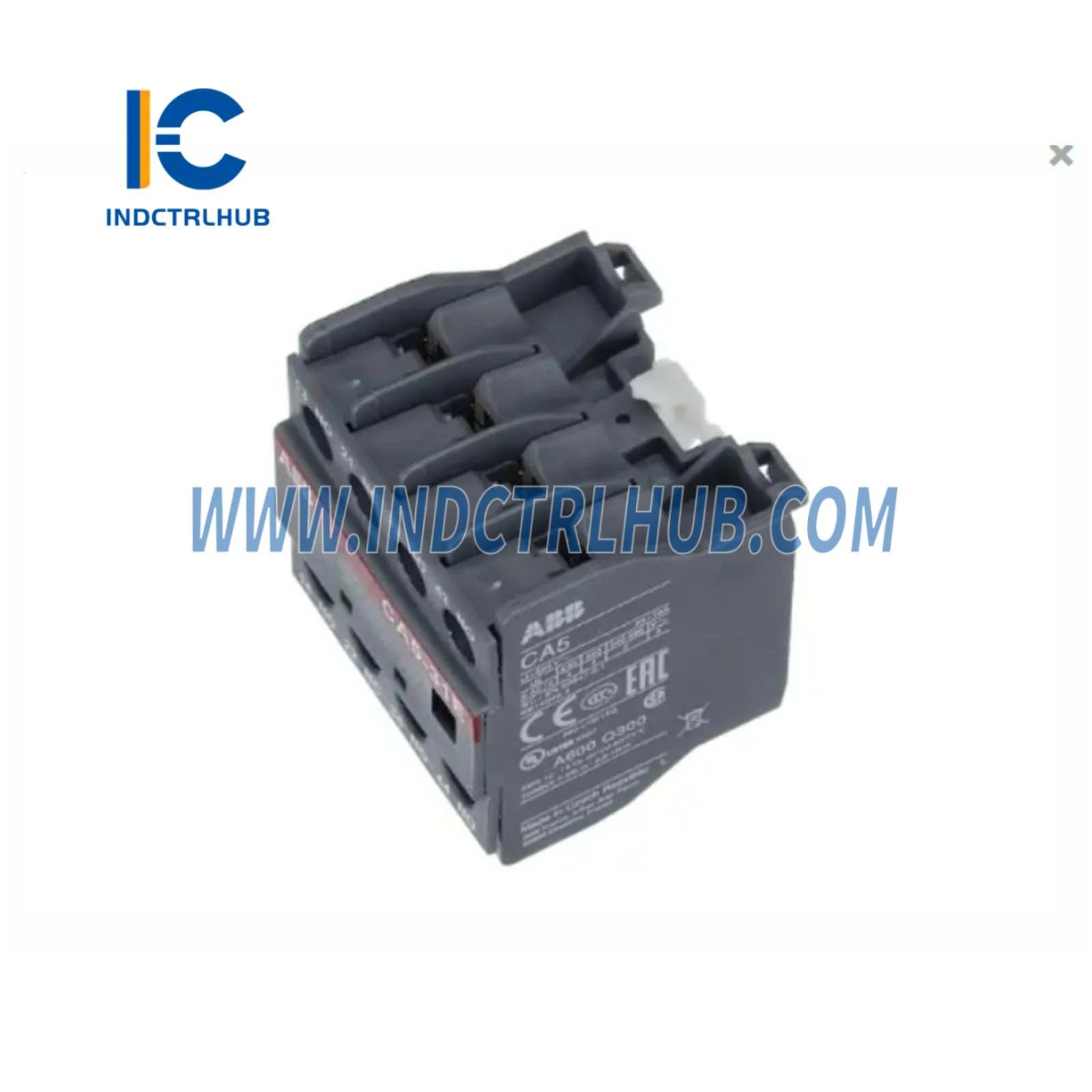

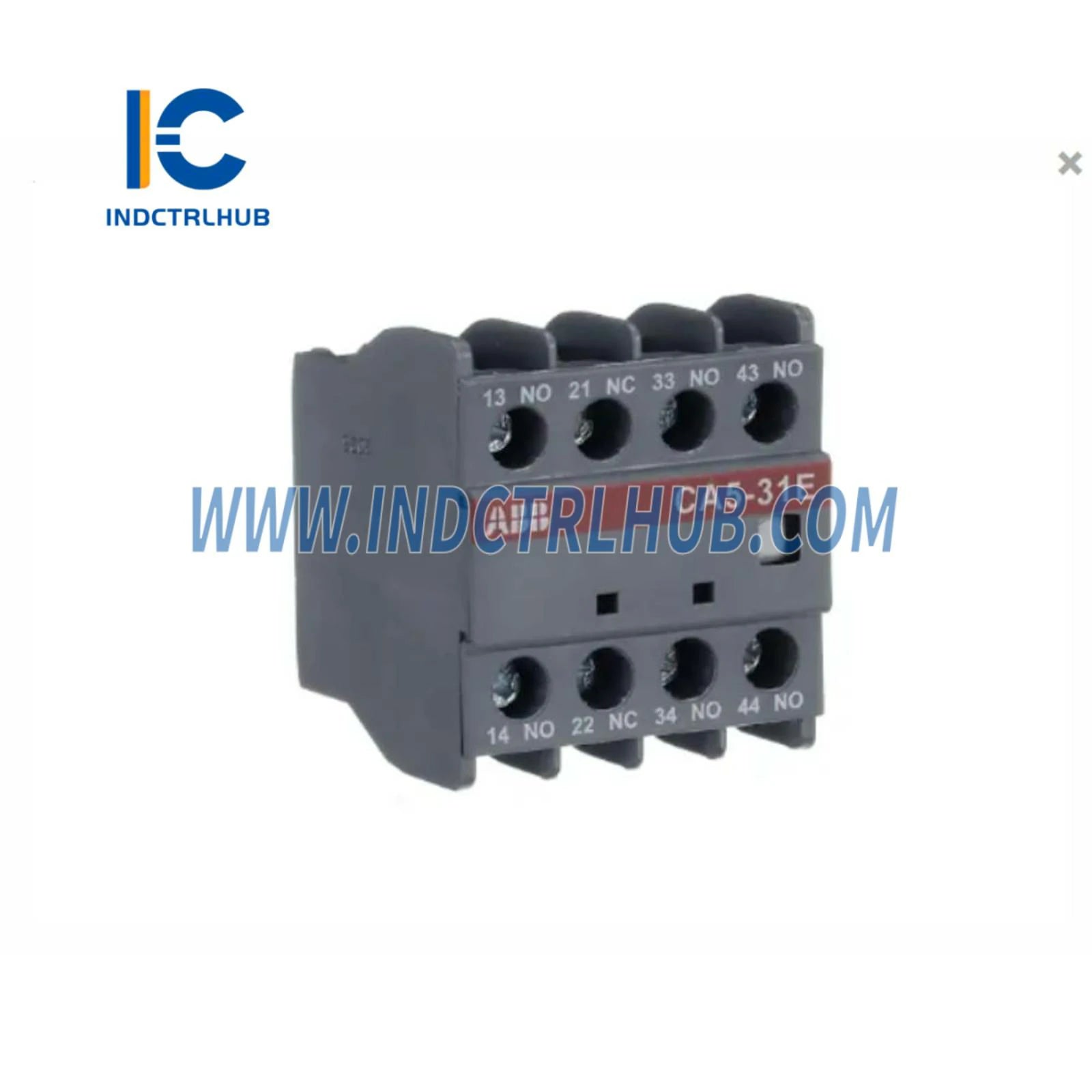

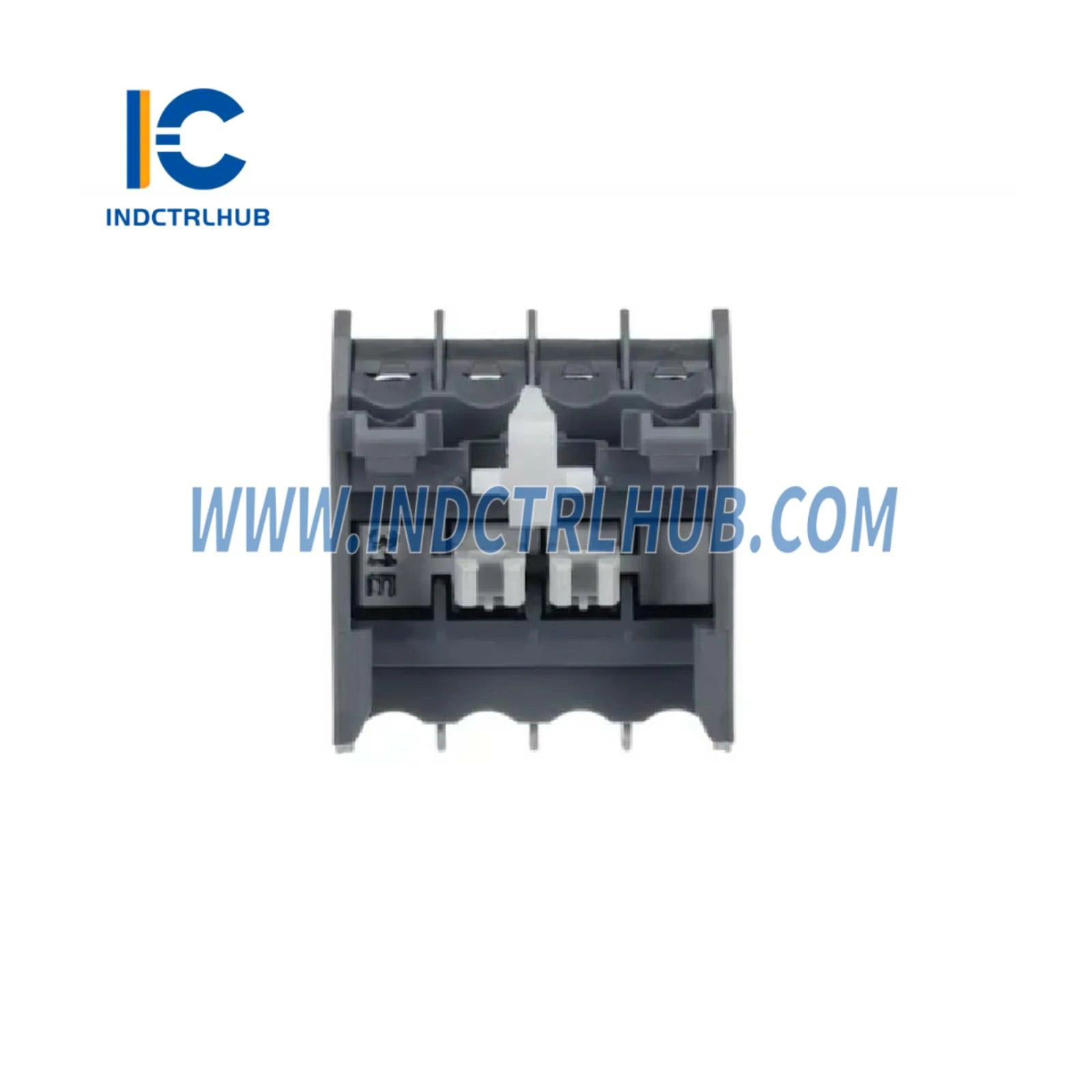

Product Name: CA5-31E Auxiliary Contact Block
Product Range: A Contactors
Country of Origin: Czech Republic (CZ), imported by ABB India Limited
HSN Code: 85389099
GST: 18%
Electrical Ratings
| Parameter | Value |
|---|---|
| Rated Operational Voltage | Auxiliary Circuit: 690 V Main Circuit: 24 V |
| Rated Operational Current (DC-13) | (125 V): 0.55 A / 69 W (24 V): 6 A / 144 W (250 V): 0.3 A / 75 W (48 V): 2.8 A / 134 W (72 V): 1 A / 72 W |
| Rated Operational Current (AC-15) | (220/240 V): 4 A (24/127 V): 6 A (380/440 V): 3 A (500 V): 2 A (690 V): 2 A |
| Rated Insulation Voltage (Ui) | 600 V (UL/CSA) 690 V (IEC 60947-5-1 and VDE 0110 Gr. C) |
| Rated Breaking Capacity | 10 x Ie AC-15 (IEC 60947-5-1) |
| Rated Frequency | Supply Circuit: 50/60 Hz |
Performance
Max Mechanical Switching Frequency: 3600 cycles/hour
Max Electrical Switching Frequency: 1200 cycles/hour
Contacts:
- 3 NO (Normally Open)
- 3 NC (Normally Closed)
Physical and Mounting Details
Dimensions:
- Package Width: 65 mm
- Package Length: 129.5 mm
- Package Height: 43 mm
Package Gross Weight: 0.12 kg
Mounting Type: Front Mounting
Terminal Type: Screw Terminals
