Product Description
General Information
Product Overview

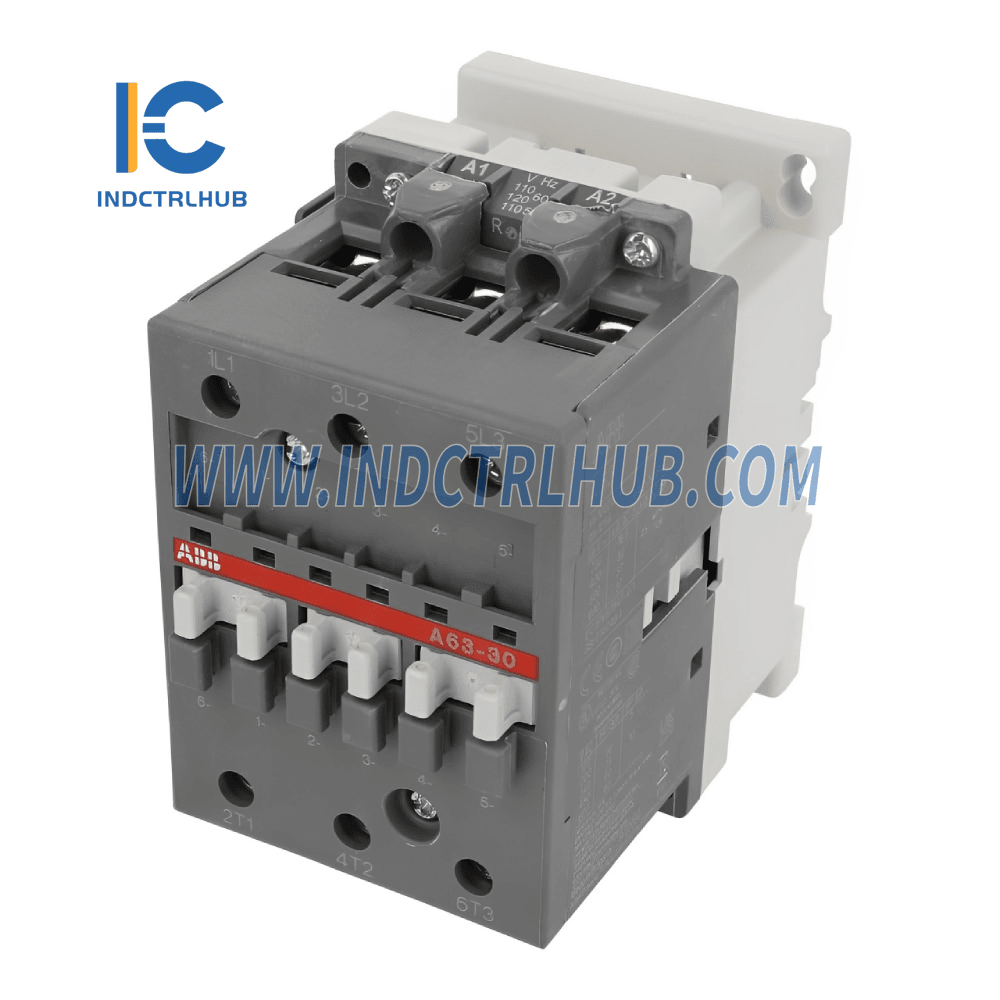

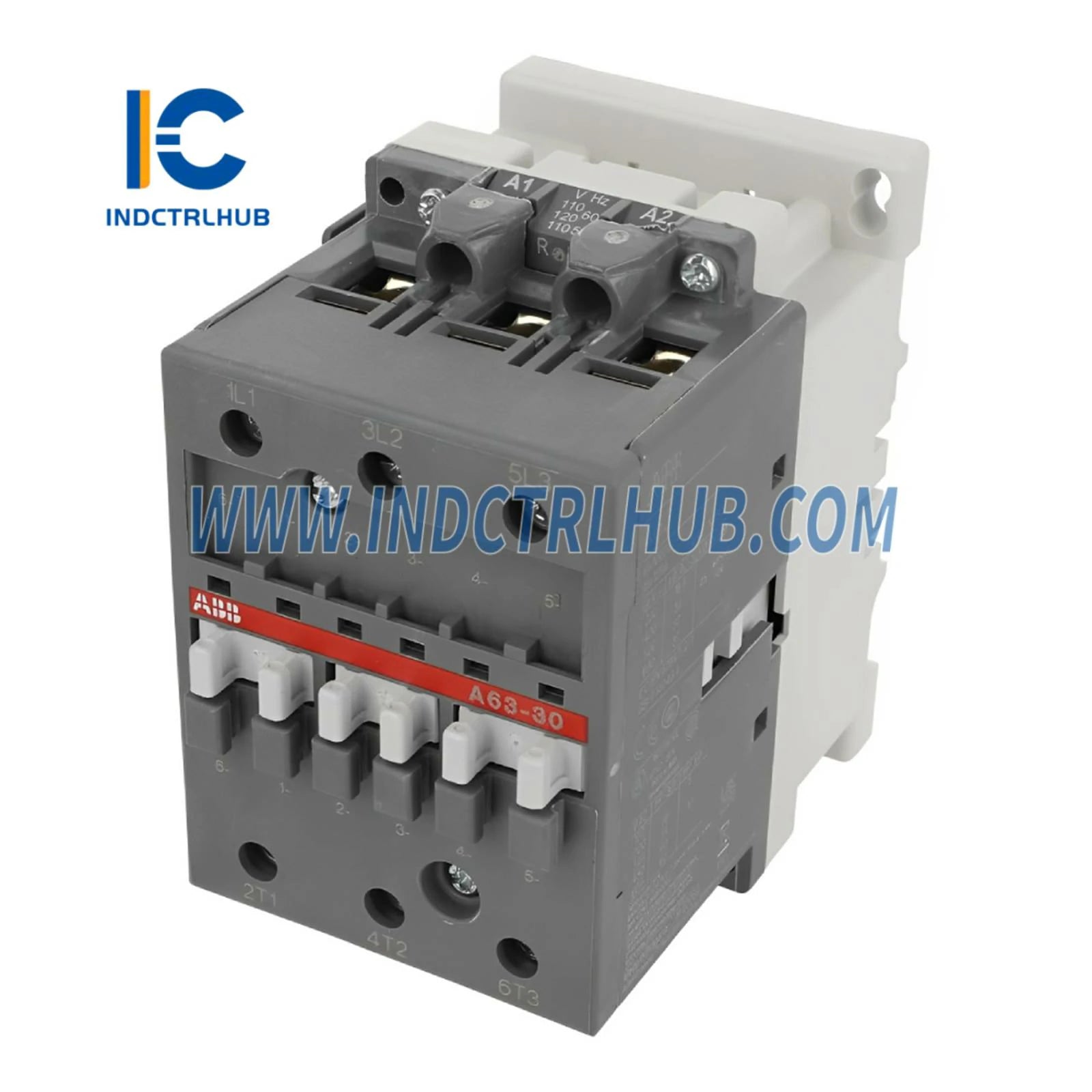

A63-30-11 110V 50Hz / 110-120V 60Hz is an AC-operated contactor designed for versatile applications, including controlling 3-phase motors, isolation, capacitor switching, and lighting. It supports power circuits up to 690 V AC / 1000 V AC or 220 V DC.
Key Features
- Main poles and auxiliary contacts: 3 main poles and 2 built-in auxiliary contacts.
- Control circuit: Operated by laminated magnet circuit.
- Accessories: Compatible with a wide range of accessories.
Product Identification

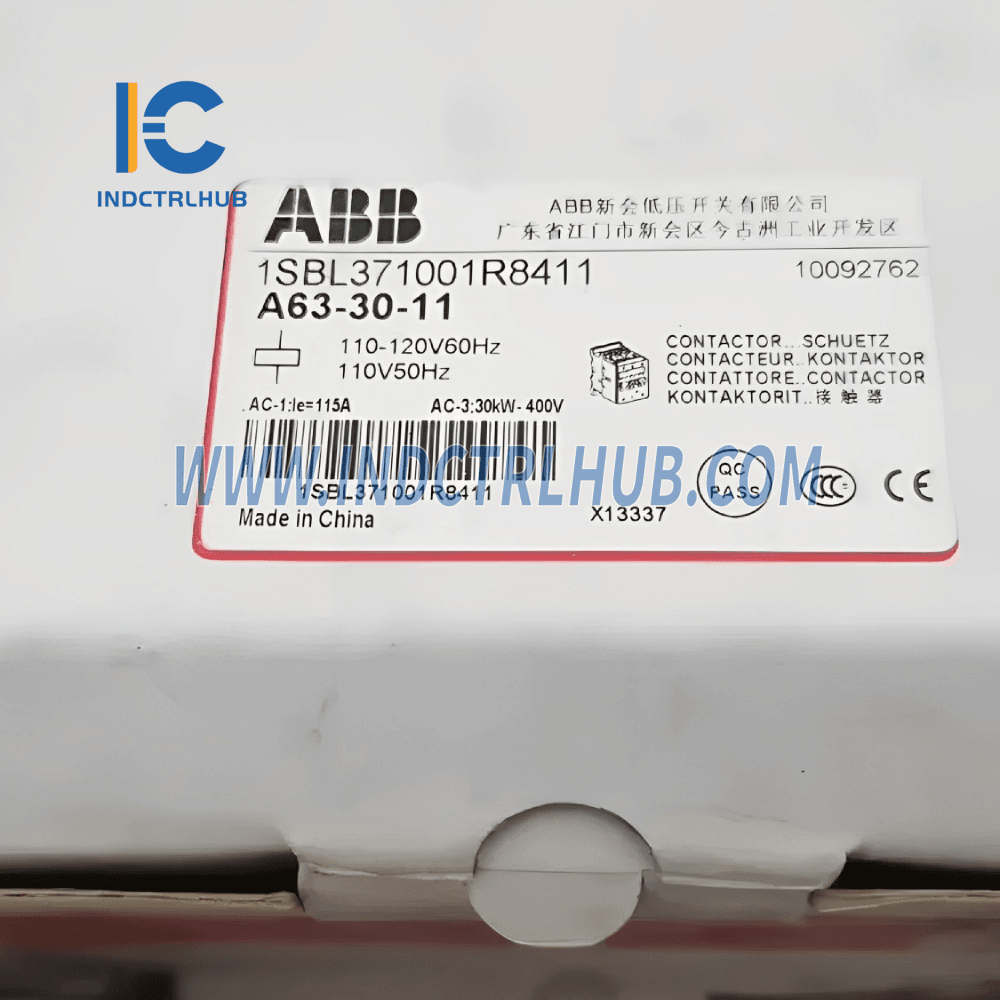

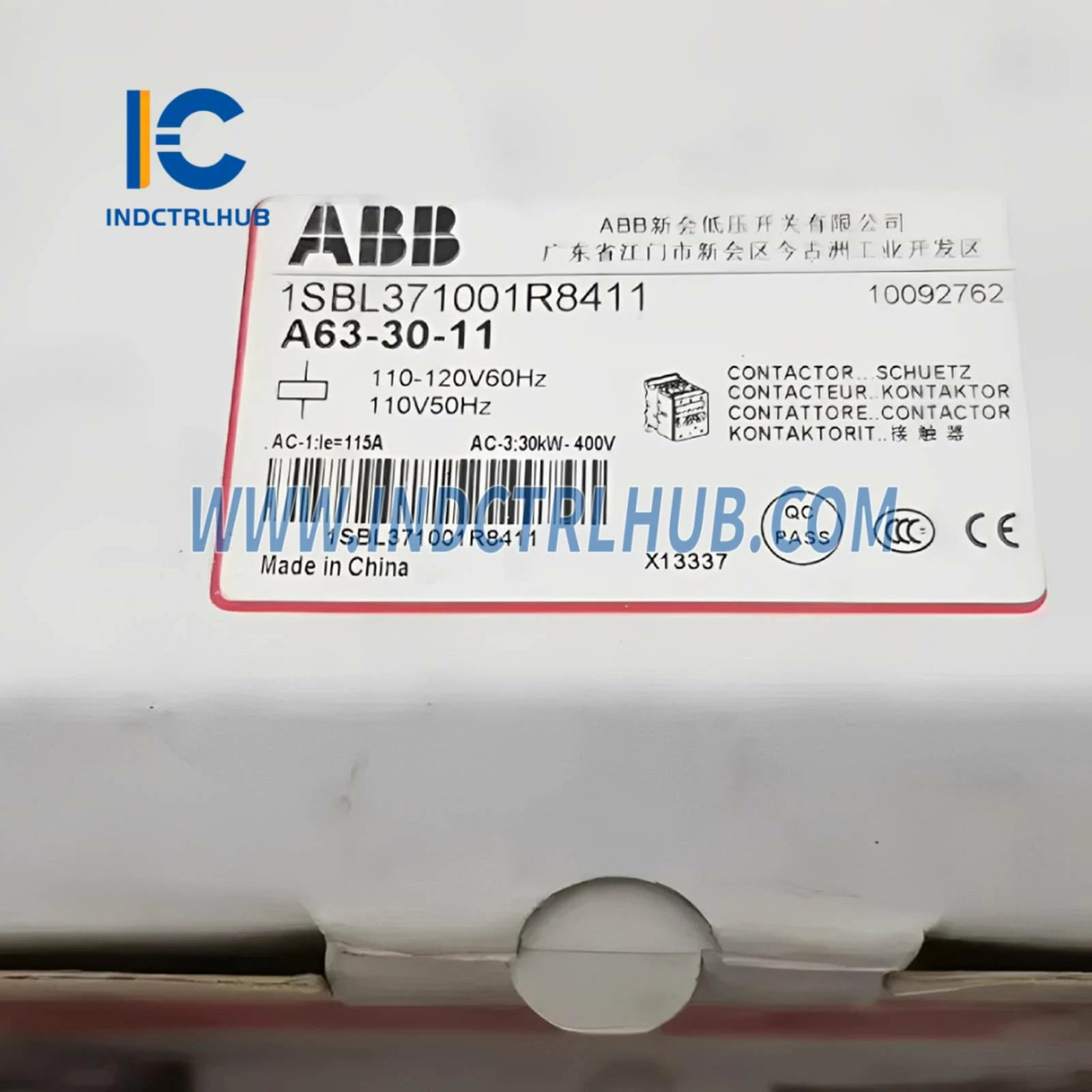

- Article Number: 1SBL371001R8411
- EAN: 3471522088840
- Catalog Description: A63-30-11 110V 50Hz / 110-120V 60Hz Contactor
Downloadable Resources
- Data Sheet, Technical Information: 1SBC100122C0202_Ch02
- Instructions and Manuals: FPTC407700P0003
Dimensions
- Width: 82 mm
- Depth: 108 mm
- Height: 110 mm
- Weight: 1.200 kg
Ordering
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
Technical Information
| Attribute | Value |
|---|---|
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency | 50 Hz / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | 125 A (IEC 60947-4-1), 16 A (IEC 60947-5-1) |
| Rated Operational Current AC-1 (Ie) | 115 A (690 V, 40 °C) / 95 A (690 V, 55 °C) |
| Rated Operational Power AC-3 (Pe) | 37 kW (415/440/500/690 V) / 30 kW (400 V) |
| Short-Circuit Protective Devices | Auxiliary Circuit: gG Fuses 10 A / Main Circuit: gG Fuses 125 A |

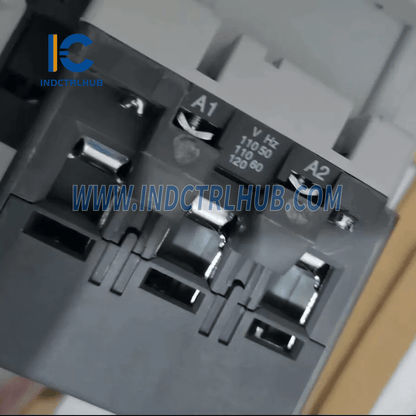

| Rated Control Circuit Voltage (Uc) | 110 V (50 Hz) / 110-120 V (60 Hz) |
| Degree of Protection | IP20 (Auxiliary Terminals) |
Environmental Information
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -60 °C to +80 °C
- Maximum Operating Altitude: 3000 m
- Compliance: RoHS Directive 2002/95/EC
Certificates
- ASEFA: ASEFA_05403BT
- CB: CB_FR_602227A
- UL: UL_E312527
- CSA: CSA_1033838_LR056745
- EAC: EAC_RU C-FR ME77 B01010
Packaging Information
-
Package Level 1:
- Units: 1 piece
- Dimensions: 140 x 146 x 96 mm
- Gross Weight: 1.2 kg
Categories
This product belongs to:
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
