Product Description

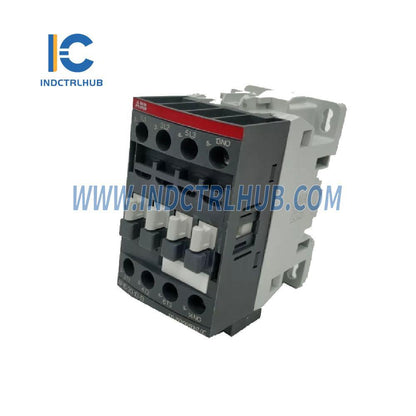

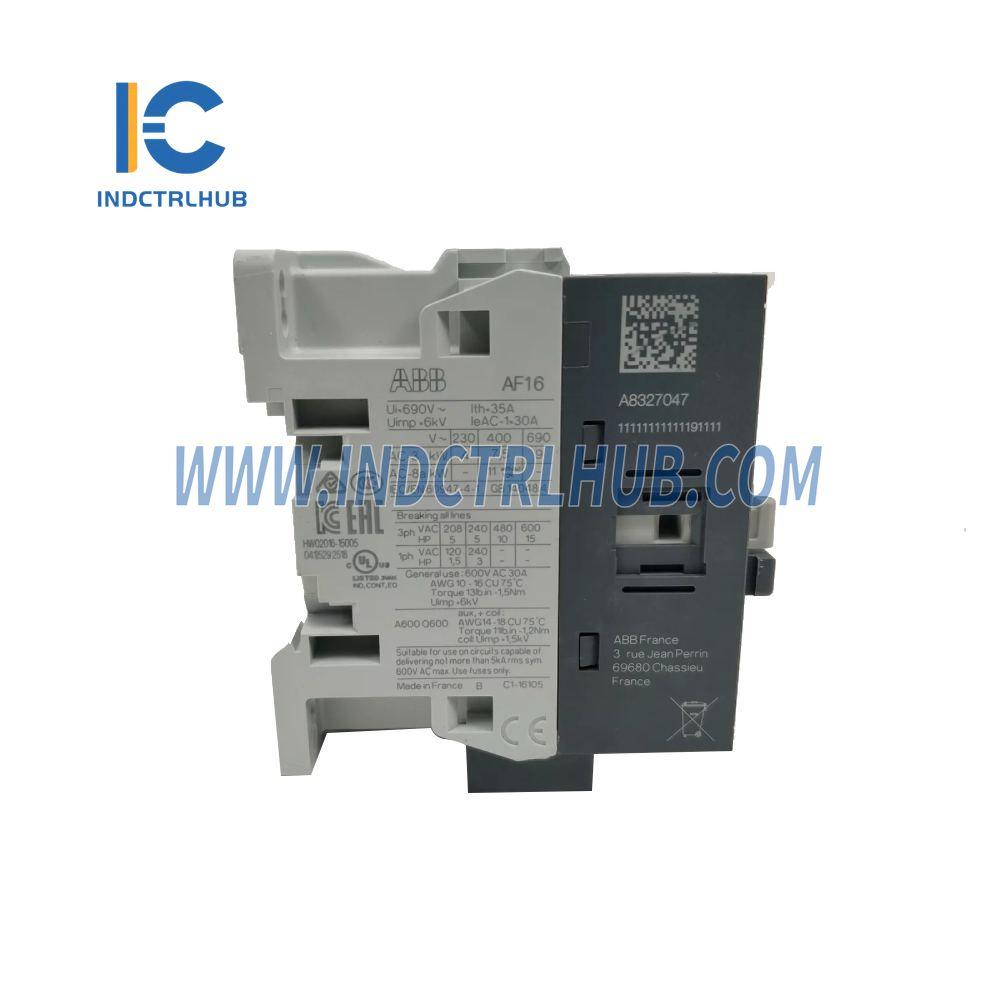

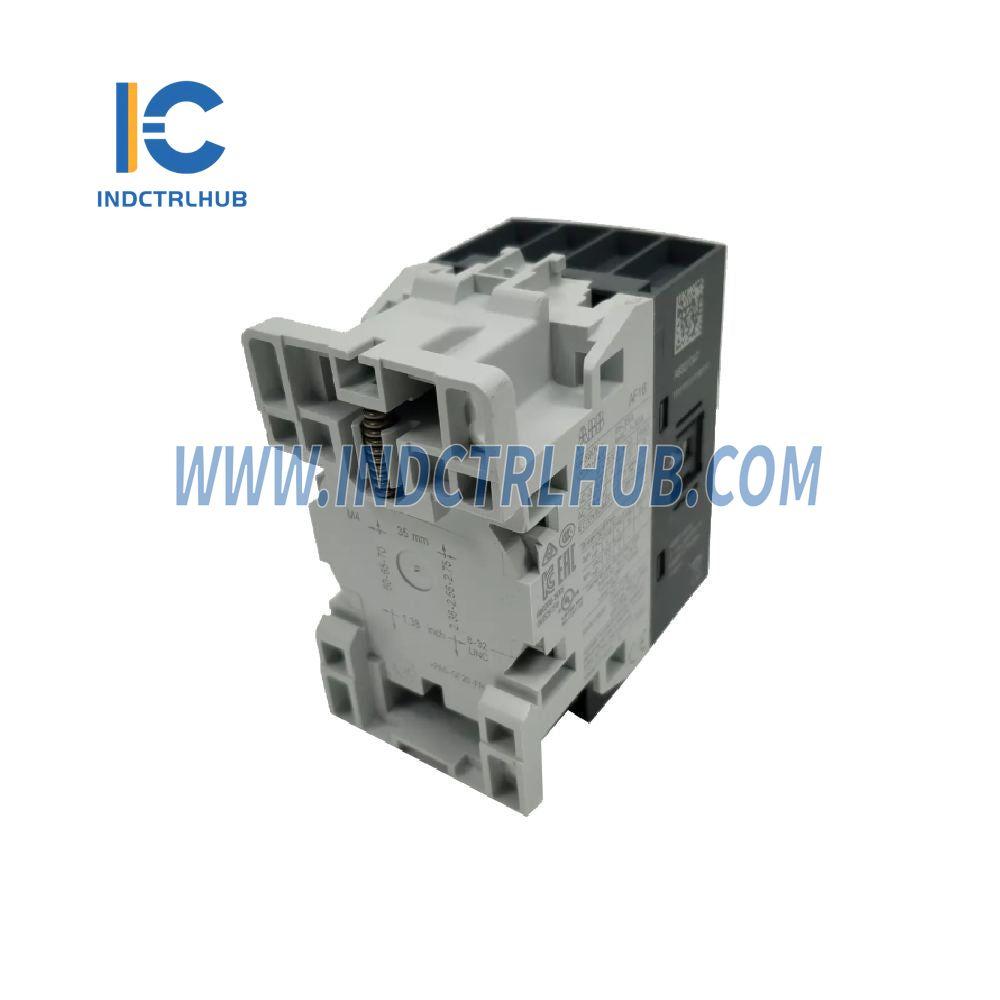

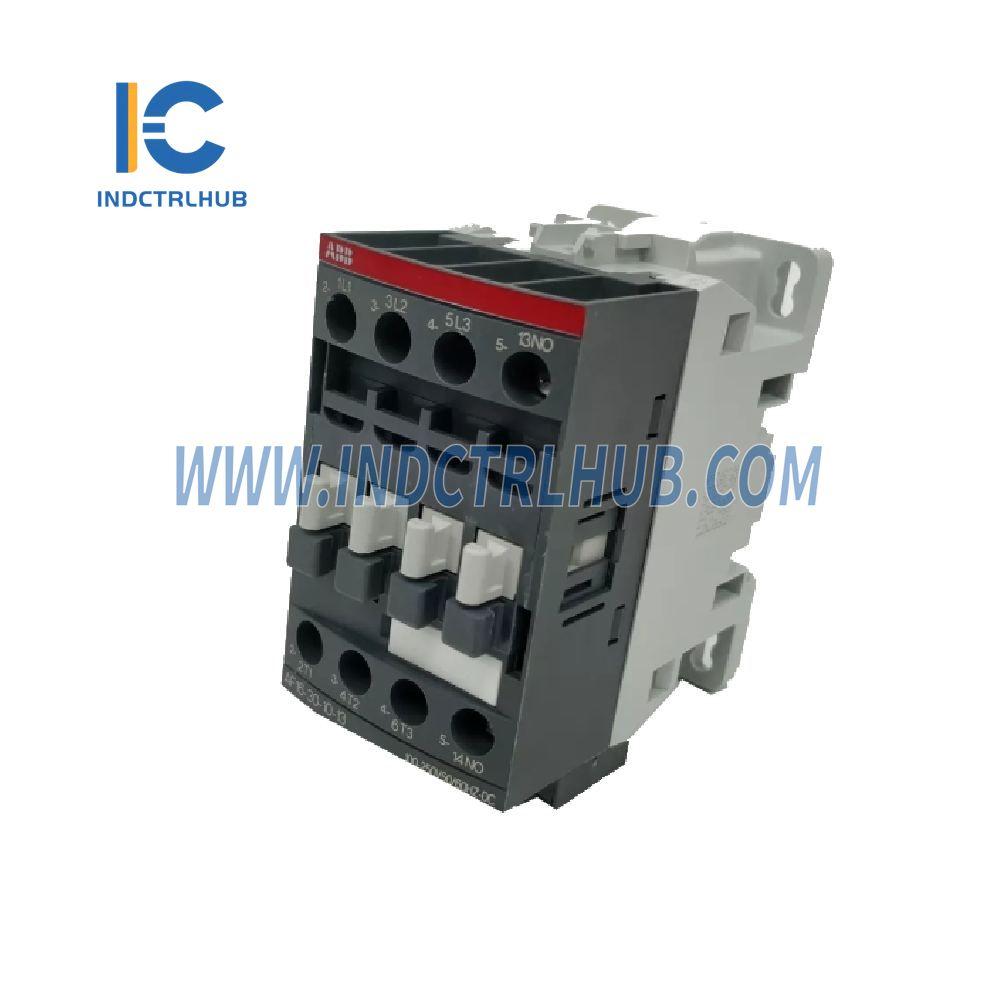

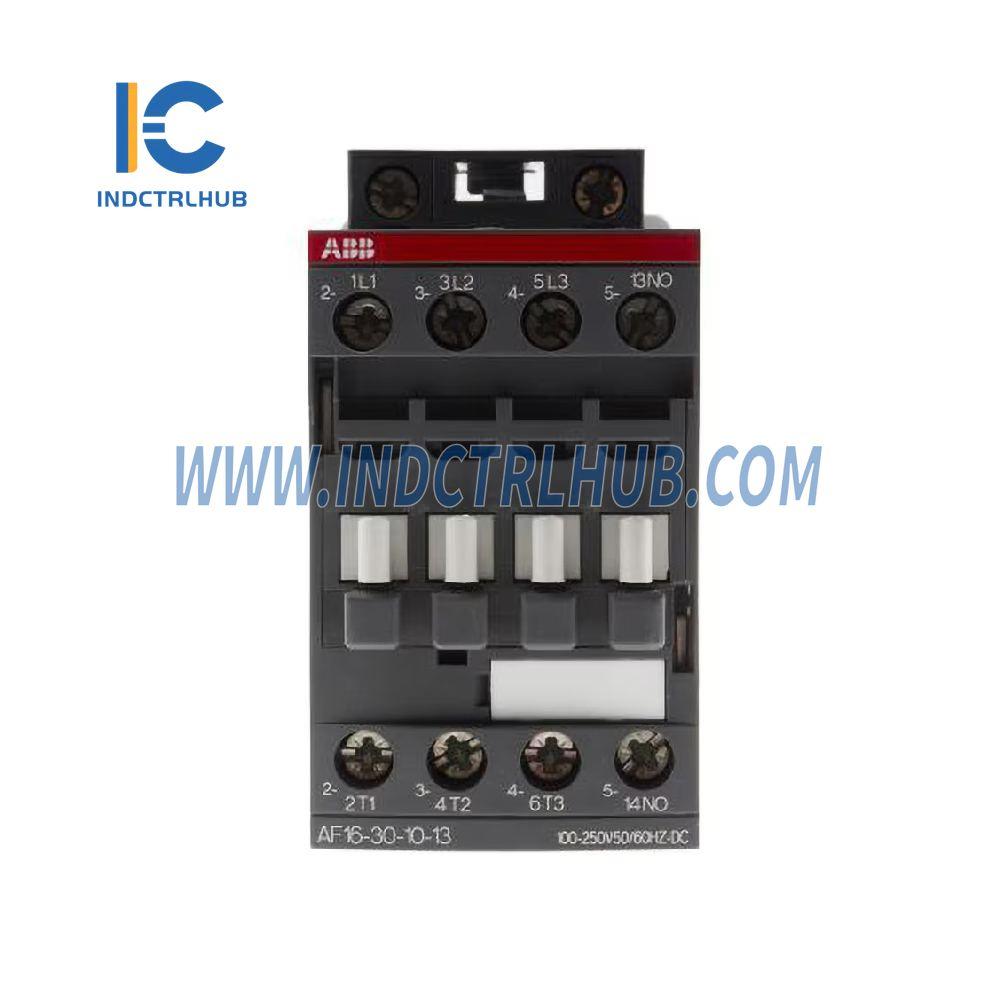

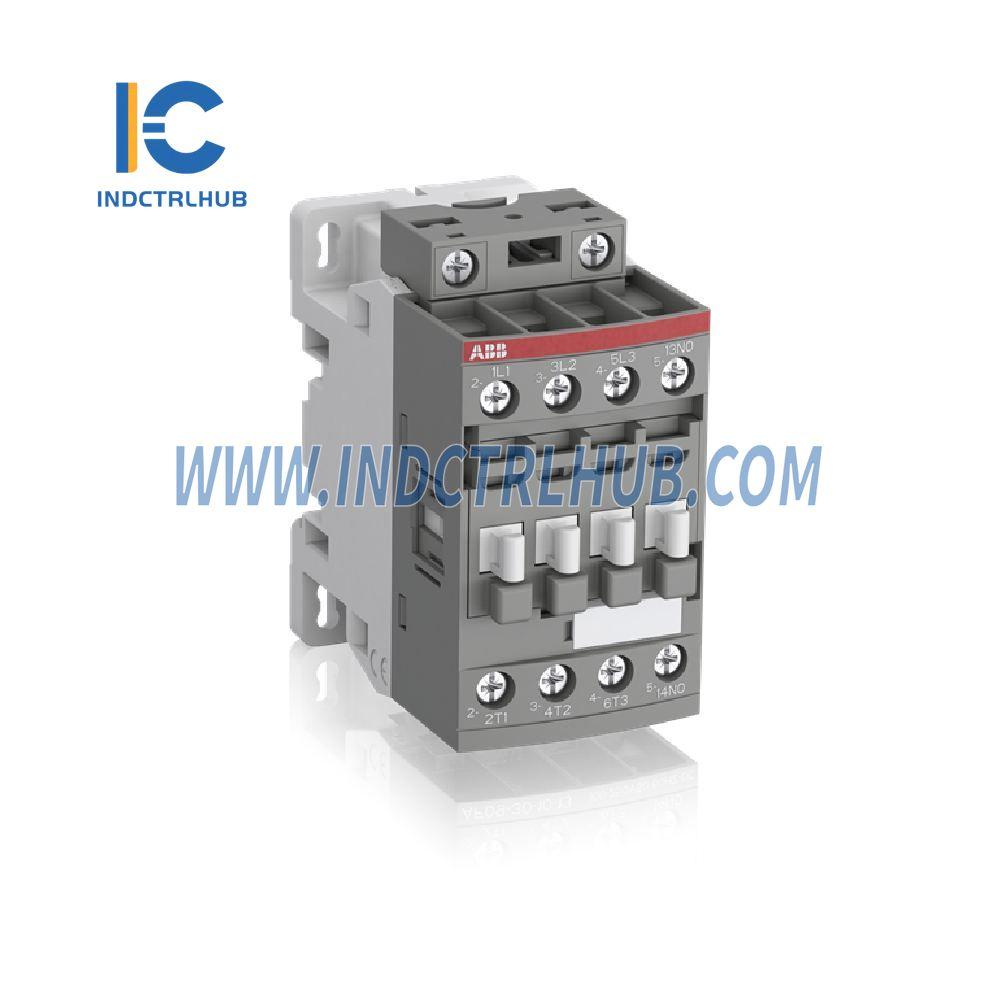

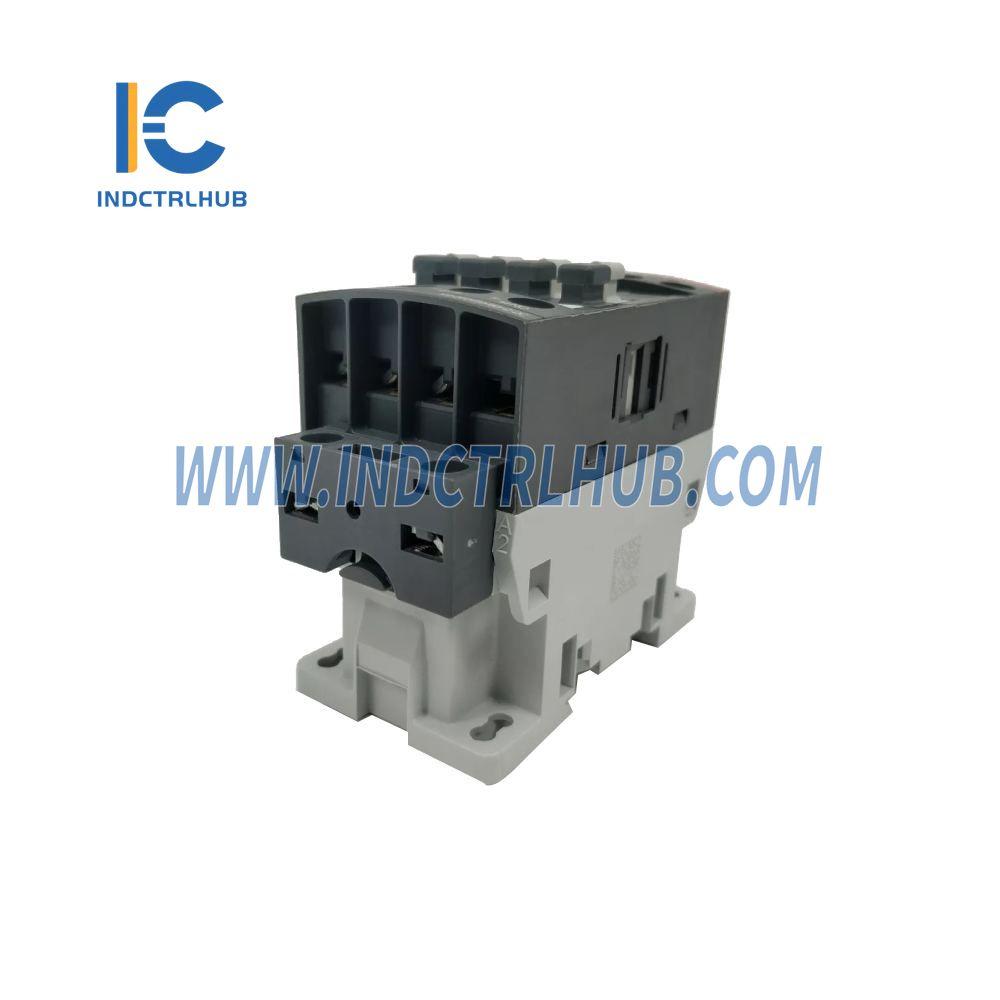

AF16-30-10-13 100-250V 50/60Hz DC Contactor
General Overview
The AF16-30-10-13 is a block contactor designed for controlling power circuits up to 690 V AC and 220 V DC. This contactor is particularly used for controlling 3-phase motors and non-inductive or slightly inductive loads. The AF16 contactor features an electronic coil interface, which accepts a wide range of control voltages from 24 V to 500 V AC (50/60 Hz) or 20 V to 500 V DC, making it versatile and capable of handling control voltage variations globally without needing coil replacements.
This contactor comes with surge protection built-in, eliminating the need for additional surge suppressors. It also has mechanically-linked auxiliary contacts that meet IEC standards, making it reliable for industrial and automation applications.
Key Features:
- Control Voltage Flexibility: The contactor can work with a wide range of control voltages, including 100-250V AC (50/60Hz) and 100-250V DC.
- Built-in Surge Protection: No need for additional external surge suppressors.
-
Rated Operational Voltage:
- Auxiliary Circuit: 690 V
- Main Circuit: 690 V
- Mechanical Durability: Designed for a high maximum mechanical switching frequency of 3600 cycles per hour.
-
Wide Temperature Range:
- Storage Temperature: -60°C to +80°C
- Operating Temperature: -40°C to +70°C (without thermal overload relay)
- With Thermal Overload Relay: -25°C to +60°C
Electrical and Performance Specifications
| Parameter | Value |
|---|---|
| Number of Main Contacts (NO) | 3 |
| Auxiliary Contacts (NO) | 1 |
| Max Mechanical Switching Frequency | 3600 cycles per hour |
| Max Electrical Switching Frequency | - AC-1: 600 cycles per hour |
| - AC-2 / AC-4: 300 cycles per hour | |
| - AC-3: 1200 cycles per hour | |
| - AC-15: 1200 cycles per hour | |
| - DC-13: 900 cycles per hour | |
| Horsepower Rating (UL/CSA) | - (220-240 V AC) Three Phase: 5 hp |
| - (440-480 V AC) Three Phase: 10 hp | |
| - (550-600 V AC) Three Phase: 15 hp | |
| - (120 V AC) Single Phase: 1-1/2 hp | |
| - (200-208 V AC) Three Phase: 5 hp | |
| - (240 V AC) Single Phase: 3 hp | |
| Conventional Free-air Thermal Current | 16 A (according to IEC 60947-5-1) |
| 35 A (according to IEC 60947-4-1) | |
| Rated Operational Power (AC-3) | - (220/230/240 V): 4 kW |
| - (380/400 V): 7.5 kW | |
| - (690 V): 9 kW | |
| Rated Operational Current (AC-3) | - (220/230/240 V): 18 A (at 60°C) |
| - (380/400 V): 18 A | |
| - (500 V): 15 A | |
| - (690 V): 10.5 A | |
| Rated Insulation Voltage (Ui) | - 690 V (IEC 60947-4-1) |
| - 600 V (UL/CSA) |
Control and Switching Characteristics
-
Operate Time (milliseconds):
- Coil De-energization to NC Contact Closing: 13 to 98 ms
- Coil De-energization to NO Contact Opening: 11 to 95 ms
- Coil Energization to NC Contact Opening: 38 to 90 ms
- Coil Energization to NO Contact Closing: 38 to 90 ms
-
Rated Operational Current (DC-13):
- For various DC voltages (e.g., 125 V, 24 V, 250 V) with current ratings ranging from 0.1 A to 6 A depending on the voltage.
Mounting and Connections
-
Mounting:
- The AF16 contactor is suitable for block mounting.
- It includes screw terminals for easy electrical connections.
-
Rated Control Circuit Voltage (Uc):
- 100-250 V (50/60 Hz AC)
- 100-250 V DC
Product Classification and Compliance
- Product Range: AF Contactors
- Product Class: Block Contactors
- HSN Number: 85364900
- Country of Origin: France (FR), Imported by ABB India Limited
Physical Dimensions
-
Package Dimensions:
- Width: 87 mm
- Length: 79 mm
- Height: 47 mm
- Package Gross Weight: 0.27 kg
Applications
The AF16-30-10-13 contactor is well-suited for controlling 3-phase motors, non-inductive loads, and slightly inductive loads in industrial applications. The broad control voltage range and built-in surge protection make it ideal for regions with varying control voltages.
