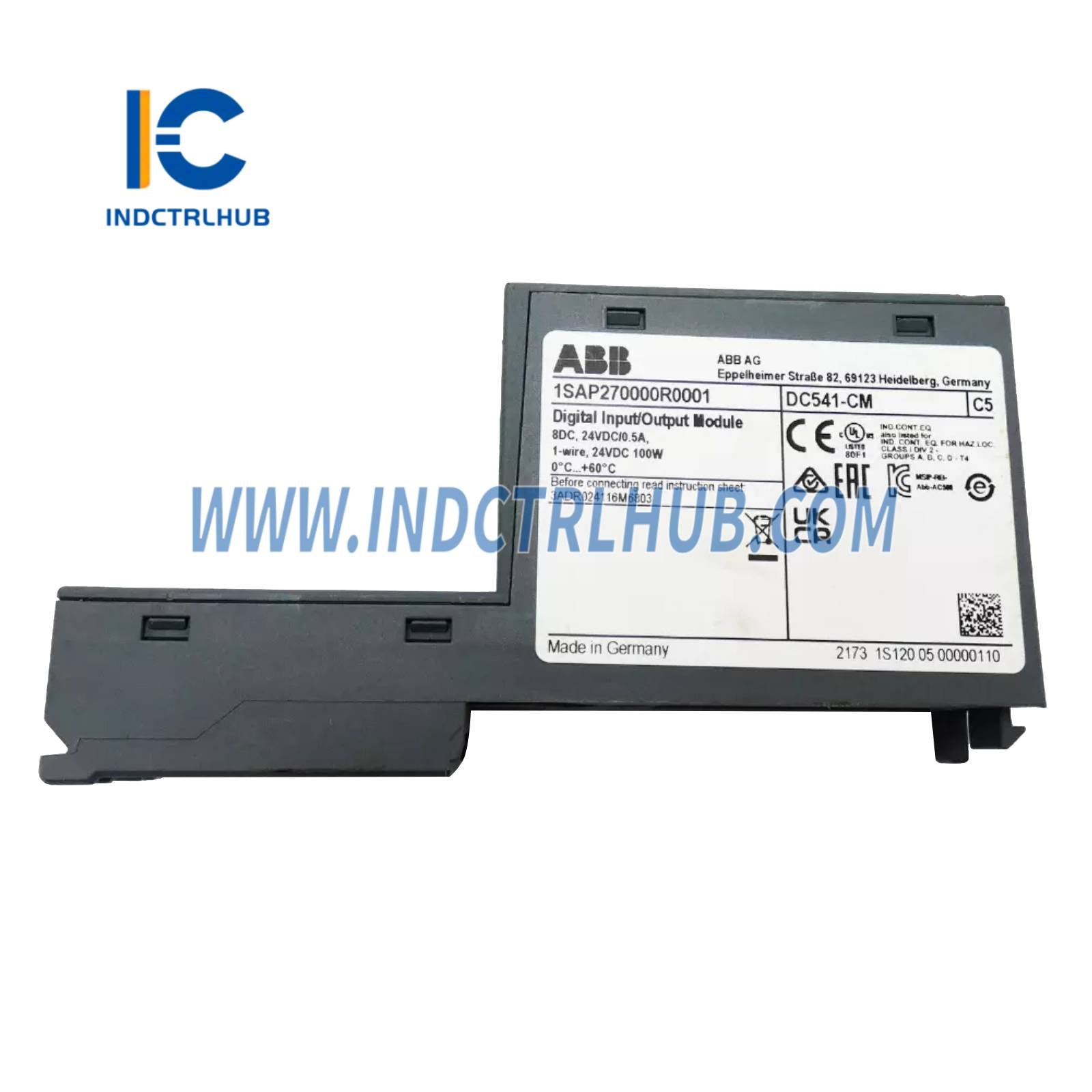

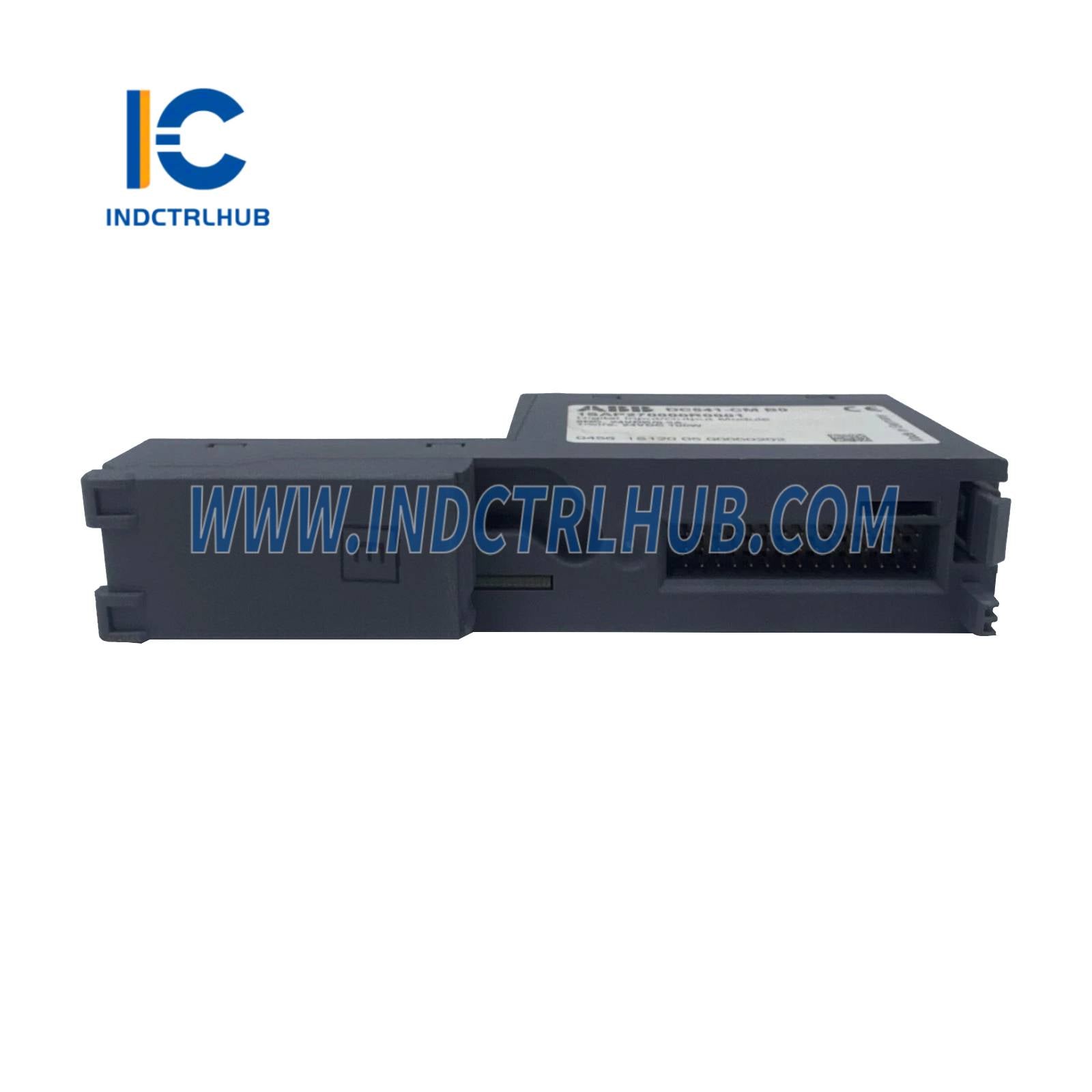

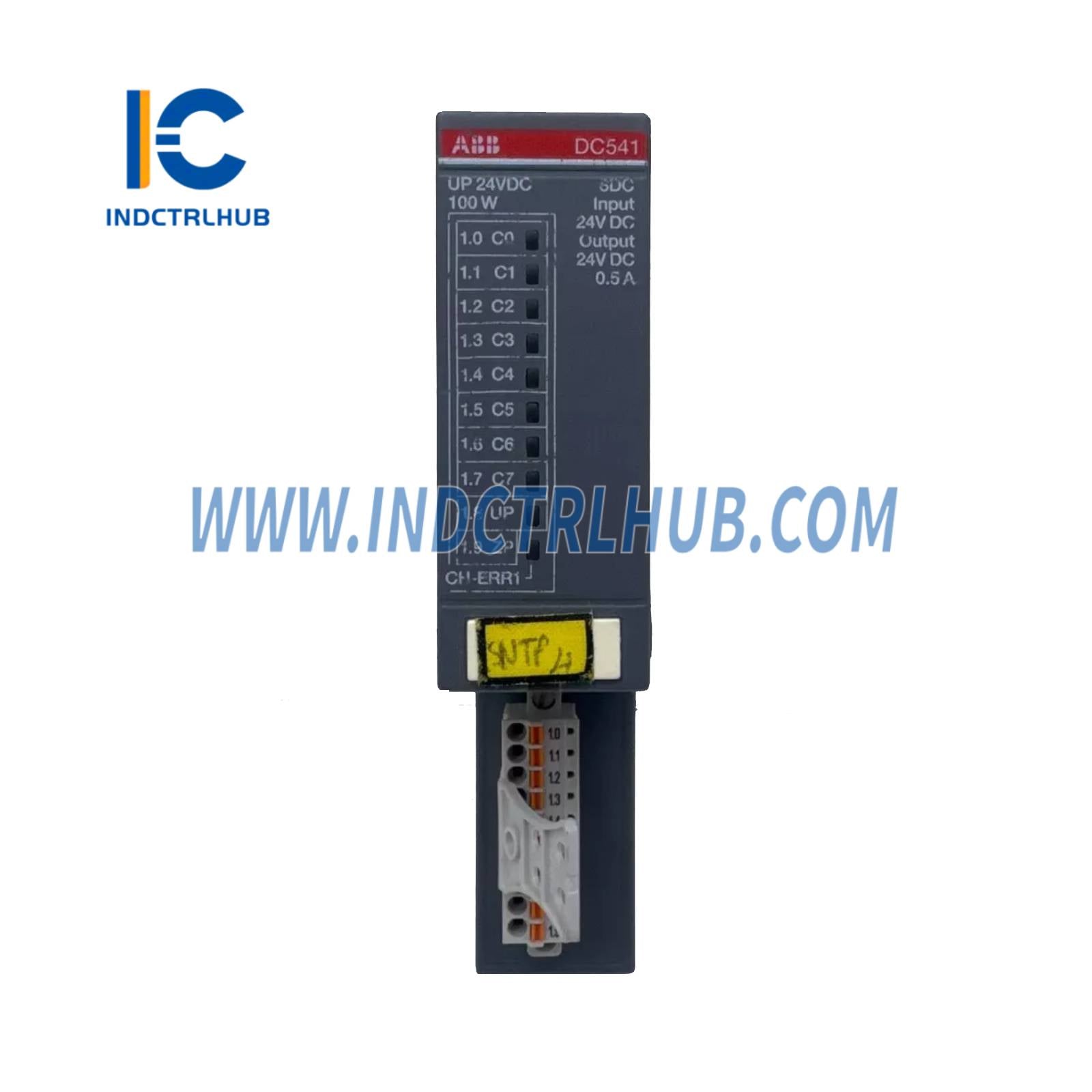

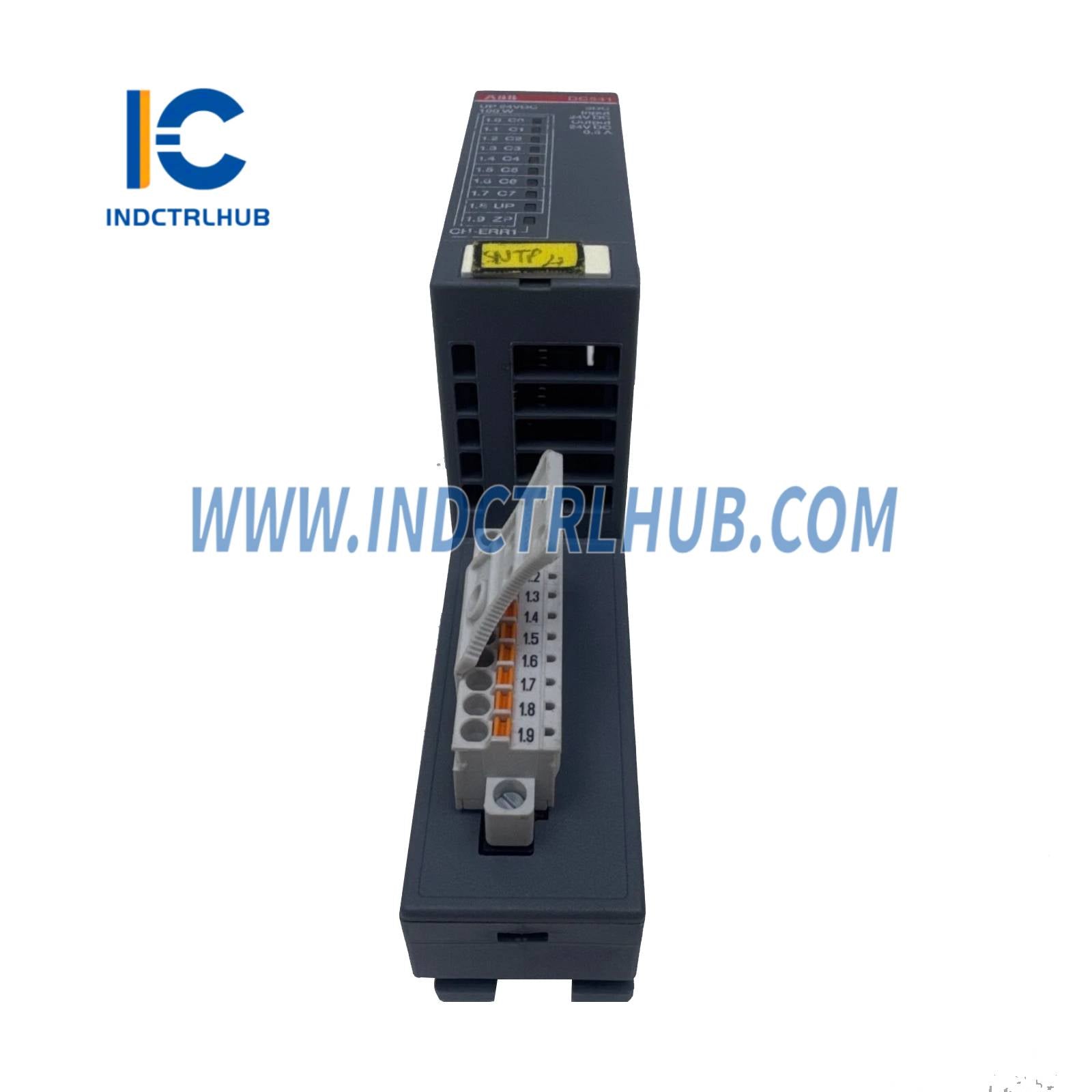

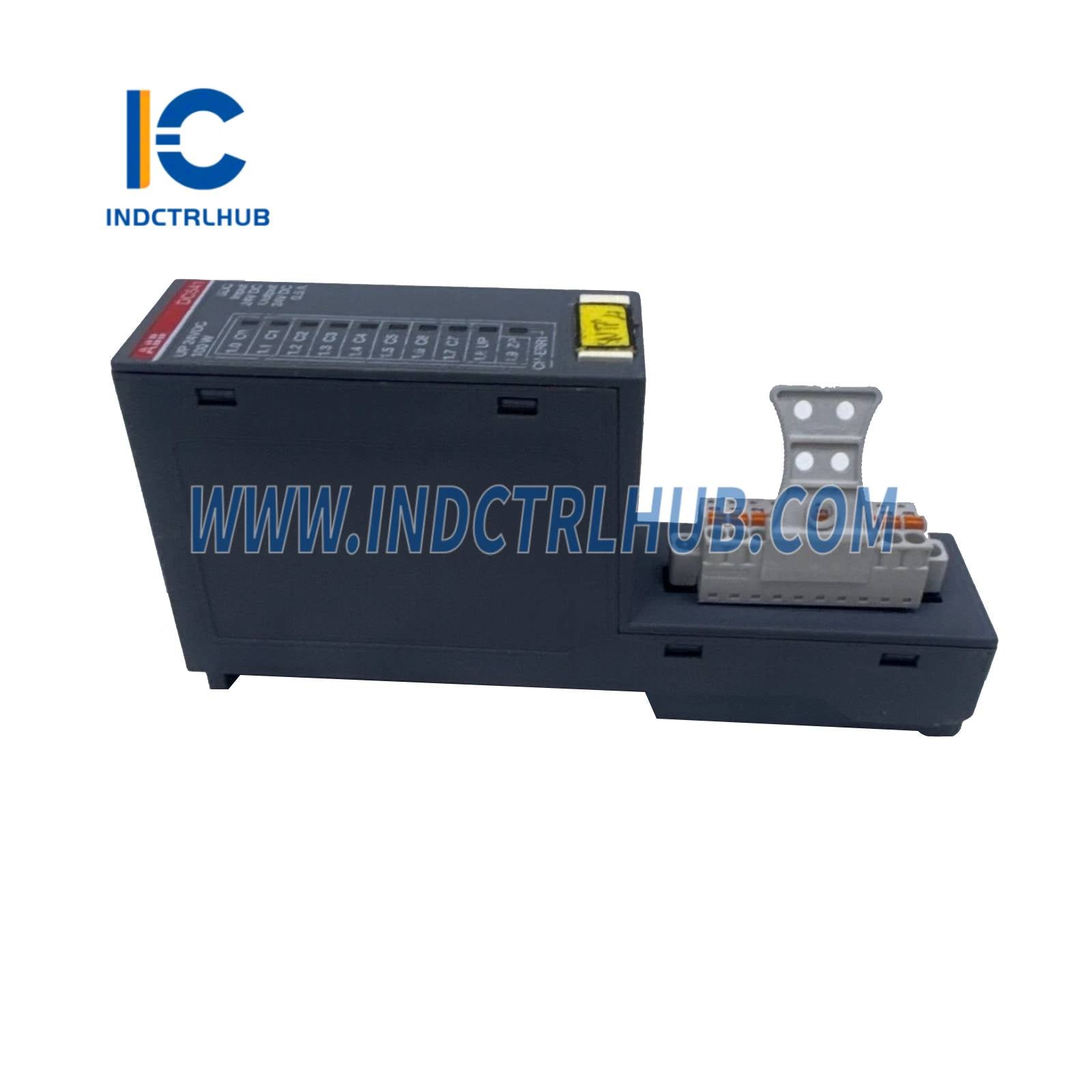

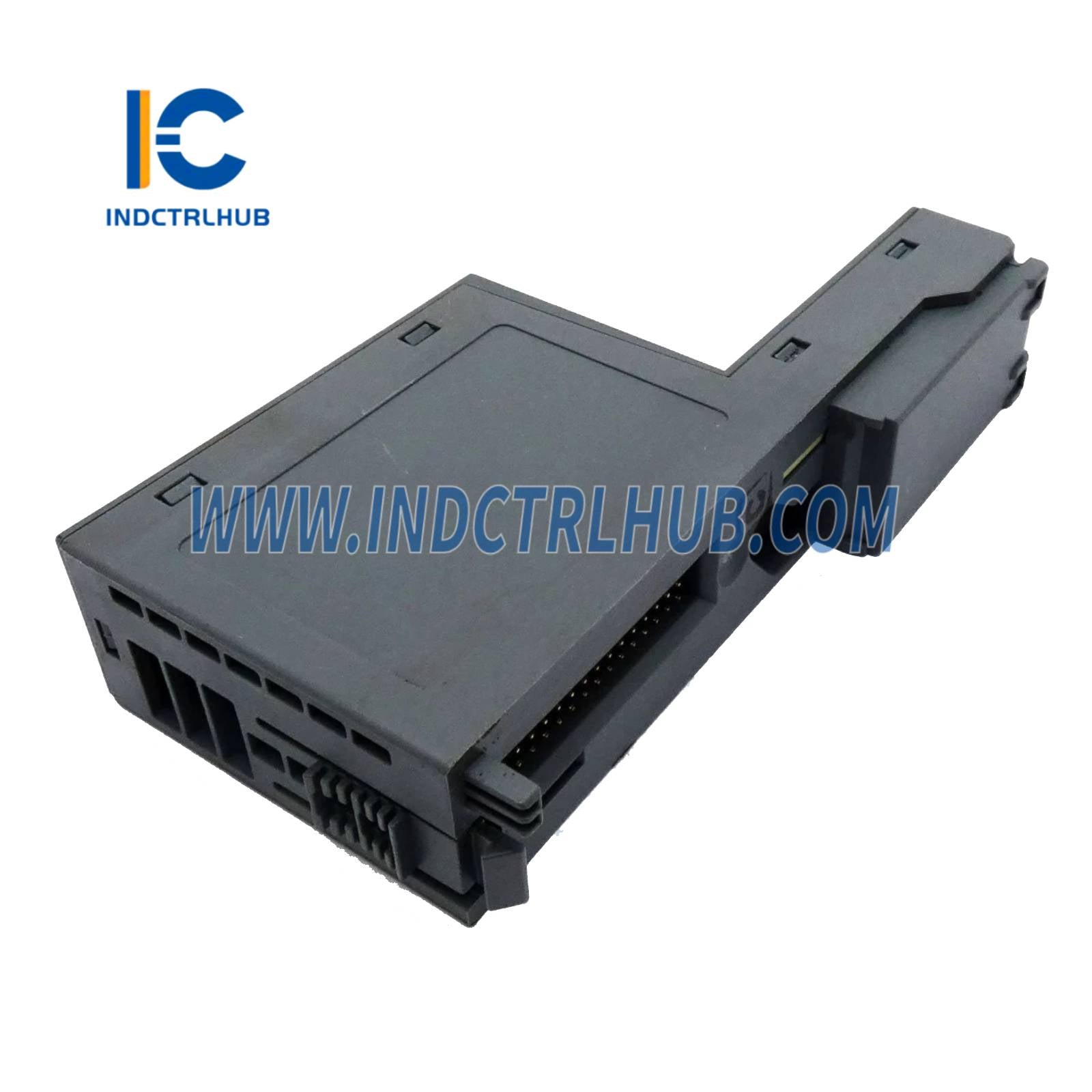

Product Description
General Information
|
Field |
Details |
|---|---|
|
Extended Product Type |
DC541-CM |
|
Product ID |
1SAP270000R0001 |
|
ABB Type Designation |
DC541-CM |
|
EAN |
4016779655576 |
|
Catalog Description |
Function module. 8 fast configurable DI/DO 24VDC 0.5A. Mounted on base. |
|
Long Description |
8 fast configurable DI/DO 24VDC 0.5A. Mounted on terminal base. 1-wire. |
|
Product Name |
Distributed Automation I/Os |
|
Product Main Type |
DC541 |
Ordering Information
|
Field |
Details |
|---|---|
|
CN8 |
85389091 |
|
Invoice Description |
Function module. 8 DI/DO 24VDC 0.5A |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
piece |
Dimensions
|
Field |
Details |
|---|---|
|
Product Net Weight |
0.085 kg |
|
Product Net Depth / Length |
62 mm |
|
Product Net Height |
135 mm |
|
Product Net Width |
28 mm |
|
Gross Weight |
0.128 kg |
|
Package Dimensions (L×W×H) |
147 × 78 × 40 mm |
|
Package Level 1 Units |
1 carton |
Technical Specifications
|
Field |
Details |
|---|---|
|
Function |
8 fast configurable DI/DO |
|
Input/Output Voltage |
24 V DC |
|
Output Current |
0.5 A |
|
Number of Configurable I/Os |
8 digital |
|
Analog I/Os |
0 |
|
Degree of Protection |
IP20 |
|
Supply Voltage |
24 V DC |
|
Mounting |
On terminal base |
Environmental Limits
|
Field |
Details |
|---|---|
|
Operating Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +70 °C |
Compliance & Certificates
|
Field |
Details |
|---|---|
|
Declaration of Conformity |
EU & UK - AC500 V2 CPUs, CM, S500 CI/IO, CMS modules |
|
RoHS Status |
Compliant with 2011/65/EU & 2015/863 |
|
RoHS Date |
2011 |
|
REACH Information |
True – Contains substances > 0.1 mass % |
|
REACH Date |
2024-12-06 |
External Classifications
|
Classification System |
Code |
|---|---|
|
eClass |
27-24-22-05 |
|
ETIM 8 / 9 / 10 |
EC001422 - PLC function/technology module |
|
UNSPSC |
32151705 |
Environmental & Waste Compliance
|
Field |
Details |
|---|---|
|
SCIP Number |
42789e9f-847f-4a43-8d87-8cf979c8fcaf |
|
WEEE B2C / B2B |
Business To Business |
|
WEEE Category |
5. Small Equipment (< 50 cm) |
