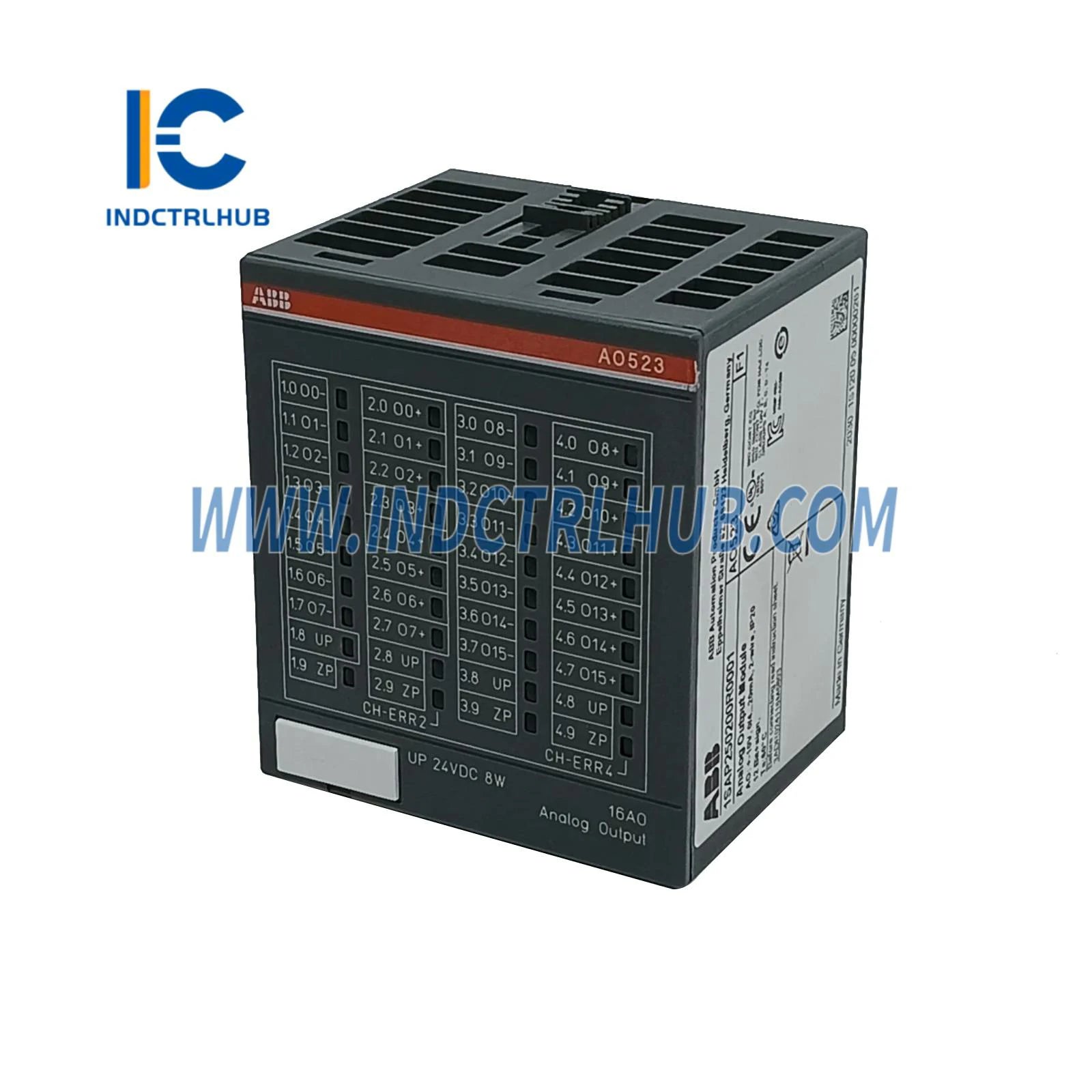

Product Description
🔹
General Information
|
Field |
Details |
|---|---|
|
Extended Product Type |
AO523 |
|
Product ID |
1SAP250200R0001 |
|
ABB Type Designation |
AO523 |
|
EAN |
4016779655965 |
|
Catalog Description |
Analog output module. 8 AO: U, I. 8 AO: U (AO523) |
|
Long Description |
AO523: S500 Analog output module. 8 AO: U, I. 8 AO: U. 1-wire |
|
Product Name |
Distributed Automation I/Os |
|
Product Main Type |
AO523 |
|
Function |
8 AO: U, I. 8 AO: U |
|
Analog Outputs |
16 |
|
Number of Analog I/Os |
0 (configurable) |
|
Output Signal |
8 AO: U, I. 8 AO: U |
|
Resolution |
13-bit Analog Output |
|
Degree of Protection |
IP20 (Housing) |
🔹
Ordering Information
|
Field |
Details |
|---|---|
|
CN8 (Tariff Code) |
85389091 |
|
Invoice Description |
Analog output module. 8 AO: U, I. 8 AO: U (AO523) |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
Piece |
🔹
Dimensions & Weight
|
Field |
Details |
|---|---|
|
Product Net Weight |
0.127 kg |
|
Product Net Depth / Length |
62 mm |
|
Product Net Height |
76 mm |
|
Product Net Width |
67.5 mm |
|
Gross Weight |
0.152 kg |
|
Package Level 1 Dimensions |
84 × 71 × 72 mm |
|
Package Level 1 Units |
1 carton |
🔹
Environmental Information
|
Field |
Details |
|---|---|
|
SCIP |
2c933e79-99fe-43cd-8040-9a110a6ecee2 (Germany) |
|
WEEE Category |
5. Small Equipment (< 50 cm) |
|
WEEE B2C / B2B |
Business To Business |
|
REACH Declaration |
REACH declaration ABB PLC products |
|
REACH Information |
True – contains substances > 0.1 mass percentage |
|
REACH Date |
2024-12-06 |
|
RoHS Status |
Compliant with 2011/65/EU & 2015/863 (as of July 22, 2019) |
|
RoHS Date |
2007 |
🔹
Classifications
|
Field |
Code |
|---|---|
|
eClass |
27-24-22-02 |
|
ETIM 8/9/10 |
EC001420 – PLC analogue I/O-module |
|
UNSPSC |
32151705 |
