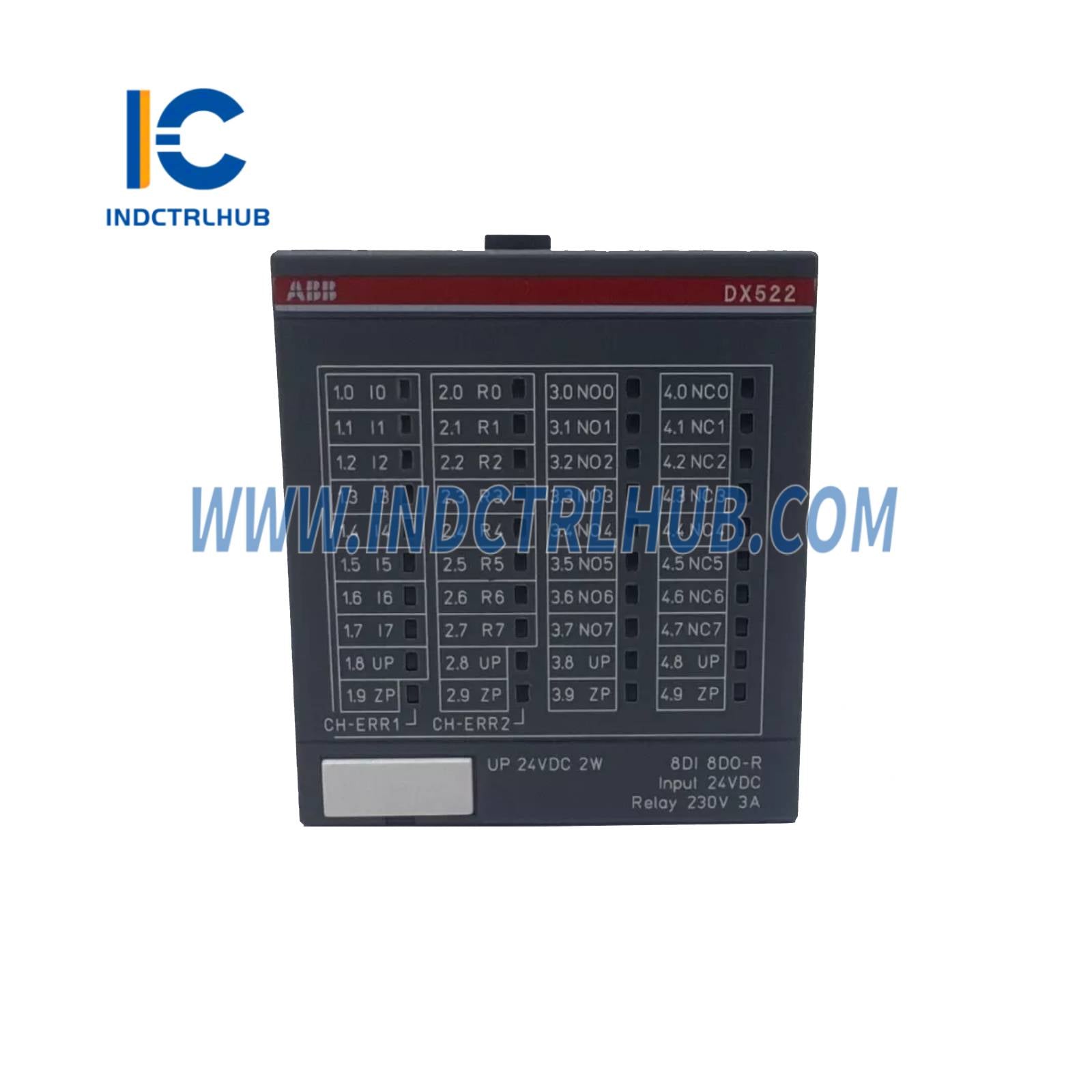

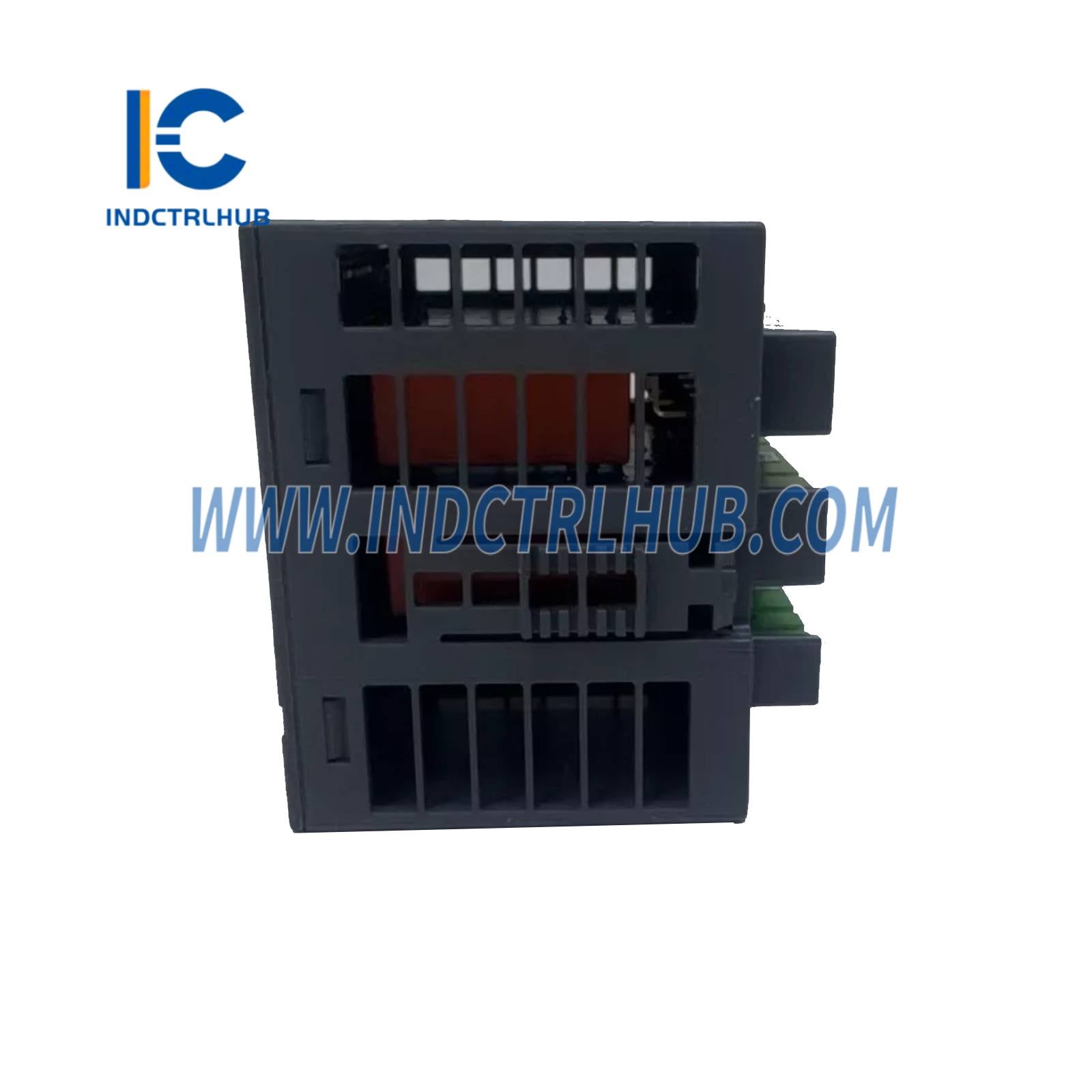

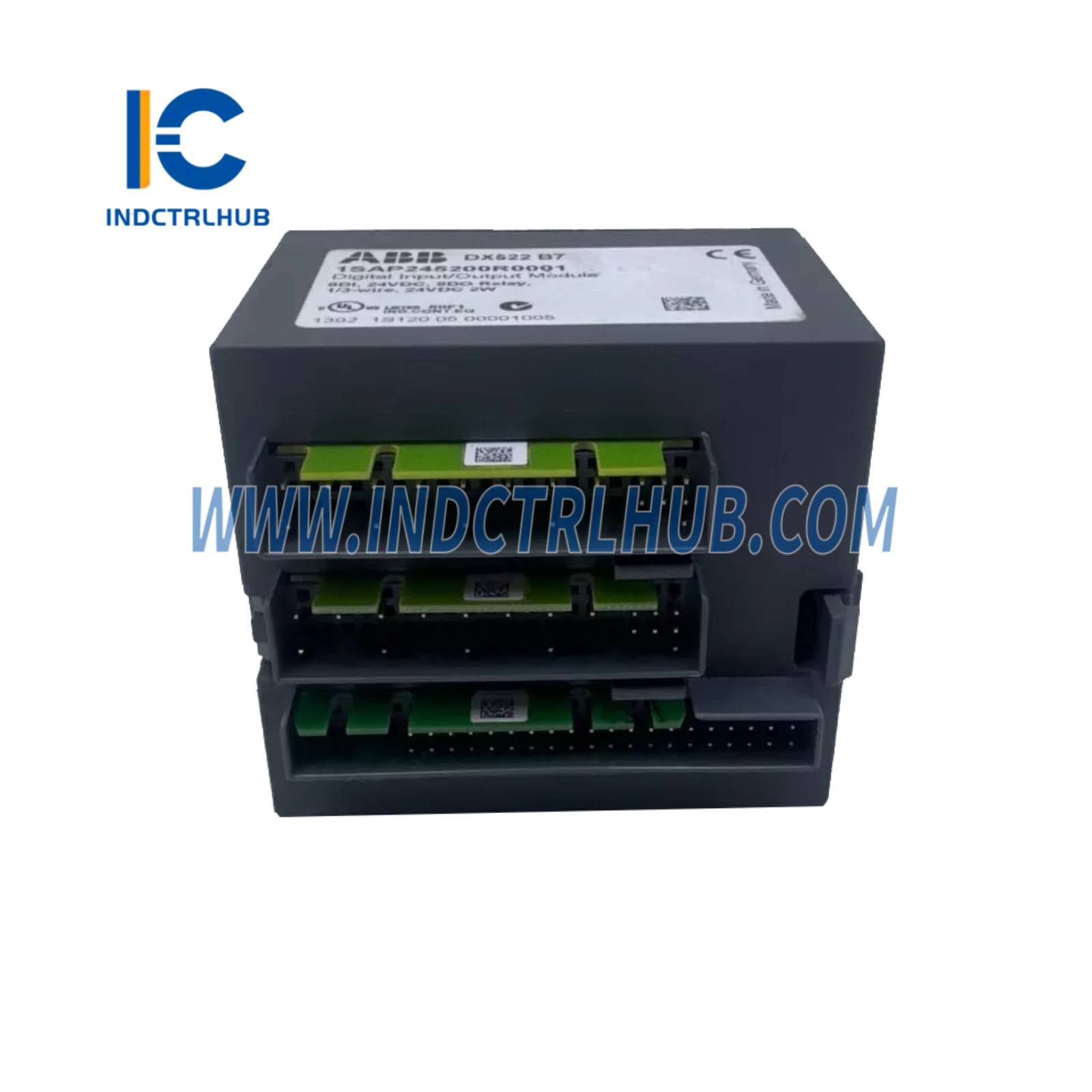

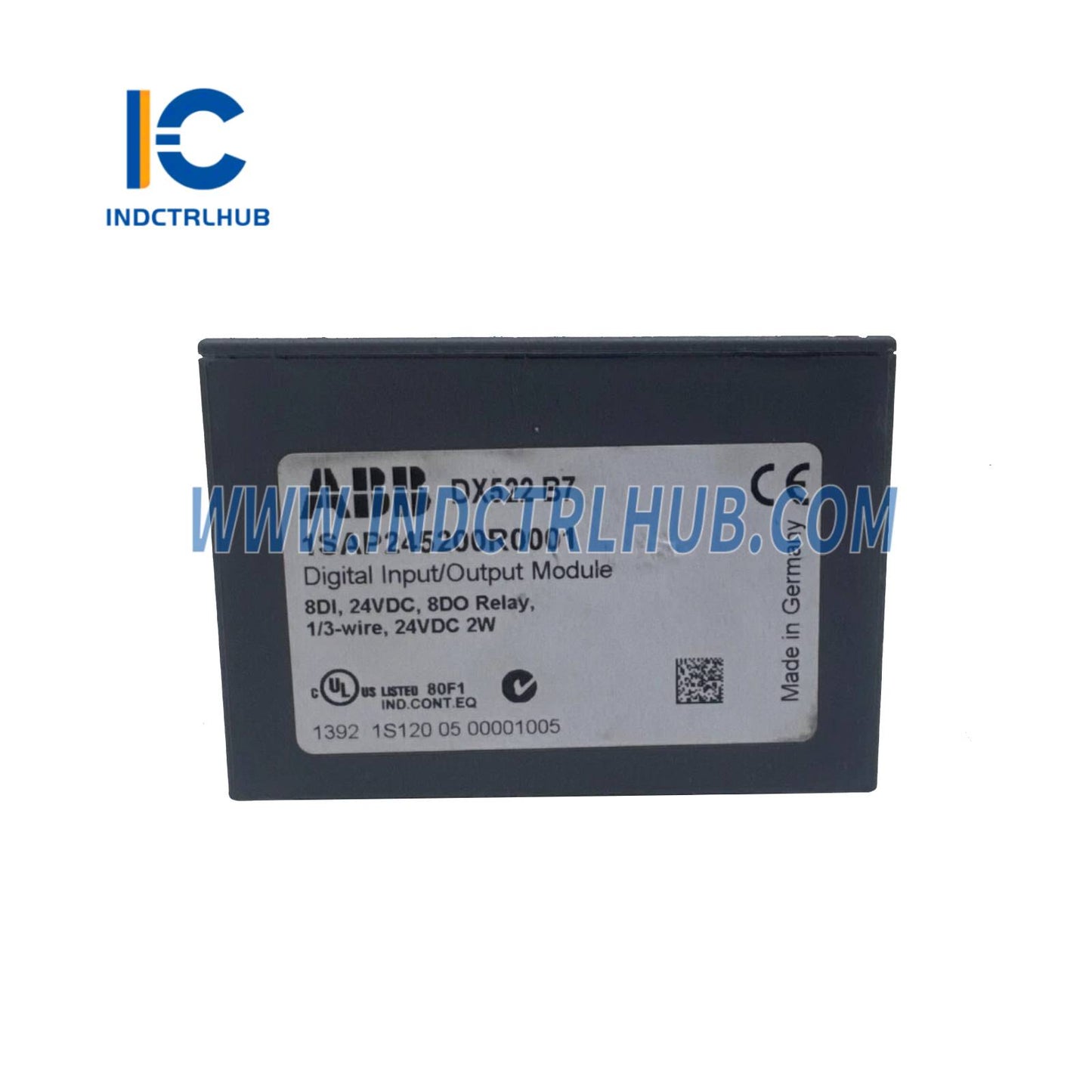

Product Description
General Information
|
Field |
Detail |
|---|---|
|
Extended Product Type |
DX522 |
|
Product ID |
1SAP245200R0001 |
|
ABB Type Designation |
DX522 |
|
EAN |
4016779649186 |
|
Catalog Description |
Digital I/O module: 8 DI (24VDC), 8 DO relay (230VAC 3A) |
|
Long Description |
S500 Digital I/O module. 8 DI: 24VDC. 8 DO relay: 230VAC 3A. 2–3 wire |
|
Product Name |
Distributed Automation I/Os |
|
Product Main Type |
DX522 |
|
Function |
8 Digital Inputs (24 VDC), 8 Relay Outputs (230 VAC, 3 A) |
Technical Specifications
|
Specification |
Value |
|---|---|
|
Digital Inputs |
8 |
|
Digital Outputs |
8 (Relay type) |
|
Configurable I/Os |
0 |
|
Input Voltage Type |
DC |
|
Input Current |
5 mA |
|
Input Voltage Range |
0 … 30 V |
|
Delay Time (τ) |
0.1 … 32 ms |
|
Output Voltage Type |
AC |
|
Output Current |
3 A |
|
Output Voltage Range |
195.5 … 276 V |
|
Supply Voltage |
20.4 … 28.8 V DC |
|
Degree of Protection |
IP20 |
Ordering Information
|
Field |
Value |
|---|---|
|
CN8 / HS Code |
85389091 |
|
Invoice Description |
Digital I/O module (DX522) |
|
Minimum Order Qty |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit |
Piece |
|
Made to Order |
No |
Dimensions & Weight
|
Measurement |
Value |
|---|---|
|
Net Weight |
0.177 kg |
|
Net Depth / Length |
62 mm |
|
Net Height |
76 mm |
|
Net Width |
67.5 mm |
|
Gross Weight |
0.201 kg |
|
Package Dimensions (L×W×H) |
84 × 71 × 72 mm |
Environmental Compliance
|
Compliance Item |
Value |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU and Amendment 2015/863 |
|
RoHS Date |
2007 |
|
REACH Status |
Contains substances > 0.1% (as of 2024-12-06) |
|
SCIP ID |
54022755-35db-4bd9-801a-5eba2aedd4e9 (Germany) |
|
WEEE Category |
5. Small Equipment |
|
WEEE B2C / B2B |
Business To Business |
Standards & Classifications
|
Classification |
Value |
|---|---|
|
eClass |
27-24-22-04 |
|
ETIM 8 / 9 / 10 |
EC001419 - PLC digital I/O-module |
|
UNSPSC |
32151705 |
