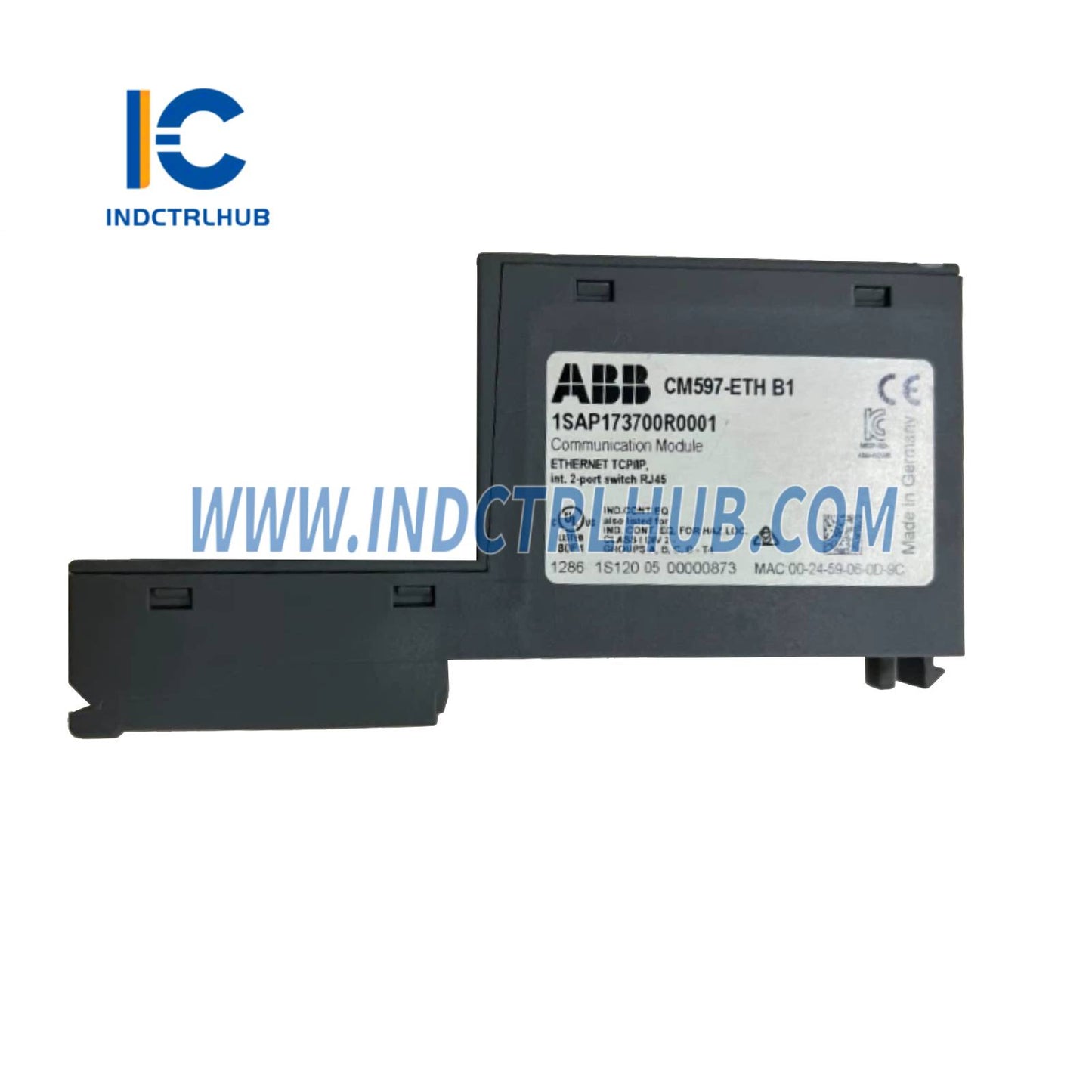

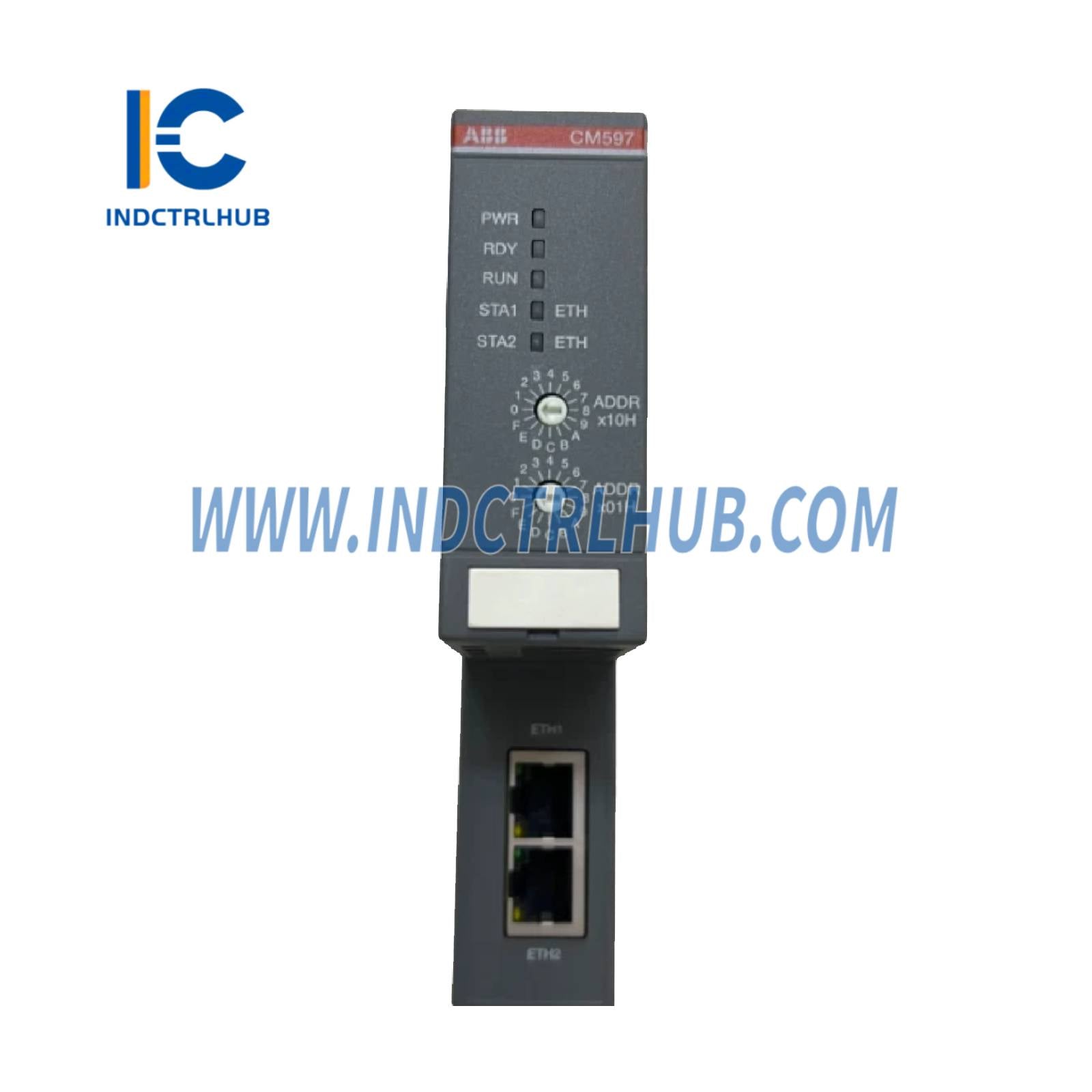

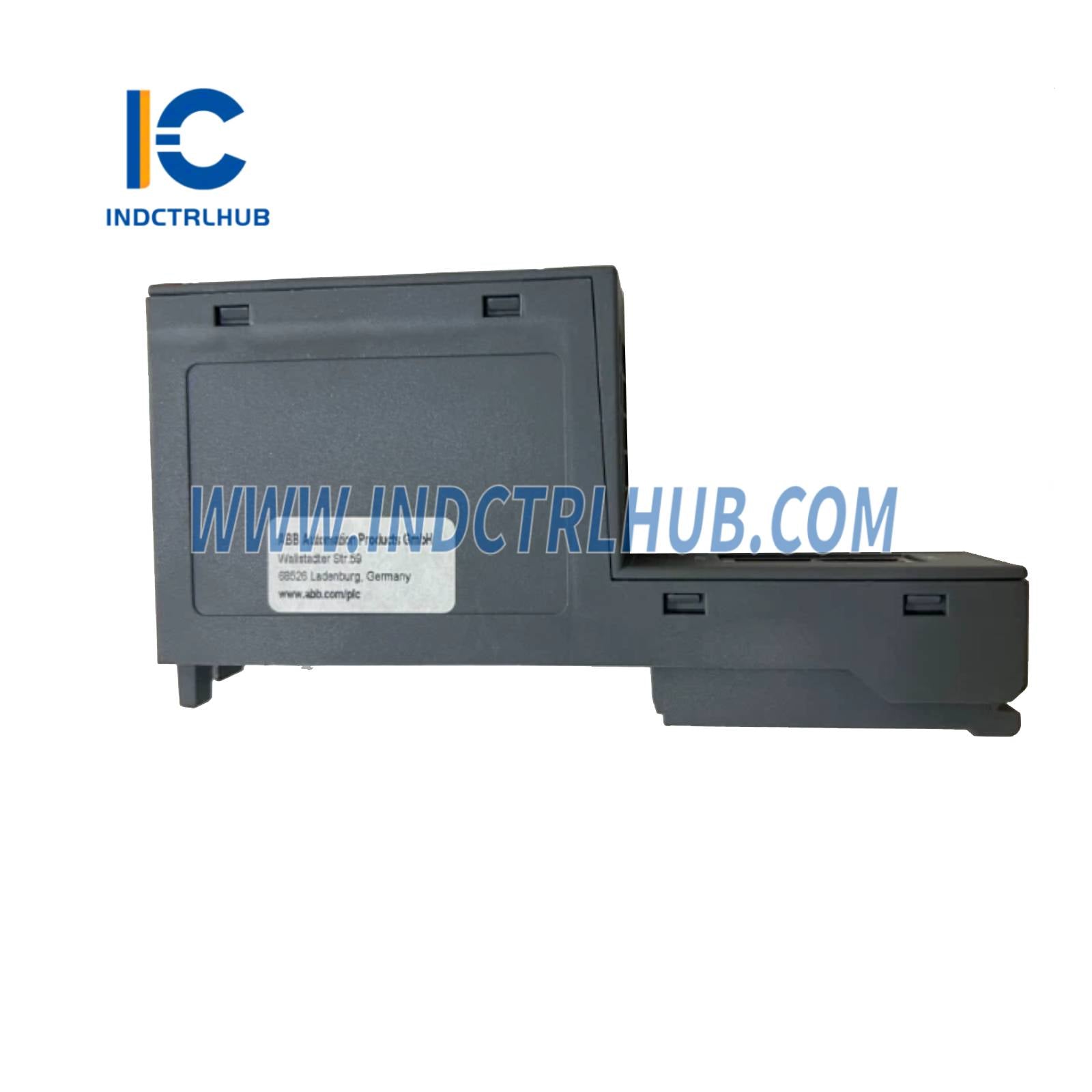

Product Description
🧾 General Information
|
Attribute |
Details |
|---|---|
|
Extended Product Type |
CM597-ETH |
|
Product ID |
1SAP173700R0001 |
|
ABB Type Designation |
CM597-ETH |
|
EAN |
4013614493560 |
|
Catalog Description |
Communication module. Protocols: TCP/P, UDP, Modbus TCP (CM597-ETH) |
|
Long Description |
CM597-ETH: AC500 Communication module. Protocols: TCP/P, UDP, Modbus TCP. 2 Ethernet interfaces. Switch |
|
Product Main Type |
CM597 |
|
Product Name |
Distributed Automation PLCs |
|
Function |
Protocols: TCP/P, UDP, Modbus TCP |
|
Communication Interface |
Ethernet (Industrial), Serial labelled but no serial ports used |
🔧 Technical Specifications
|
Attribute |
Value |
|---|---|
|
Number of Interfaces |
Industrial Ethernet: 2 |
|
Other Interfaces |
All others: 0 |
|
Data Transmission Rate |
100,000 kbit/s (100 Mbit/s) |
|
Degree of Protection |
IP20 |
📐 Dimensions & Weight
|
Attribute |
Value |
|---|---|
|
Product Net Depth / Length |
62 mm |
|
Product Net Height |
135 mm |
|
Product Net Width |
28 mm |
|
Product Net Weight |
0.101 kg |
|
Gross Weight |
0.134 kg |
|
Package Dimensions (L × W × H) |
147 × 78 × 40 mm |
|
Package Units |
1 carton |
♻️ Environmental & Compliance
|
Attribute |
Details |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU and Amendment 2015/863 |
|
RoHS Date |
2014 |
|
REACH Status |
Contains substances > 0.1 mass % (Declaration available) |
|
REACH Date |
2024-12-06 |
|
SCIP |
30ee6bb1-24de-4866-be37-4a857c1c51cf (Germany) |
|
WEEE Category |
Category 5 – Small Equipment (No External Dimension > 50 cm) |
|
WEEE B2C/B2B |
Business to Business |
🛒 Ordering Information
|
Attribute |
Value |
|---|---|
|
Invoice Description |
Communication module. Protocols: TCP/P, UDP, Modbus TCP (CM597-ETH) |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
piece |
|
Customs Tariff Number (CN8) |
85389091 |
🧩 Classification Codes
|
Attribute |
Value |
|---|---|
|
eClass |
27-24-22-08 |
|
ETIM 8/9/10 |
EC001423 - PLC communication module |
|
UNSPSC |
32151705 |
📂 Product Hierarchy
Path:
-
Products › PLC Automation › Programmable Logic Controllers PLCs › AC500 › Communication Modules
