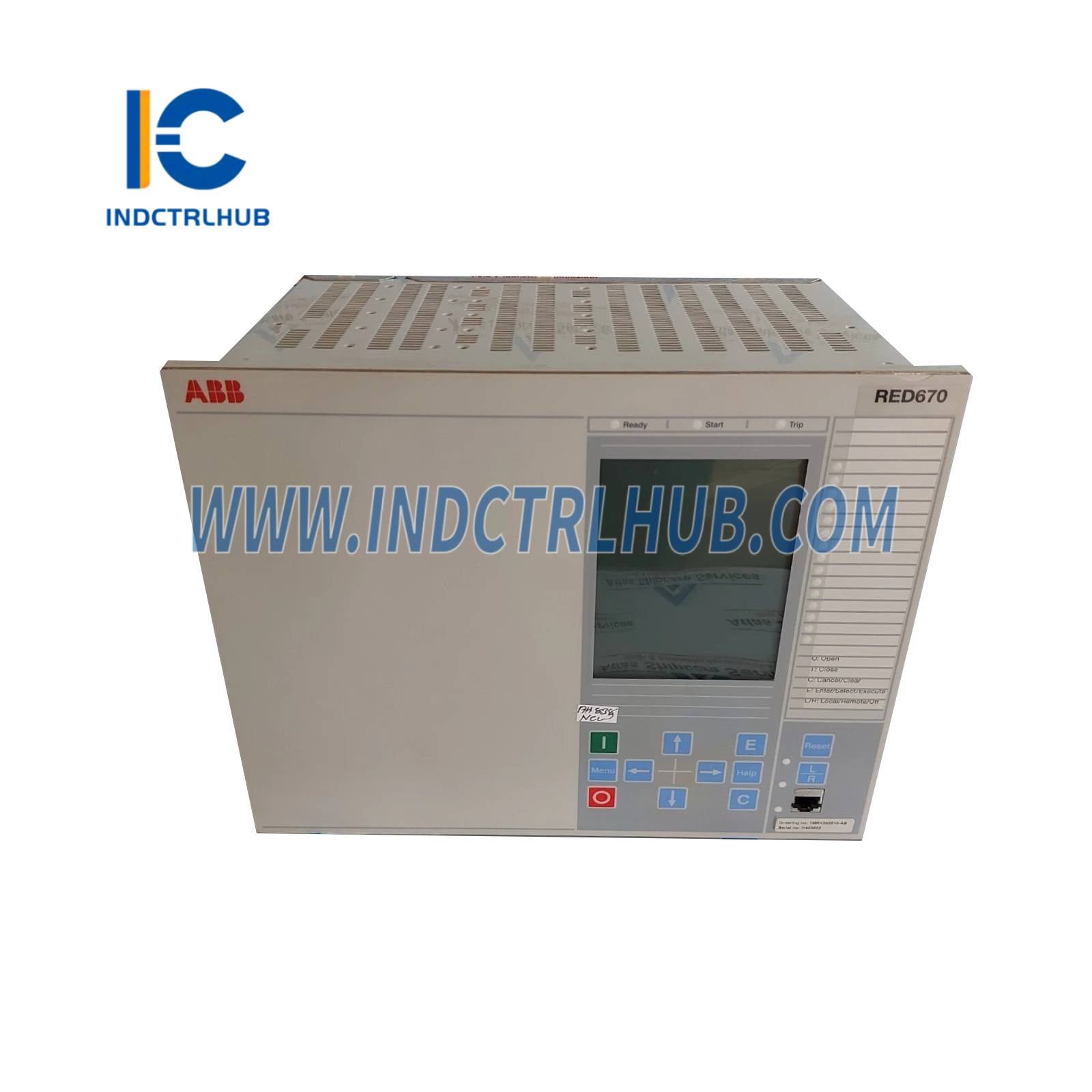

1MRK002810-AB | ABB RED670 Line Distance Protection and Control Relay

1MRK002810-AB | ABB RED670 Line Distance Protection and Control Relay

  • Manufacturer: ABB

  • Product No.: 1MRK002810-AB

  • Condition:1000 in stock

  • Product Type: Line Distance Protection and Control Relay

  • Product Origin: Switzerland

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer ABB
Model/Part Number RED670 1MRK002810-AB
Description Line Distance Protection and Control Relay

Product Overview



Parameter Details
Part Number RED670 1MRK002810-AB
Product Name RED670 Line Distance Protection Relay
Application Comprehensive protection, control, measurement, and supervision for overhead lines and cable feeders in transmission and sub-transmission networks
Compatibility Integrates with ABB Relion series and IEC 61850 substation automation systems
Function Provides distance protection, directional/non-directional overcurrent, and advanced line management features with high-speed fault clearing

Functional Specifications



Parameter Details
Protection Functions Distance protection (21), directional overcurrent (67), non-directional overcurrent (50/51), earth fault (50N/51N/67N), pole slip (78), power swing detection (68), high-impedance fault detection
Measurement Capabilities Voltage, current, power, frequency, power factor; supports three-phase and residual measurements with disturbance recording
Binary Inputs/Outputs 18 binary inputs, 11 output contacts (configurable)
Communication Interfaces 2x Ethernet ports (IEC 61850, DNP3, Modbus TCP), 2x serial ports (SPA, IEC 60870-5-103)
Power Supply 24-60 V DC or 48-250 V DC / 100-240 V AC options
Operating Temperature Range -25°C to +55°C
Dimensions 177 mm x 177 mm x 144 mm (4U 19" rack mount)
Mounting 19" rack or panel mount
Protection Rating IP54 front panel
Standards Compliance IEC 60255, ANSI/IEEE C37.2, CE, UL, CSA

View full details

Product Description

Product Details



Parameter Details
Manufacturer ABB
Model/Part Number RED670 1MRK002810-AB
Description Line Distance Protection and Control Relay

Product Overview



Parameter Details
Part Number RED670 1MRK002810-AB
Product Name RED670 Line Distance Protection Relay
Application Comprehensive protection, control, measurement, and supervision for overhead lines and cable feeders in transmission and sub-transmission networks
Compatibility Integrates with ABB Relion series and IEC 61850 substation automation systems
Function Provides distance protection, directional/non-directional overcurrent, and advanced line management features with high-speed fault clearing

Functional Specifications



Parameter Details
Protection Functions Distance protection (21), directional overcurrent (67), non-directional overcurrent (50/51), earth fault (50N/51N/67N), pole slip (78), power swing detection (68), high-impedance fault detection
Measurement Capabilities Voltage, current, power, frequency, power factor; supports three-phase and residual measurements with disturbance recording
Binary Inputs/Outputs 18 binary inputs, 11 output contacts (configurable)
Communication Interfaces 2x Ethernet ports (IEC 61850, DNP3, Modbus TCP), 2x serial ports (SPA, IEC 60870-5-103)
Power Supply 24-60 V DC or 48-250 V DC / 100-240 V AC options
Operating Temperature Range -25°C to +55°C
Dimensions 177 mm x 177 mm x 144 mm (4U 19" rack mount)
Mounting 19" rack or panel mount
Protection Rating IP54 front panel
Standards Compliance IEC 60255, ANSI/IEEE C37.2, CE, UL, CSA
