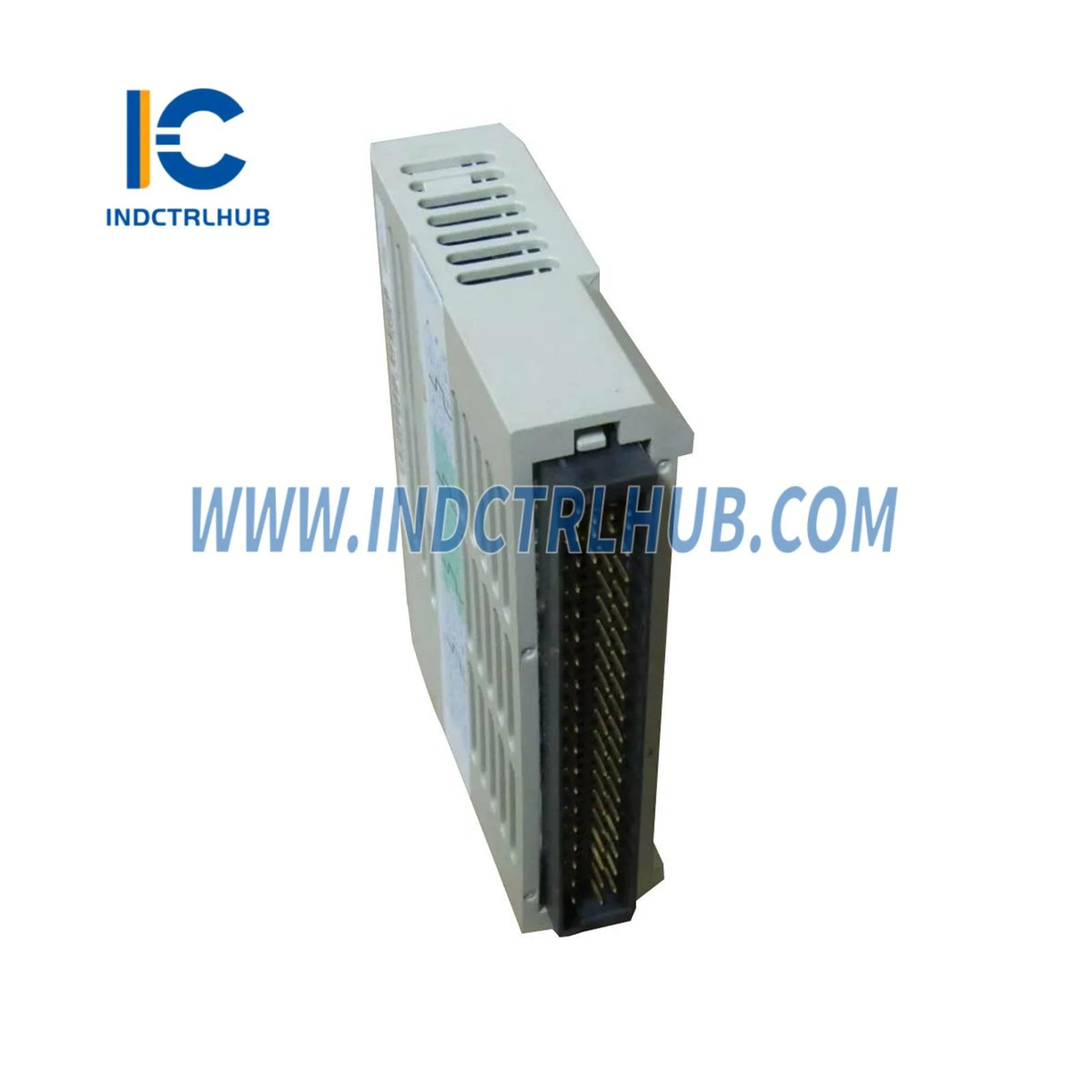

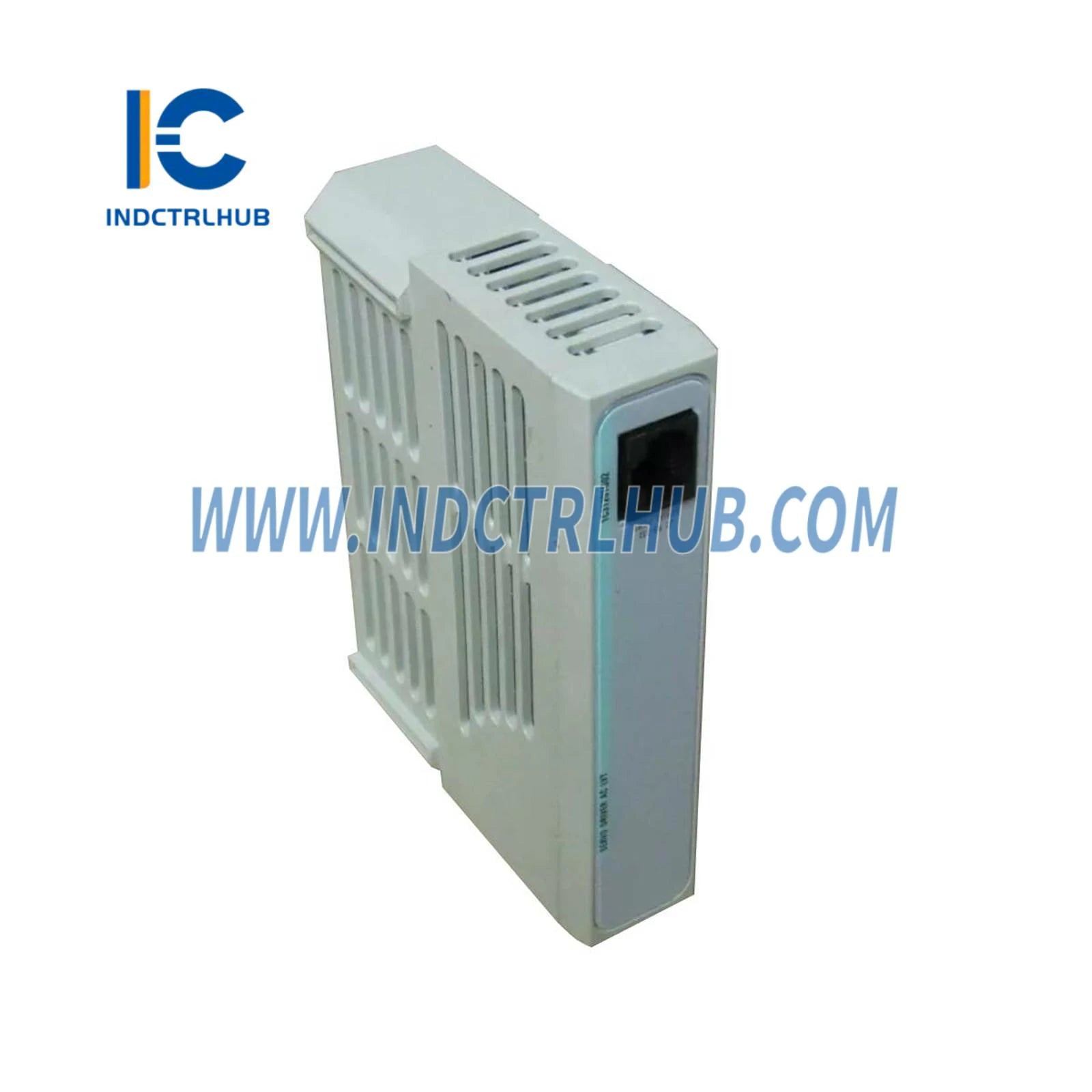

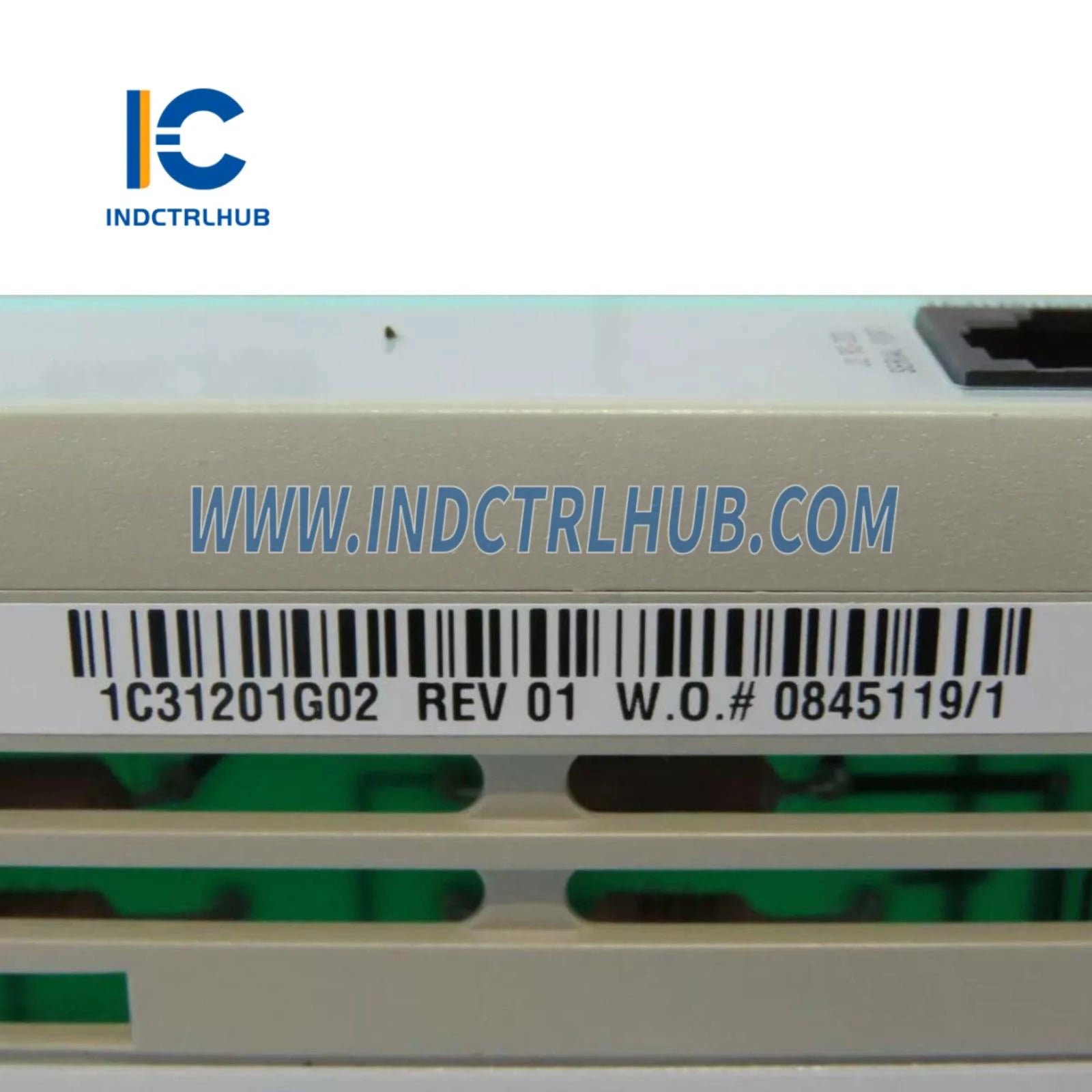

1C31201G02 Emerson Ovation Remote I/O Node Personality Module

🌐 Distributed I/O Architecture for Scalable Process Control

The 1C31201G02 Remote I/O Node Personality Module serves as the intelligent communication gateway within Emerson's Ovation distributed control system architecture. This critical component enables seamless integration of remote I/O racks located up to 12,000 feet from the main controller, dramatically reducing wiring costs while expanding system capacity. Essential for large-scale industrial facilities requiring distributed control across multiple process areas, buildings, or production zones.

🔌 Core Technical Capabilities

• Network Protocol: Proprietary high-speed deterministic fieldbus
• Communication Speed: 5 Mbps with guaranteed latency <5ms
• I/O Capacity: Supports up to 128 I/O modules per remote node
• Distance Range: 12,000 feet maximum cable run from controller
• Redundancy: Dual-channel communication for fault-tolerant operation
• Power Requirements: 24VDC, 15W typical consumption
• Diagnostic Capability: Real-time network health monitoring and fault isolation
• Hot-Swap Support: Replace without disrupting active I/O communications
• Environmental Spec: -20°C to +65°C, 5-95% RH non-condensing
• Certifications: UL508, CE, FM Class I Div 2, ATEX Zone 2

🏗️ Strategic Deployment Scenarios

Large-Scale Power Plants: Distribute I/O nodes across boiler areas, turbine halls, and auxiliary systems in coal, combined-cycle, or nuclear facilities spanning hundreds of acres. Eliminates costly home-run cabling while maintaining millisecond-level control response for critical safety systems.

Chemical Complex Expansion: Add new production units or process trains without controller cabinet modifications. The personality module enables plug-and-play remote I/O deployment, reducing commissioning time by 40-50% compared to centralized architectures.

Mining & Metals Operations: Position I/O nodes near crushers, conveyors, and material handling equipment in harsh environments while keeping sensitive controllers in climate-controlled rooms. Fiber optic communication options provide immunity to electrical noise in high-voltage switchyards.

💡 Advanced System Architecture Benefits

Scalability Without Limits: Start with a single controller and expand to hundreds of remote I/O nodes as your facility grows. The modular architecture protects initial investments while supporting organic capacity expansion over 20+ year plant lifecycles.

Fault Isolation Intelligence: Built-in diagnostics pinpoint communication failures to specific cable segments or modules, reducing mean-time-to-repair by 60%. Network topology mapping displays real-time status of every node, enabling proactive maintenance before failures impact production.

Cybersecurity Layering: Proprietary protocol design inherently resists network intrusion attempts. When combined with Ovation's defense-in-depth security architecture, remote I/O communications meet NERC-CIP and IEC 62443 requirements for critical infrastructure protection.

🔧 Installation & Configuration Advantages

Tool-free mounting on standard DIN rails accelerates installation. Configuration downloads automatically from the Ovation controller during initial power-up, eliminating manual parameter entry. The module's self-discovery feature automatically maps I/O addresses, reducing commissioning errors and startup delays.

📦 Complete Package Contents

• 1C31201G02 Remote I/O Node Personality Module
• DIN rail mounting clips and retention hardware
• Communication cable termination kit
• Quick-start installation guide with wiring diagrams
• Factory calibration and test certificate

🛡️ Reliability & Lifecycle Support

Designed for 15+ year continuous operation in industrial environments. Conformal coating protects circuitry from moisture, dust, and chemical exposure. Emerson's global service network provides 24/7 technical support, guaranteed spare parts availability, and on-site commissioning assistance for mission-critical installations.
