Bently Nevada 3500/42M-09-00 176449-02+140471-01 Proximitor Seismic Monitor

Mahsulot tafsilotlari

• Ishlab chiqaruvchi: Bently Nevada
• Seriya: 3500/42M
• Model/Qism raqami: 3500/42M-09-00 176449-02+140471-01
• Model turi: Proximitor Seismic Monitor

Tavsif

3500/42M Proksimitor Seismic Monitor:

• Mashinalarni himoya qiladi, monitoring qilingan parametrlarni sozlangan signal nuqtalari bilan doimiy taqqoslab, signal berishni ishga tushiradi.
• Muhim mashina ma'lumotlarini operatsiya va texnik xizmat ko'rsatish xodimlariga etkazadi.

Texnik xususiyatlar

Kirishlar

• Signal kirishlari: 1 dan 4 gacha proksimiti, tezlik yoki tezlanish transduser signallarini qabul qiladi.
• Quvvat iste'moli: 7.7 vatt (odatda).
• Kirish qarshiligi:
  • Standart I/O: 10 kΩ (Proksimitor va tezlanish kirishlari uchun).
• Sezuvchanlik:
  • Radial tebranish: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil).
  • Itarish: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil).
  • Eksentriklik: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil).
  • Differensial kengayish: 0.394 mV/μm (10 mV/mil) yoki 0.787 mV/μm (20 mV/mil).
  • REBAM: 40 mV/μm (1000 mV/mil) yoki 80 mV/μm (2000 mV/mil).
  • Tezlanish & Tezlanish2: 10 mV/ (m/s²) (100 mV/g).
  • Tezlik & Tezlik2: 20 mV/ (mm/s) pk (500 mV/ (in/s) pk) yoki 5.8 mV/ (mm/s) pk (145 mV/ (in/s) pk) yoki 4 mV/ (mm/s) pk (100 mV/ (in/s) pk).
  • Shaft Absolyut Radial Vibratsiya: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil).
  • Shaft Absolyut To'g'ridan-to'g'ri: 3.94 mV/μm (100 mV/mil) yoki 7.87 mV/μm (200 mV/mil).
  • Shaft Absolyut Tezlik: 20 mV/ (mm/s) pk (500 mV/ (in/s) pk) yoki 5.8 mV/ (mm/s) pk (145 mV/ (in/s) pk) yoki 4 mV/ (mm/s) pk (100 mV/ (in/s) pk).

Atrof-muhit chegaralari

• Ishlash harorati:
  • Ichki/Tashqi Tugatish I/O Moduli bilan ishlatilganda: -30°C dan +65°C gacha (-22°F dan +150°F gacha).
  • Ichki To'siq I/O Moduli (Ichki Tugatish) bilan ishlatilganda: 0°C dan +65°C gacha (32°F dan +150°F gacha).
• Saqlash Harorati: -40°C dan +85°C gacha (-40°F dan +185°F gacha).
• Namlik: 95%, kondensatsiyasiz.

Jismoniy xususiyatlar

• Monitor Moduli (Asosiy Platalar):
  • O'lchamlari: 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in).
  • Og'irligi: 0.91 kg (2.0 lb).
• I/O Modullari (to'siqsiz):
  • O'lchamlari: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in).
  • Og'irligi: 0.20 kg (0.44 lb).
• I/O Modullari (to'siq):
  • O'lchamlari: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in).
  • Og'irligi: 0.46 kg (1.01 lb).

Buyurtma Ma'lumotlari

• 3500/42 - AA - BB
  • A: I/O Modul Turi (17-betdagi I/O Modul Turlariga qarang).
  • B: Xavfli Hudud Tasdiqlash Varianti:
    • 00: Yo'q.
    • 01: cNRTLus (1-sinf, 2-bo'lim).
    • 02: ATEX / IECEx / CSA (1-sinf, 2-zona).

Zaxira qismlar

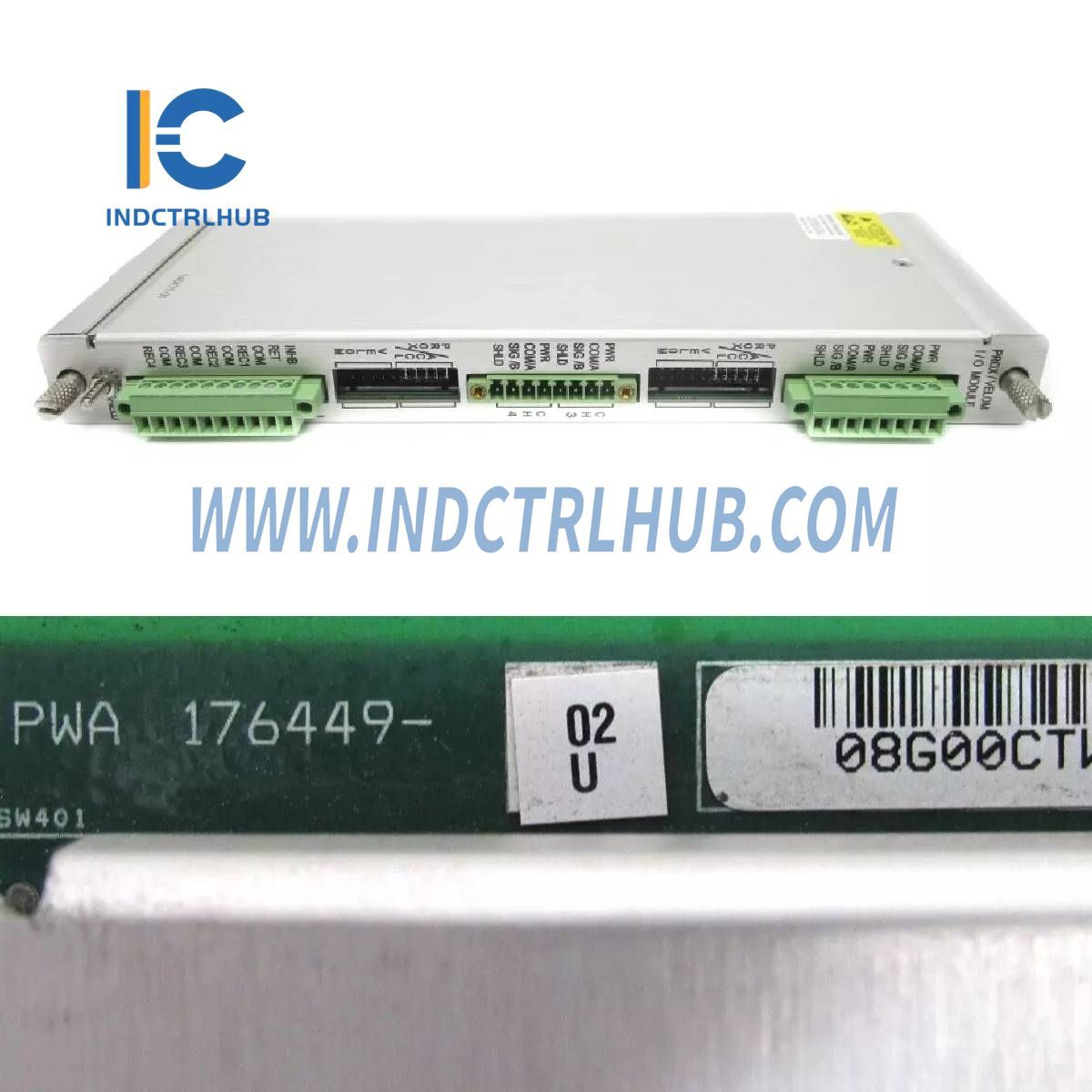

• 176449-02: 3500/42M Proximitor Seismic Monitor.

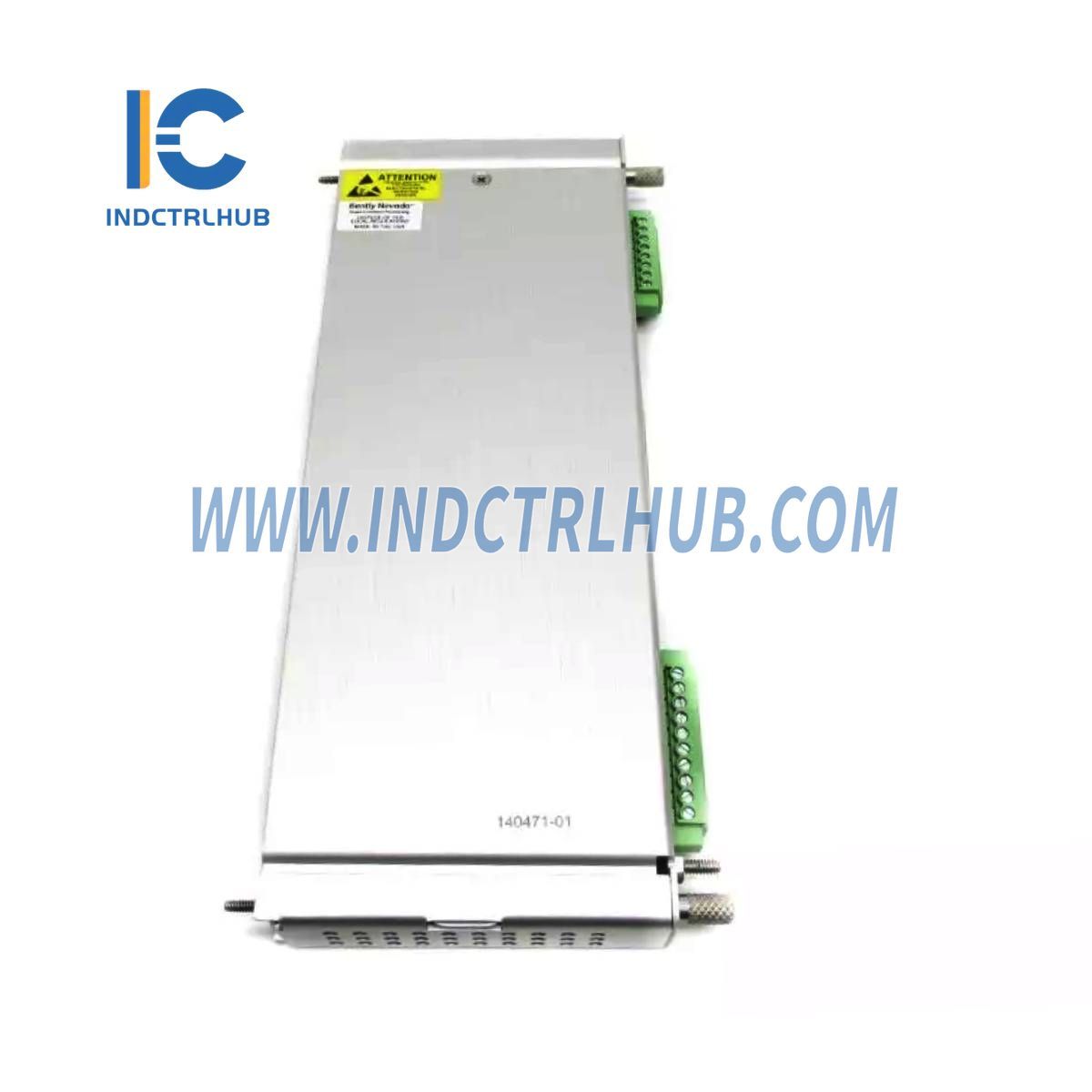

• 140471-01: Ichki tugatishlar bilan Prox/Velom I/O Moduli.
