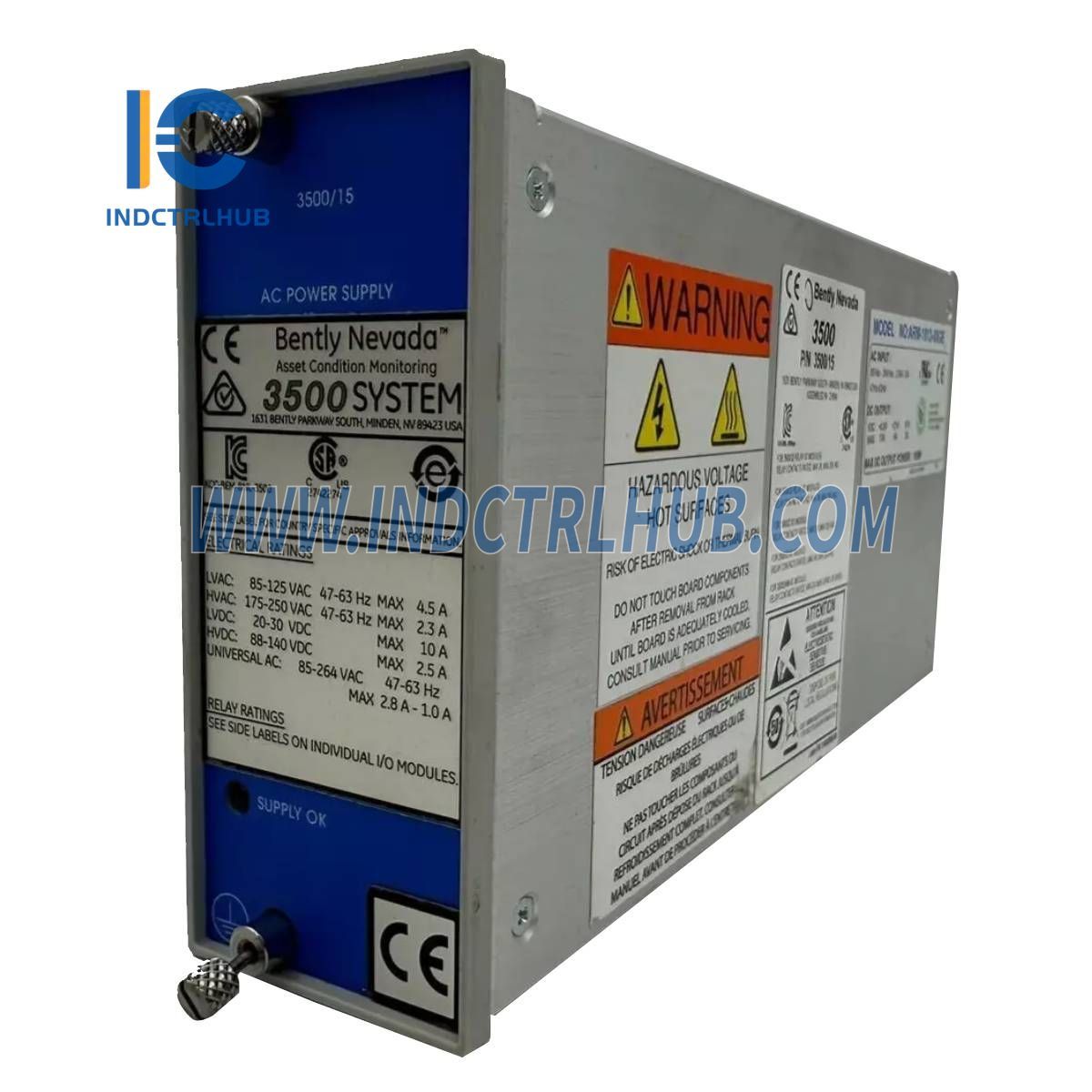

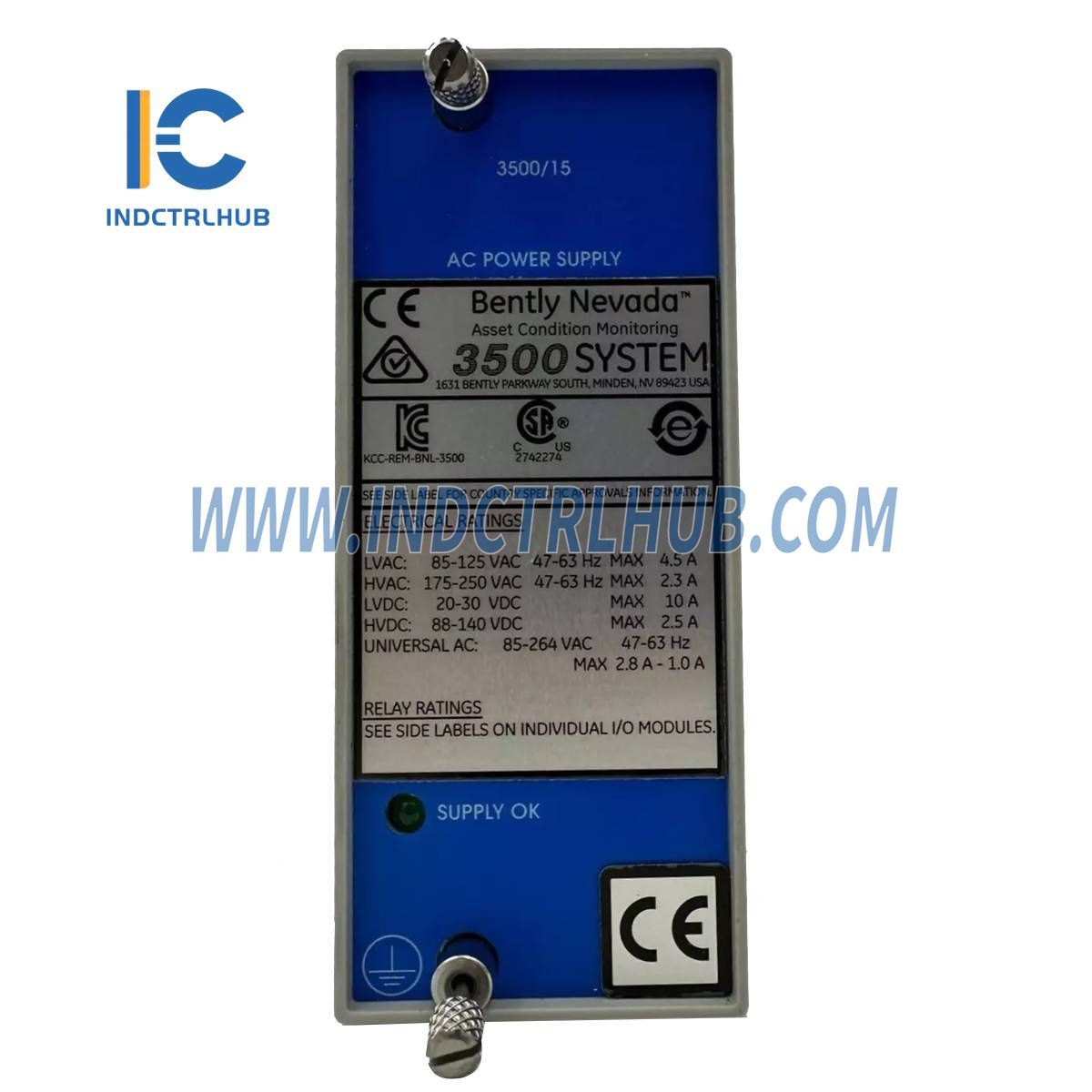

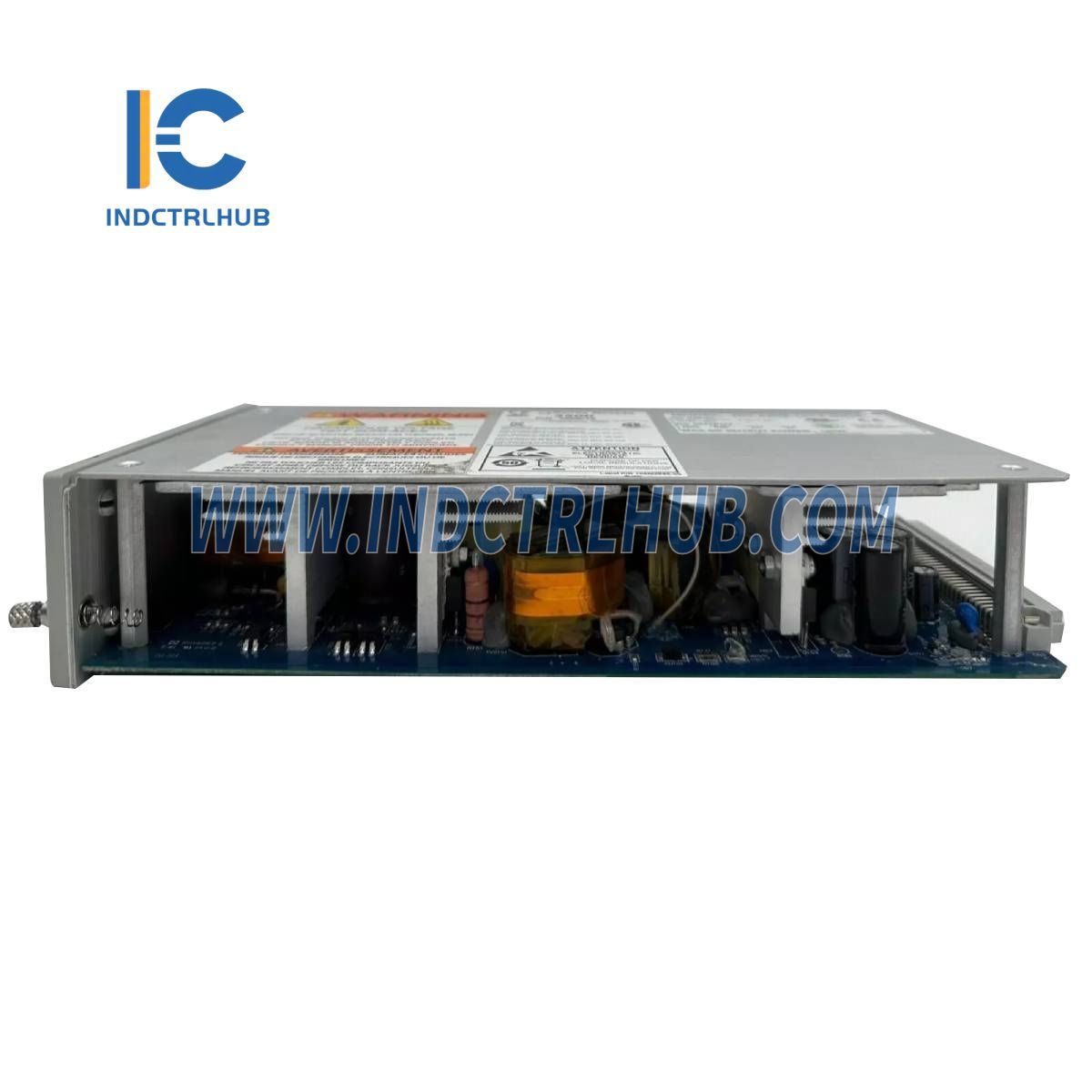

Bently Nevada 3500/15-07-07-00 AC va DC Quvvat Ta'minotlari

Mahsulot tafsilotlari

• Ishlab chiqaruvchi: Bently Nevada
• Seriya: 3500/15
• Model/Qism raqami: 3500/15-07-07-00
• Model Turi: AC va DC Quvvat Manbalari

Tavsif

3500/15 AC va DC Quvvat Manbalari yarim balandlikdagi modullar bo'lib, ular shkafning chap tomonidagi belgilangan slotlarga o'rnatilishi kerak. 3500 shkafi bir yoki ikki quvvat manbaini o'z ichiga olishi mumkin, AC va DC manbalarining har qanday kombinatsiyasi bilan. Har bir quvvat manbai to'liq shkafni quvvatlantira oladi.

Jismoniy Texnik Tavsiflar

Quvvat Manbai Moduli O'lchamlari:

• Balandlik x Kenglik x Chuqurlik:
  • 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
• Ogʻirligi:
  • 1.39 kg (3.06 lb)

Quvvat Kirish Modullari O'lchamlari:

• Balandlik x Kenglik x Chuqurlik:
  • 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
• Ogʻirligi:
  • 0.34 kg (0.75 lb)

Atrof-muhit chegaralari

• Ishlash harorati:
  • -30°C dan +65°C gacha (-22°F dan +150°F gacha)
• Saqlash harorati:
  • -40°C dan +85°C gacha (-40°F dan +185°F gacha)
• Namlik:
  • 95%, kondensatsiyasiz

Buyurtma Ma'lumotlari

• 3500/15 Quvvat Manbai Moduli: 3500/15-AA-BB-CC
  • A: Quvvat Manbai Turi (Yuqori Slot):
    • 03: Legacy yuqori kuchlanishli DC (88 dan 140 Vdc gacha)
    • 04: Legacy past kuchlanishli DC (20 dan 30 Vdc gacha)
    • 05: Universal AC kuchlanishi (85 dan 264 Vac rms gacha)
    • 06: Yuqori kuchlanishli DC ta'minoti
    • 07: Past kuchlanishli DC ta'minoti
  • B: Quvvat Manbai Turi (Pastki Slot):
    • 00: Ta'minot yo'q (ta'minot talab qilinmaganda ishlatiladi)
    • 03: Legacy yuqori kuchlanishli DC (88 dan 140 Vdc gacha)
    • 04: Legacy past kuchlanishli DC (20 dan 30 Vdc gacha)
    • 05: Universal AC kuchlanishi (85 dan 264 Vac rms gacha)
    • 06: Yuqori kuchlanishli DC ta'minoti
    • 07: Past kuchlanishli DC ta'minoti
  • C: Agentlik Tasdiqlashi:
    • 00: Yo'q
    • 01: CSA / NRTL / C (1-sinf, 2-bo'lim)
    • 02: ATEX / IECEx / CSA (1-sinf, 2-zona)
