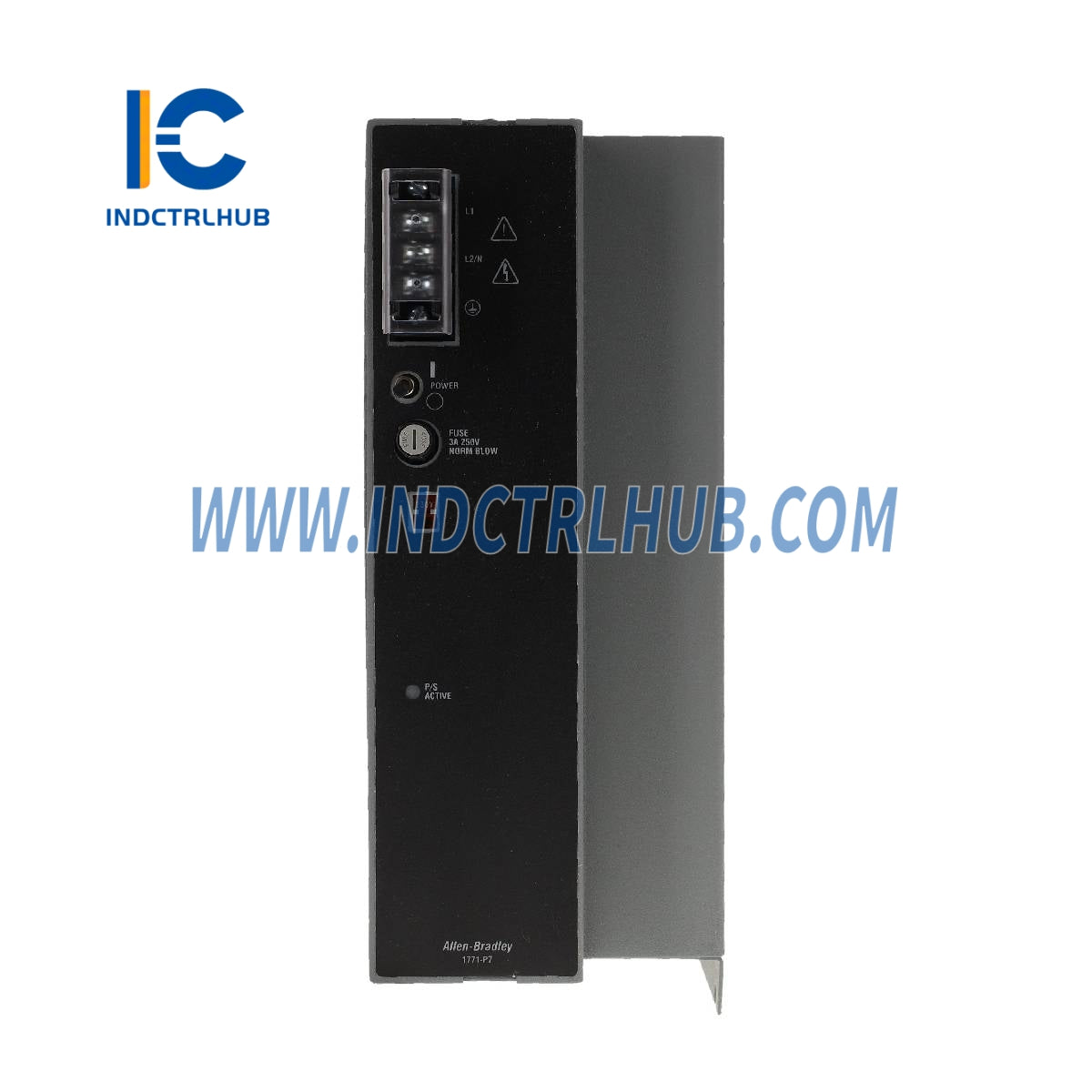

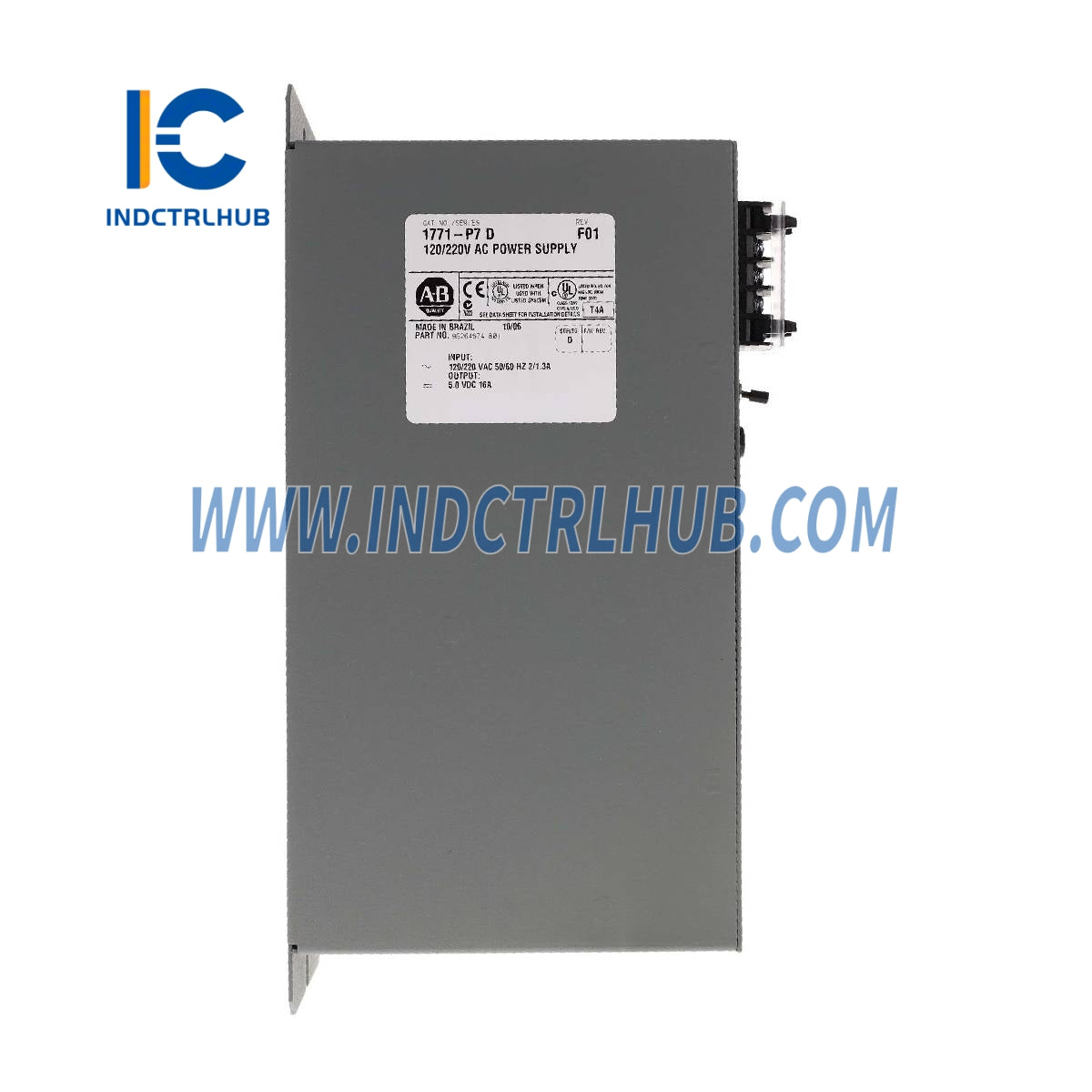

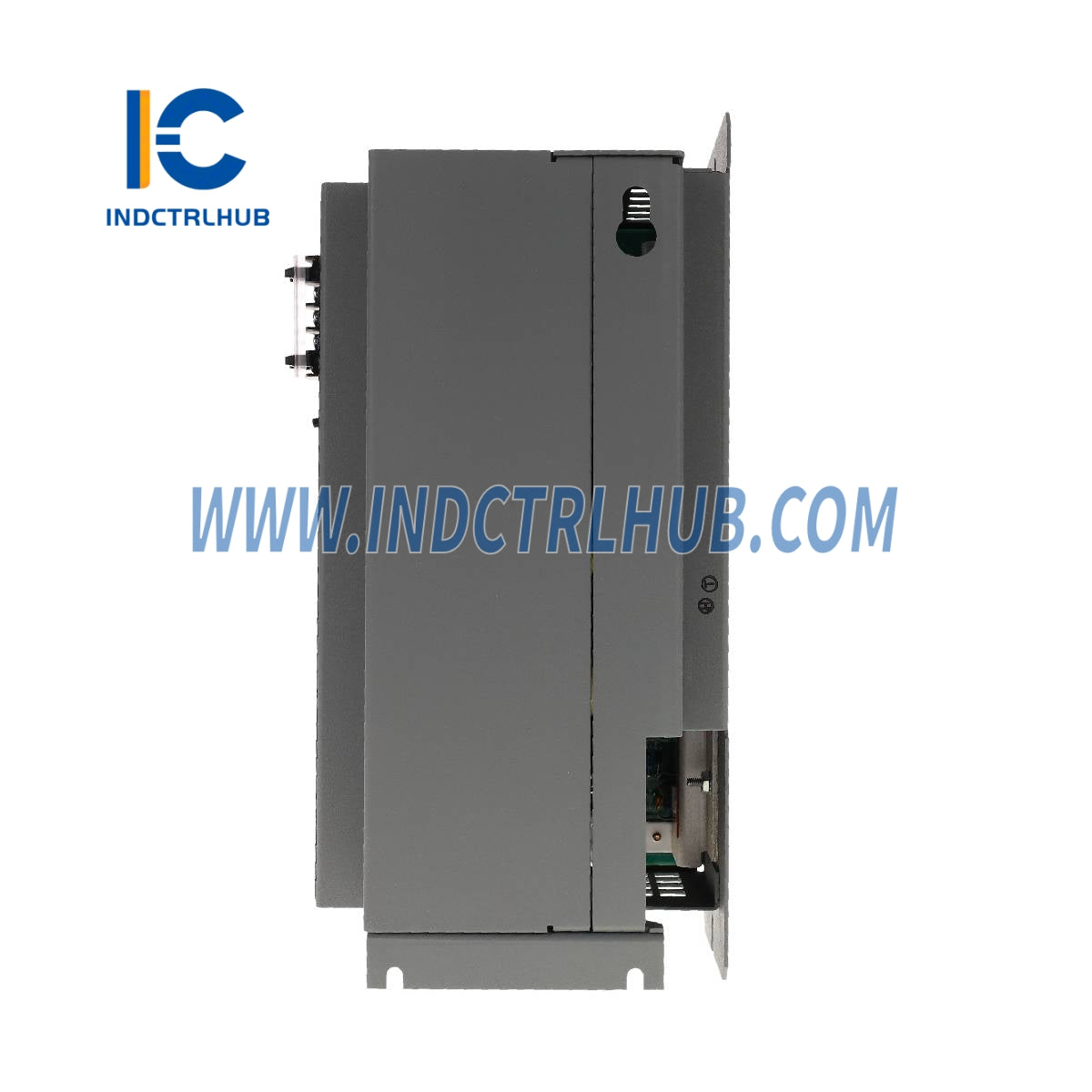

ALLEN BRADLEY 1771-P7B AC (120/220V) 16A Quvvat Manbai

Quvvat Ta'minoti Kuchlanish Oralig'i

120V AC: 97-132V AC, 50/60Hz, 2.0A  220V AC: 195-264V AC, 50/60Hz, 1.3A

Kirish quvvati (Haqiqiy/ Ko'rinadigan)

108 Vatt/ 176 VA maksimal (jadvallarga qarang)  To'liq yukda 270 VA

Tashqi Transformator

Tegishli emas

Izolyatsiya kuchlanishi

1200V AC da 1 soniya sinovdan o'tkazilgan

Chiqish kuchlanishi

5.06V DC (+3.8%)

Chiqish oqimi

5V DC da maksimal 16A

Quvvat Yo'qotish Vaqt Kechikishi

13.6ms, 12.9ms (Kirish Quvvatidan Protsessorni O'chirishgacha)

Maksimal foydalanuvchi tomonidan ta'minlangan ortiqcha oqimdan himoya

15A

Sigorta

3A, 250V, 3AG normal o'chirish (Bussmann AGC3-L, Littelfuse 312003)

O'tkazgich sim o'lchami

14 AWG (2.5mm²), 75°C yoki undan yuqori baholangan mis sim

Sim kategoriyasi

1-toifa

Terminal Strip Tornavida Moment

12 funt-dyuym

Og'irlik

1.95 kg (4.3 lbs.)

O'lchamlari (B x K x Ch)

315mm x 115mm x 159mm (12.40” x 4.53” x 6.25”)

Atrof-muhit sharoitlari

Ishlash harorati

32°F dan 140°F gacha (0°C dan 60°C gacha)

Saqlash harorati

-40°F dan 185°F gacha (-40°C dan 85°C gacha)

Nisbiy namlik

5 dan 95% gacha, kondensatsiyasiz

Shok

Ishlash: 15g, Ishlamaslik: 30g

Vibratsiya

Ishlash: 2g @ 10-500Hz

Emissiyalar

CISPR 11, 1-guruh, A sinfi

ESD immuniteti

IEC 61000-4-2, 4kV Kontakt Discharge'lar

Radiatsiyalangan RF Immuniteti

IEC 61000-4-3, 10V/m, 3V/m Efir to'lqinlari

Shoshilinch O'tish Immuniteti

IEC 61000-4-5, 1kV Kontakt Discharge'lar
