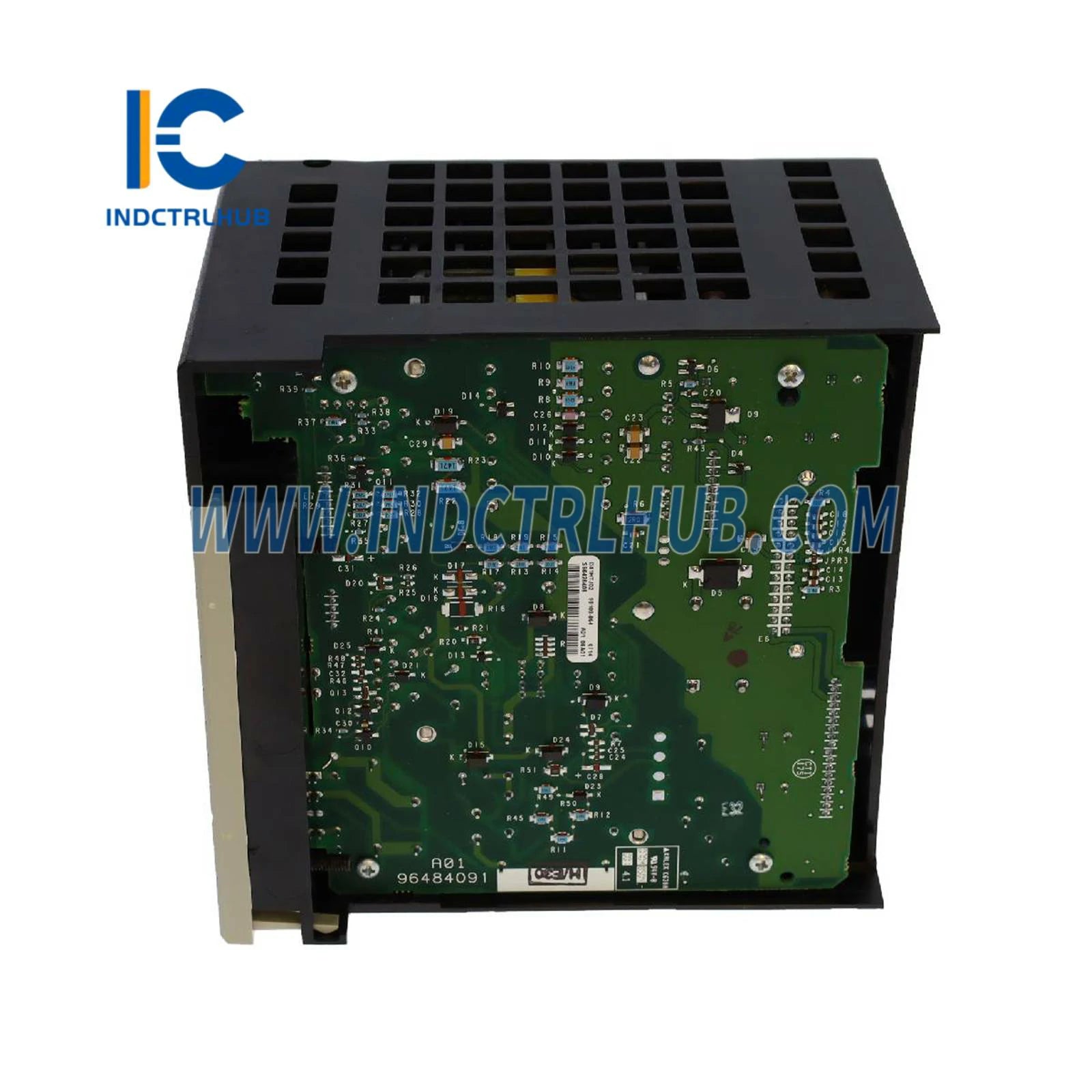

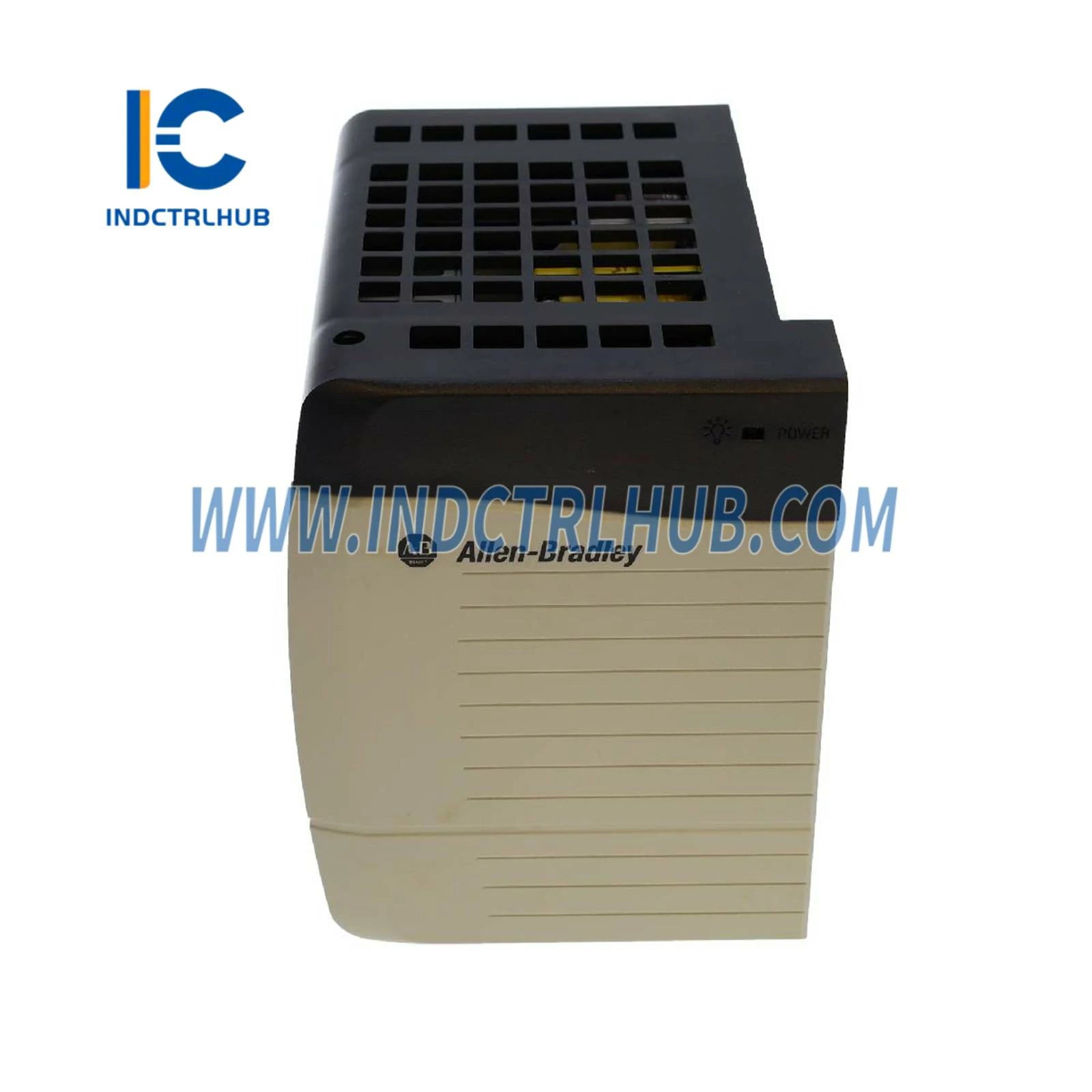

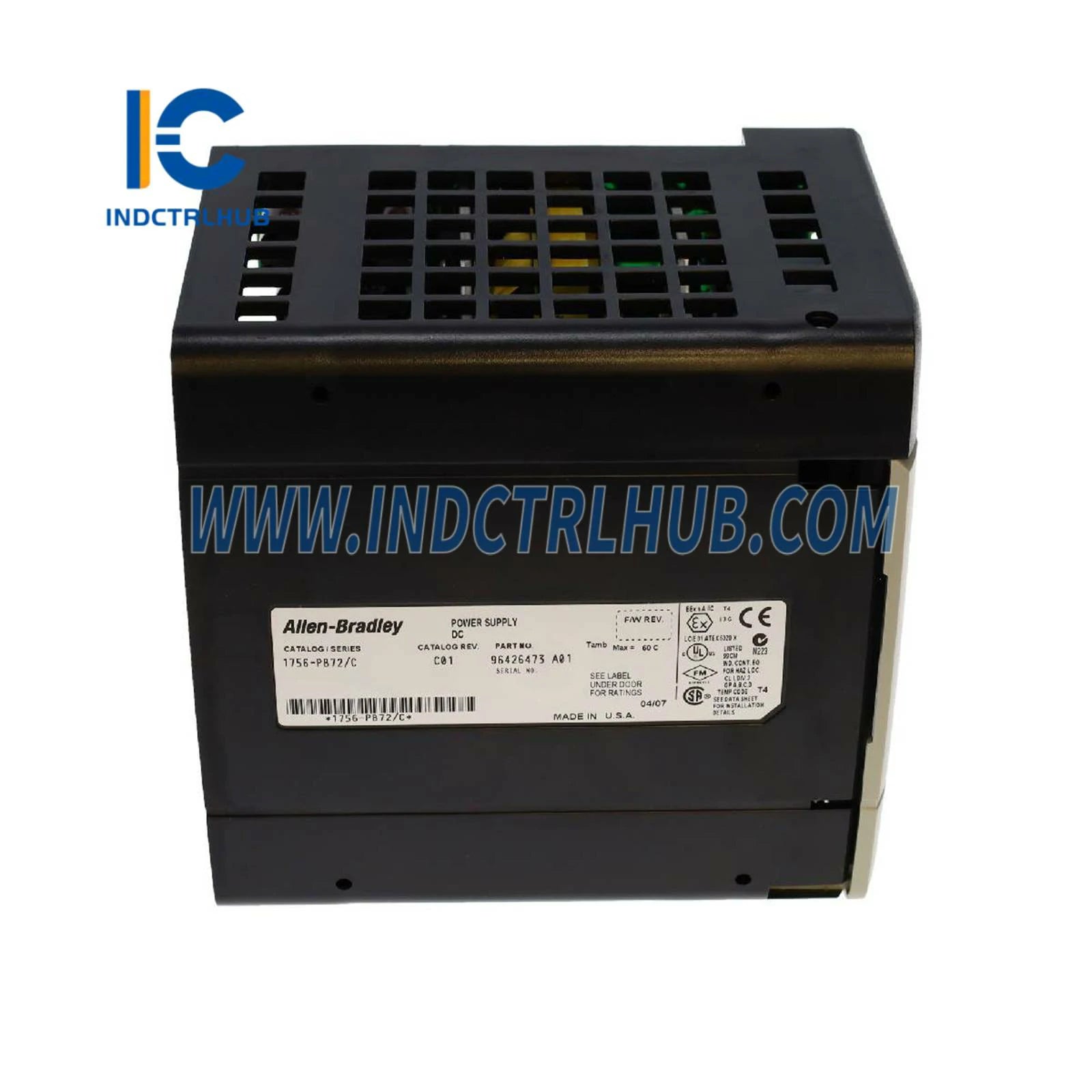

Allen-Bradley 1756-PB72 Standart DC Quvvat Manbai
Allen-Bradley 1756-PB72 Standart DC Quvvat Manbai
Manufacturer: Allen-Bradley
Product No.: 1756-PB72
Condition:Omborda 1000 ta mavjud
Product Type: Standart DC Quvvat Manbai
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Qo'llab-quvvatlash
- 30-Kunlik Qaytarishlar
- Tez yetkazib berish
Allen-Bradley 1756-PB72 Standart DC Quvvat Manbai
Allen-Bradley 1756-PB72 - bu ControlLogix korpuslari uchun Standart DC Quvvat Manbai bo‘lib, sanoat avtomatlashtirish ilovalari uchun yuqori ishonchlilik bilan regulyatsiyalangan DC quvvat ta’minlaydi.
Texnik xususiyatlar
Quvvat Kirishi va Chiqishi
| Xususiyat | 1756-PB72/C, 1756-PB72K/C |
|---|---|
| Kirish Kuchlanish Oralig‘i | 18_32V DC |
| Nominal Kirish Kuchlanishi | 24V DC |
| Maksimal Kirish Quvvati |
85 W @ 50°C (122°F) 70 W @ 60°C (140°F) |
| Maksimal chiqish quvvati |
60 W @ 0_50°C (32_122°F) 50 W @ 0_60°C (32_140°F) |
| Boshlang‘ich Joriy (Maksimal) | 30 A |
| Saqlash vaqti | 30 ms @ 18_32V DC, 60 W 40 ms @ 18_32V DC, 50 W |
| Joriy sig‘imi |
@ 1.2V: 1.5 A @ 3.3V: 2 A @ 5.1V: 8 A @ 50°C (122°F) / 6 A @ 60°C (140°F) @ 24V: 2.5 A @ 50°C (122°F) / 2.0 A @ 60°C (140°F) |
| Izolyatsiya Kuchlanishi | 250V (uzluksiz), Mustahkamlangan Izolyatsiya Turi, Quvvat Kirishi Orqa Platasiga Sinovdan o‘tkazilgan turi: 3150V DC 60 soniya davomida |
Mexanik va O‘rnatish Texnik Talablari
| Xususiyat | 1756-PB72/C |
|---|---|
| Taxminiy og'irlik | 0.77 kg (1.7 funt) |
| O'lchamlari (B x E x Q) | 14.0 x 7.8 x 14.5 sm (5.51 x 3.07 x 5.71 dyuym) |
| Modul joylashuvi | 1756 korpusining chap tomoni |
| Mos keluvchi shassi | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| Shassi mosligi | Seriya A, B, C |
| Sim Hajmi |
2.5 mm² (14 AWG) qattiq yoki tolali mis sim, 90°C (194°F) yoki undan yuqori haroratga mo‘ljallangan Maksimal izolyatsiya: 1.2 mm (3/64 dyuym) |
| Sim toifasi | 1-toifa (quvvat portlarida) |
| O'tkazgich vint momenti | 0.565 N_m (5 lb_in) |
Atrof-muhit xususiyatlari
| Xususiyat | 1756-PB72/C |
|---|---|
| Ishlash harorati | 0°C dan +60°C gacha (32°F dan 140°F gacha) |
| Maksimal Atrof-muhit Harorati | 60°C (140°F) |
| Ishlamayotgan Harorat | -40°C dan +85°C gacha (-40°F dan +185°F gacha) |
| Nisbiy namlik | 5_95% (kondensatsiyasiz) |
| Vibratsiyaga chidamlilik | 2 g @ 10_500 Hz |
| Shokga Bardoshlilik (Ishlayotganda) | 30 g |
| Shokga Bardoshlilik (Ishlamayotganda) | 50 g |
| Shimoliy Amerika Harorat Kodeksi | T4 |
Elektromagnit Moslik va Immunitet
| Parametr | Moslik Standarti | Texnik xususiyatlar |
|---|---|---|
| Emissiyalar | IEC 61000-6-4 | - |
| ESD ga chidamlilik | IEC 61000-4-2 |
6 kV (aloqa zaryadlari) 8 kV (havo zaryadlari) |
| Radiatsiyalangan RF Immuniteti | IEC 61000-4-3 |
10V/m, 1 kHz sinus to'lqin, 80% AM (80_2000 MHz) 10V/m, 200 Hz 50% impuls, 100% AM @ 900 MHz 10V/m, 200 Hz 50% impuls, 100% AM @ 1890 MHz 3V/m, 1 kHz sinus to'lqin, 80% AM (2000_2700 MHz) |
| EFT/B Immuniteti | IEC 61000-4-4 | Quvvat portlarida 5 kHz da ±4 kV |
| Toshqin O‘tish Immuniteti | IEC 61000-4-5 | ±1 kV chiziq-chiziq (DM) ±2 kV chiziq-zamin (CM) quvvat portlarida |
| O‘tkazilgan RF Immuniteti | IEC 61000-4-6 | 10V rms, 1 kHz sinus to'lqin, 80% AM (150 kHz_80 MHz) |
| Kuchlanish o'zgarishlariga chidamlilik | IEC 61000-4-29 | DC ta'minot portlarida 10 ms uzilish DC ta'minot portlarida 100 ms davomida 60% pasayishlar DC ta'minot portlarida 50 ms davomida 100% pasayishlar DC ta'minot portlarida 15 daqiqa davomida ±20% o'zgarishlar DC ta'minot portlarida 5 s uzilishlar |
