Product Description
🔹 Umumiy ma'lumot
|
Ishlab chiqaruvchi |
Allen-Bradley |
|---|---|
|
Model/Qism raqami |

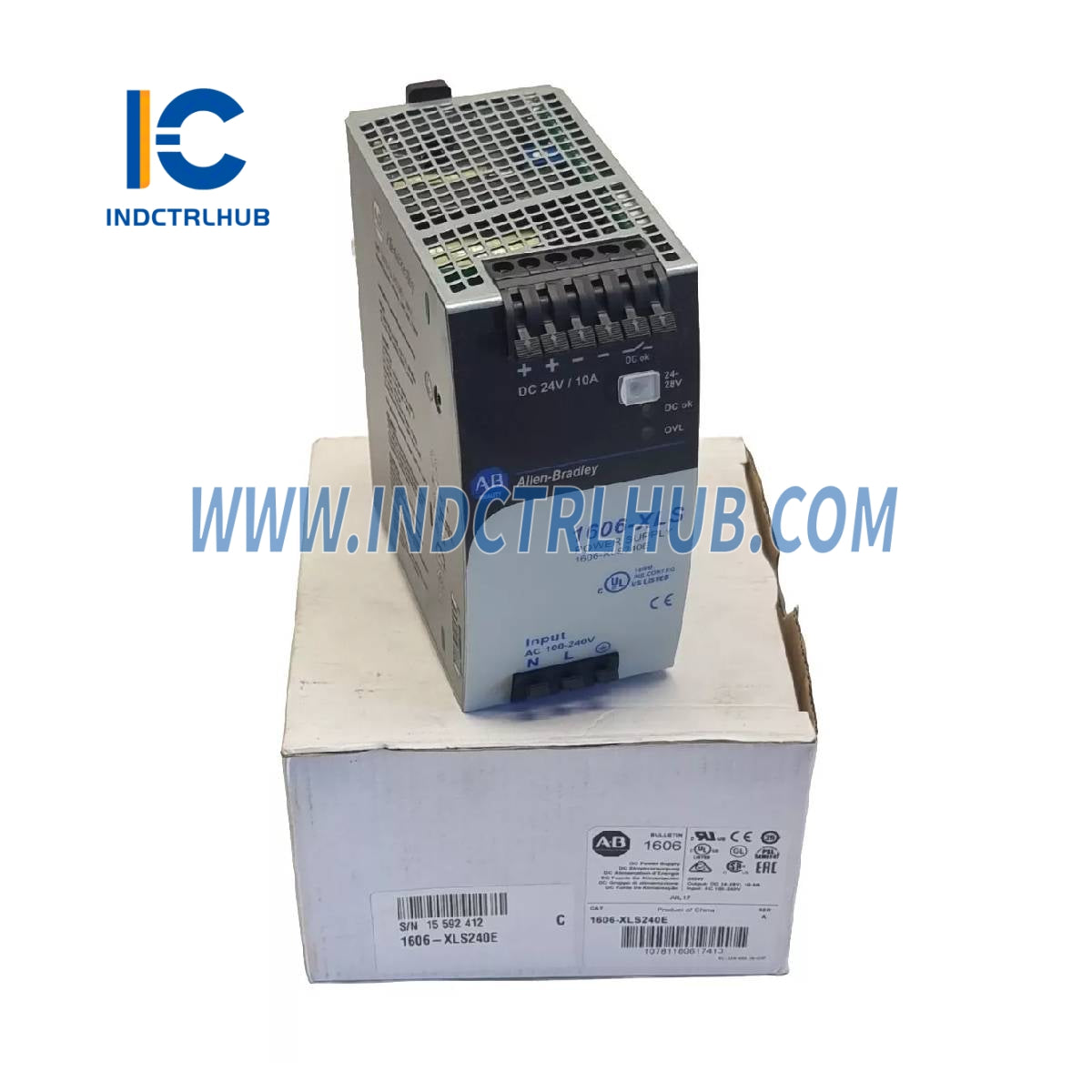

1606-XLS240E |
|
Tavsif |
XLS 240 W Quvvat manbai |
🔹 Kirish spetsifikatsiyalari
|
Parametr |
Qiymat |
|---|---|
|
AC kirish kuchlanishi |
100-240V ±15% |
|
Chiziq chastotasi |
50-60Hz ±6% |
|
AC Kirish Jorimi |
120V / 230V AC da 2.22A / 1.22A |
|
Quvvat omili |
120V / 230V AC da 0.98 / 0.92 |
|
AC Kirish Jorimi |
120V / 230V AC da 4A / 7A cho'qqi |
|
DC kirish kuchlanishi |
110-300V (-20% / +25%) |
|
DC kirish oqimi |
110V / 300V DC da 2.37A / 0.87A |
🔹 Chiqish spetsifikatsiyalari
|
Parametr |
Qiymat |
|---|---|
|
Chiqish kuchlanishi (Oldindan o'rnatilgan) |
DC 24V (Sozlanadigan 24-28V) |
|
Chiqish oqimi |
10A uzluksiz (24V) 15A taxminan 4 soniya uchun (24V) |
|
Chiqish Quvvati |
240W uzluksiz (24V) 360W taxminan 4 soniya uchun (24V) |
|
Chiqish to'lqini |
<50mVpp (20Hz dan 20MHz gacha) |
|
Ortib boruvchi kuchlanish toifasi |
III (2000m gacha), II (2000m-6000m) |
|
Ifloslanish darajasi |
2 (O'tkazmaydigan) |
🔹 Ishlash va Ishonchlilik
|
Parametr |
Qiymat |
|---|---|
|
Samaradorlik |
92.3% / 93.0% 120V / 230V AC da |
|
Quvvat yo'qotishlari |
20.0W / 18.1W 120V / 230V AC da |
|
Ushlab turish vaqti |
~27ms / 28ms 120V / 230V AC da |
🔹 Atrof-muhit va xavfsizlik spetsifikatsiyalari
|
Parametr |
Qiymat |
|---|---|
|
Ishlash Harorati |
-25°C dan +70°C gacha (-13°F dan 158°F gacha) |
|
Saqlash harorati |
-40°C dan +85°C gacha (-40°F dan 185°F gacha) |
|
Namlik |
5% dan 95% gacha namlik (IEC 60068-2-30) |
|
Vibratsiya (Sinus to'lqinli) |
2-17.8Hz: ±1.6mm 17.8-500Hz: 2g (2 soat/oyna) (IEC 60068-2-6) |
|
Tezlanish (Tasodifiy) |
0.5m²/s³ (2 soat/oyna) (IEC 60068-2-64) |
|
Urish Qarshiligi |
30g (6ms), 20g (11ms), 3 ta zarba/yo'nalish (IEC 60068-2-27) |
|
Balandlik reytingi |
0 dan 6000m gacha (0 dan 20,000ft gacha) |
|
Chiqish quvvatining kamayishi (Harorat) |
60°C dan 70°C gacha haroratda 6W/°C |
|
Chiqish quvvatining kamayishi (Balandlik) |
15W/1000m yoki 5°C/1000m 2000m dan yuqorida |
🔹 Mexanik va o'rnatish
|
Parametr |
Qiymat |
|---|---|
|
O'lchamlari (K x B x Ch) |
60 x 124 x 117 mm |
|
Og'irlik |
900g (1.98 lb) |
|
DIN relsga o'rnatish |
35mm DIN-rel (EN 60715 yoki EN 50022, 7.5mm yoki 15mm balandlik) |
