Product Description

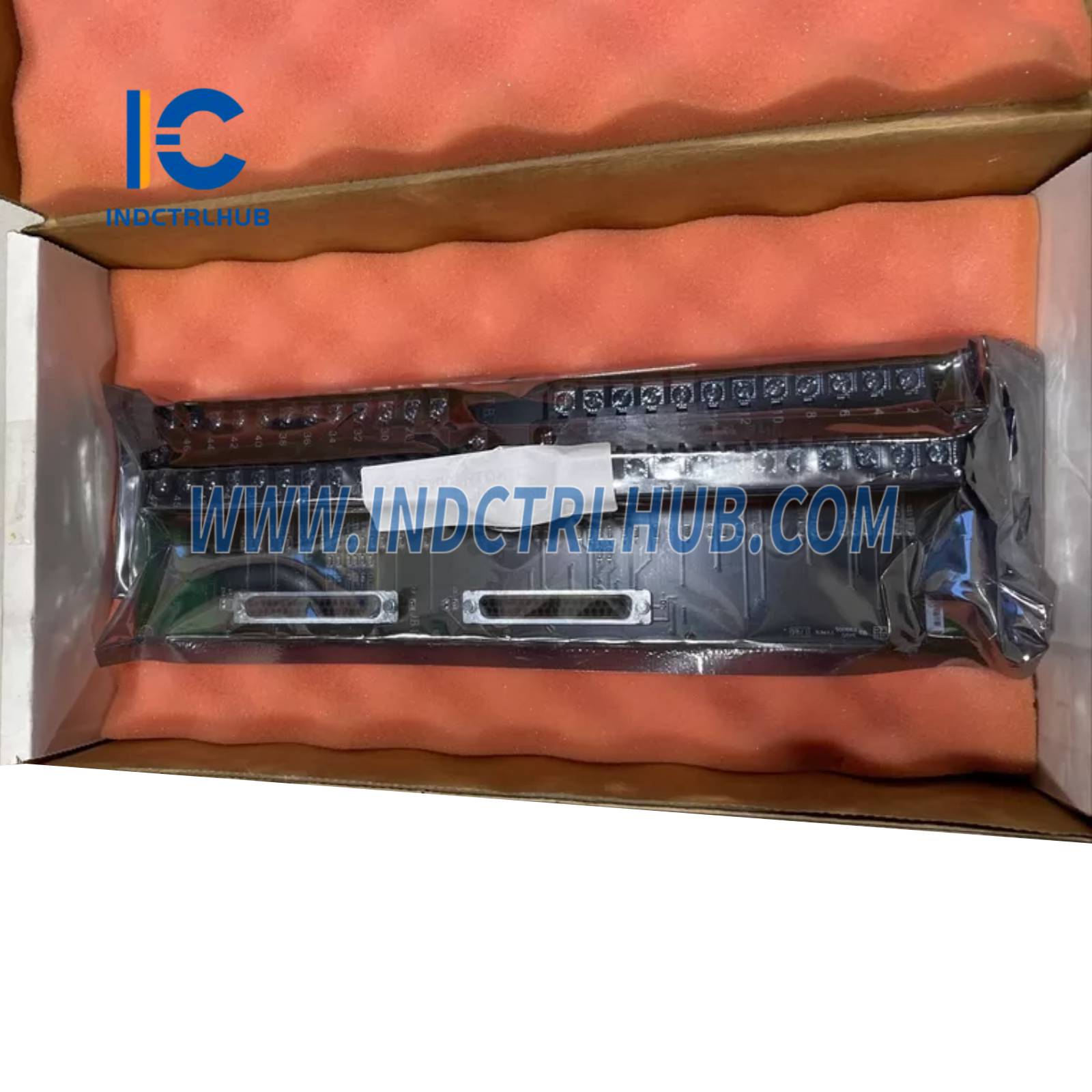

General Electric IS200TRDH1CCC Relay Driver Terminal Board
Product Overview
- Description: The General Electric IS200TRDH1CCC is a relay driver terminal board designed for use in GE’s Mark VI turbine control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VI |
| Model/Part Number | IS200TRDH1CCC |
| Model Type | Relay Driver Terminal Board |
| Function | Drives relay outputs for controlling external devices |
| Display | LED indicators (status, power, relay state) |
| Inputs | Digital control signals from Mark VI system |
| Outputs | 12 relay outputs (dry contacts, typically 24 VDC or 125 VDC) |
| Communication Interfaces | Mark VI system backplane, VME bus |
| Signal Conditioning | Internal signal isolation, relay driver circuitry |
| Accuracy | Not applicable (discrete signal control) |
| Redundancy | Non-redundant (simplex configuration) |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VI turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VI backplane), external power for relays |
| Power Consumption | 6 W max (typical, excluding external relay power) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 40 mm (D) |
| Weight | 0.6 kg (approx.) |
| Mounting | Plugs into Mark VI VME rack |
| Certifications | CE, UL, cULus, RoHS |
