Product Description

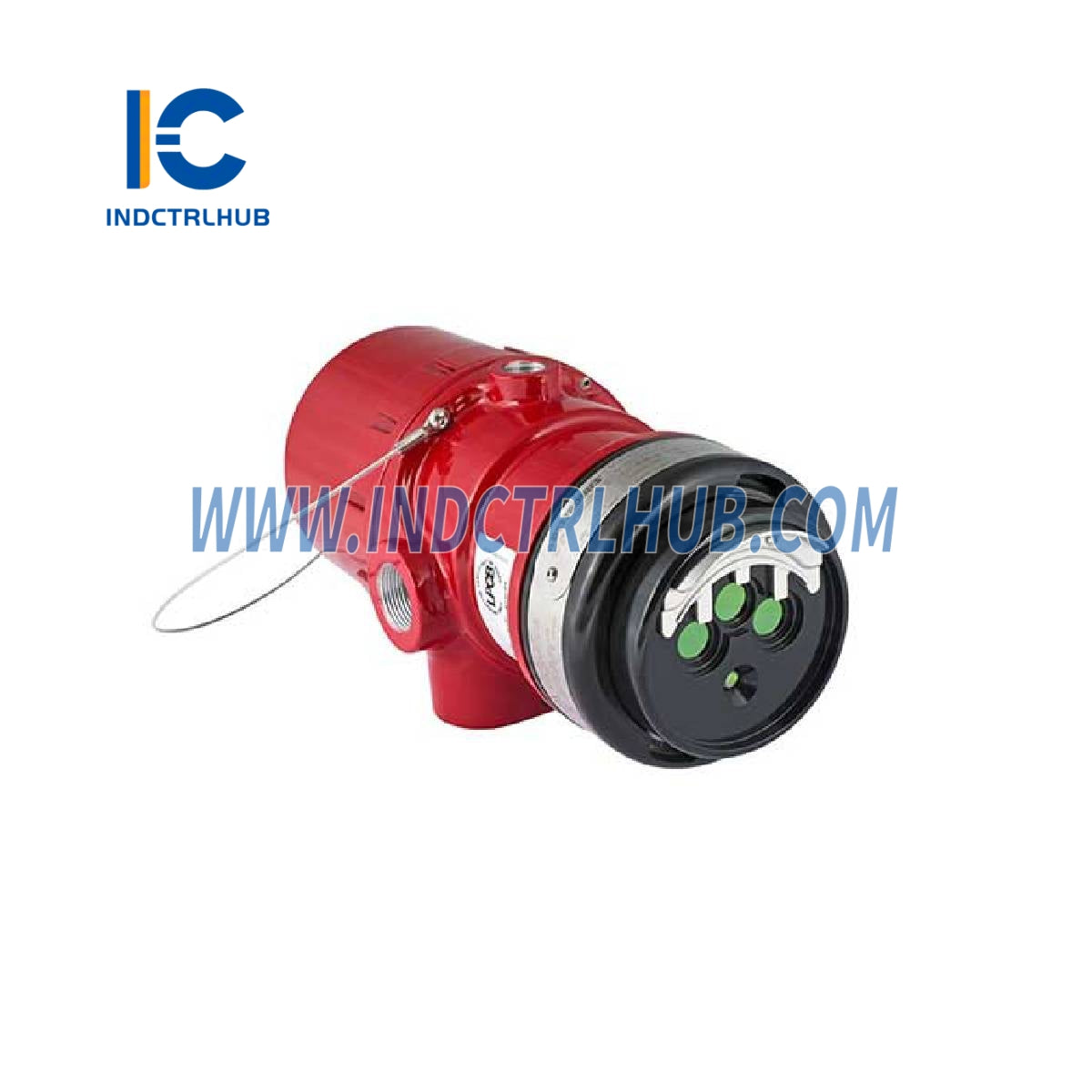

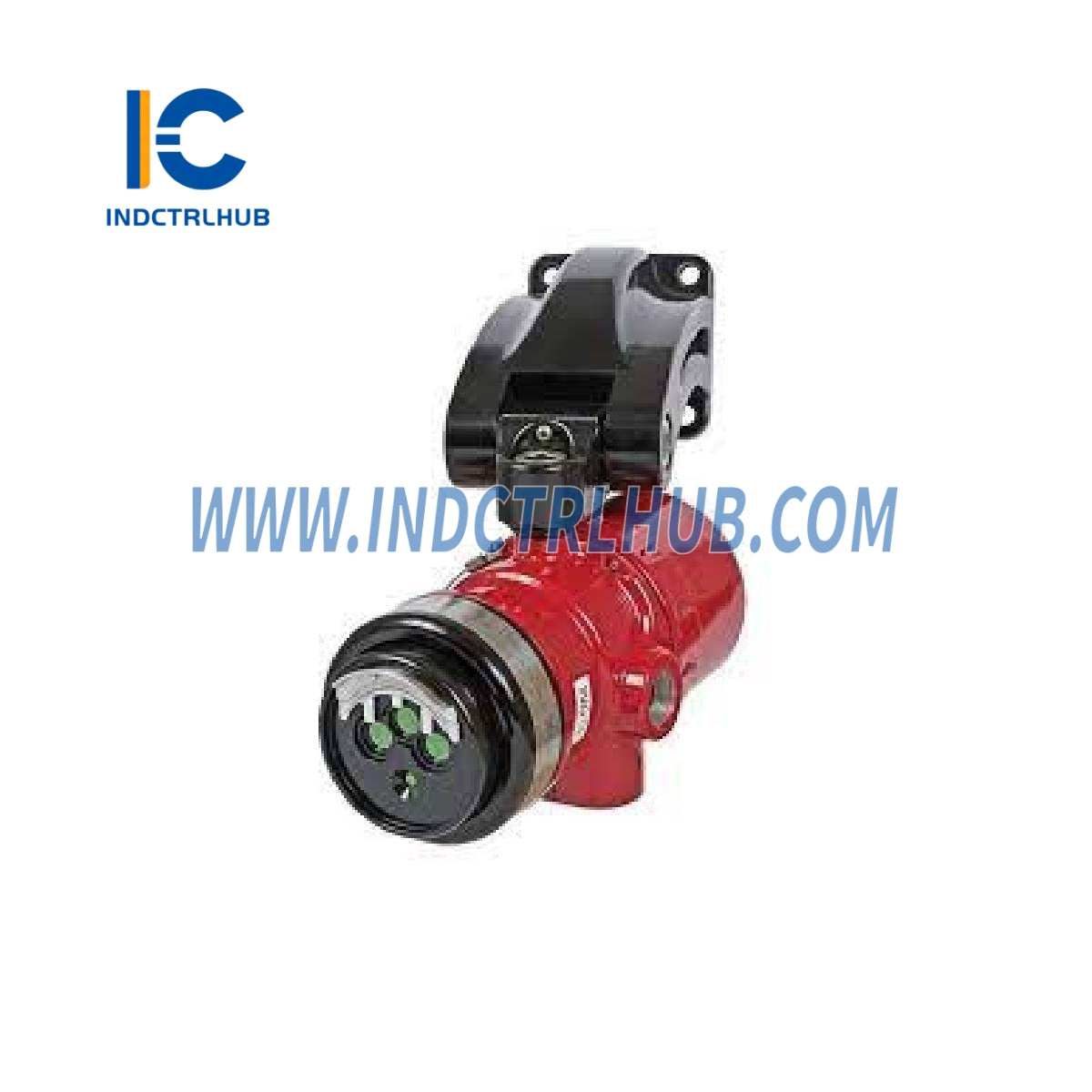

Det-Tronics X3301A4M13T1 Multispectrum Infrared Flame Detector
- Manufacturer: Det-Tronics
- Model/Part Number: X3301A4M13T1
- Description: Multispectrum Infrared Flame Detector
Overview
- The Det-Tronics X3301A4M13T1 is a high-performance flame detector that uses multispectrum infrared (MIR) technology to detect hydrocarbon-based fires. It is designed for use in hazardous industrial environments, such as oil and gas facilities, petrochemical plants, and power generation sites, providing reliable fire detection for safety-critical applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | X3301A4M13T1 |
| Type | Multispectrum Infrared Flame Detector |
| Material | Stainless Steel |
| Detection Technology | Multispectrum Infrared (MIR) |
| Field of View | 90° cone of vision |
| Detection Range | Up to 210 ft (64 m) for n-heptane fire |
| Response Time | Typically <3 seconds |
| Input Voltage | 24 VDC nominal (18–30 VDC) |
| Power Consumption | 4.5 W (typical), 17 W (maximum with heater) |
| Output | 4–20 mA, relay contacts, HART protocol |
| Operating Temperature | -40°C to +75°C |
| Certifications | FM, CSA, ATEX, IECEx, SIL 2 |
Additional Information
- Functionality: The X3301A4M13T1 detects flames by analyzing infrared signatures across multiple wavelengths, minimizing false alarms. It features advanced diagnostics, self-testing, and heated optics to prevent condensation in humid environments. The detector supports integration with safety systems via analog and digital communication protocols.
- Environmental Durability: The stainless steel construction ensures corrosion resistance and durability in harsh industrial conditions, including exposure to extreme temperatures and hazardous atmospheres.
- Integration: The detector integrates seamlessly with Det-Tronics safety systems and other industrial control systems, supporting applications requiring high reliability and compliance with safety standards.
