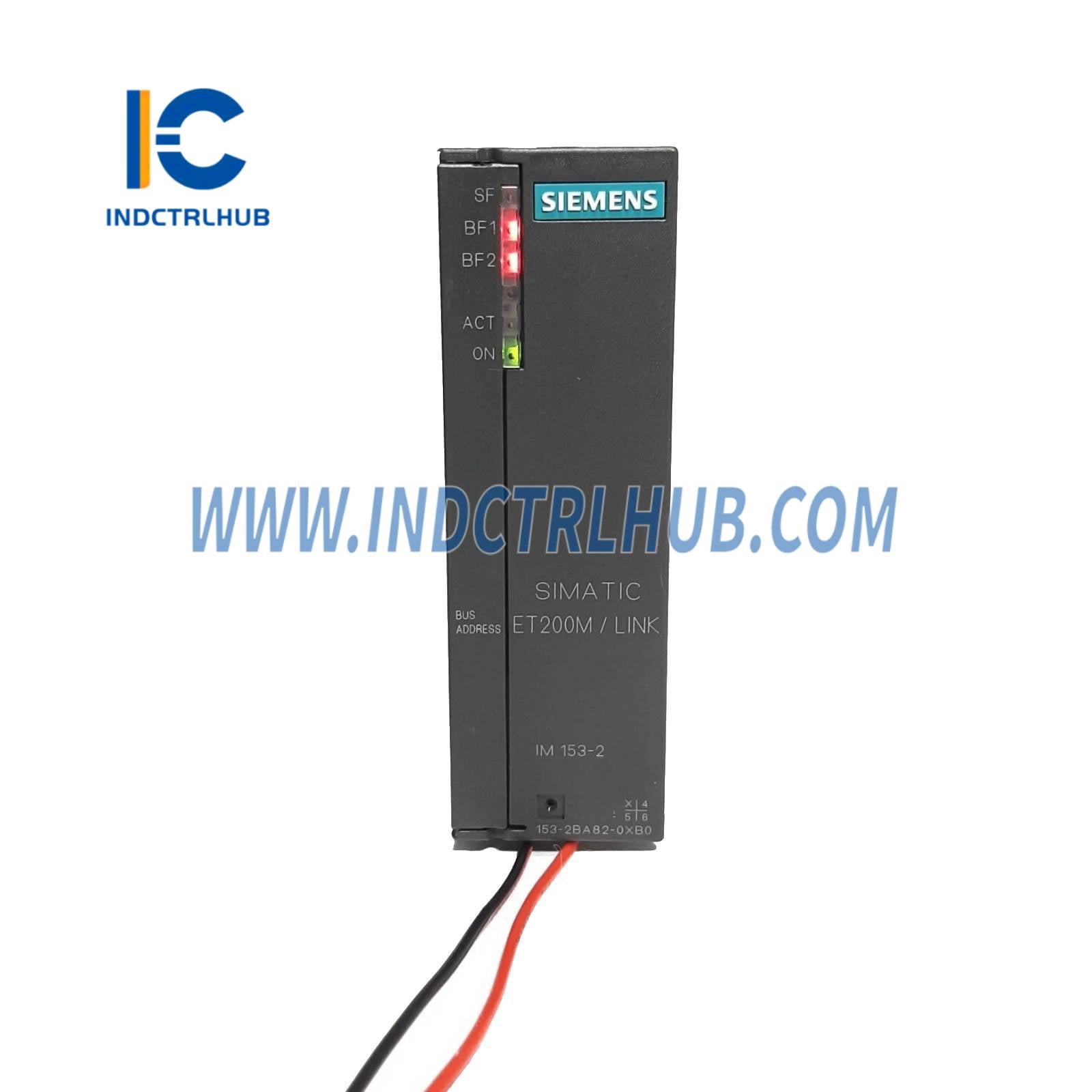

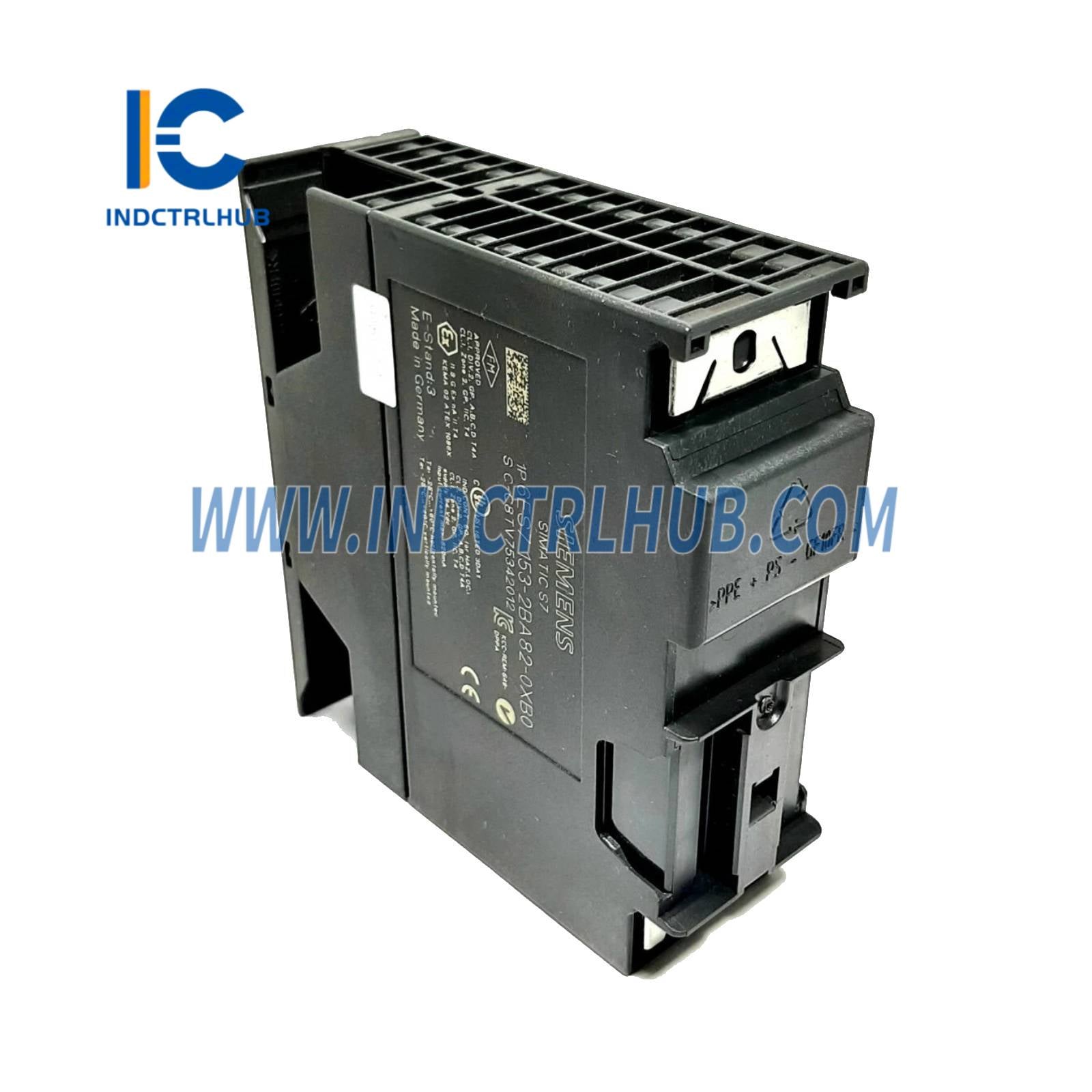

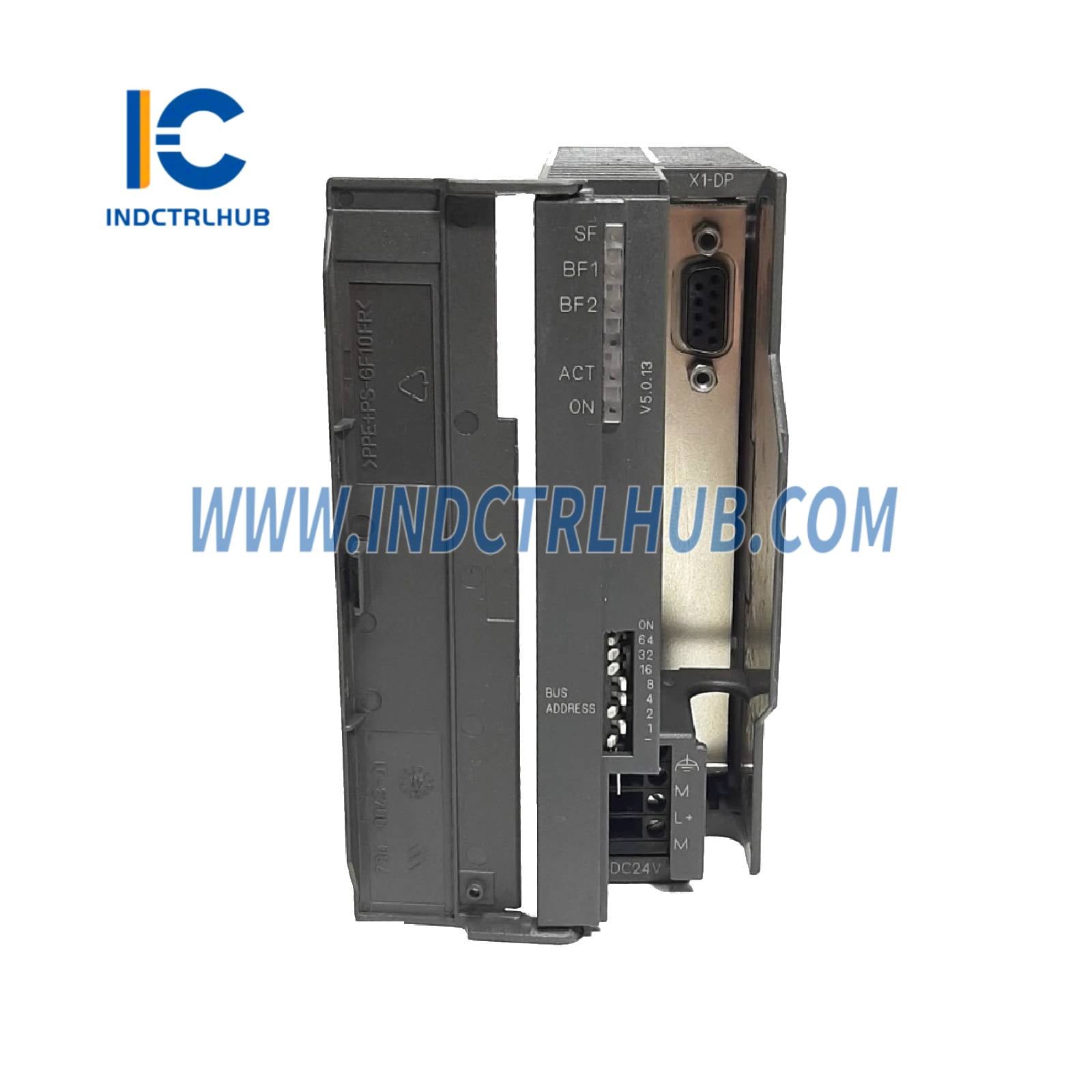

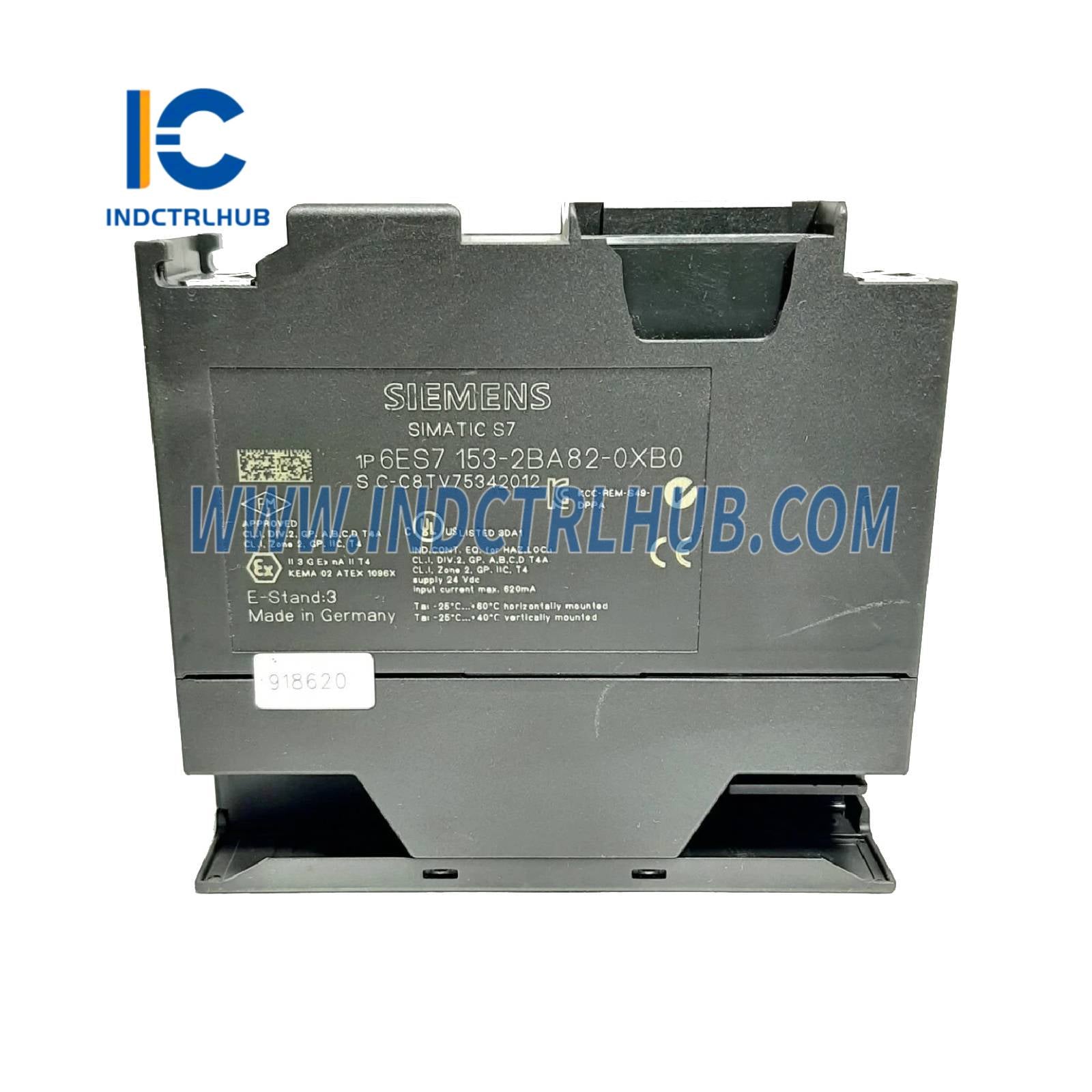

Siemens 6ES7153-2BA82-0XB0

Product Information

• Manufacturer: Siemens

• Model/Part Number: 6ES7153-2BA82-0XB0

• Product Name: SIMATIC DP IM153-2 HF (High Feature)

• Description:

  Interface module (IM153-2 HF) for DP/PA Link and ET200M. Supports extended temperature range, redundancy capability, timestamping, and isochronous mode. Suitable for connection of up to 12 S7-300 modules.



  • New Features:



    • Operation with up to 12 modules

    • Slave Initiative for Drive ES and Switch ES

    • Expanded HART variable handling

    • Supports 64-channel modules (32 signals/slot)





Specifications

• Article Number: 6ES7153-2BA82-0XB0

• Product Lifecycle: Product Cancellation (discontinued)

• Product Class: A (Standard product, stock item, returnable within guidelines)

• Product Group: 4519

• Catalog ID: STPCS7

• Group Code: R1TP

• Country of Origin: Germany

Technical Details

• Extended temperature range support

• Redundancy capability

• Timestamping for isochronous mode applications

• Supports DP/PA Link connection

• Max. Modules Supported: 12 × S7-300 modules

Dimensions & Weight

• Packaging Dimensions (L × W × H): 15.20 × 12.90 × 5.10 cm

• Net Weight: 0.288 kg

• Packaging Quantity: 1 piece

Compliance & Environment

• RoHS Compliance: Yes (since 31.03.2008)

• REACH (Art. 33 Duty to Inform): Contains lead substances >0.1% (w/w):



  • Lead CAS-No. 7439-92-1

  • Lead monoxide CAS-No. 1317-36-8



• SCIP Number: 5fd81c7b-302c-45f2-9a42-e7f710af3a1b

• WEEE (2012/19/EU): Take-back obligations apply

• Export Control: ECCN: EAR99H / AL: N
