GE IC200ALG326H
GE IC200ALG326H
Manufacturer: General Electric
Product No.: IC200ALG326H
Condition:1000 trong kho

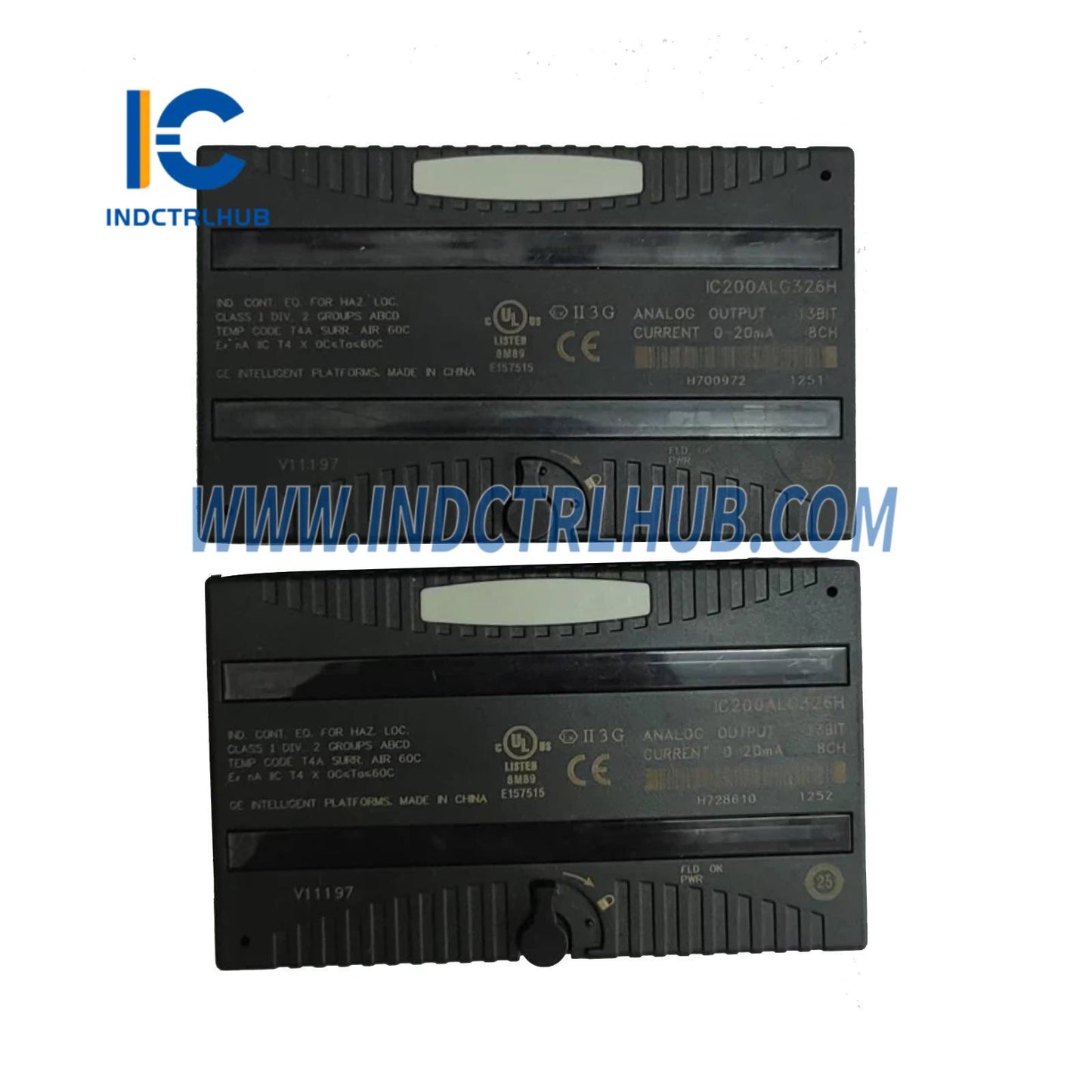

Product Type: 8-Channel Analog Current Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Hỗ trợ 24/7
- Trả hàng trong vòng 30 ngày
- Vận chuyển nhanh
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG326H |
| Description | 8-Channel Analog Current Output Module (4_20 mA, High-Performance, Revision H) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG326H |
| Product Name | IC200ALG326 VersaMax 8-Channel Analog Current Output Module |
| Application | High-density, high-accuracy control of 4_20 mA loops in critical industrial automation, process control, valve positioning, and SCADA systems |
| Compatibility | GE VersaMax I/O system; mounts on any VersaMax carrier (IC200ACCxxx); supports CPU/NIU via backplane; compatible with PACSystems RX3i, RSTi-EP, VersaMax Micro/Nano; supports IEC 61850-9-2 LE process bus |
| Function | Generates eight independent 4_20 mA current outputs with 16-bit resolution, HART 7 full pass-through, ultra-fast update, process bus streaming, and SIL 2 safety capability (Revision H) |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 8 single-ended, sourcing current outputs |
| Output Range | 4_20 mA (default); 0_20 mA (configurable); ±10% overrange |
| Resolution | 16-bit (0.61 µA per LSB) |
| Accuracy | ±0.05% of full scale at 25°C; ±0.1% over full temperature range |
| Update Rate | 6 ms for all 8 channels (1.33 ms per channel sequential) |
| Load Capability | 0_1000 Ω @ 24 V DC; loop voltage compliance up to 30 V |
| Loop Power | External 24 V DC (19.2_30 V); HART 7 fully compliant |
| HART Pass-Through | Yes _ bidirectional HART 7 (multivariable, device config, diagnostics, burst mode, asset management) |
| Process Bus (IEC 61850-9-2 LE) | Yes _ sampled values (SV) streaming over Ethernet (optional firmware mode) |
| Open Loop Detection | Yes _ load < 50 Ω or > 1.2 kΩ; configurable alarm per channel |
| Short Circuit Protection | Yes _ electronic current limit at 28 mA per channel |
| Isolation | 1500 V RMS field-to-backplane; 250 V RMS channel-to-channel |
| Settling Time | < 1.5 ms to 0.1% of final value |
| Slew Rate | Configurable 0.1_200 mA/ms |
| Scaling & Linearization | User-defined engineering units, 32-point custom table per channel, clamp limits, ramp/soak profiles |
| Diagnostics | Open loop, short circuit, overrange, HART device health, loop voltage/resistance, output drift, self-test, watchdog |
| Safety Certification | IEC 61508 SIL 2 capable (with certified application program) |
| Power Supply | +5 V DC @ 190 mA, +3.3 V DC @ 120 mA (backplane) |
| Power Consumption | 1.2 W maximum |
| External Power | 24 V DC @ 180 mA (isolated loop supply) |
| Communication Ports | Dual Ethernet 10/100 Mbps (RJ45, switched) _ for firmware, config, HART, OPC UA, process bus |
| LED Indicators | OK (green), Fault (red), 8x Active (green), HART Comm (yellow, blinking), SV Stream (blue) |
| Configuration | Proficy Machine Edition (PME) 10.0+, web server, USB-C front port, OPC UA server, REST API |
| Firmware | Field-upgradable via Ethernet, USB-C, or PME |
| Operating Temperature Range | -40°C to +70°C (extended) |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | IEC 60068-2-6 (10g, 10_500 Hz) |
| Shock | IEC 60068-2-27 (50g, 11 ms) |
| Mounting | Snaps onto VersaMax carrier base (IC200ACCxxx) |
| Dimensions | 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm) |
| Weight | 0.52 lb (0.24 kg) |
| Enclosure Rating | IP20 |
| Revision H Enhancements | 16-bit resolution, 6 ms update, 1000 Ω load, IEC 61850-9-2 LE, SIL 2, REST API, faster settling, enhanced EMC |
| Standards Compliance | IEC 61131-2, IEC 61508 SIL 2, CE, UL, CSA, Class I Div 2, ATEX/IECEx Zone 2, HART 7 Registered, IEC 61850-9-2, RoHS 3, IEC 61000-6-2/4 |
