GE IC200ALG326-D
GE IC200ALG326-D
Manufacturer: General Electric
Product No.: IC200ALG326-D
Condition:1000 trong kho

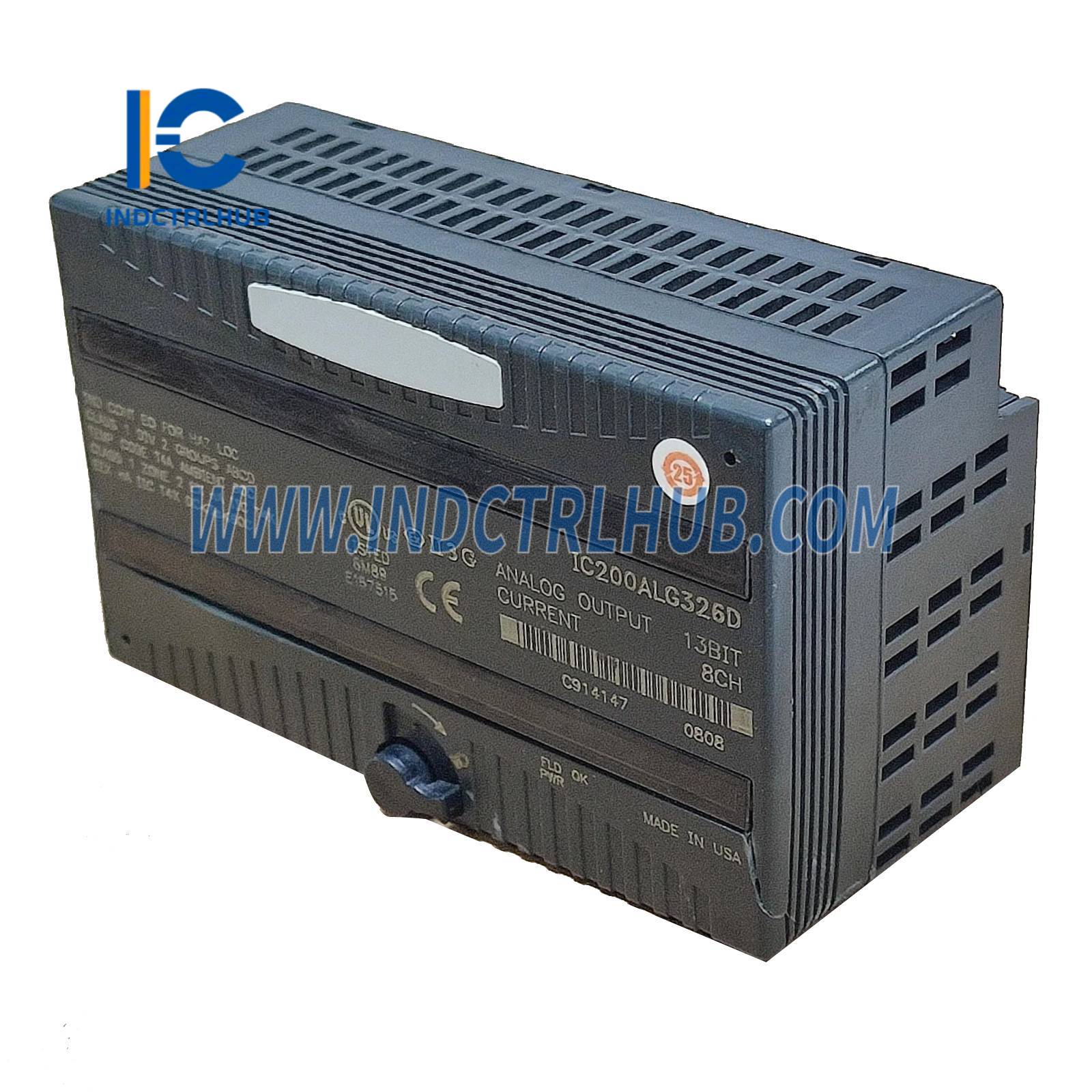

Product Type: 8-Channel Analog Current Output Module (4_20 mA, Revision D)
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Hỗ trợ 24/7
- Trả hàng trong vòng 30 ngày
- Vận chuyển nhanh
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG326-D |
| Description | 8-Channel Analog Current Output Module (4_20 mA, Revision D) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG326-D |
| Product Name | IC200ALG326 VersaMax 8-Channel Analog Current Output Module |
| Application | High-density control of 4_20 mA loops in industrial automation, process control, valve positioning, and SCADA systems |
| Compatibility | GE VersaMax I/O system; mounts on any VersaMax carrier (IC200ACCxxx); supports CPU/NIU via backplane; compatible with PACSystems RX3i via Profinet |
| Function | Generates eight independent 4_20 mA current outputs with 12-bit resolution, open-loop detection, HART pass-through support, and enhanced diagnostics (Revision D) |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 8 single-ended, sourcing current outputs |
| Output Range | 4_20 mA (default); 0_20 mA (configurable via software) |
| Resolution | 12-bit (5 µA per LSB) |
| Accuracy | ±0.25% of full scale at 25°C; ±0.5% over full temperature range |
| Update Rate | 10 ms for all 8 channels (1.25 ms per channel sequential) |
| Load Capability | 0_750 Ω @ 24 V DC; loop voltage compliance up to 28 V |
| Loop Power | External 24 V DC (19.2_28.8 V); HART-compatible |
| HART Pass-Through | Yes _ transparent HART digital overlay (device ID, PV/SV, basic diagnostics) _ enabled in Rev D |
| Open Loop Detection | Yes _ detects load < 50 Ω or > 1 kΩ; configurable alarm per channel |
| Short Circuit Protection | Yes _ electronic current limit at 25 mA per channel |
| Isolation | 1500 V RMS field-to-backplane; 250 V RMS channel-to-channel |
| Settling Time | < 3 ms to 0.1% of final value |
| Slew Rate | Configurable 0.1_50 mA/ms |
| Scaling | User-defined engineering units, 16-point custom table per channel, clamp limits |
| Diagnostics | Open loop, short circuit, overrange, HART communication status, loop voltage monitoring, module fault |
| Power Supply | +5 V DC @ 180 mA (from backplane) |
| Power Consumption | 0.9 W maximum |
| External Power | 24 V DC @ 140 mA (isolated loop supply) |
| LED Indicators | Module OK (green), Fault (red), 8x Channel Active (green), HART Active (yellow, blinking) |
| Configuration | Via Proficy Machine Edition (PME) 8.5+; supports field calibration, HART device integration |
| Firmware | Field-upgradable via PME |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | IEC 60068-2-6 (5g, 10_150 Hz) |
| Shock | IEC 60068-2-27 (30g, 11 ms) |
| Mounting | Snaps onto VersaMax carrier base (IC200ACCxxx) |
| Dimensions | 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm) |
| Weight | 0.50 lb (0.23 kg) |
| Enclosure Rating | IP20 |
| Revision D Enhancements | HART pass-through, faster update (10 ms), improved loop diagnostics, firmware upgrade support, enhanced EMI filtering |
| Standards Compliance | IEC 61131-2, CE, UL, CSA, Class I Division 2, ATEX Zone 2, HART 7 compatible, RoHS 2, IEC 61000-6-2/4 (EMC) |
