GE IC200ALG321J
GE IC200ALG321J
Manufacturer: General Electric
Product No.: IC200ALG321J
Condition:1000 trong kho

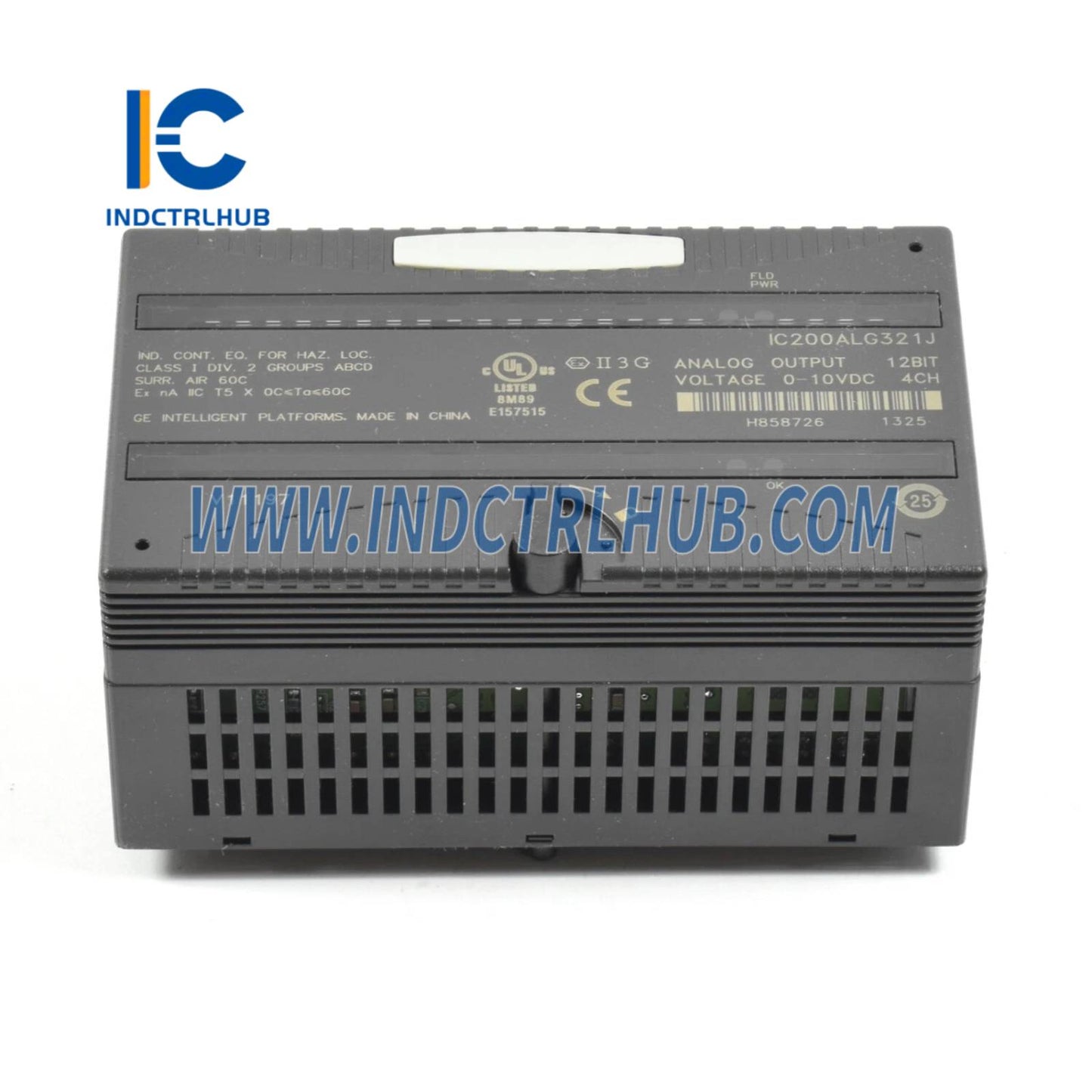

Product Type: VersaMax 4-Channel Analog Voltage Output Module _ Revision J
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Hỗ trợ 24/7
- Trả hàng trong vòng 30 ngày
- Vận chuyển nhanh
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG321J |
| Product Name | VersaMax 4-Channel Analog Voltage Output Module _ Revision J |
| Application | Precise 0_10 V or ±10 V control for industrial automation, process control, and machine systems (e.g., VFDs, servo drives, positioners, chart recorders) |
| Compatibility | GE VersaMax PLC (CPU, NIU, I/O carriers); backplane-powered via IC200CHSxxx carrier |
| Function | Provides 4 isolated analog voltage outputs with over-range capability, open-loop detection, high-resolution DAC, and fast update rate |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 4 (fully isolated) |
| Output Type | Voltage (0_10 V DC or ±10 V DC, software selectable per channel) |
| Output Range | 0_10.5 V or _10.5 V to +10.5 V (±5% over-range) |
| Resolution | 12-bit (4,096 counts over 0_10 V; 8,192 counts over ±10 V) |
| Accuracy | ±0.1% of full scale at 25°C |
| Update Rate | _ 0.3 ms per channel (1.2 ms full scan) |
| Load Capability | _ 2 kΩ (min load resistance); 5 mA max per channel |
| Open-Loop Detection | > 10.5 V or < _10.5 V triggers fault (configurable) |
| Isolation | 250 V RMS continuous channel-to-channel and channel-to-backplane |
| Power Supply | Backplane: 5 V DC @ 240 mA max No external loop power required |
| Operating Temperature | _40°C to +60°C (extended industrial range) |
| Storage Temperature | _40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | 90 mm (H) _ 50 mm (W) _ 75 mm (D) (standard VersaMax module) |
| Weight | 0.21 kg (0.46 lbs) |
| Connectors | Removable screw terminal block (8 terminals: 4 outputs + 4 returns) |
| LED Indicators | Module OK (green), Fault (red), 4x Channel Active (green) |
| Diagnostics | Open loop, over-range, under-range, module fault (via %Q/%AQ status bits) |
| Certifications | CE, UL, cUL, CSA, Class I Div 2, ATEX Zone 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508, CSA C22.2 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG321J (J = Enhanced diagnostics + extended temp + open-loop detect) |
| Replaces / Supersedes | IC200ALG321A__ (adds open-loop detection, ±5% over-range, _40°C support) |
| Available Options | _ IC200ALG321K: HART-enabled version _ IC200ALG320: 4_20 mA current output _ IC200ALG331: 8-channel, 16-bit |
| Accessories | _ IC200ACC301: Replacement terminal block _ IC200CBL601: Pre-wired output cable kit |
| Firmware | Configurable via Proficy Machine Edition or VersaPro (no field update needed) |
Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG321J |
| Product Name | VersaMax 4-Channel Analog Voltage Output Module _ Revision J |
| Application | Precise 0_10 V or ±10 V control for industrial automation, process control, and machine systems (e.g., VFDs, servo drives, positioners, chart recorders) |
| Compatibility | GE VersaMax PLC (CPU, NIU, I/O carriers); backplane-powered via IC200CHSxxx carrier |
| Function | Provides 4 isolated analog voltage outputs with over-range capability, open-loop detection, high-resolution DAC, and fast update rate |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 4 (fully isolated) |
| Output Type | Voltage (0_10 V DC or ±10 V DC, software selectable per channel) |
| Output Range | 0_10.5 V or _10.5 V to +10.5 V (±5% over-range) |
| Resolution | 12-bit (4,096 counts over 0_10 V; 8,192 counts over ±10 V) |
| Accuracy | ±0.1% of full scale at 25°C |
| Update Rate | _ 0.3 ms per channel (1.2 ms full scan) |
| Load Capability | _ 2 kΩ (min load resistance); 5 mA max per channel |
| Open-Loop Detection | > 10.5 V or < _10.5 V triggers fault (configurable) |
| Isolation | 250 V RMS continuous channel-to-channel and channel-to-backplane |
| Power Supply | Backplane: 5 V DC @ 240 mA max No external loop power required |
| Operating Temperature | _40°C to +60°C (extended industrial range) |
| Storage Temperature | _40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | 90 mm (H) _ 50 mm (W) _ 75 mm (D) (standard VersaMax module) |
| Weight | 0.21 kg (0.46 lbs) |
| Connectors | Removable screw terminal block (8 terminals: 4 outputs + 4 returns) |
| LED Indicators | Module OK (green), Fault (red), 4x Channel Active (green) |
| Diagnostics | Open loop, over-range, under-range, module fault (via %Q/%AQ status bits) |
| Certifications | CE, UL, cUL, CSA, Class I Div 2, ATEX Zone 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508, CSA C22.2 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG321J (J = Enhanced diagnostics + extended temp + open-loop detect) |
| Replaces / Supersedes | IC200ALG321A__ (adds open-loop detection, ±5% over-range, _40°C support) |
| Available Options | _ IC200ALG321K: HART-enabled version _ IC200ALG320: 4_20 mA current output _ IC200ALG331: 8-channel, 16-bit |
| Accessories | _ IC200ACC301: Replacement terminal block _ IC200CBL601: Pre-wired output cable kit |
| Firmware | Configurable via Proficy Machine Edition or VersaPro (no field update needed) |
