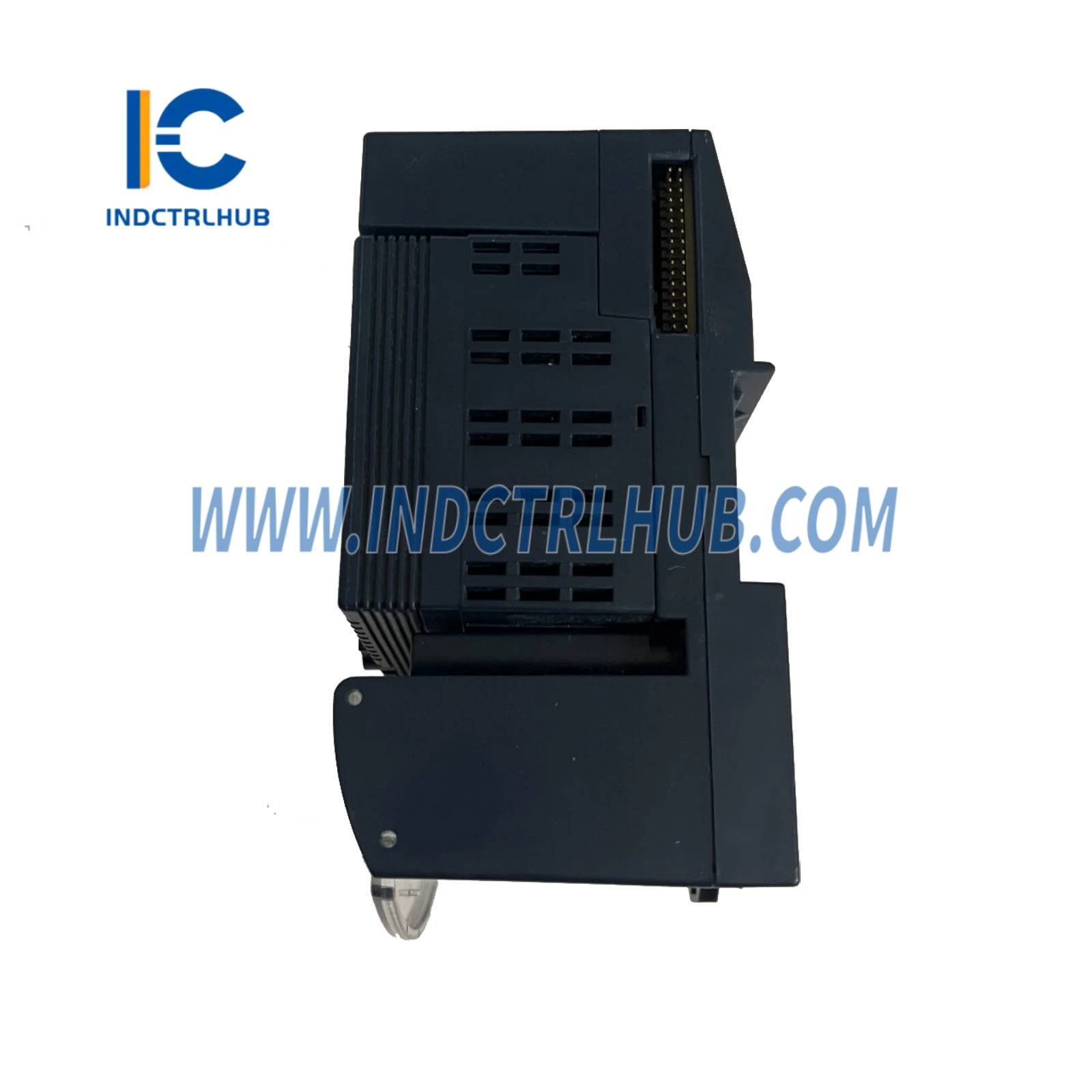

GE IC200ALG320K
GE IC200ALG320K
Manufacturer: General Electric
Product No.: IC200ALG320K
Condition:1000 trong kho
Product Type: 4-Channel Analog Output Module (Current, 12-Bit)
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Hỗ trợ 24/7
- Trả hàng trong vòng 30 ngày
- Vận chuyển nhanh
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG320K |
| Description | 4-Channel Analog Output Module (Current, 12-Bit) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG320K |
| Product Name | IC200ALG320 VersaMax Analog Output Module |
| Application | Analog current output for industrial automation and process control in PLC systems, such as valve positioning, actuator control, and analog signal transmission |
| Compatibility | Integrates with GE VersaMax PLC systems; mounts on VersaMax carrier bases (IC200ACCxxx); compatible with VersaMax CPUs and NIUs |
| Function | Provides 4-channel 4-20 mA current-sourcing outputs with 12-bit resolution for precise control of field devices |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 4 single-ended, one group |
| Output Type | Current-sourcing: 4-20 mA nominal (0-21 mA range) |
| Resolution | 12-bit (4 µA per step) |
| Accuracy | ±0.3% of full scale at 25°C |
| Update Rate | 0.3 ms maximum per channel |
| Load Resistance | Up to 750 Ω maximum |
| Overrange Current | Up to 20.38 mA per channel |
| Isolation | 1500 V AC (field to logic and frame ground) |
| External Power Supply | 18-30 V DC (nominal 24 V DC), 100 mA minimum |
| Power Consumption | 50 mA from +5 V bus (backplane) |
| Operating Temperature Range | 0 to 60°C |
| Storage Temperature Range | -40 to 85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 110 mm x 66 mm x 45 mm (W x H x D) approximate |
| Weight | 0.2 kg |
| Mounting | Snaps onto VersaMax carrier base |
| LED Indicators | FLD PWR (field power), OK (module status) |
| Wiring Configuration | Single-ended |
| Standards Compliance | IEC 61131-2, CE, UL, CSA, Class I Division 2 |
