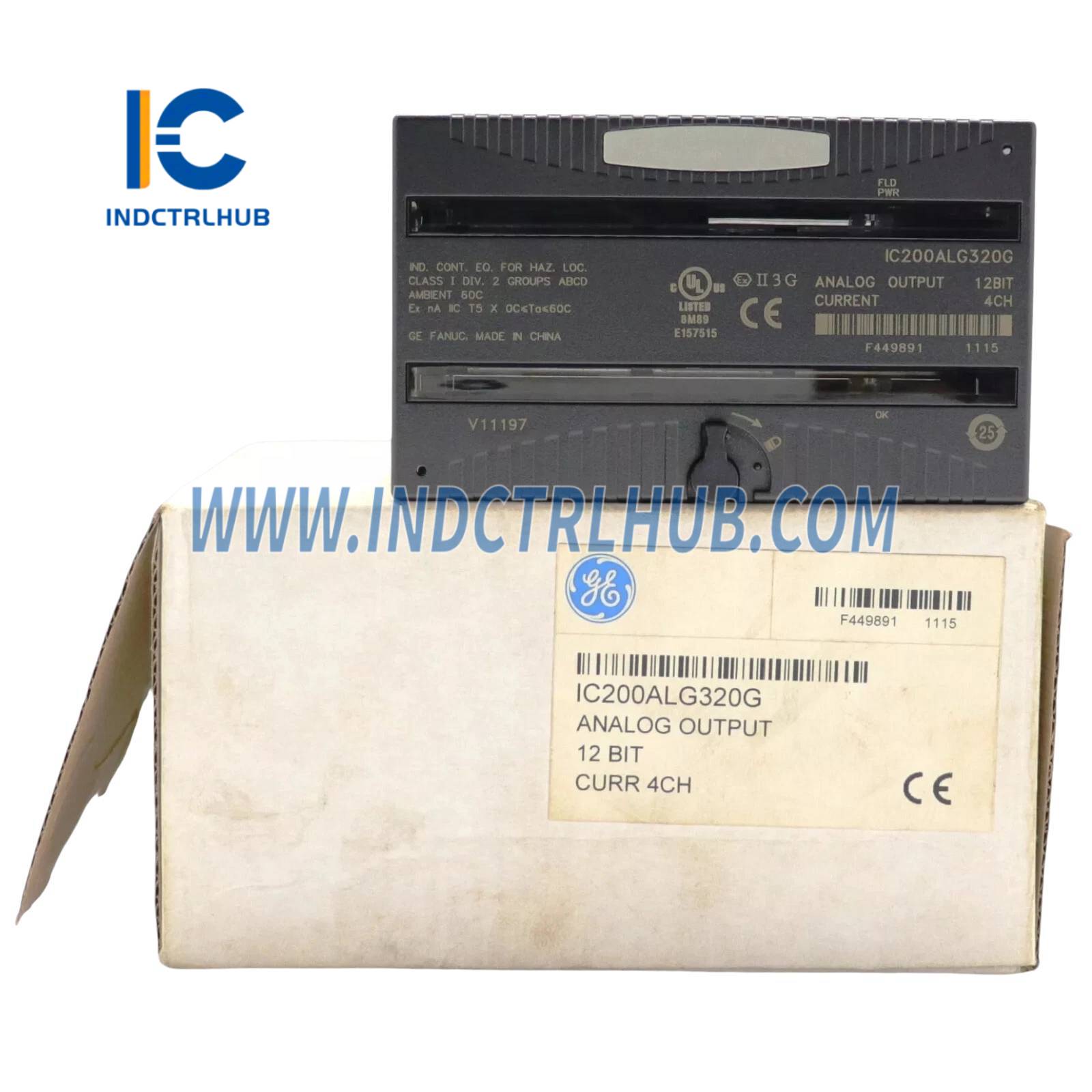

GE IC200ALG320G
GE IC200ALG320G
Manufacturer: General Electric
Product No.: IC200ALG320G
Condition:1000 trong kho
Product Type: VersaMax 4-Channel Analog Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Hỗ trợ 24/7
- Trả hàng trong vòng 30 ngày
- Vận chuyển nhanh
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG320G |
| Product Name | VersaMax 4-Channel Analog Output Module |
| Application | Analog signal output for industrial automation and process control systems, suitable for controlling devices like valves, actuators, and drives |
| Compatibility | VersaMax PLC system; integrates with VersaMax CPUs, power supplies, and communication modules via backplane |
| Function | Provides 4 isolated analog outputs with high-resolution digital-to-analog conversion for precise control signals |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 4 (single-ended, isolated) |
| Output Type | 4-20 mA current-sourcing outputs |
| Resolution | 12-bit |
| Accuracy | ±0.1% of span |
| Output Range | 4-20 mA (with modest overrange up to 20.38 mA) |
| Update Rate | 0.3 ms maximum |
| Supply Voltage | 18-30 V DC (external power supply required for outputs) |
| Current Consumption | 240 mA max (backplane-powered) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Isolation | 250 V working voltage between channels and backplane |
| Dimensions | Standard VersaMax module size (approximate: 90 mm x 50 mm x 75 mm) |
| Weight | Approximately 0.2 kg |
| Certifications | CE marked; UL, cUL, CSA compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG320G (4-channel, 12-bit, isolated analog output module, Revision G) |
| Available Options | Variants for voltage outputs (e.g., IC200ALG321) or higher resolution (e.g., IC200ALG331) |
| Customization | Fieldbus integration or extended temperature range available upon request |
