Product Description
Product Overview
Parameter | Details |
---|---|

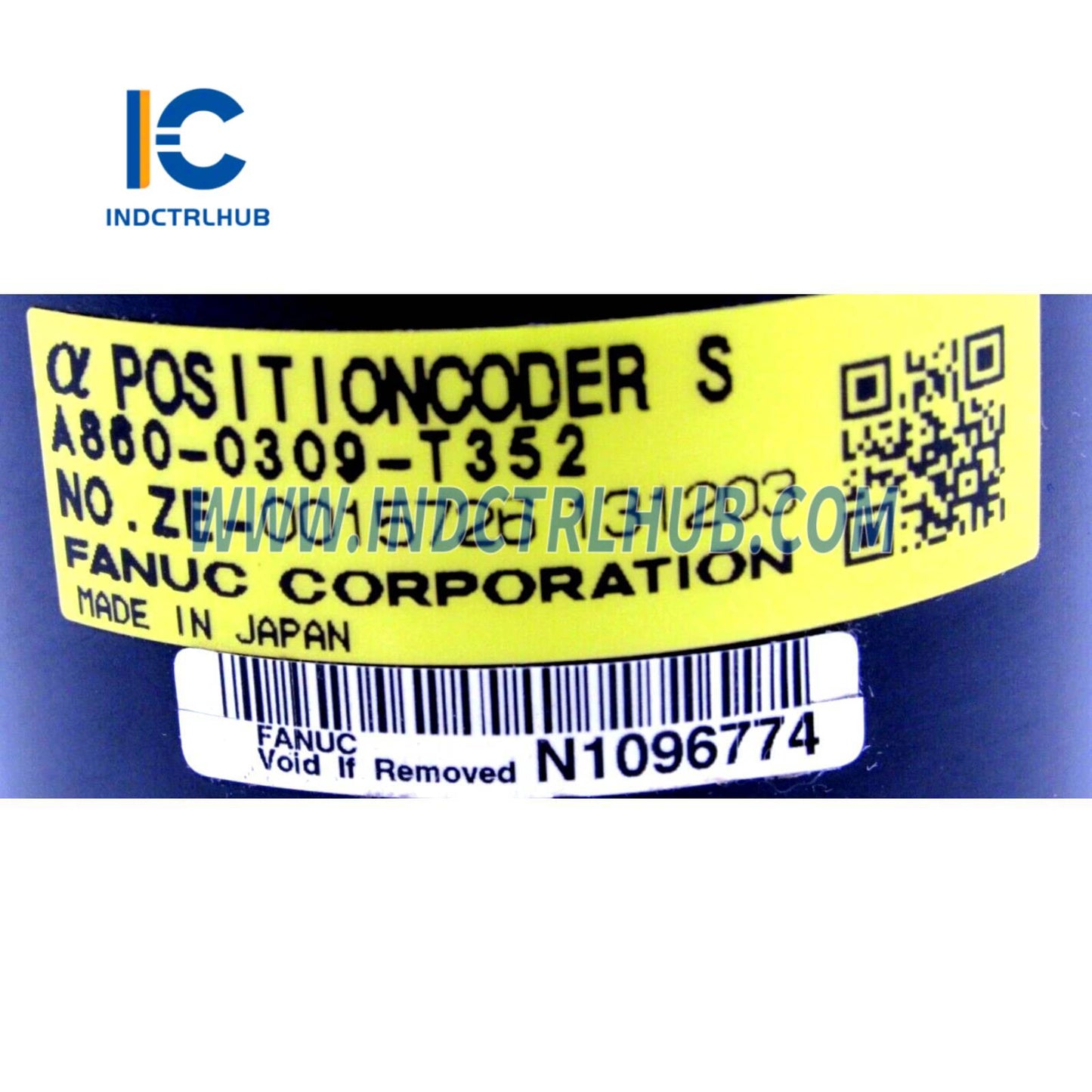

Part Number | A860-0309-T352 |

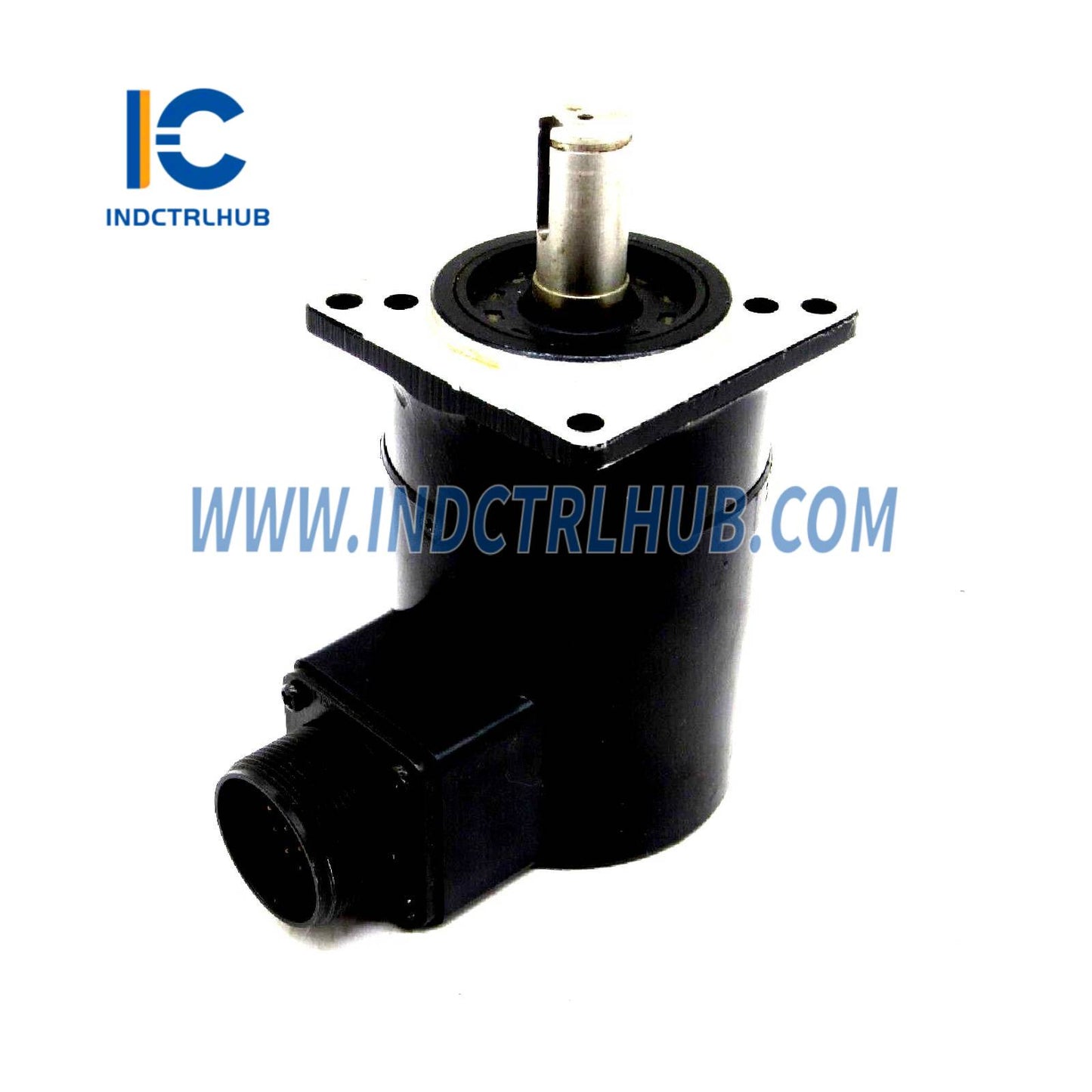

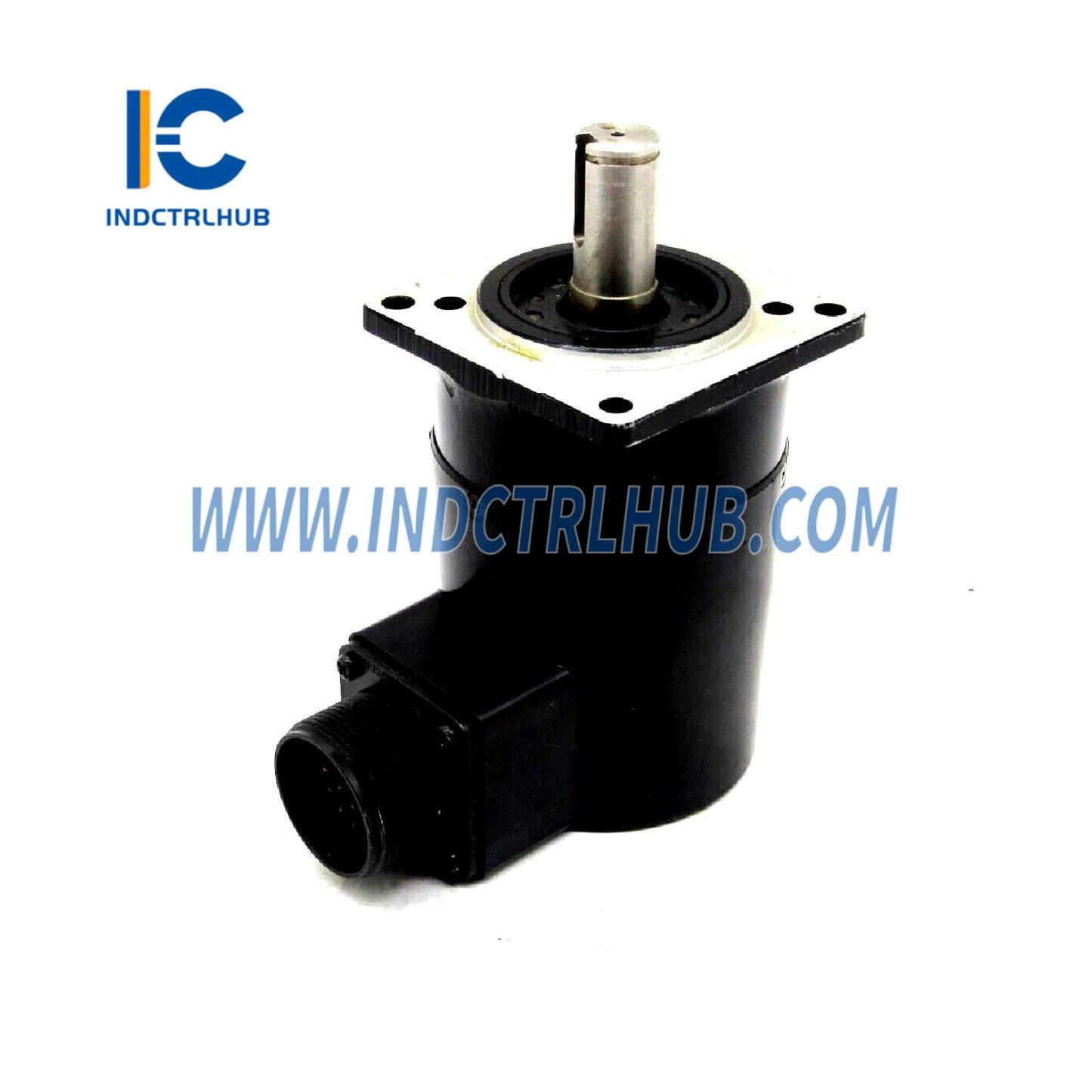

Product Name | Alpha-S Spindle Position Encoder |
Application | Precision position and speed measurement for CNC spindles in machine tools and industrial automation |
Compatibility | Compatible with GE Fanuc Alpha i Series servo systems and CNC controls (e.g., Series 0i, 16i/18i/21i) |
Function | Provides absolute or incremental position feedback for spindle control, ensuring accurate RPM and position tracking |
Functional Specifications
Parameter | Details |
---|---|
Encoder Type | Incremental rotary encoder |
Pulses per Revolution | 1024 |
Maximum Speed | 10,000 RPM |

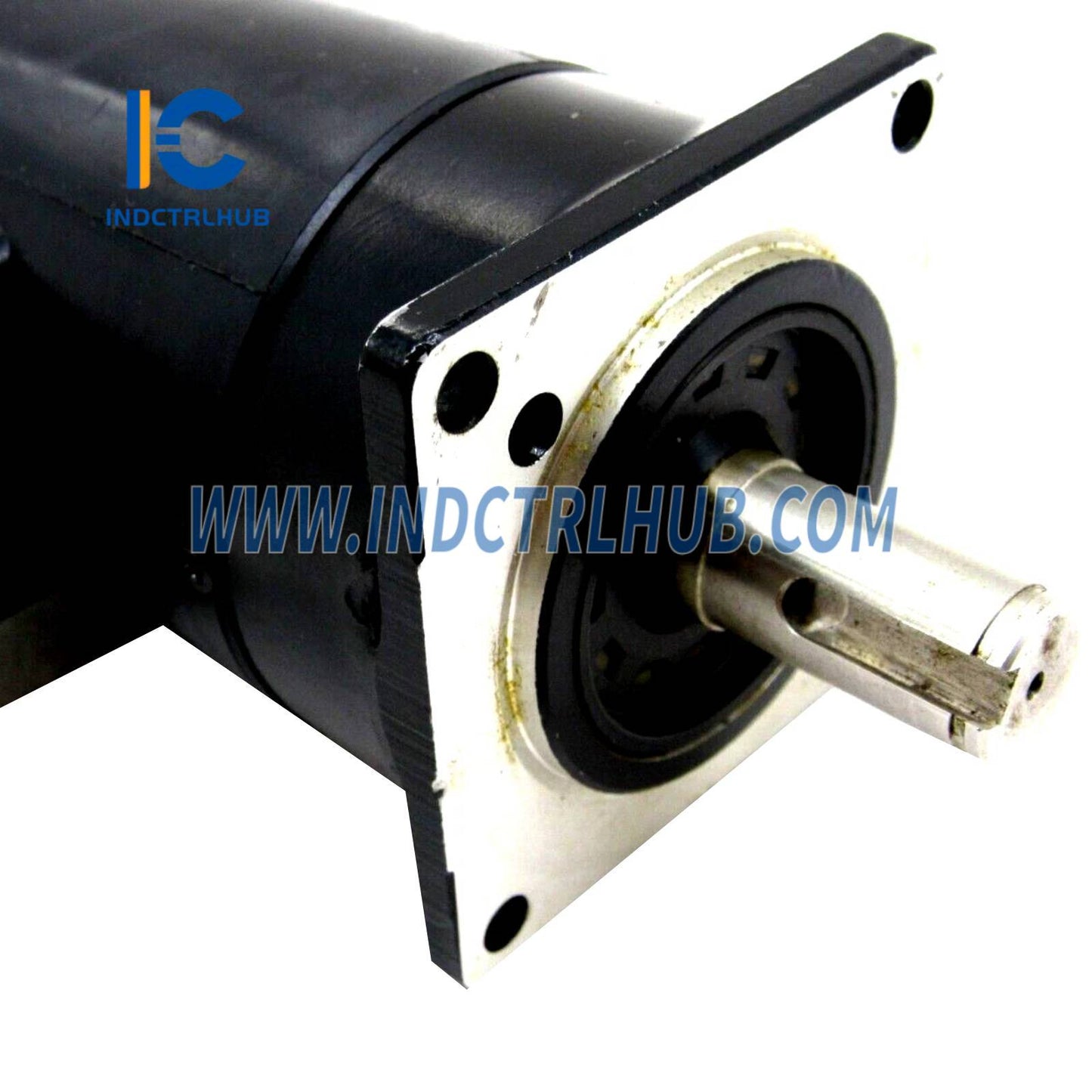

Shaft Type | Tapered shaft (TPR) for secure mounting |
Flange Size | 68 mm square |

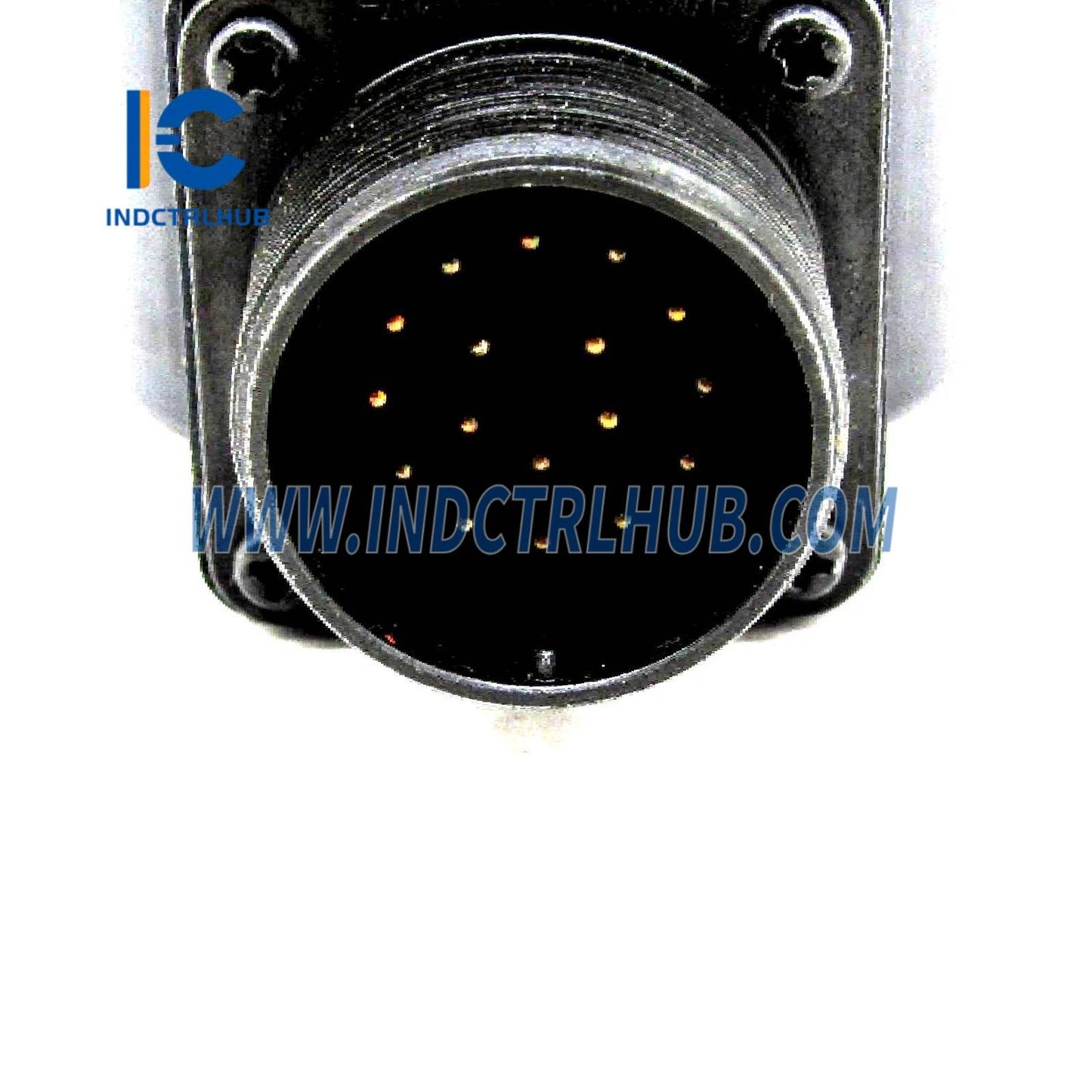

Output Interface | Long line drive (differential output) |
Operating Temperature | 0°C to 55°C |
Storage Temperature | -20°C to +65°C |
Dimensions | Approximate: 68 mm flange diameter x 150 mm length |
Weight | Approximately 0.5 kg |
Power Supply | 5 V DC or 12-24 V DC (standard for Fanuc encoders) |
Certifications | CE marked; UL compliant |
Standards Compliance | IEC 60034 compliant for rotating electrical machines |
Ordering Information
Parameter | Details |
---|---|
Part Number Configuration | A860-0309-T352 (Alpha-S 10,000 RPM Spindle Encoder, TPR shaft, incremental) |
Available Options | Variants for straight shaft (ST), absolute encoding, or different pulse counts |
Customization | Refurbished, repair, or core exchange options available upon request |
