Product Description
Product Overview
| Parameter | Details |
|---|---|

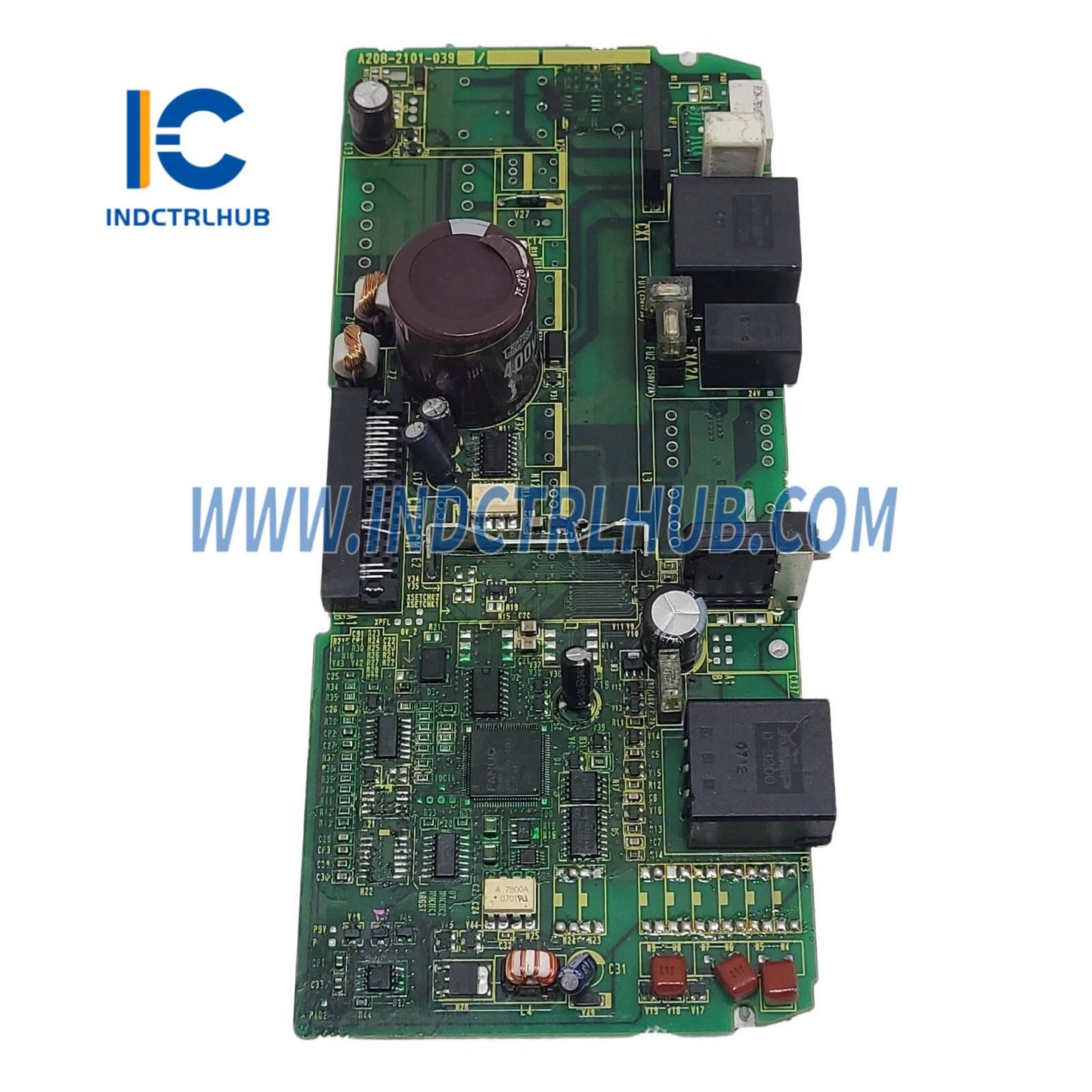

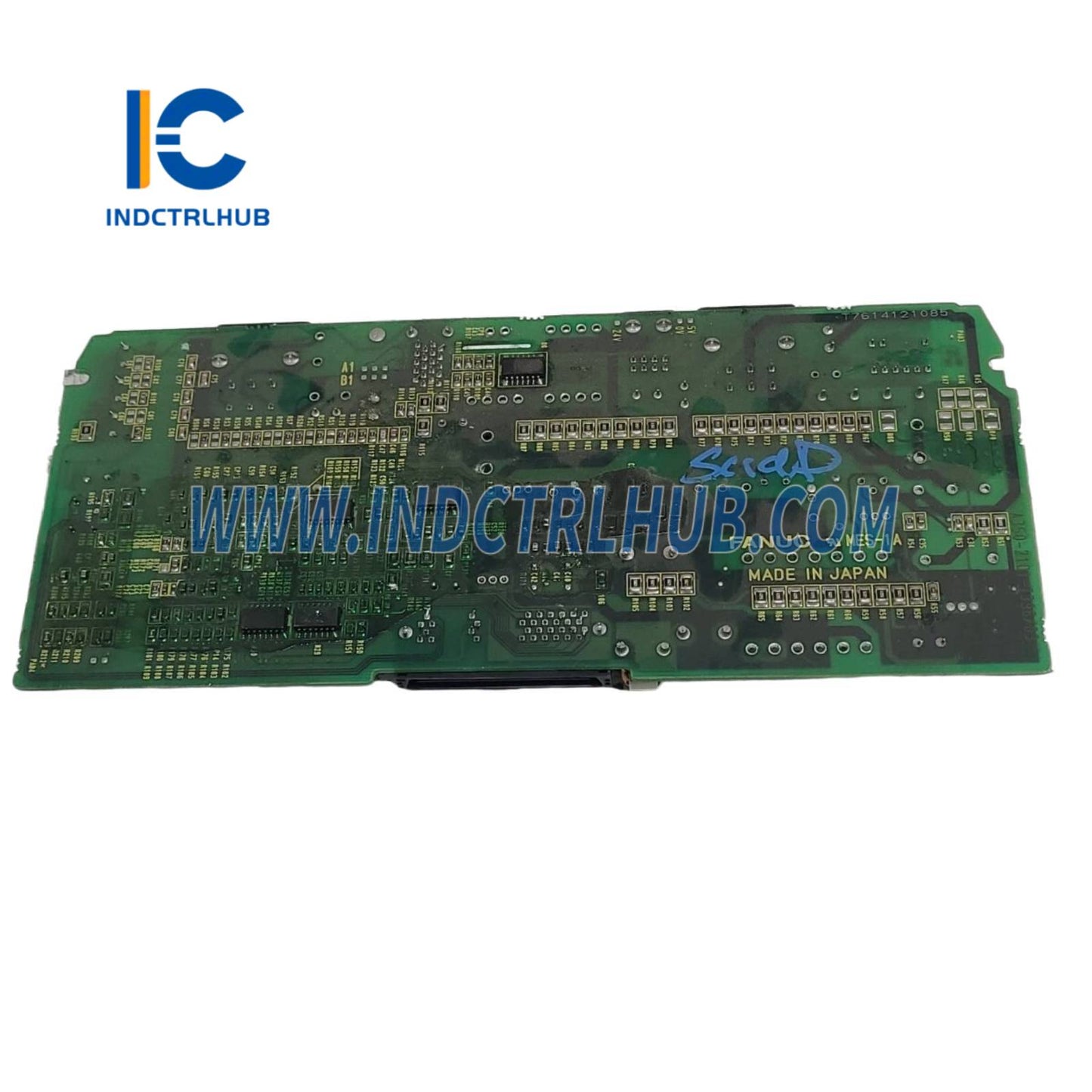

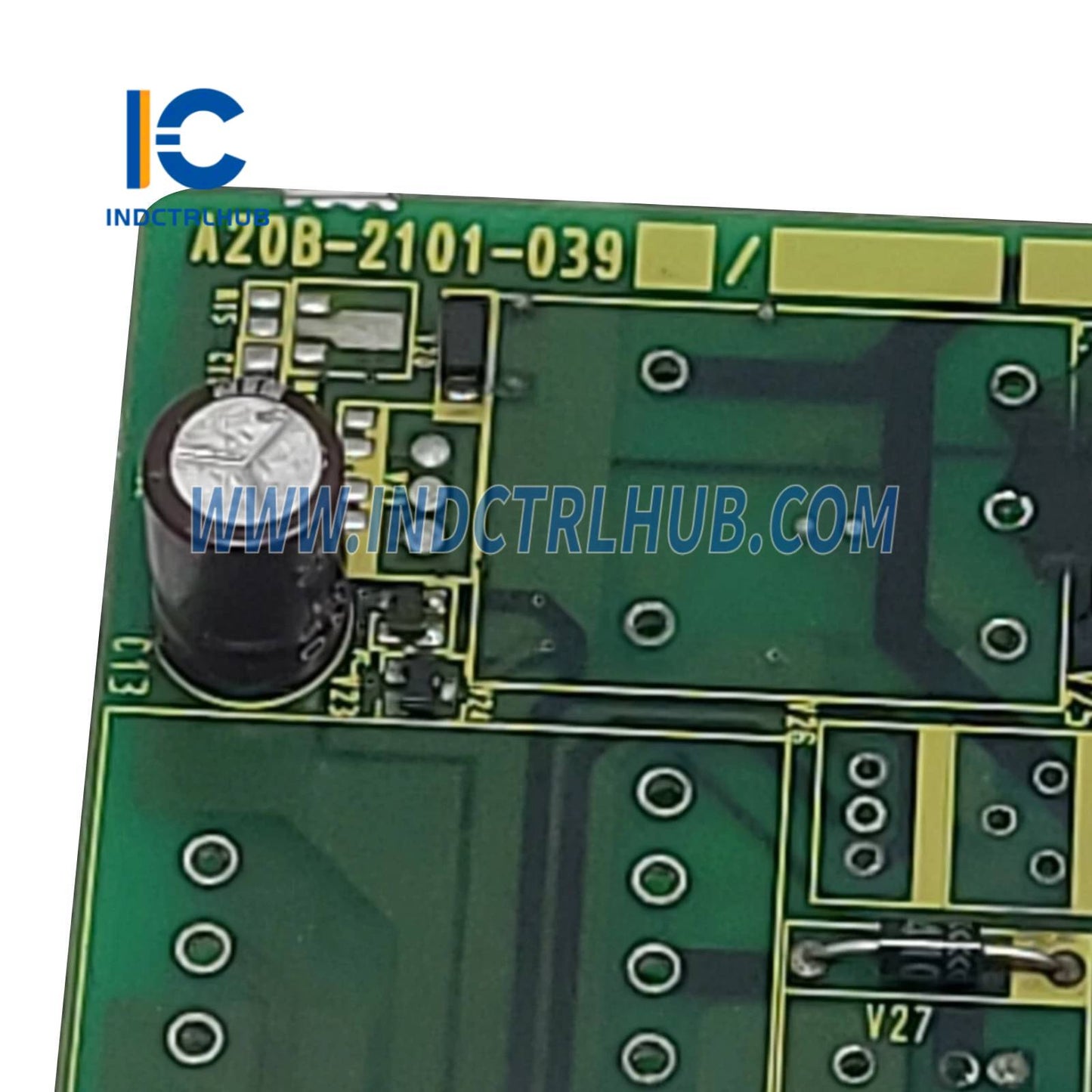

| Part Number | A20B-2101-039 |
| Product Name | Digital Servo Control Board |
| Application | CNC control systems for machine tools, providing digital servo and spindle control for precise motion in manufacturing processes |
| Compatibility | Compatible with GE Fanuc Series 0i, 16i/18i/21i CNC controls and related servo amplifiers |
| Function | Manages digital servo axis control and spindle operations, interfacing with CNC systems for high-precision motion control |
Functional Specifications
| Parameter | Details |
|---|---|
| Board Type | Digital servo control circuit board |
| Control Interface | Supports Fanuc FSSB (Fiber Optic Servo Serial Bus) for servo/spindle communication |
| Voltage Rating | 24 V DC (standard for Fanuc CNC boards) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +65°C |
| Dimensions | Standard Eurocard size (approximate: 100 mm x 160 mm x 20 mm) |
| Weight | Approximately 0.5 kg |
| Power Consumption | Low power, typically <10 W |
| Certifications | CE marked; UL compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | A20B-2101-039 (Digital Servo Control Board for Series 0i/16i/18i/21i) |
| Available Options | Refurbished or new; core exchange program available; compatible with coated versions for harsh environments |
| Customization | Firmware updates or integration with specific Fanuc CNC configurations available upon request |
