Product Description

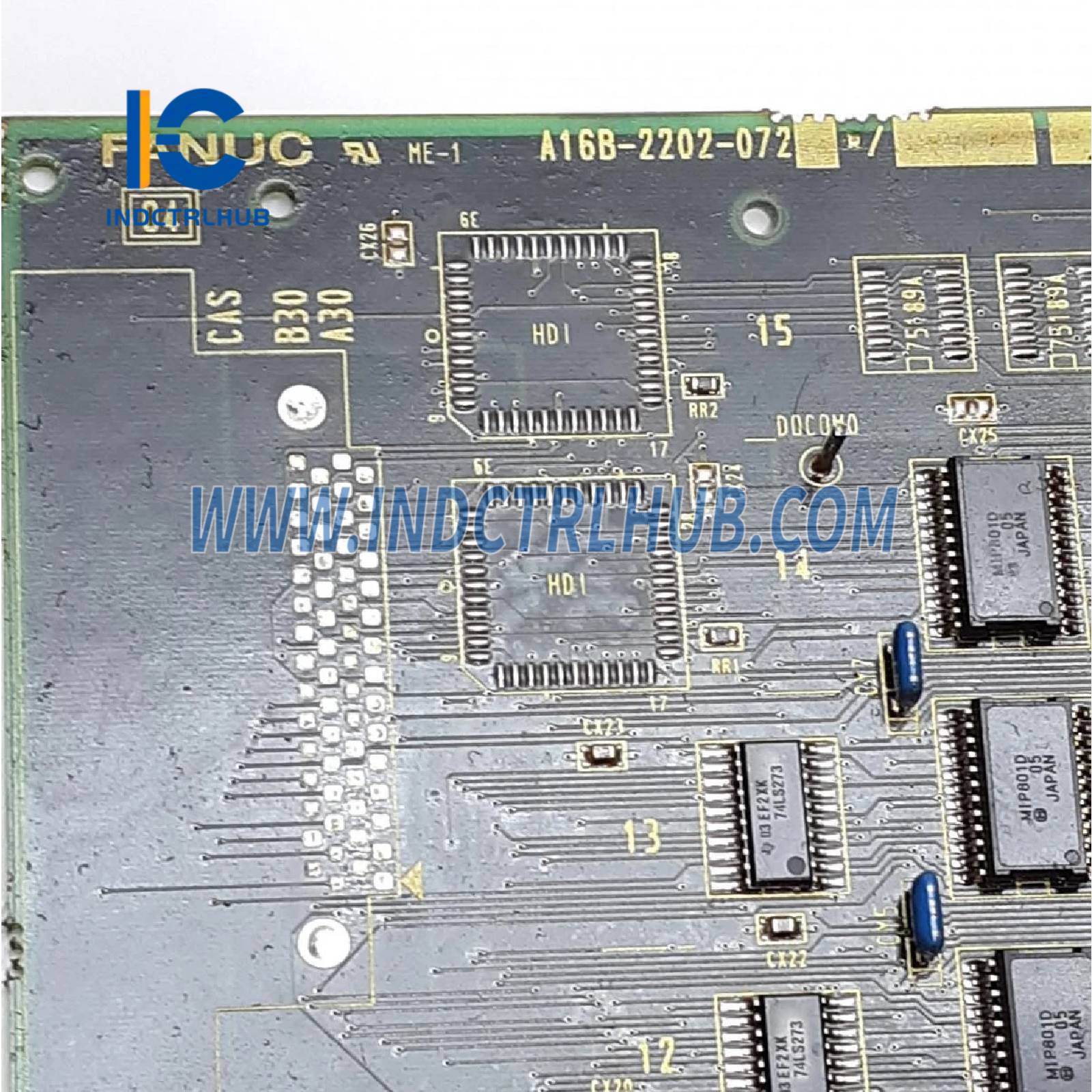

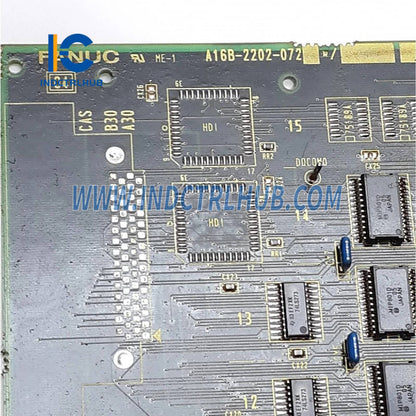

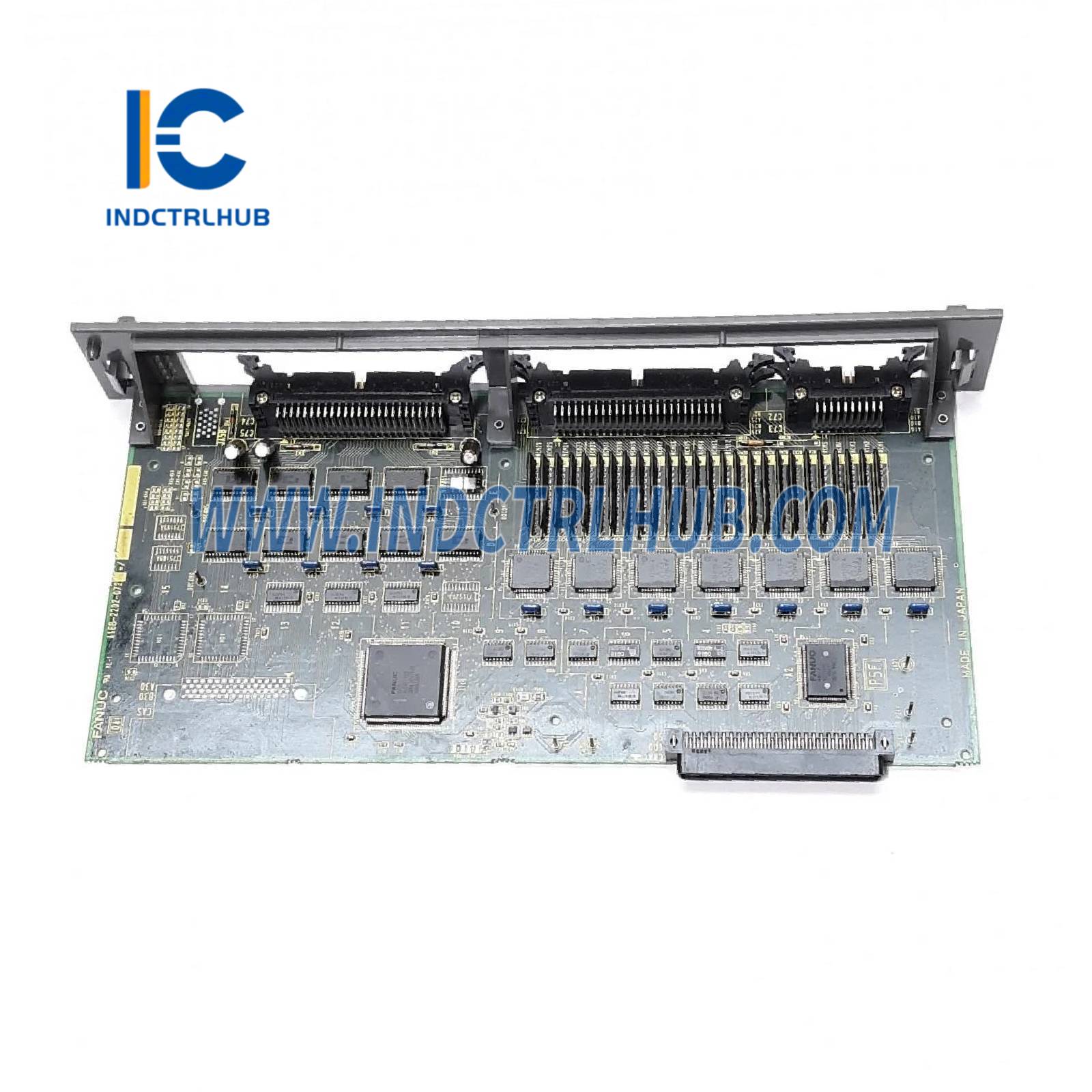

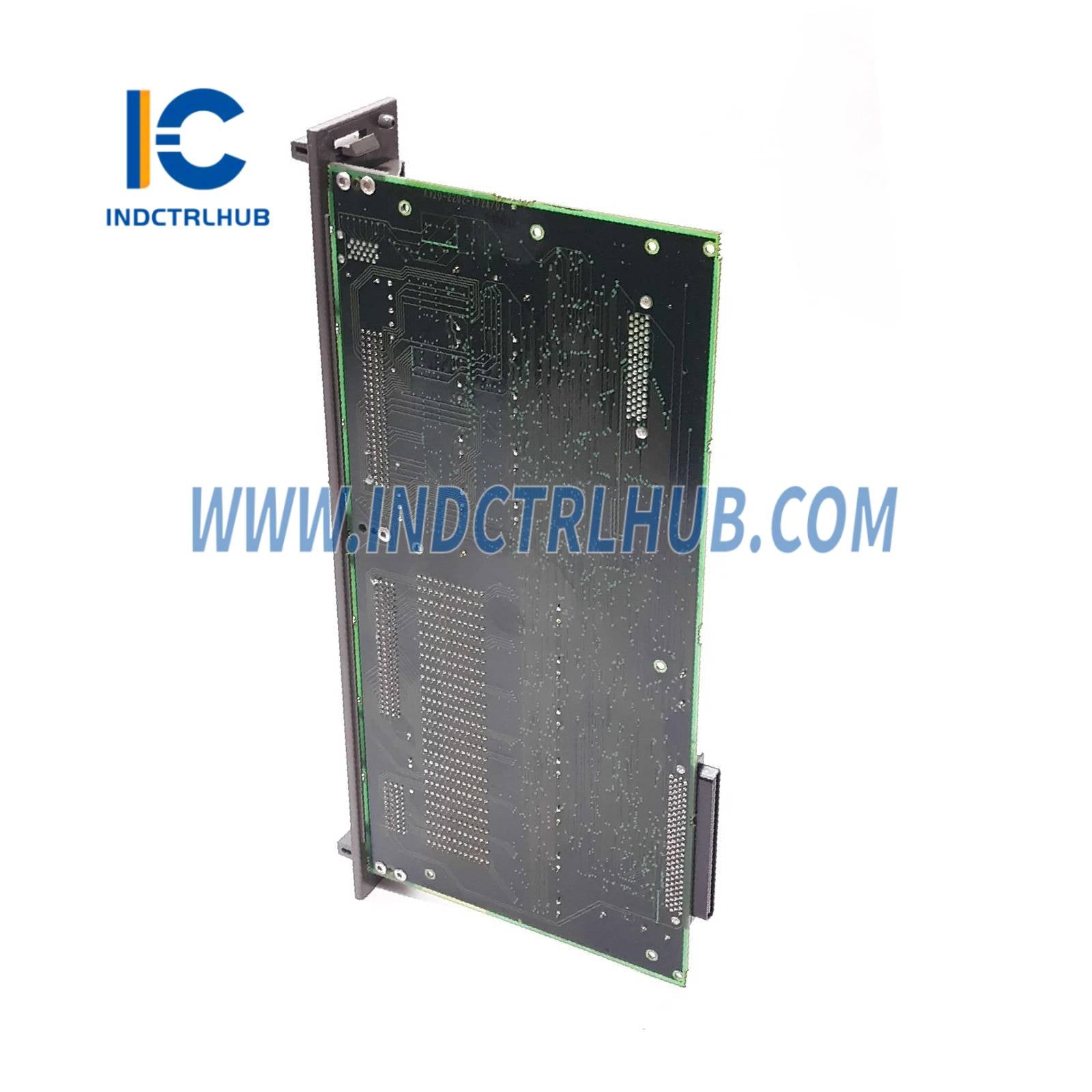

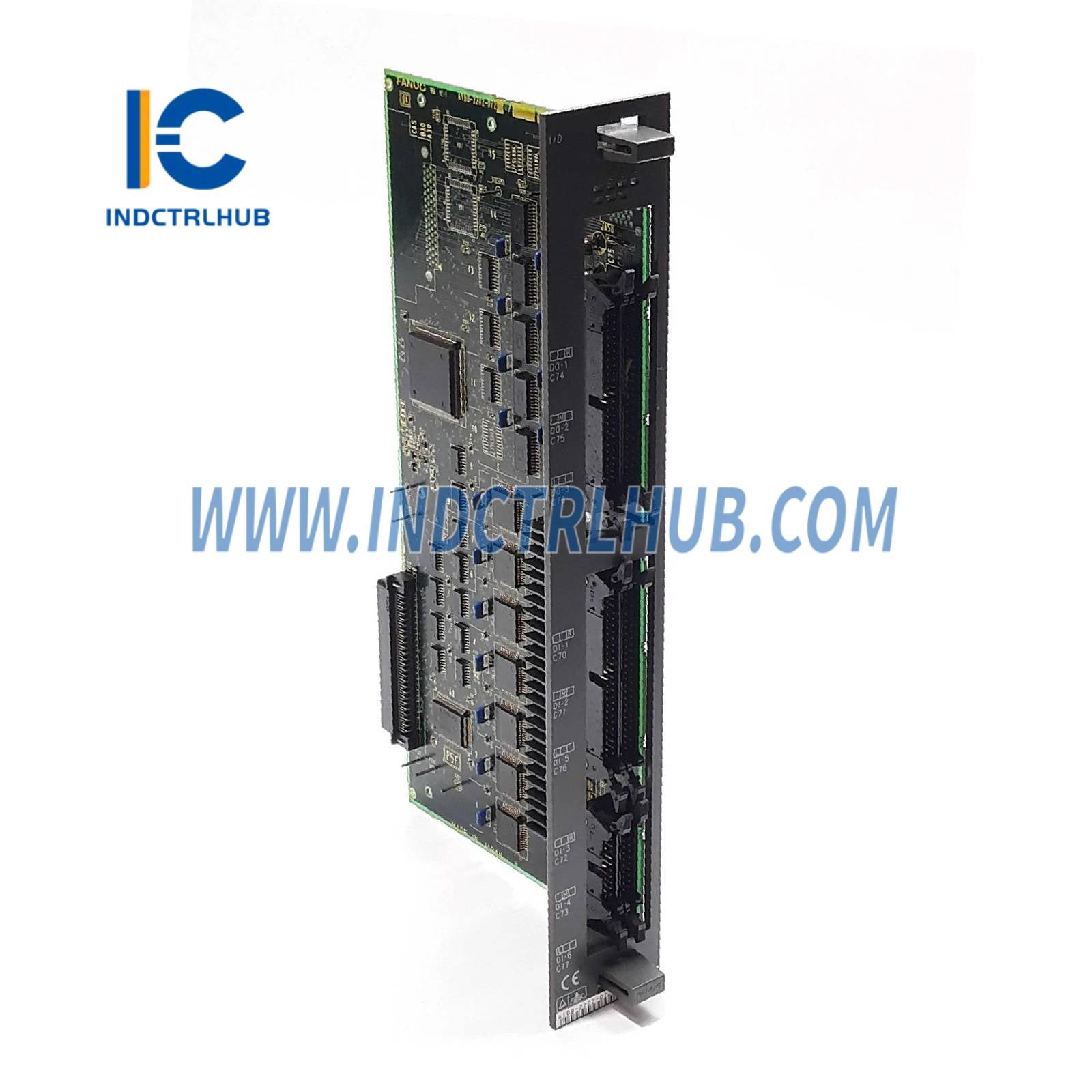

GE Fanuc A16B-2202-0722/04B900060 Parameters
Product Overview
| Parameter | Details |
|---|---|
| Part Number | A16B-2202-0722/04B900060 |
| Product Name | Servo Control PCB (Printed Circuit Board) |
| Application | CNC control systems for machine tools, providing servo and spindle control for Series 15/150/15i CNC systems |
| Compatibility | Compatible with GE Fanuc Series 15, 150, 15i CNC controls, and related servo amplifiers |
| Function | Manages servo axis control and spindle operations, integrating with CNC systems for precise motion control |
Functional Specifications
| Parameter | Details |
|---|---|
| Board Type | Servo control circuit board |
| Revision Level | 04B (revision variant) |
| Control Interface | Supports Fanuc FSSB (Fiber Optic Servo Serial Bus) for servo/spindle communication |
| Voltage Rating | 24 V DC (standard for Fanuc CNC boards) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +65°C |
| Dimensions | Standard Eurocard size (approximate: 100 mm x 160 mm x 20 mm) |
| Weight | Approximately 0.5 kg |
| Power Consumption | Low power, typically <10 W |
| Certifications | CE marked; UL compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | A16B-2202-0722/04B900060 (Servo Control PCB for Series 15/150/15i) |
| Available Options | Refurbished or new; core exchange program available; compatible revisions (e.g., /05B, /06C) |
| Customization | Firmware updates or integration with specific Fanuc CNC configurations available upon request |
