| Texnik xususiyat |
Tafsilotlar |
| Model |
8440-1934 |
| Seriya |
easYgen-3500-5 |
| Tur |
Mikroprotsessor asosidagi genset boshqaruvchisi |
| Kirish kuchlanishi |
12/24 VDC (8–35 VDC diapazoni) |
| Quvvat iste'moli |
< 15 W |
| PT kirish |
690 VAC gacha |
| CT kirish |
0–5 A RMS |
| Tezlik kirishi |
Magnit qabul qiluvchi blok (MPU) yoki CAN orqali dvigatel ECU |
| Ishlash harorati |
-20°C dan +70°C gacha (-4°F dan +158°F gacha) |
| Saqlash harorati |
-30°C dan +80°C gacha (-22°F dan +176°F gacha) |
| Nisbiy namlik |
5% dan 95% gacha, kondensatsiyasiz |
| Himoya darajasi |
IP20 (old panel muhr bilan IP54) |
| O'lchamlar |
282 mm x 358 mm x 69 mm (11.1 dyuym x 14.1 dyuym x 2.7 dyuym) |
| Og'irligi |
Taxminan 2,5 kg (5,5 funt) |
| Oʻrnatish |
Old panelga o'rnatish |

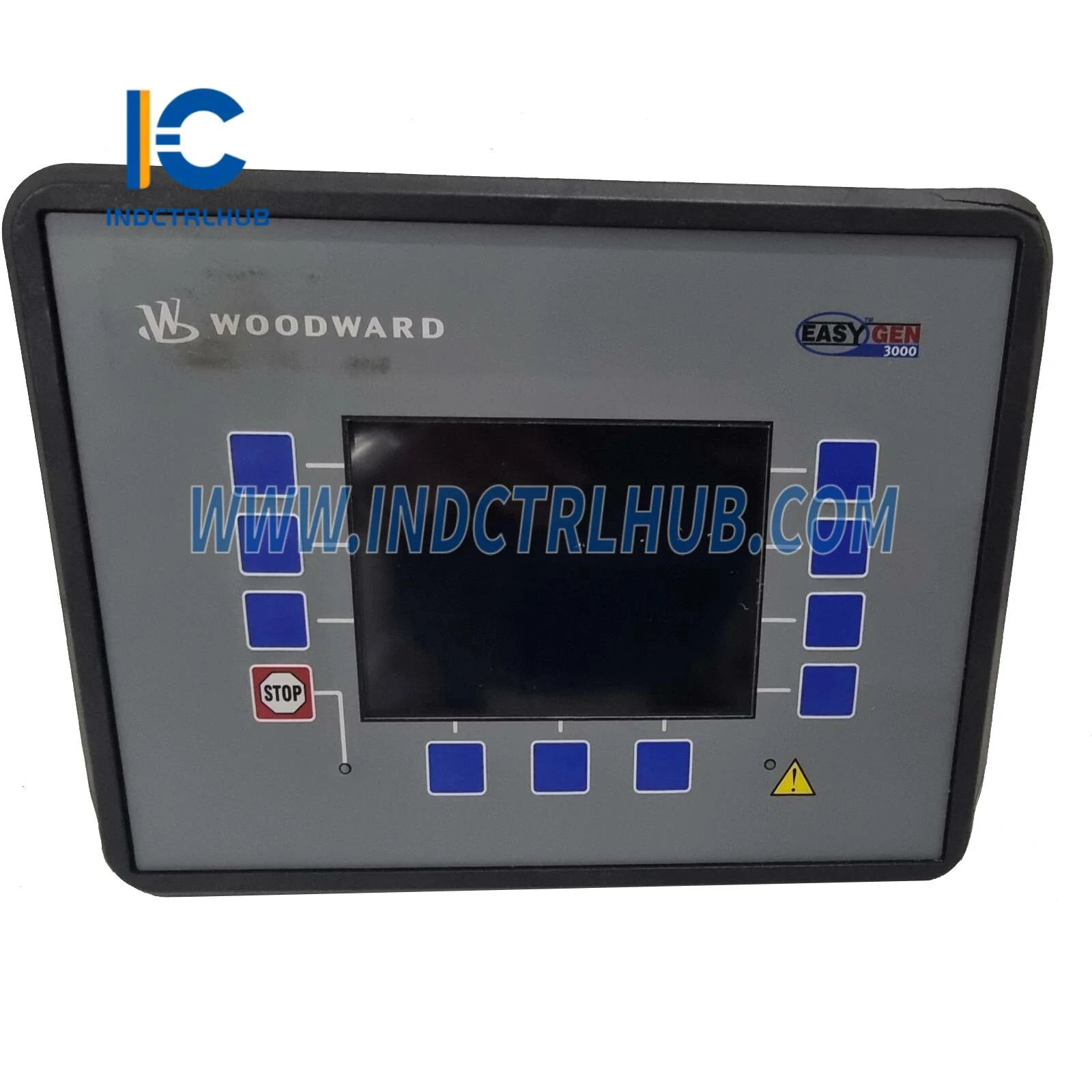

| Displey |
5.7 dyuym orqa yoritilgan rangli LCD, ko'p tilli (ingliz, ispan, xitoy, yapon, nemis, fransuz, portugal, rus, italyan, turk) |

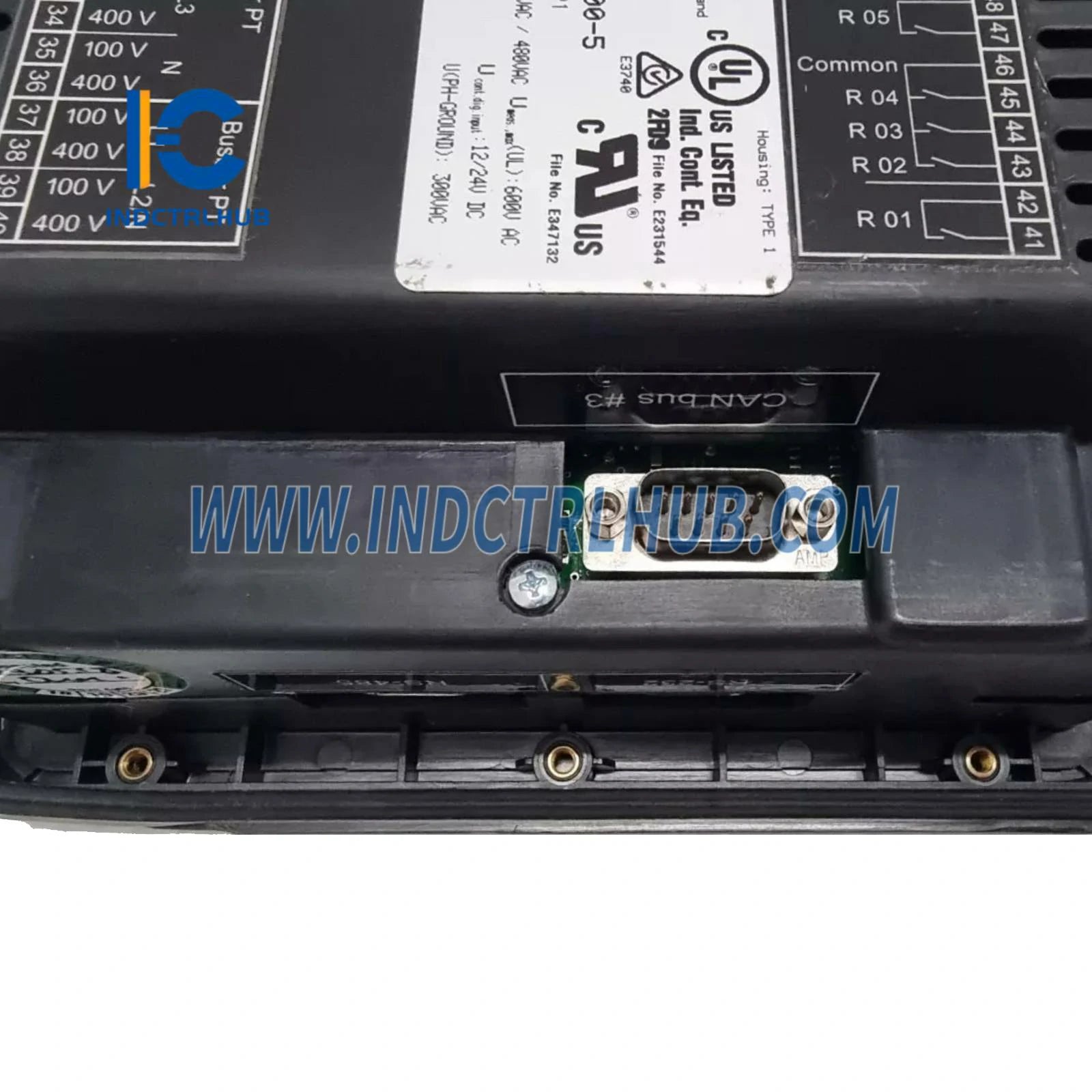

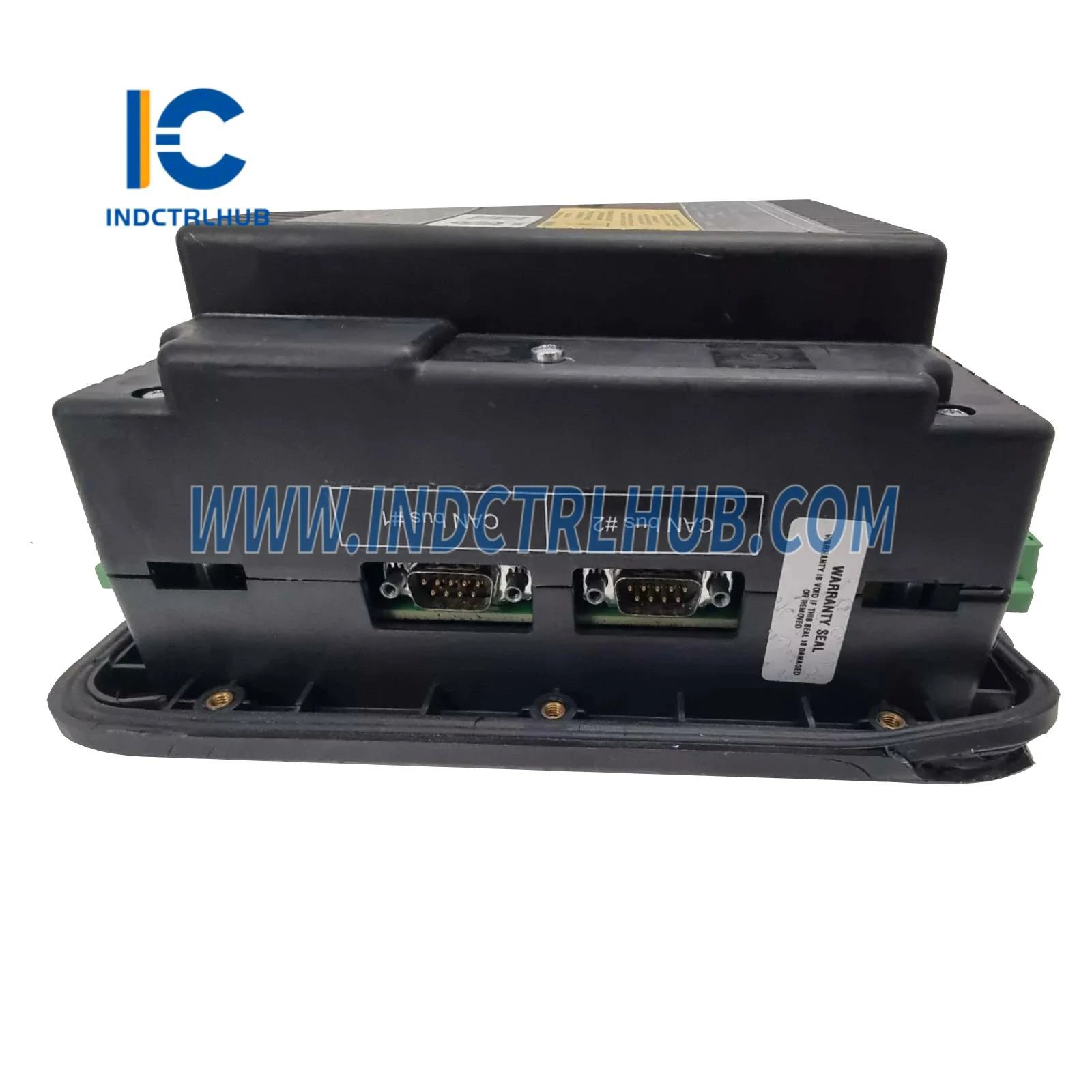

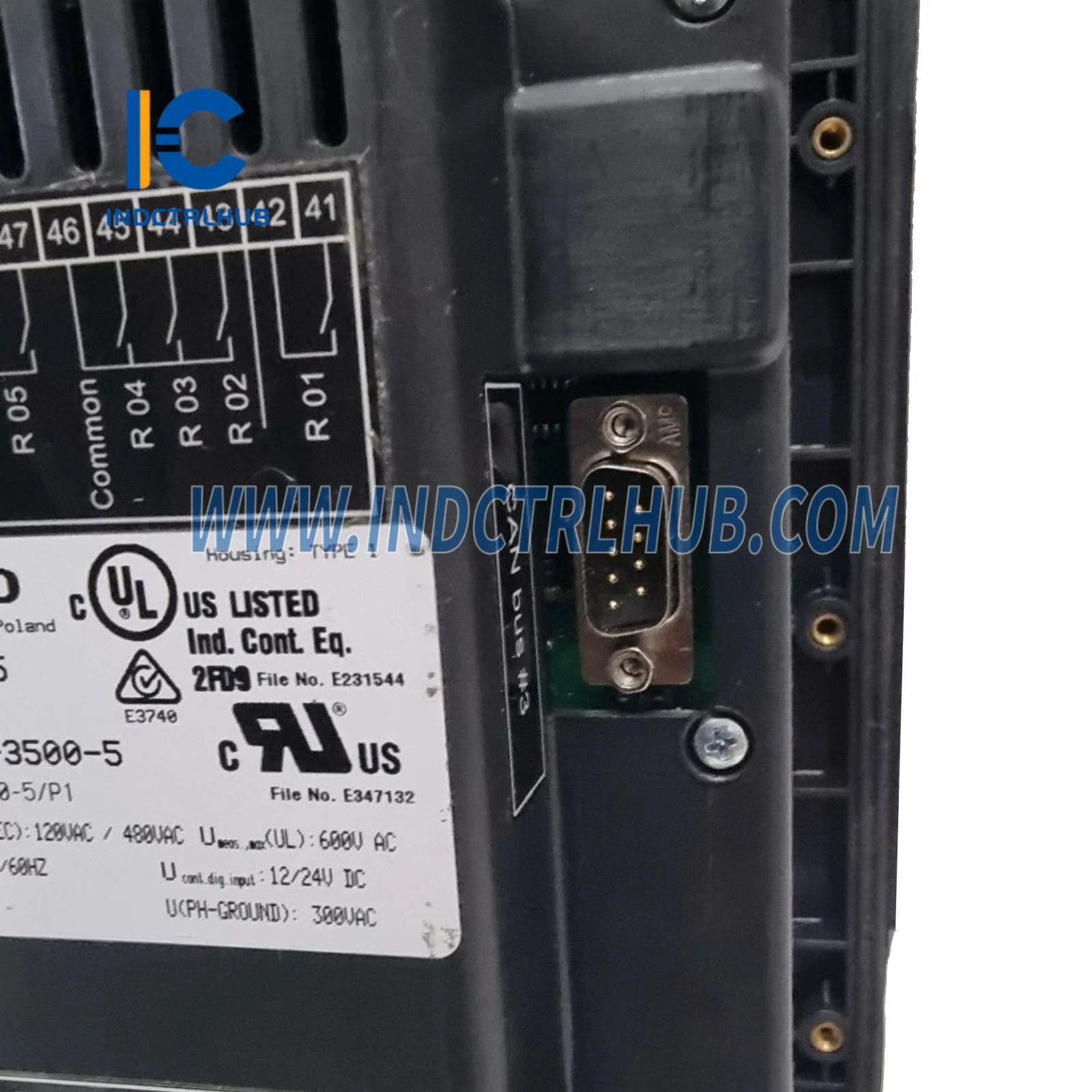

| Aloqa |
CANopen, SAE J1939, Modbus RTU (slave), ServLink |
| Kirishlar |
10 tagacha diskret kirishlar, 3 ta analog kirish (FlexIn orqali sozlanadi) |
| Chiqishlar |
12 tagacha diskret rele chiqishlari, 2 ta analog chiqish (±10 V, ±20 mA, PWM) |
| Kirish/Chiqish kengaytmasi |
CANopen orqali 16 tagacha tashqi diskret I/O (masalan, Woodward IKD 1) |
| Voqea yozgichi |
Real vaqt soati bilan 300 tagacha voqea (batareya bilan qo'llab-quvvatlanadi, ~5 yil) |
| Sertifikatlar |
CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register |
| Tizim mosligi |
Dizel/gaz dvigateli generator to'plamlari, SAE J1939-ga mos ECUlar (masalan, Scania, MTU, Volvo, Deutz, Cummins), Woodward LS-5, RP-3500 Uzoq Panel |
