Product Description

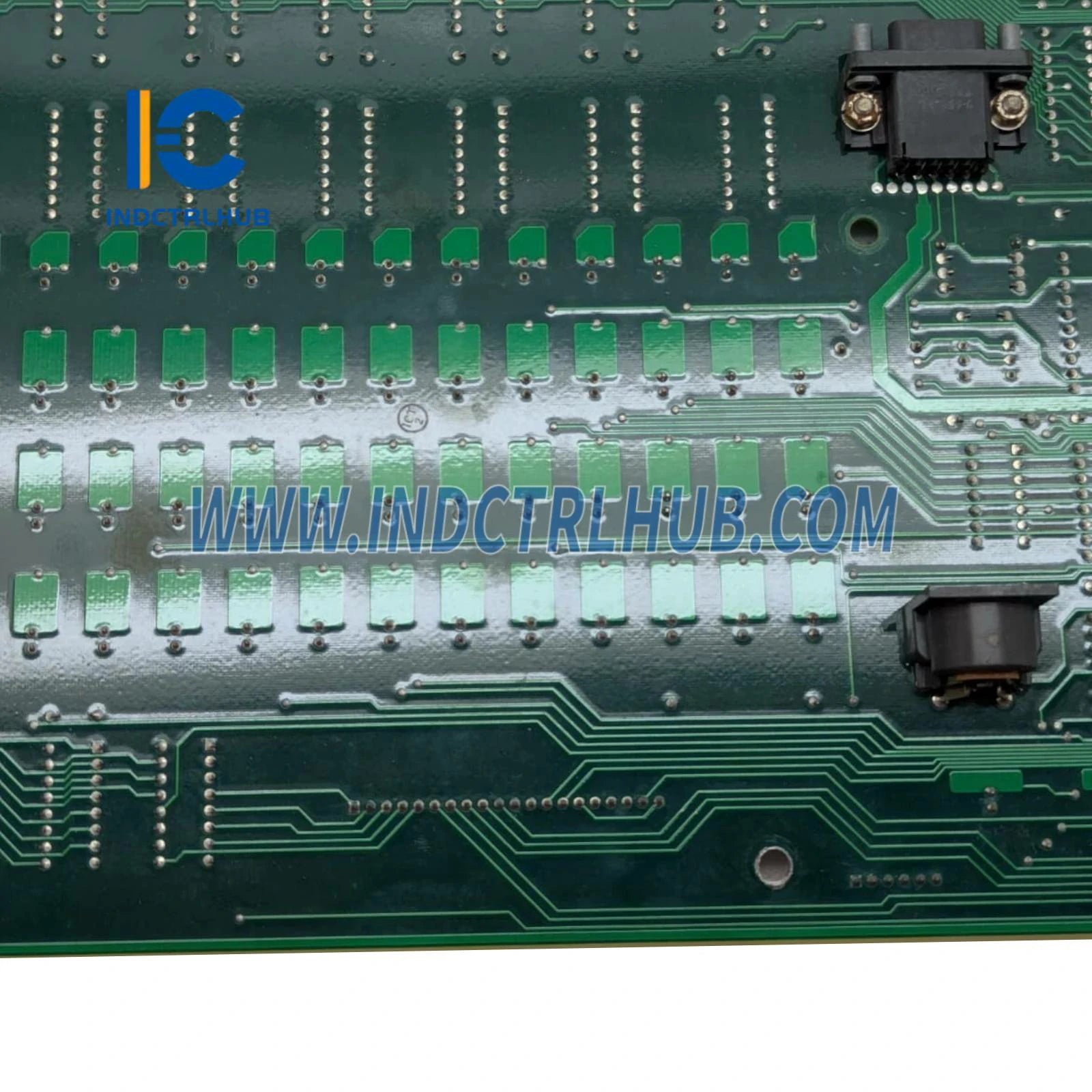

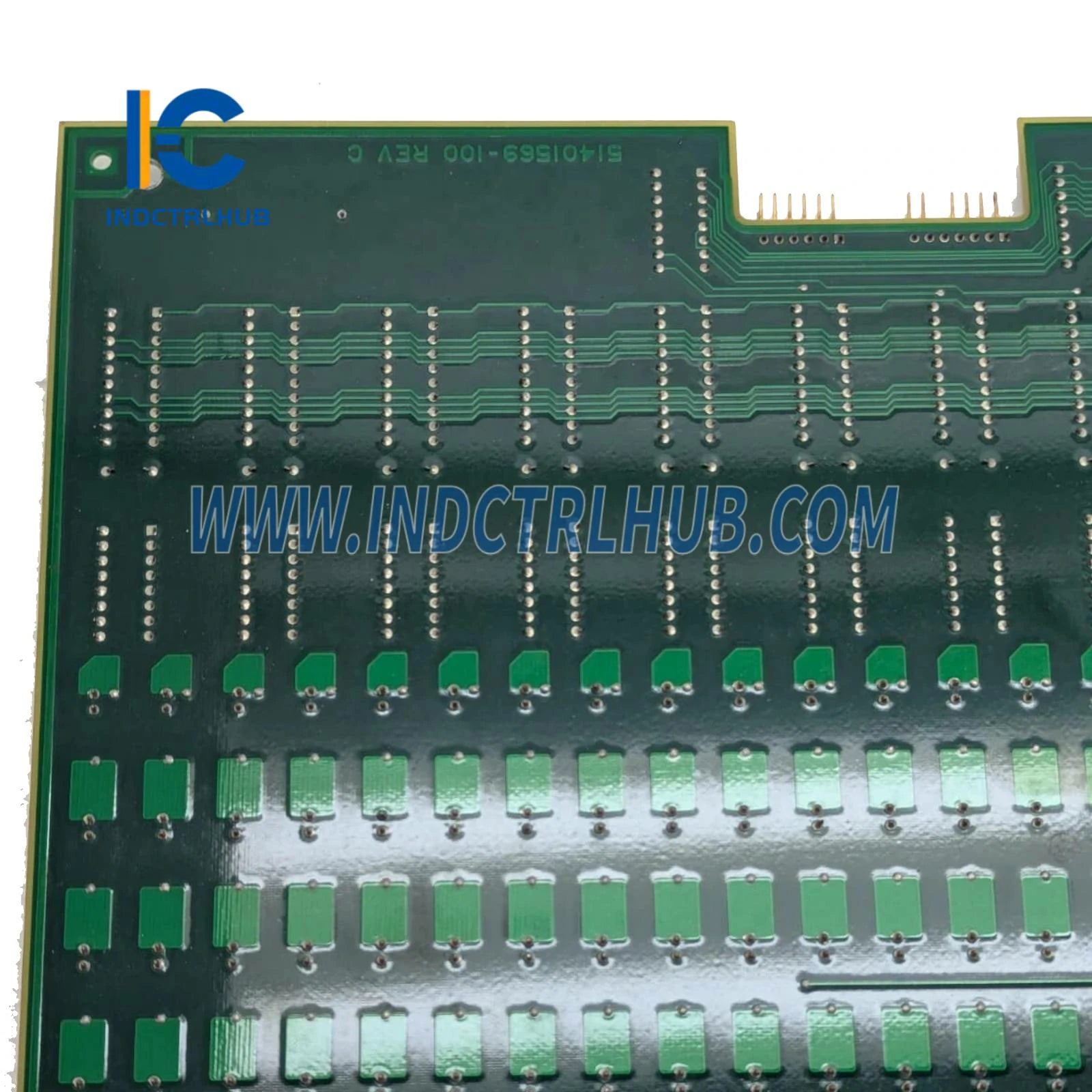

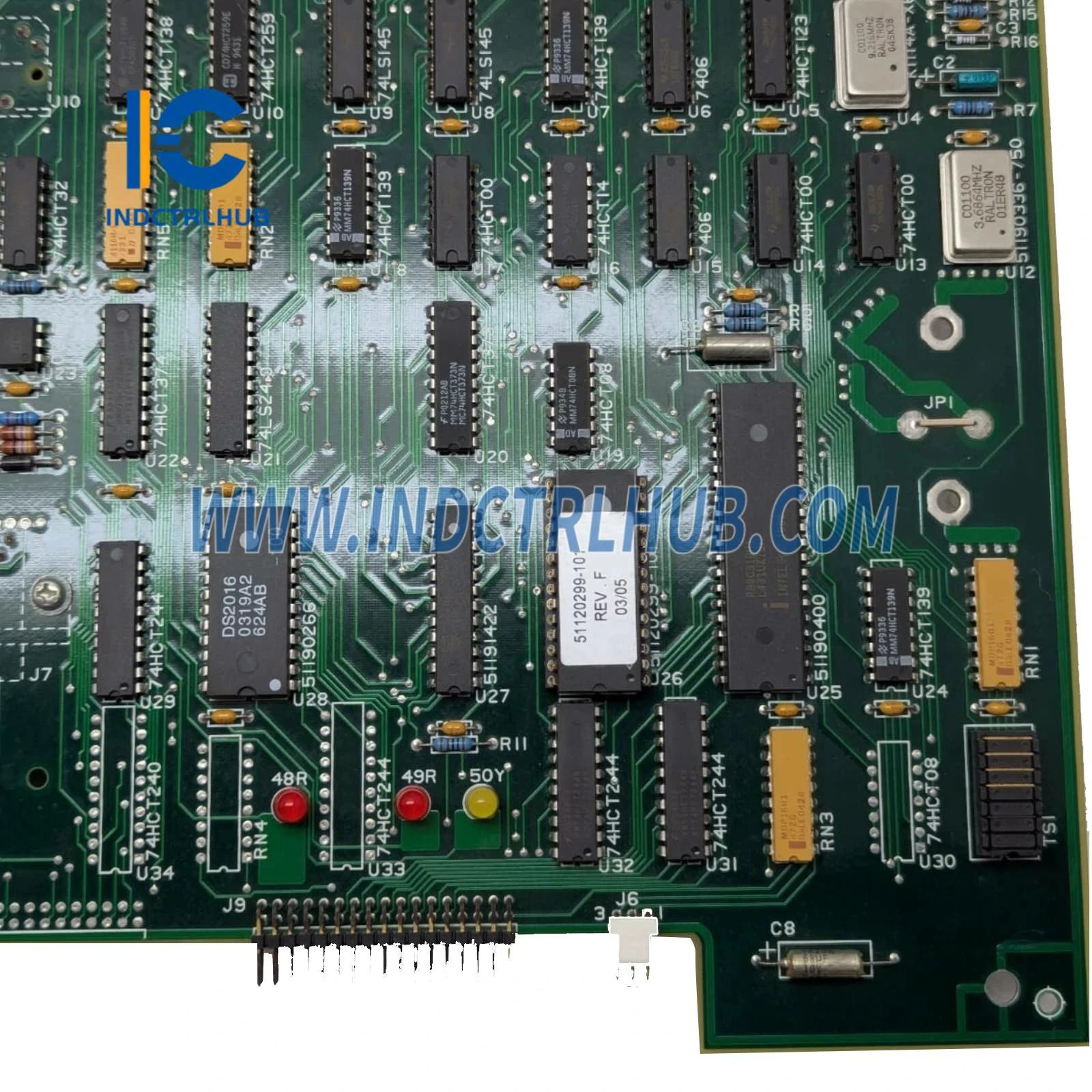

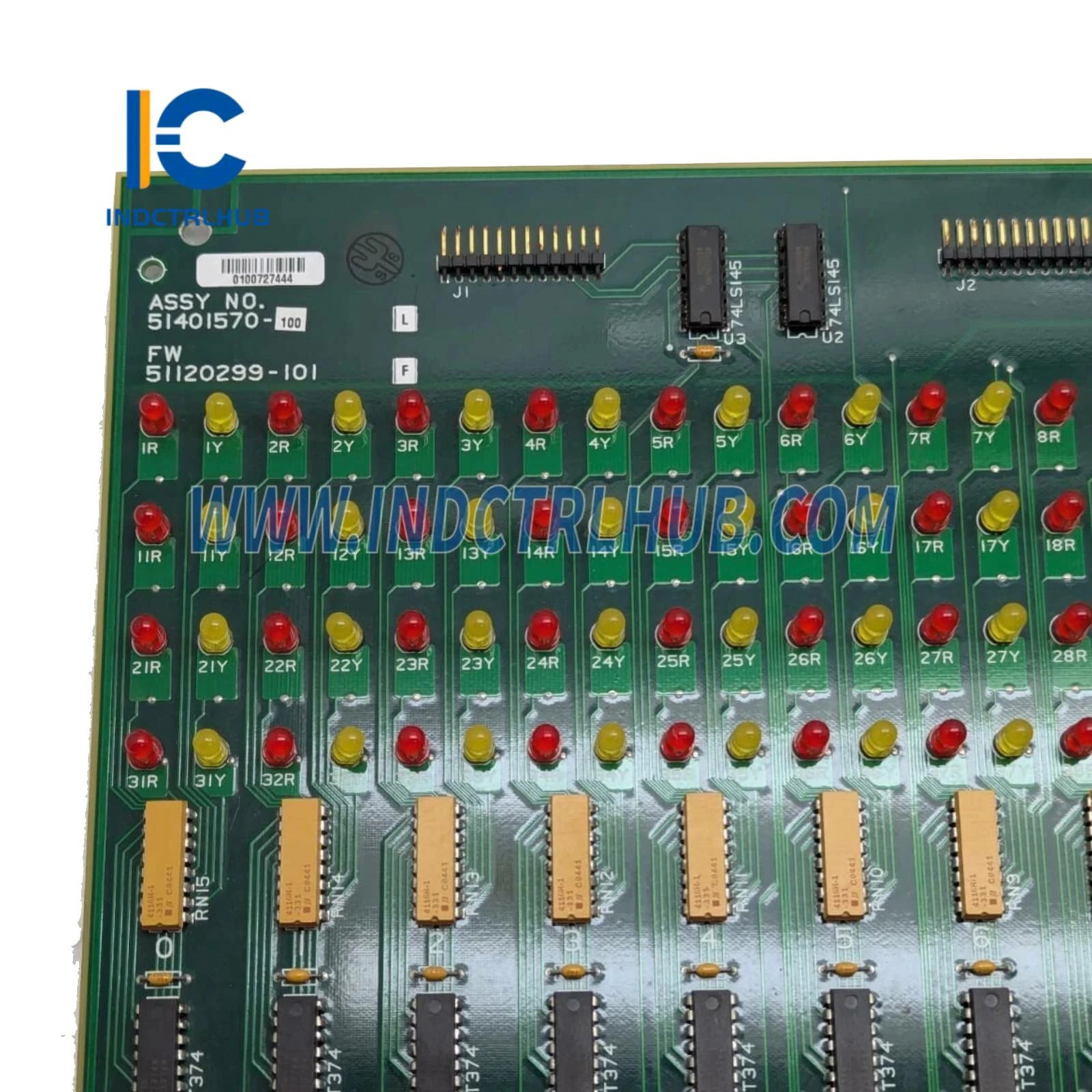

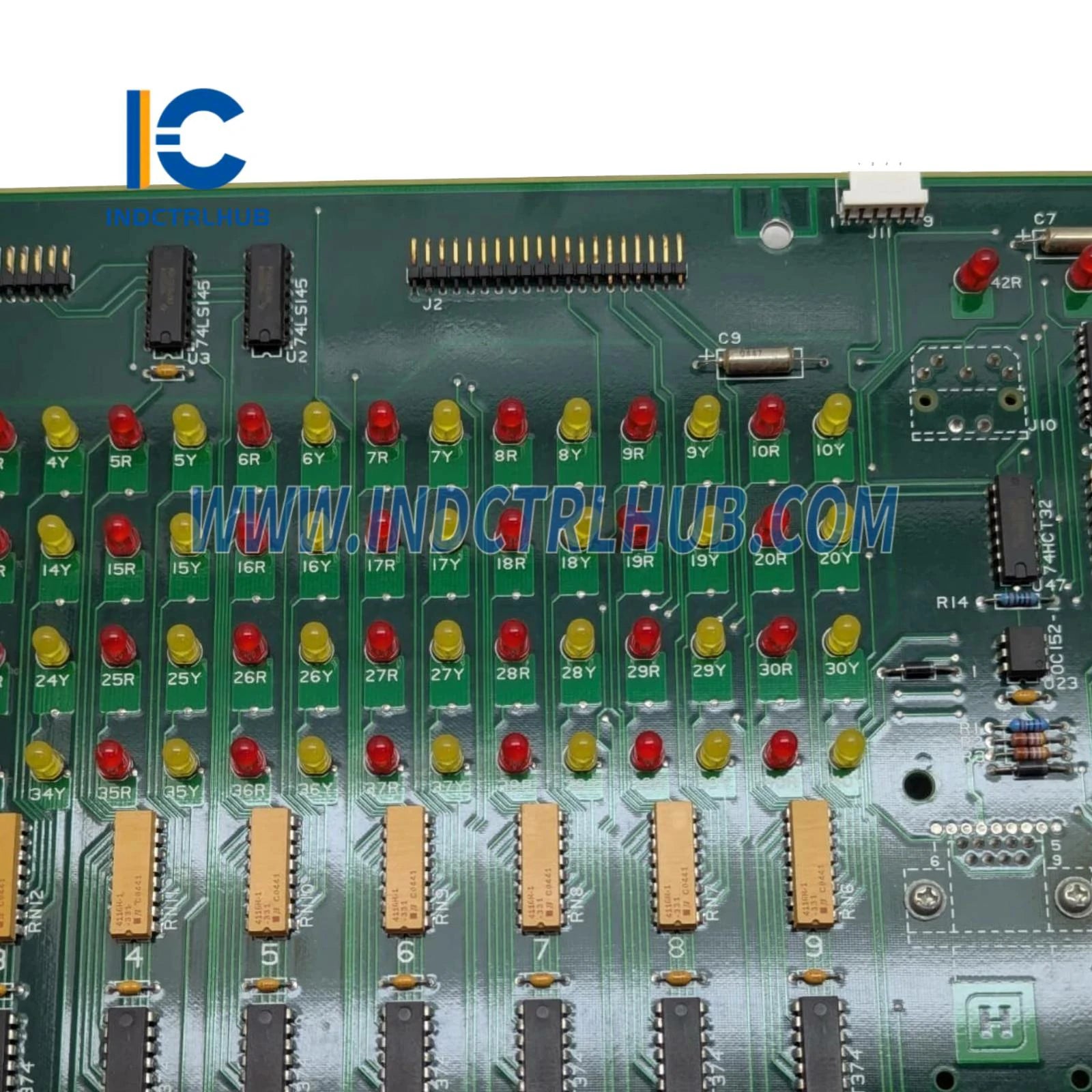

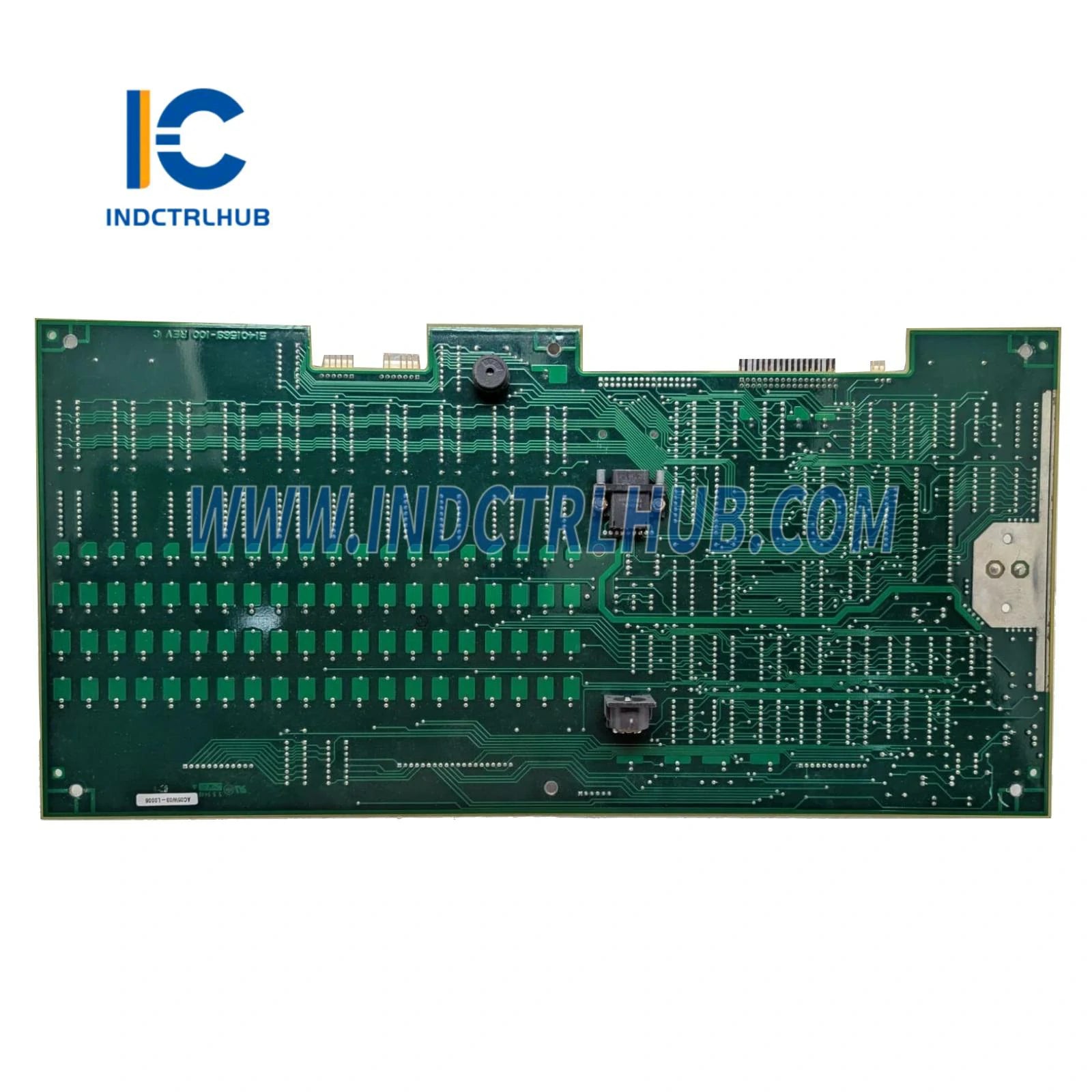

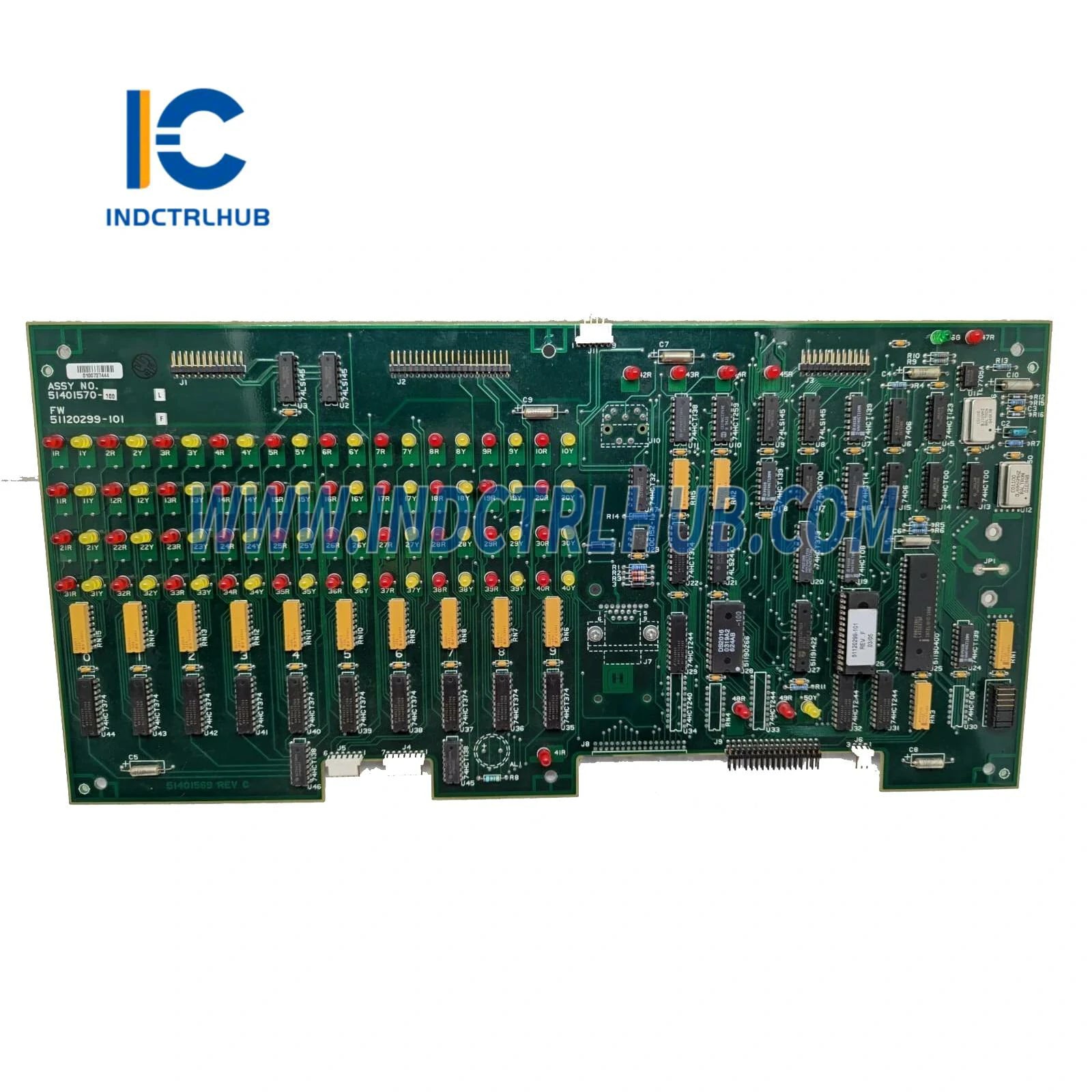

Honeywell 51401570-100 TDC 3000 LCN Module
Product Overview
- Description: The Honeywell 51401570-100 is a Local Control Network (LCN) Module designed for use in Honeywell’s TDC 3000 Distributed Control System (DCS).
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | TDC 3000 |
| Model/Part Number | 51401570-100 |
| Model Type | Local Control Network (LCN) Module |
| Function | Facilitates communication between TDC 3000 system nodes on the LCN |
| Display | Not applicable (no integrated display) |
| Inputs | Digital data from TDC 3000 system nodes |
| Outputs | Digital data to TDC 3000 system nodes via LCN |
| Communication Interfaces | Local Control Network (LCN) coaxial interface |
| Signal Conditioning | Not applicable (digital communication module) |
| Accuracy | Not applicable |
| Redundancy | Supports redundant configurations in TDC 3000 systems |
| Diagnostics | Fault detection via TDC 3000 system diagnostics |
| Compatibility | Honeywell TDC 3000 Distributed Control System |
| Power Supply | 5 VDC or 24 VDC (via TDC 3000 backplane, typical) |
| Power Consumption | 5–10 W (estimated) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in TDC 3000 rack) |
| Dimensions | Approx. 150 mm (H) x 50 mm (W) x 200 mm (D) (estimated) |
| Weight | 0.5–0.7 kg (approx.) |
| Mounting | Rack-mounted in TDC 3000 cabinet |
| Certifications | CE, UL, CSA (system-dependent) |
