Product Description
General Information
|
Item |
Details |
|---|---|
|
Manufacturer |
HIMA |
|
Model/Part Number |

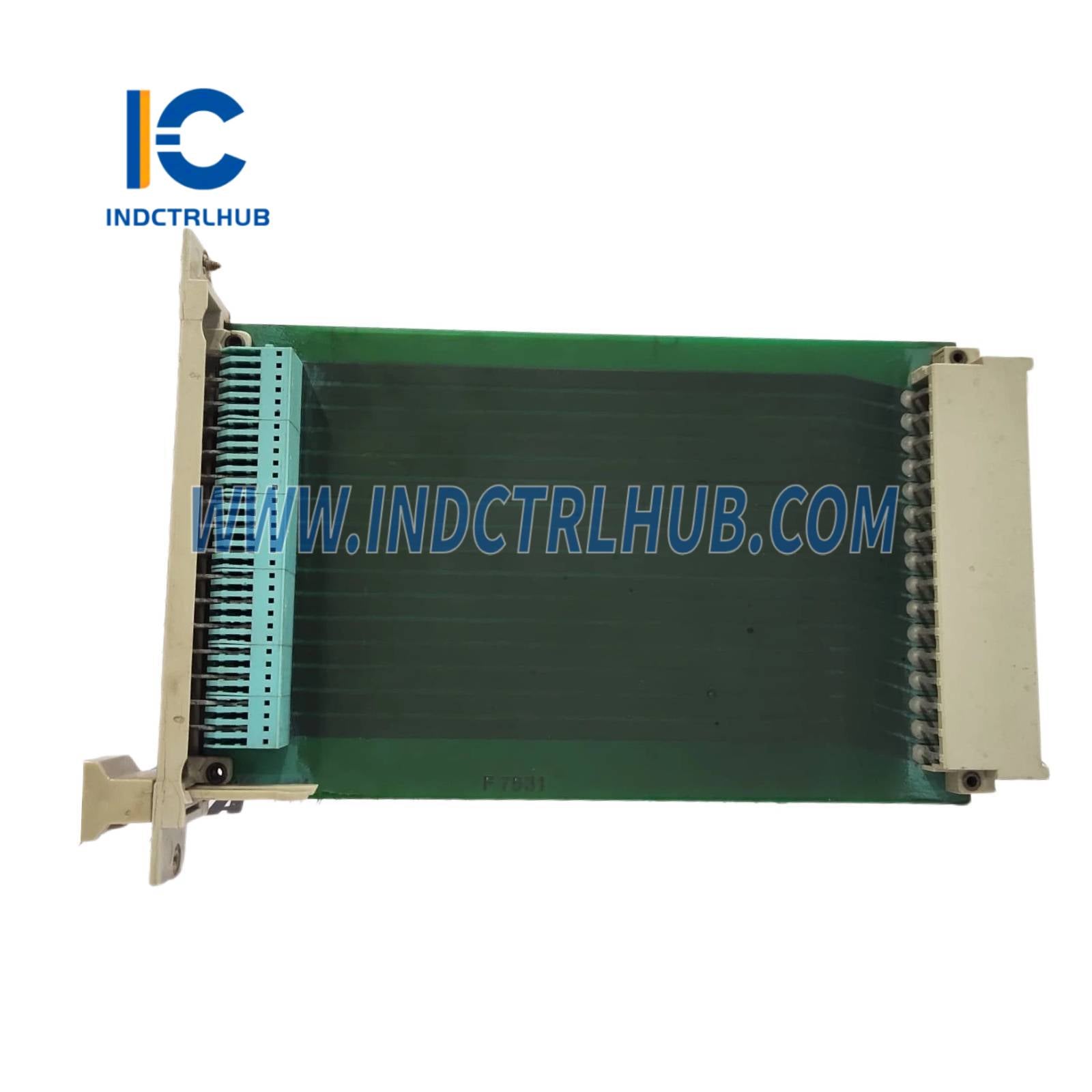

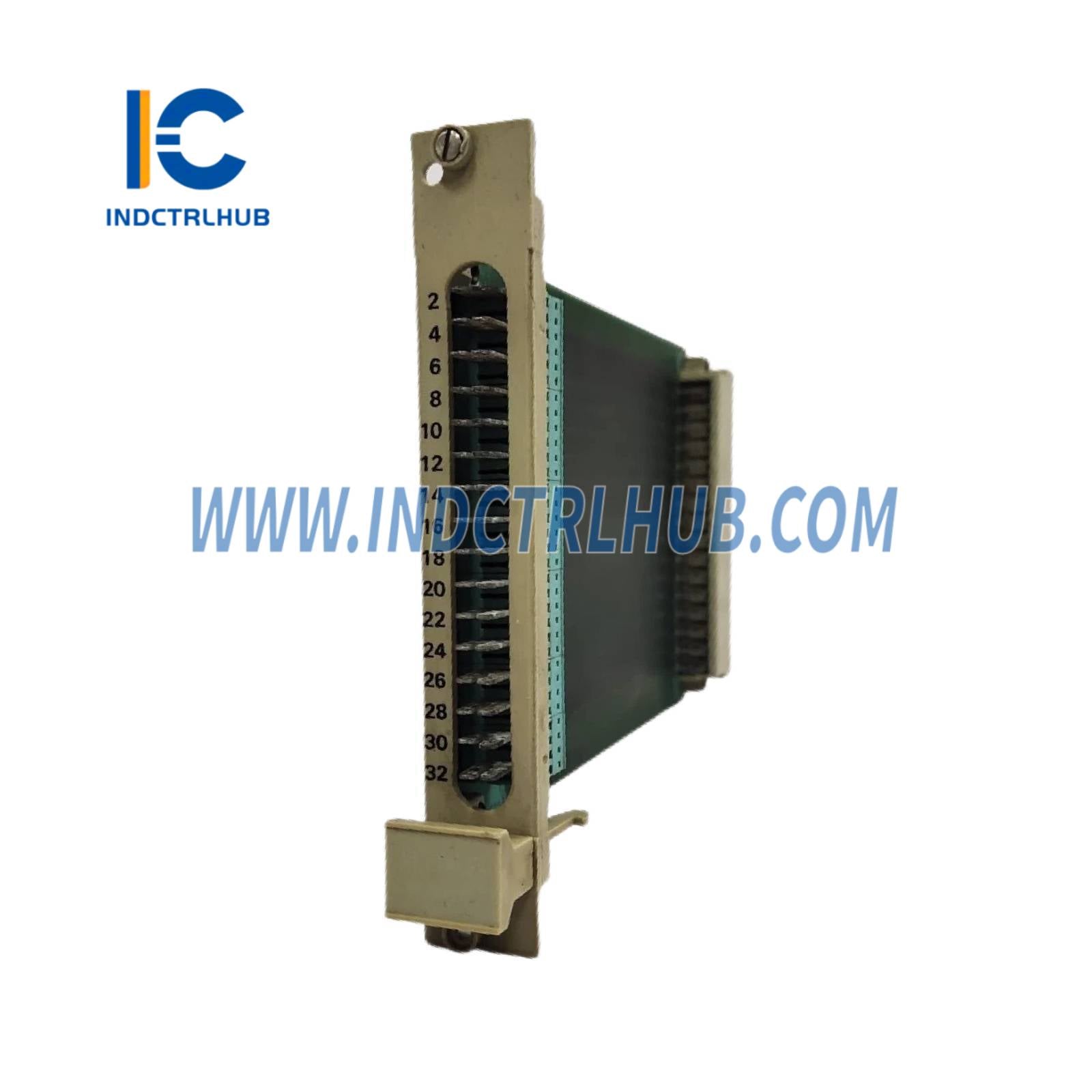

F7531 |
Description
|
Item |
Details |
|---|---|
|
Type |
Digital Input Module |
|
Application |
Provides isolated digital input channels for safety-related automation systems, typically used in HIMA HIMax or HIMatrix platforms |
Specifications
|
Category |
Details |
|---|---|
|
Channels |
32 isolated digital inputs |
|
Input Voltage |
24 V DC nominal |
|
Voltage Range |
18 to 30 V DC |
|
Input Current |
Approx. 3 mA per channel at 24 V DC |
|
Input Delay |
Configurable, typical 3–10 ms |
|
Isolation |
Galvanic isolation between channels and system bus |
|
Diagnostics |
Channel status indication, fault detection |
|
Power Supply |
24 V DC nominal |
|
Power Consumption |
Approx. 6 W (typical) |
Environmental Limits
|
Parameter |
Details |
|---|---|
|
Operating Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +85 °C |
|
Relative Humidity |
5 to 95% non-condensing |
|
Vibration |
Meets industrial vibration standards |
|
EMC |
Complies with EN 61000-6-2 and EN 61000-6-4 |
Physical Characteristics
|
Parameter |
Details |
|---|---|
|
Dimensions |
Approx. 128 mm × 25 mm × 120 mm |
|
Mounting |
DIN rail |
|
Weight |
About 150 g |
|
Connector Type |
Plug-in terminal blocks for field wiring |
Ordering Information
|
Item |
Details |
|---|---|
|
Model Number |
F7531 |
|
Accessories |
Terminal blocks and system backplane connectors ordered separately |
